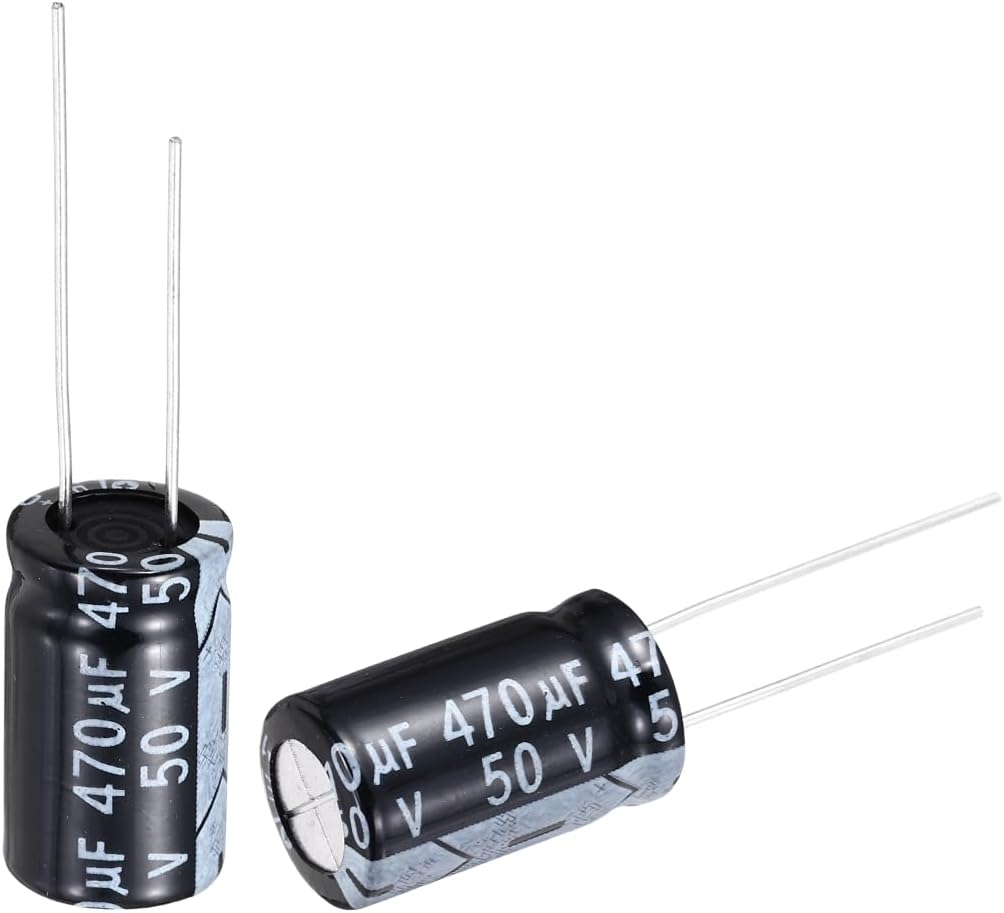

Specification:
Capacitance: 470uF
Rated Voltage: 50V
Capacitance Tolerance: +/-20% (at 120Hz, 20℃)
Lead Type: Radial
Category Temperature Range: -40℃ to +105℃ (6.3~100V)
Life Span: 2000-3000h

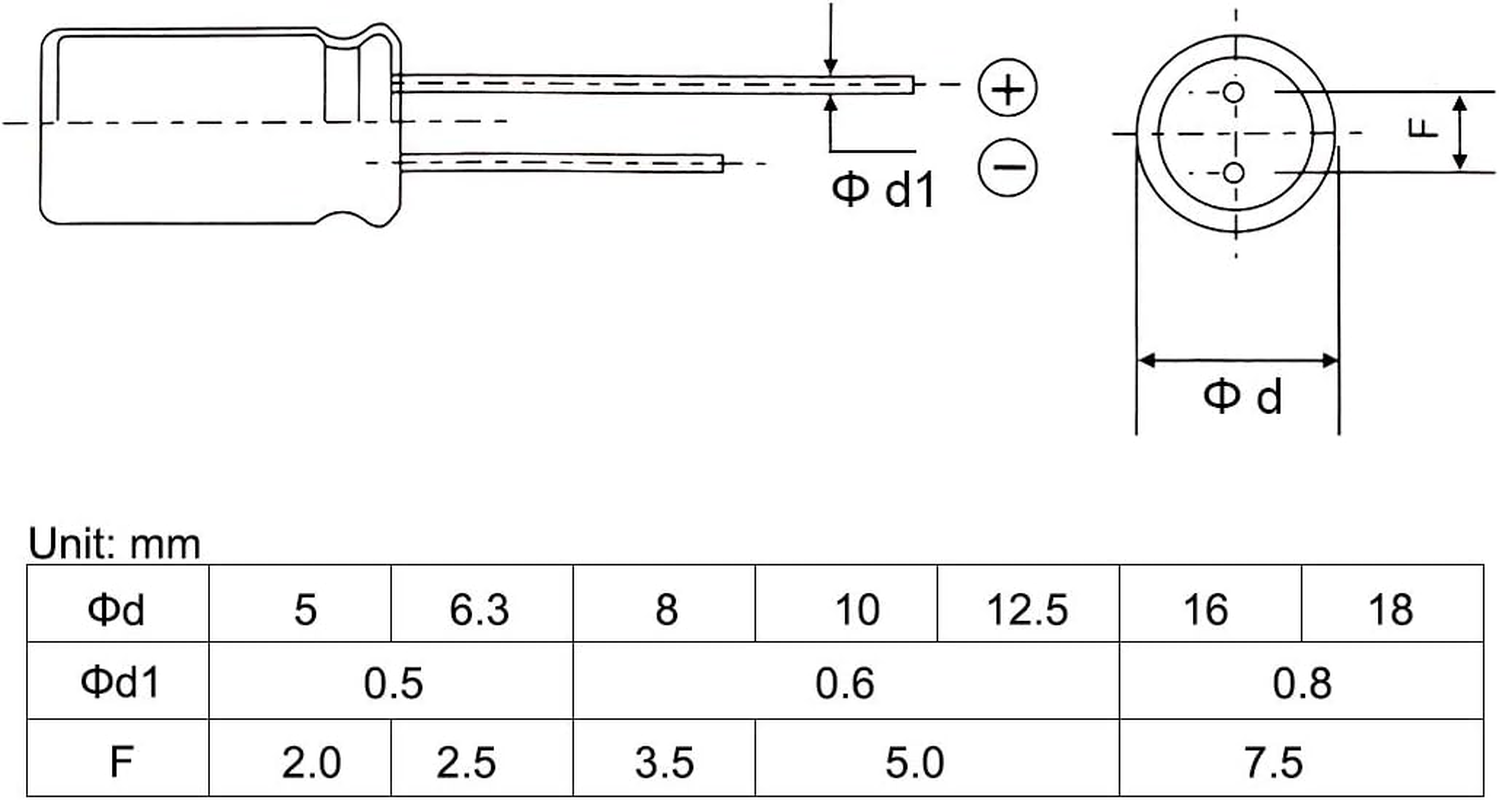

Body Size: 10 x 17mm
Lead Length: 20mm, 25mm
Lead Space: 5mm
Lead Diameter: 0.6mm
Package Content: 18 x Electrolytic Capacitors
About Our Item:
-Aluminum electrolytic capacitors are designed for use in all types of electronic equipment including power and replaceable energy, industrial, telecommunications and consumer electronics applications.
-These capacitors offer very long life in applications, with rated temperatures up to 105℃ for general-purpose applications.
-Aluminum electrolytic capacitors are used when a large capacitance is required and leakage current is not an important factor.
-For use in power supplies and computer motherboards.
Pay attention to the following cautions:
DO NOT move the capacitor after soldering to PC board.
DO NOT pick up the PC board by holding the soldered capacitor.
DO NOT insert capacitor on the PC board with a hole space different to specified lead space.
Take the position of the safety vent into consideration when designing the PC board layout.
Excessive soldering time or temperature excessive mounting force can negatively affect the capacitor's characteristics.

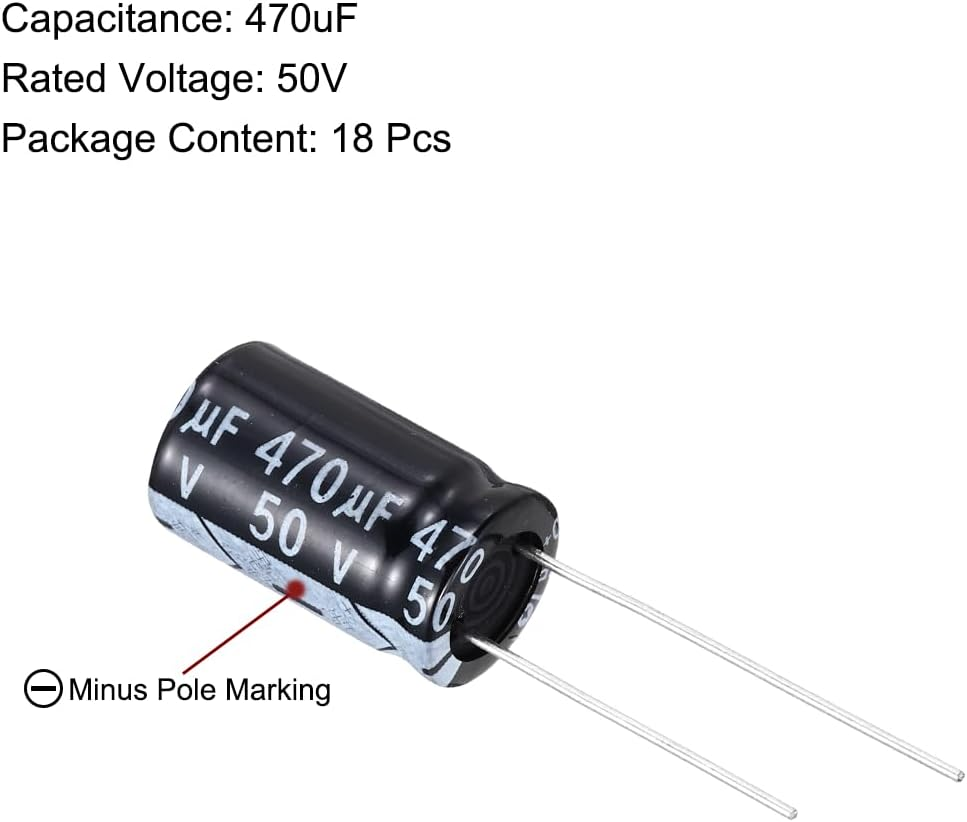

Long lead is positive end and the shorter one is the negative end.
How to select the proper capacitor for your design?
Step 1: Determine the capacitance required by the design.
Step 2: Define the expected ambient operating temperature.
Step 3: Define the DC operating voltage to be applied to the capacitor.
Step 4: Bound the space available for the capacitor (if available space is a concern).
