1. SAFE MATERIAL: Moulded case circuit breaker is made of thermosetting material with good flame retardant, will only gradually carbonize and will not burn even if meets open flame, more safe
2. WEATHER RESISTANT: MCCB solar battery protection switch environmental usage temperature from ‑20℃ ‑ 60℃, suitable for more extreme environment

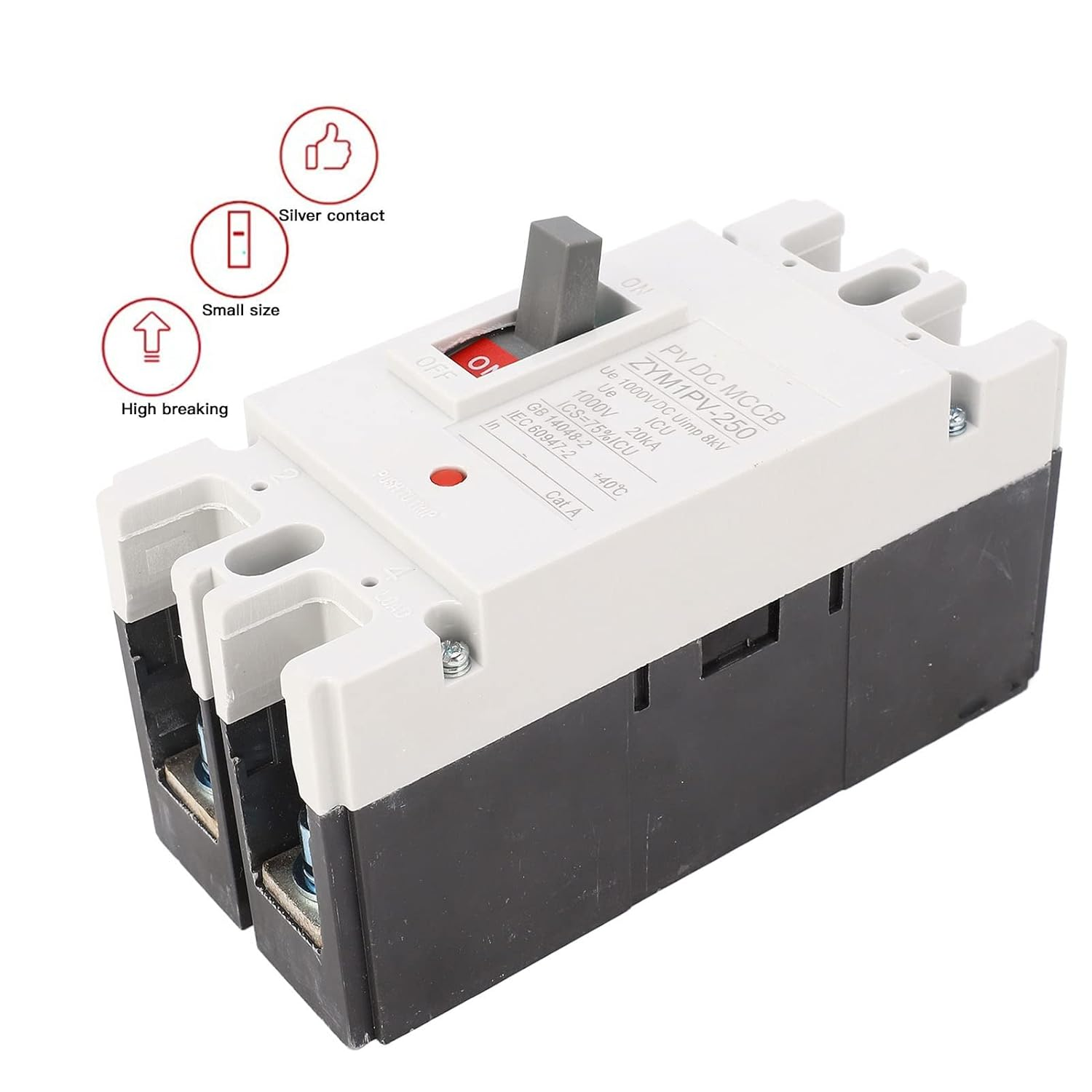

3. PROTECTION FUNCTION: The solar battery protection switch has the characteristics of small size, with short circuit protection, overload protection, flame retardant shell, high breaking, short arc and so on
4. MAIN FUNCTIONS: DC circuit breaker is mainly used to distribute electric energy and protect lines and power equipment from overload, short circuit, undervoltage and other faults, can also be used as motor infrequent starting and overload, short circuit, undervoltage protection
5. WORKING PRINCIPLE: When the circuit overload or short circuit and other causes of overcurrent, the circuit breaker will be immediately disconnected, so as to protect the circuit
Specification:

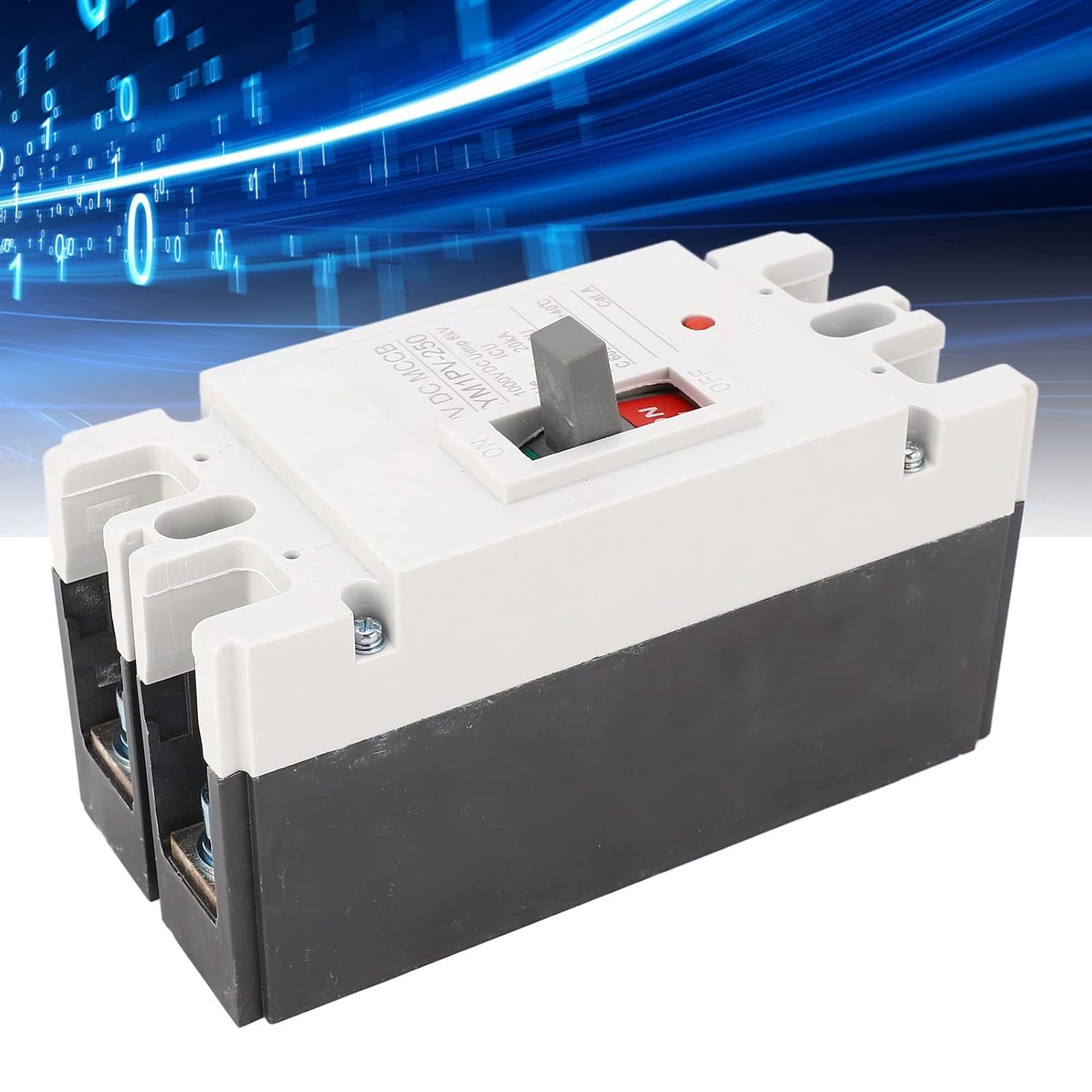

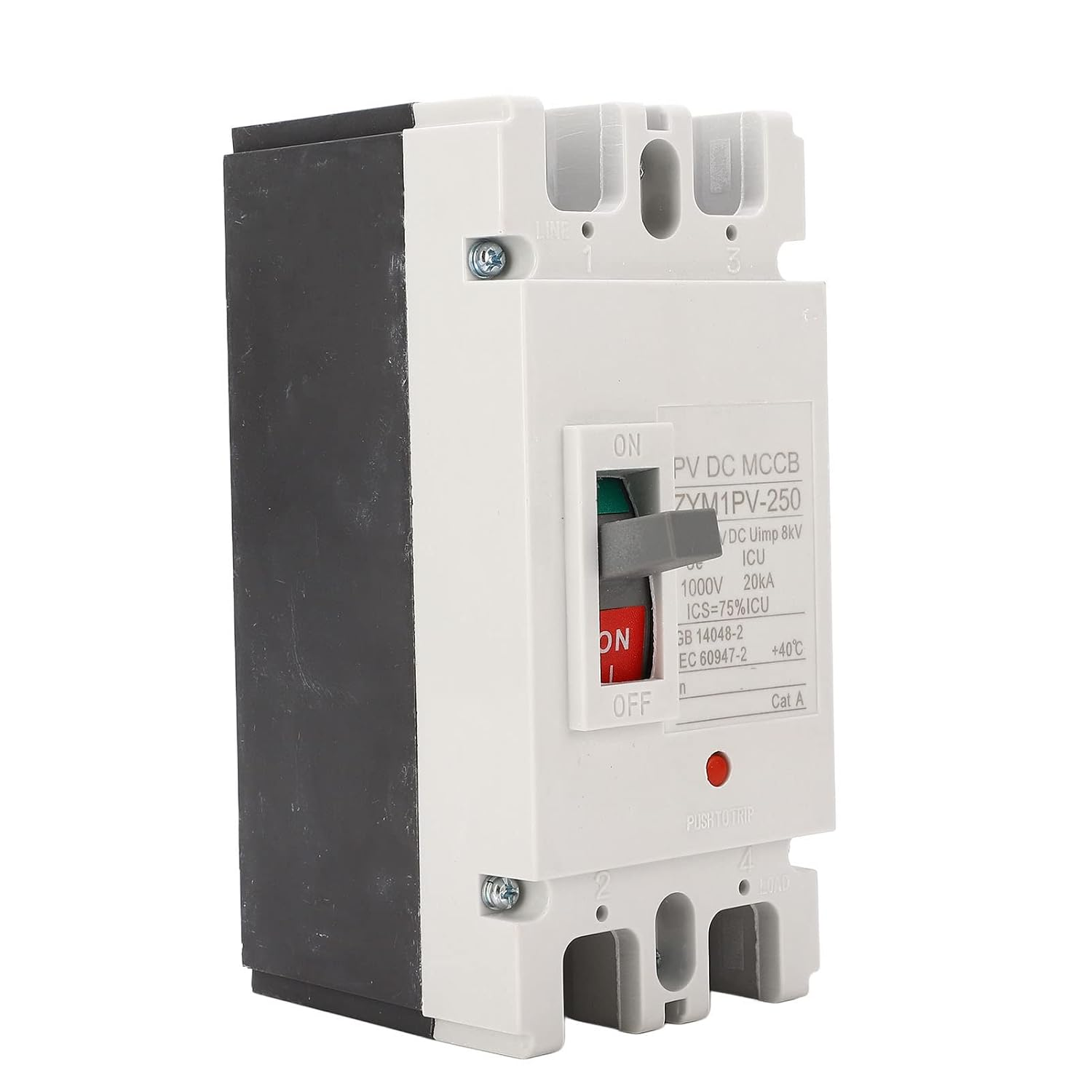

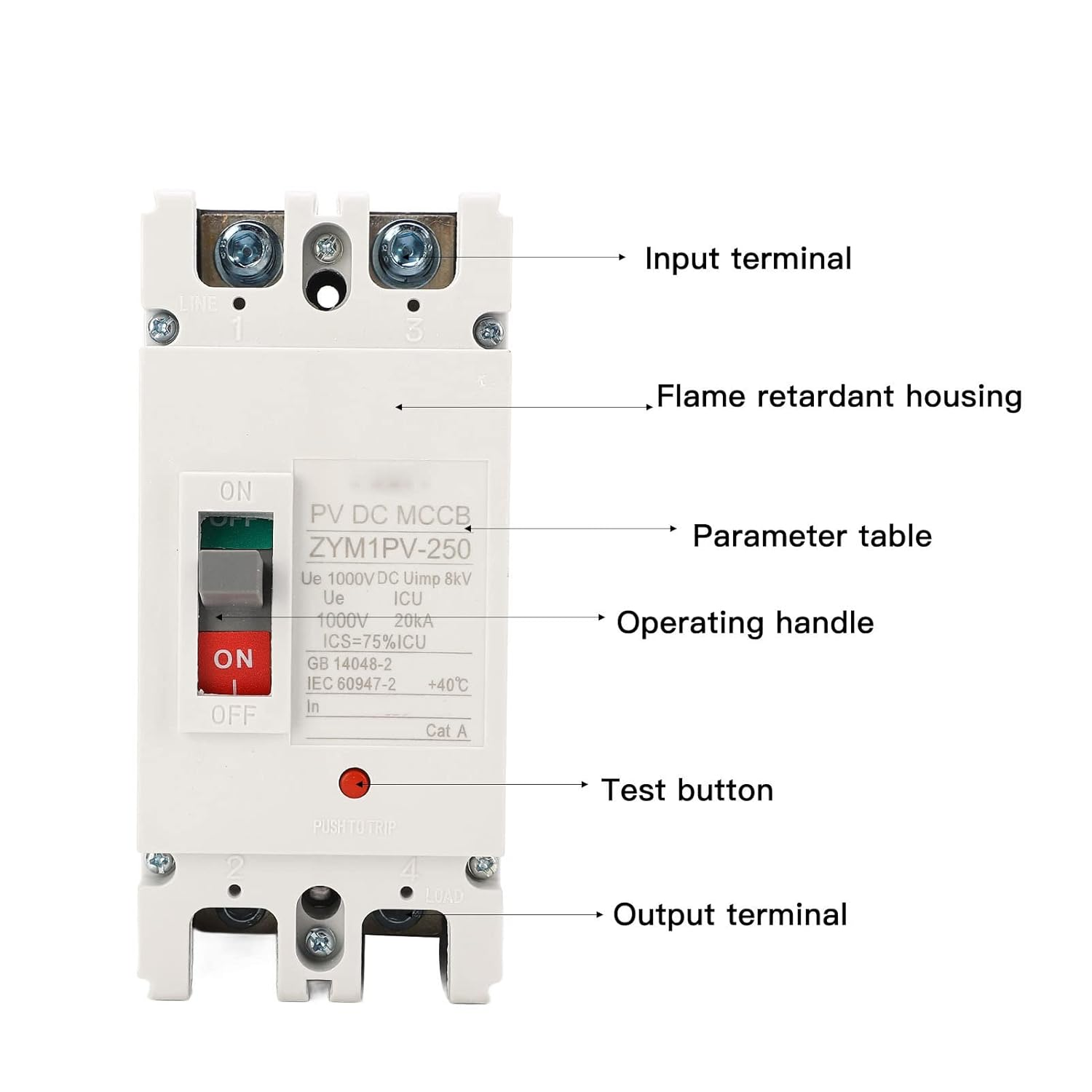

Item Type: Moulded Case Circuit Breaker
Material: Thermosetting plastic and silver alloy
contacts: Alloy contacts with 30% silver
Rated Current: 200A
Rated Voltage (Ue): DC 1000 v
Breaking Capacity: 20KA
Recommended Installation Mode (2P): Vertical, top in, and bottom out cables
Rated Impact Withstand Voltage (Uimp): 8KV
Ics=75% Icu
How to Use:
Install and use directly.

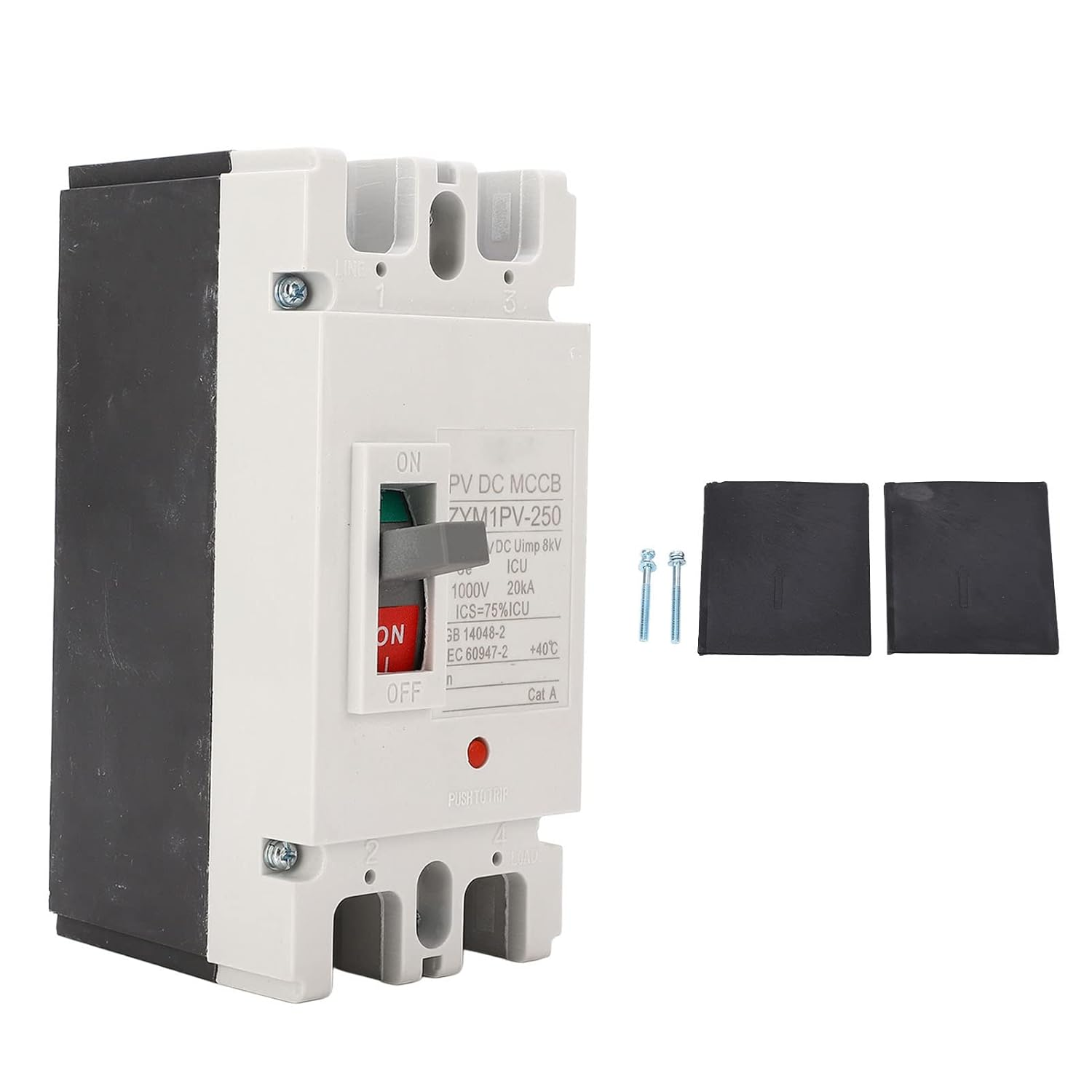

packing list:
1 x Circuit Breaker
2 x Mounting Screw
2 x Accessories
