1. INPUT AND OUTPUT: Universal frequency converter, single phase input and 3 phase 380V output, suitable for 7.5KW (10HP) motor power, has good practicability.

2. HIGH PERFORMANCE: The motor inverter converter has high torsion, high accurate and wide speed regulation drive, which is stable and reliable in performance.

3. SAFE OPERATION: The inverter adopts anti trip design, which has the ability to adapt to bad power grid, temperature and dust interference, and it is safe to operate.

4. GOOD STABILITY: Built in filter, and adopt V/F open loop control mode, with PWM control output voltage regulation mode, has good performance stability.

5. WIDE APPLICATION: Can be used to control the start and stop, speed regulation, CW and CCW of the motor, widely used in fans, pumps, air compressors, etc.

Specification:

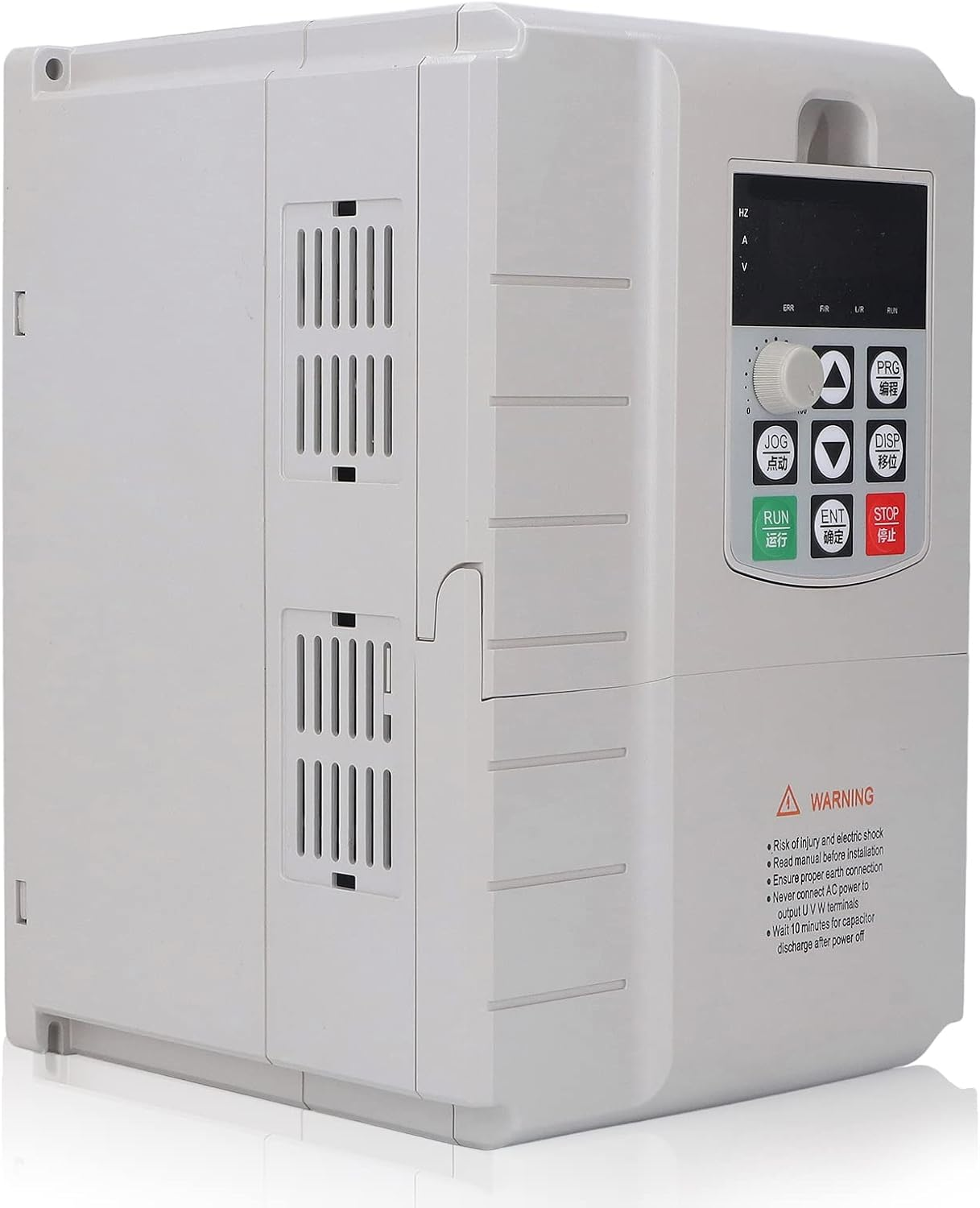

Item Type: Frequency Converter

Model: AT904-7.5KW

Input Voltage: Single Phase 220VAC 50/60Hz

Output Voltage: 3 Phase 380VAC 0-400Hz

Maximum Output Current: 32A

Suitable Motor Power: 7.5KW (10HP)

Filter: Built in Filter

Application: Universal

DC Power Supply Property: Voltage Type

Control Mode: V/F open loop

Output Voltage Regulation Mode: PWM Control

Appearance: ABS plastic shell

Product Size: Approx. 25 x 18 x 16.5cm / 9.8 x 7.1 x 6.5in

Uses: Control the start, stop, speed regulation and forward and reverse rotation of the motor to meet the conditions required for production or equipment use, widely used in fans, pumps, air compressors, etc.

PackageList:

1 x Frequency Converter

1 x User Manual

Notice:

1. Select a compatible motor to use, you must choose a 380V 3 phase motor with a power less than 7.5KW and adjustable speed.

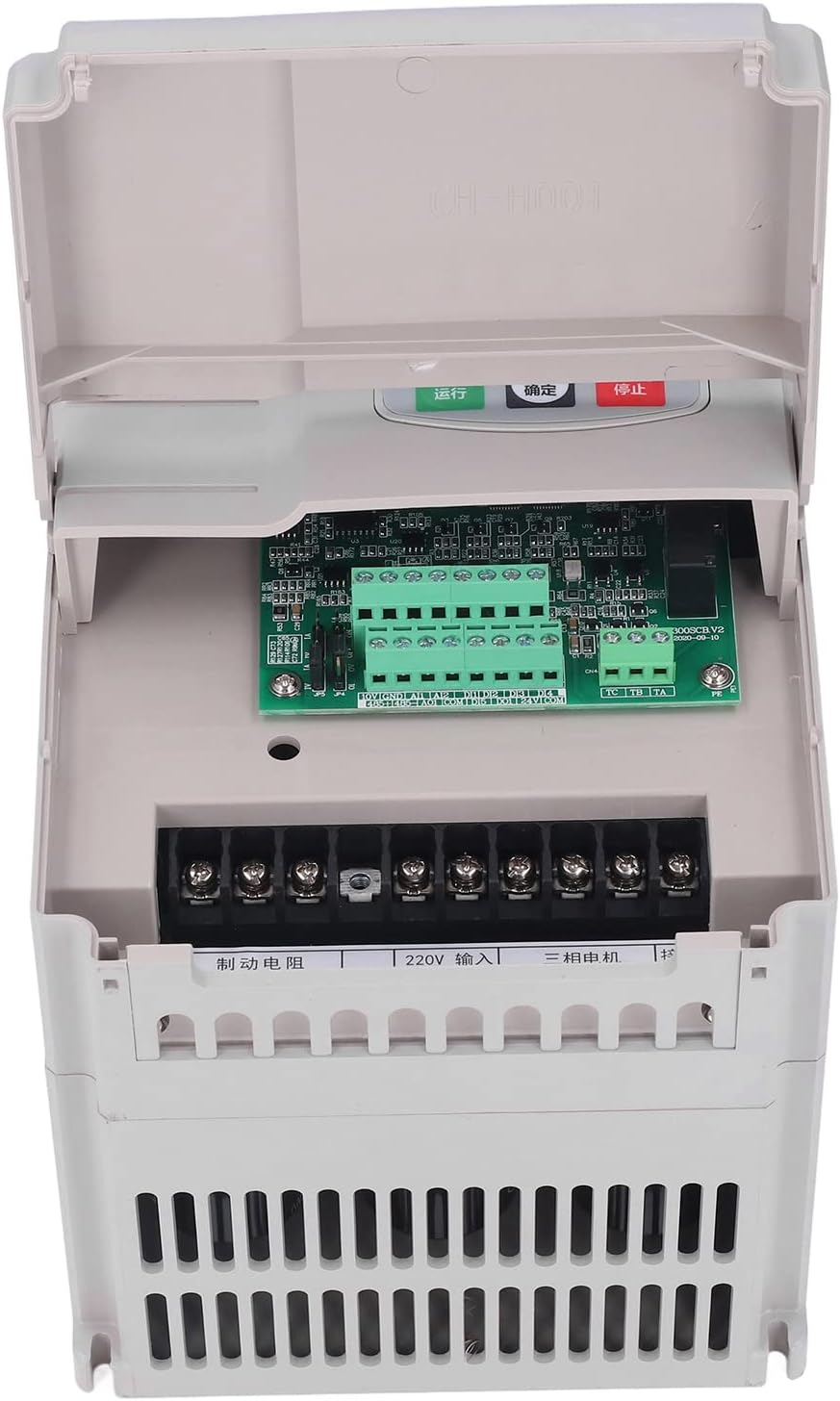

2. According to the wiring method of the user manual, connect the power supply and the 3 phase motor.

3. Select the appropriate operation mode according to the needs of the application scenario, and refer to the manual for mode selection.

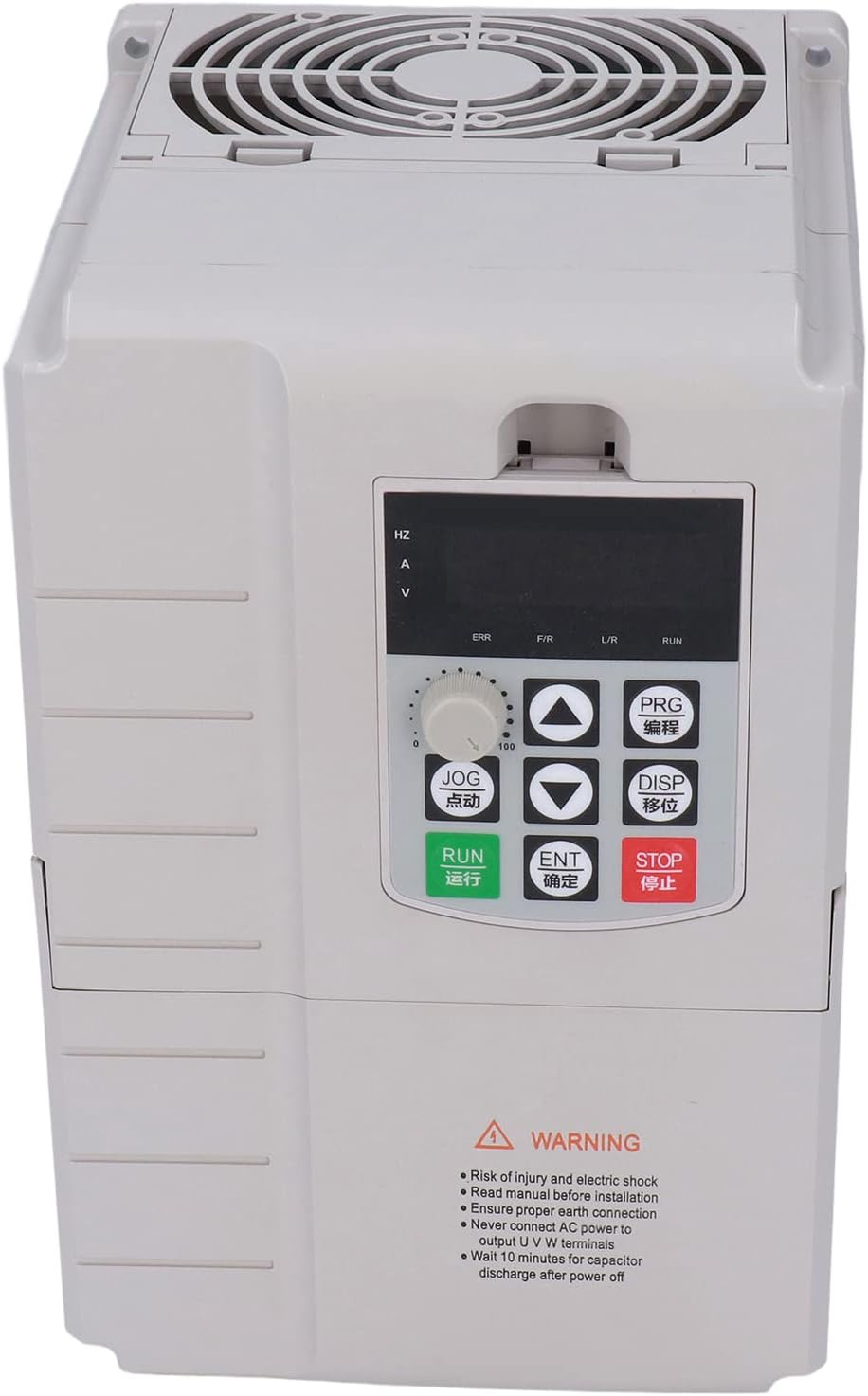

4. Power on, the speed of the motor and forward and reverse rotation can be adjusted according to the knob on the panel.
