Specification:
Item Type: Phase Sequence Tester
Material: ABS

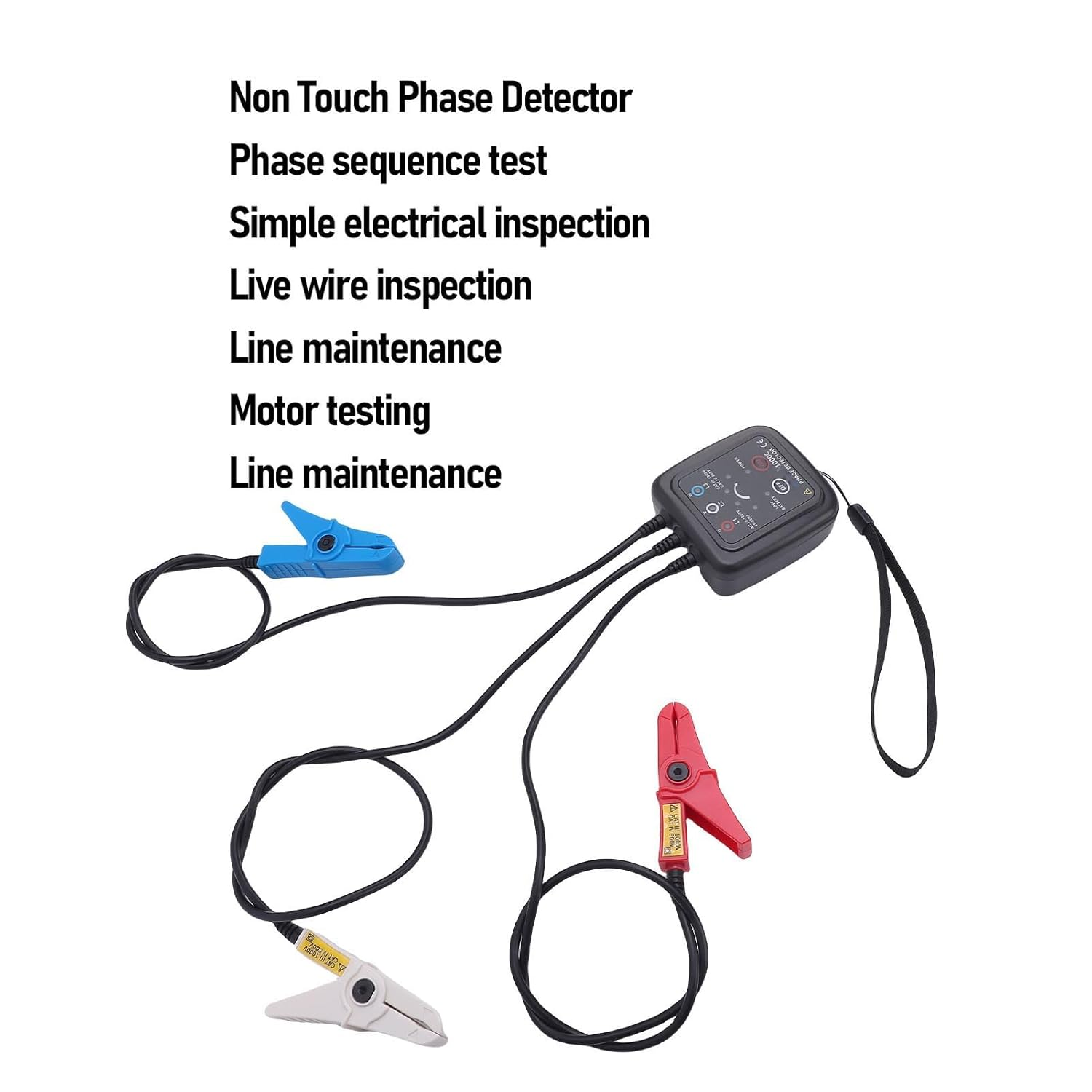

Function: Phase sequence check (positive phase, reverse phase, phase loss), live wire check, simple electrical inspection, breakpoint locating, line inspection
Power Source: DC3V 2 x AA dry batteries (not included)
Live Voltage Range: AC 70-, 45/65Hz (sine waveform continous input)
Clamp Wire Size: Outer Diameter Approx. 1.6-16mm / 0.06-0.63in

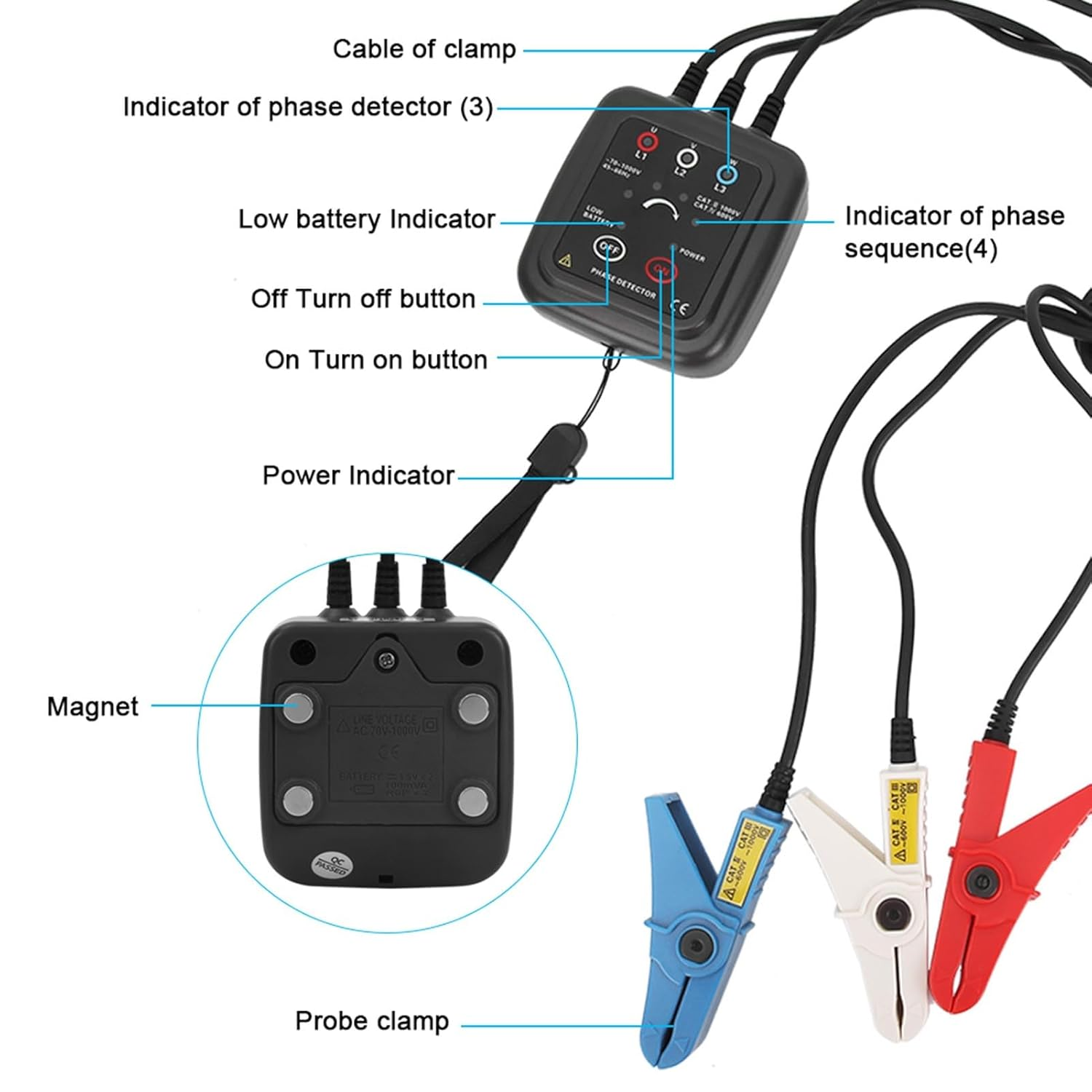

LED Display:

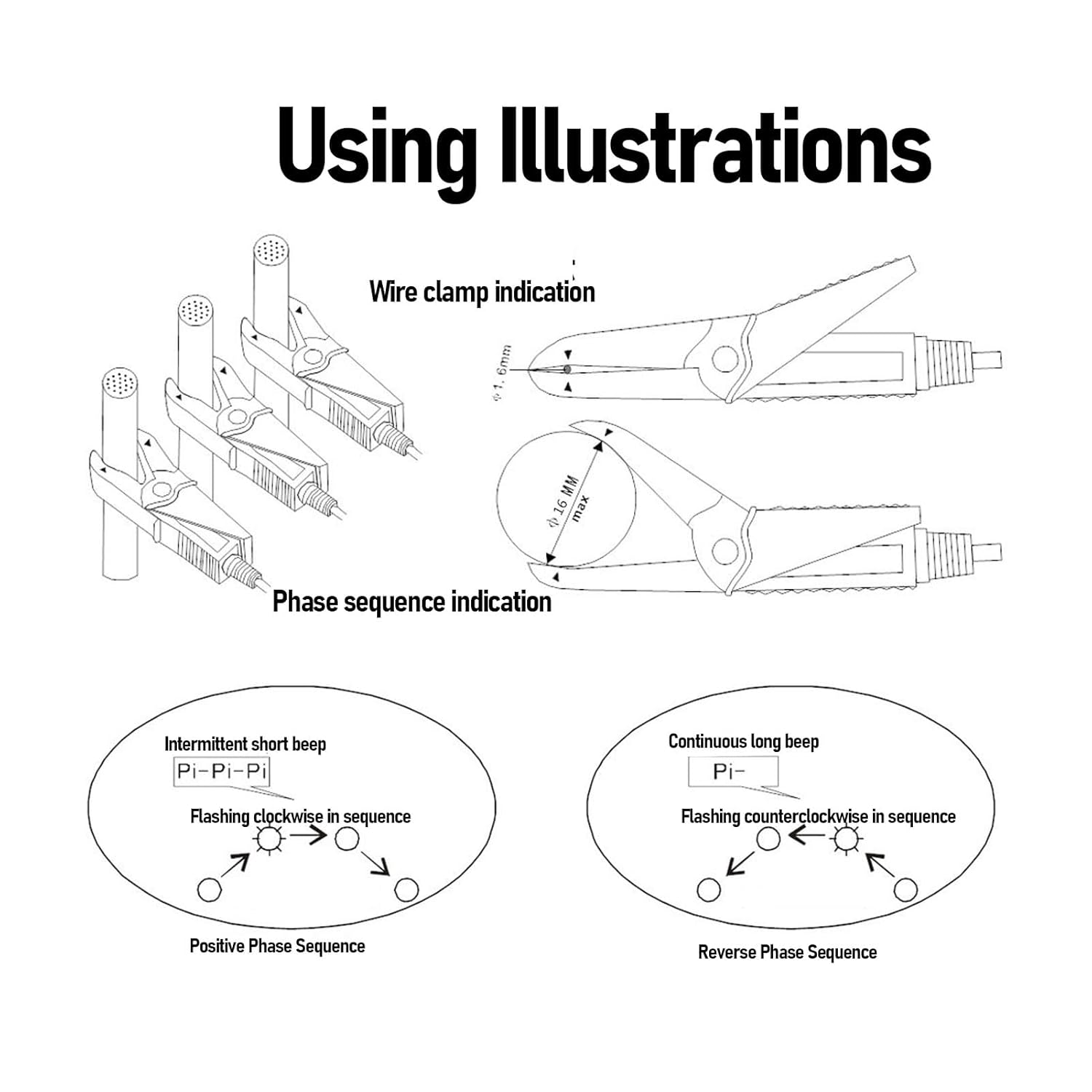

Positive Phase: 4 phase check lights light up clockwise
Reverse Phase: 4 phase check lights light up counterclockwise
Live: L1, L2, L3 lights up within voltage setting range
Missing Phase: L1 or L2 or L3 light does not light up
Breakpoint: L1 or L2 or L3 light does not light up
Buzzer:
Positive Phase: Intermittent short beep
Reverse Phase: Continuous long beep
Battery Check: POWER indicator light turns on after power on; LOW BATTERY light turns on when battery is low
Magnet: Four magnets on the back of the meter, can be hung on the distribution box, can bear 800g mass
Auto Power Off: Automatically shuts off approximately 5 minutes after turning on
Meter Size (WxHxT): Approx. 70x75x30mm / 2.76x2.95x1.18in
Clamp Wire Length: Approx. 0.6m / 23.6in
Working Temperature Humidity: -10℃ to 55℃; below 80%rh
Storage Temperature Humidity: -20℃ to 60℃; below 90%rh
Maximum Voltage Measurement: AC1000V
Insulation Strength: 5.4kVrms
Maximum Rated Power: 300mVA
Suitable Safety Standards: EN61010-1:2001, EN61010-031:2002, Pollution Degree 2, CAT Ⅲ (), Transient Overvoltage 6000V
How to Use:
Remove the product and directly use.

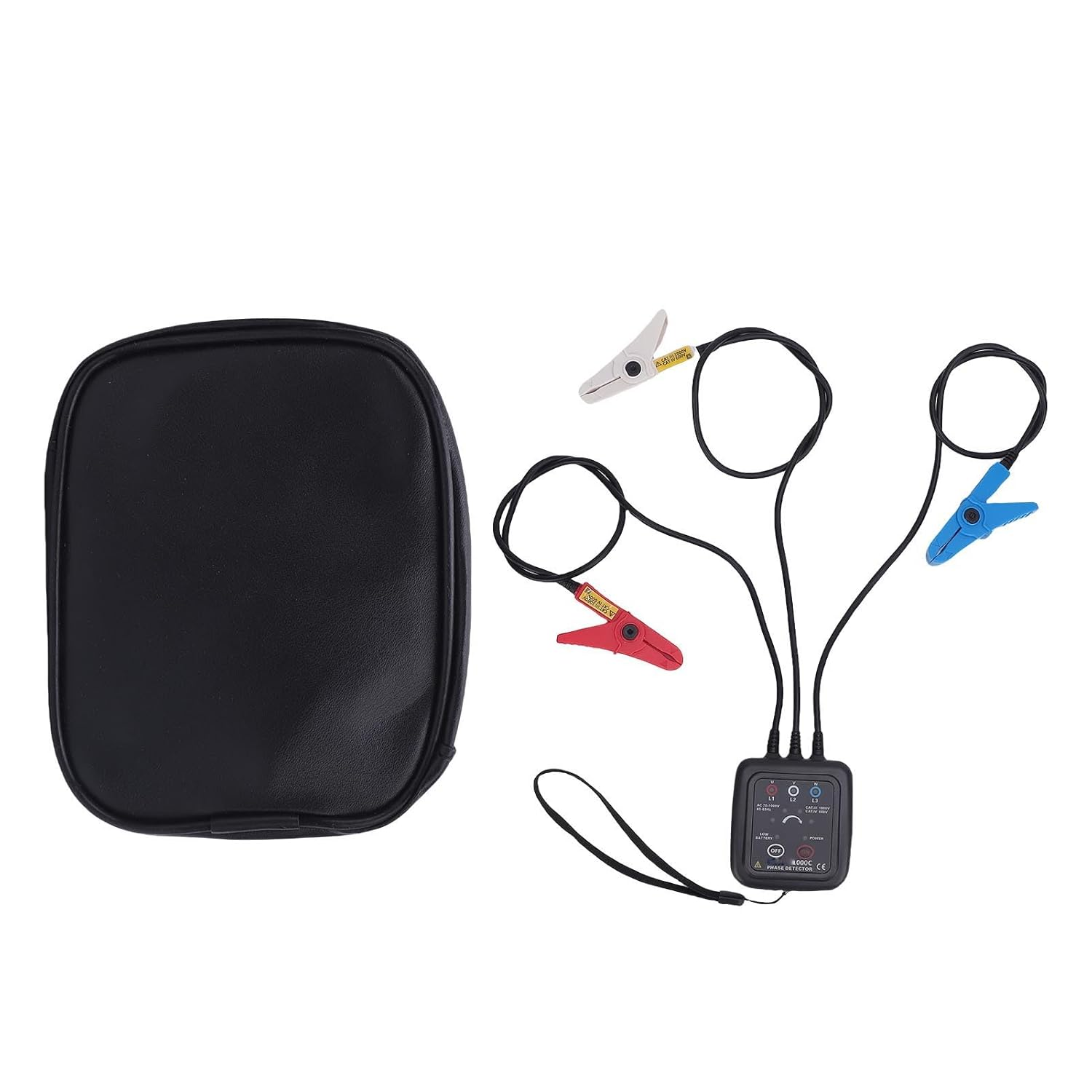

Package List:
1 x Phase Sequence Tester
1 x User Manual
1 x Storage Bag
