1. Material, high hardness and .
2. Pneumatic control valve is the pneumatic system for controlling the air pressure and direction and ensures the normal work of pneumatic actuator components or institutions of all types of pneumatic components.
3. The compactness of structure and sealing material ensures a high tightness of the connection.
4. Compact size and low weight, good sealing performance.
5. Used in industrial control systems to adapt the direction, rate, speed and other parameters of the medium.
Technical dataification:
Features:
From material, high hardness and .
The pneumatic control valve is the pneumatic system for controlling the air pressure and direction and ensures the normal work of pneumatic actuator components or institutions of all kinds of pneumatic components.
The compactness of structure and sealing material ensures a high tightness of the connection.
Compact size and low weight, good sealing performance.
Is used in industrial control systems to adapt the direction, rate, speed and other parameters of the medium.
Technical dataification:
Working medium: air
Pipe diameter: inlet = outlet = pt1/4; Exhaust = G1/8
Effective cross -sectional area: 16.0 m㎡
Number of positions: 5 port 3 position
Working pressure: 0-0.8MPa
Guaranteed print: 1.5 MPa
Working temperature: - 20 to 70 ℃
Material: alloy
Working frequency: 5 times per second

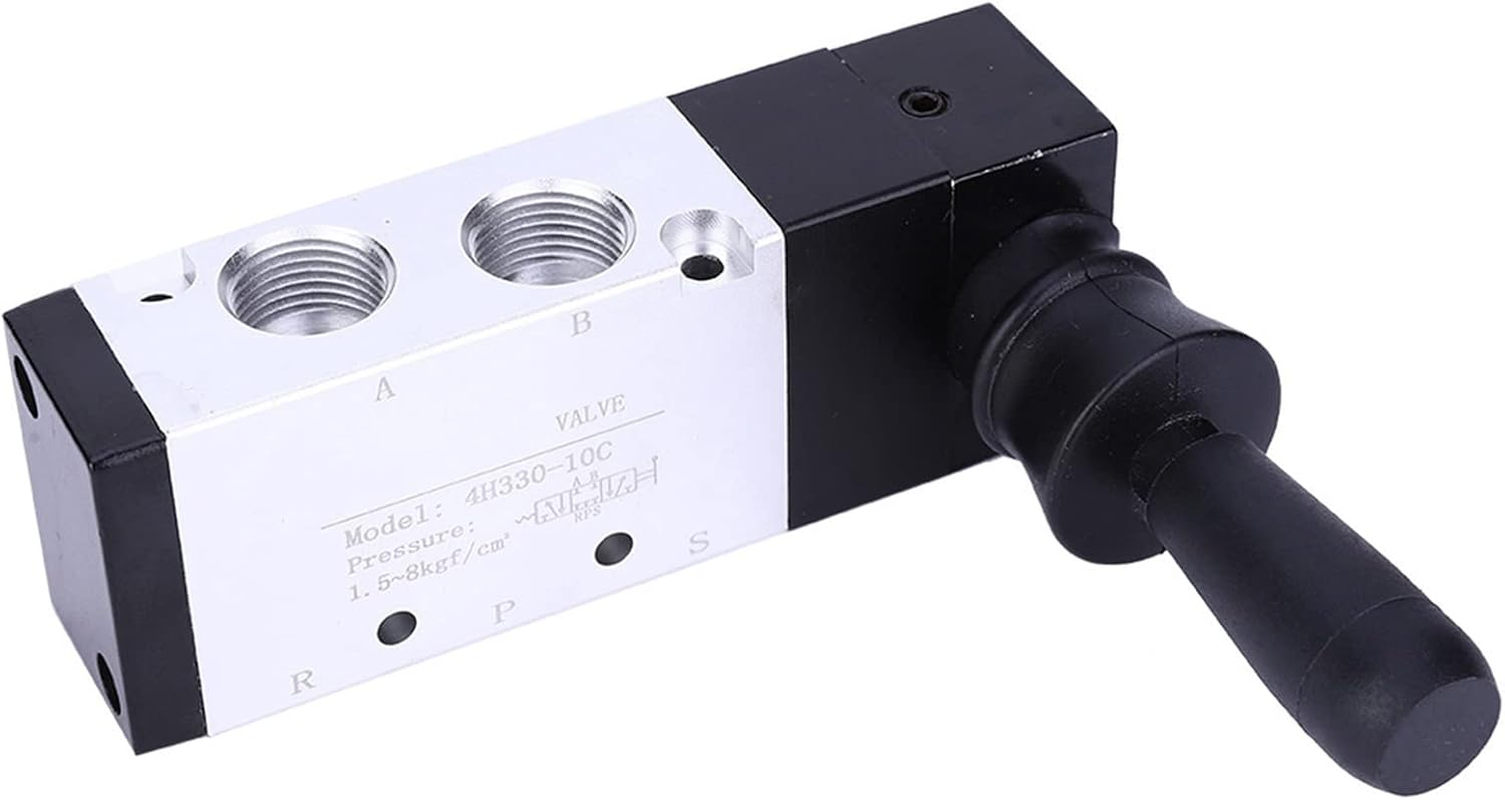

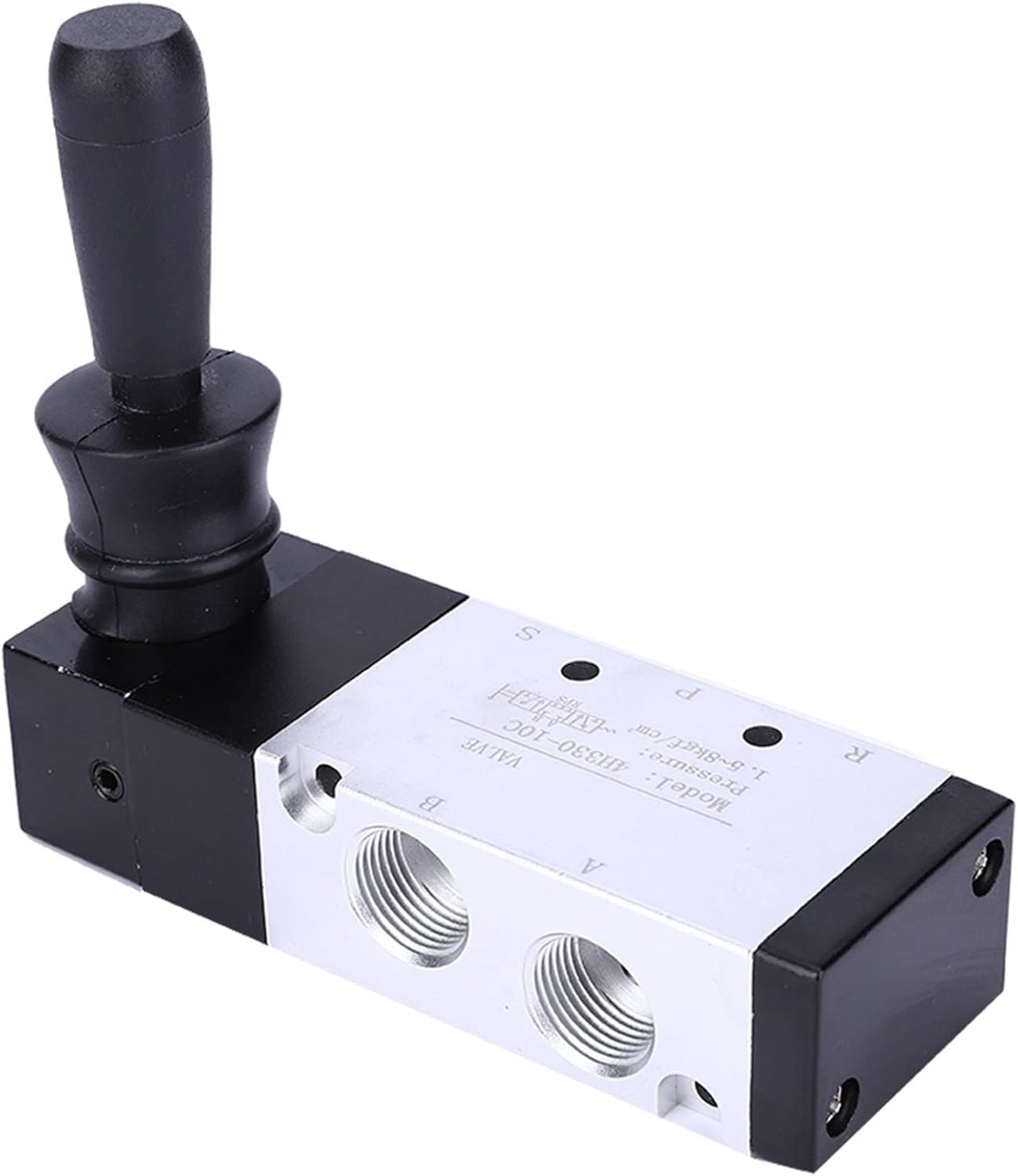

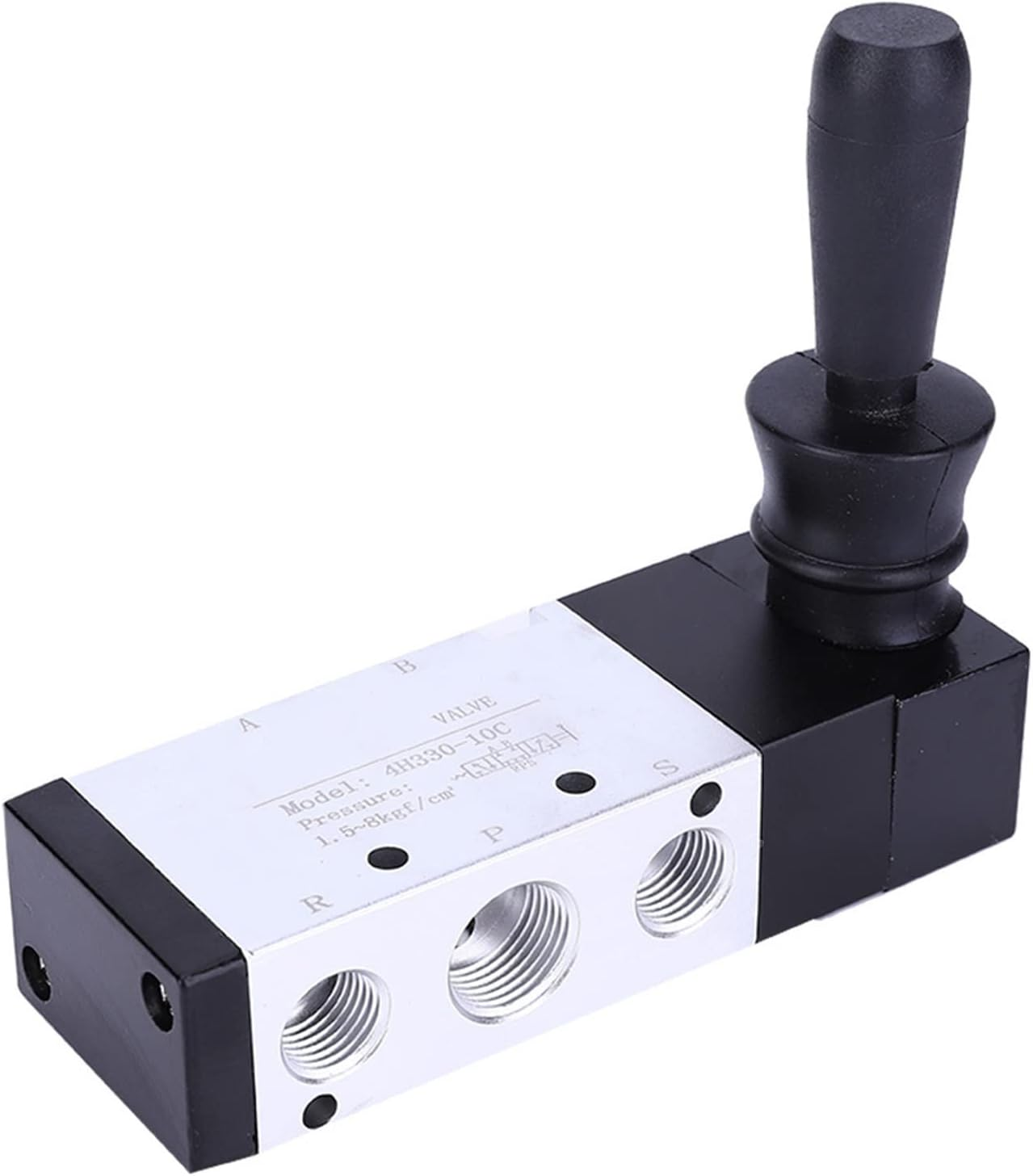

Model: 4H230-08, 4H330C-10, 4H430-15 (optional)
List of packages:
1 x pneumatic valve
A notice:
Please note that the new type and the old type of this product are sent randomly and sure that it does not matter before ordering.
