1. Working within the effective voltage range, the valve will be opened or closed within 3-5 seconds

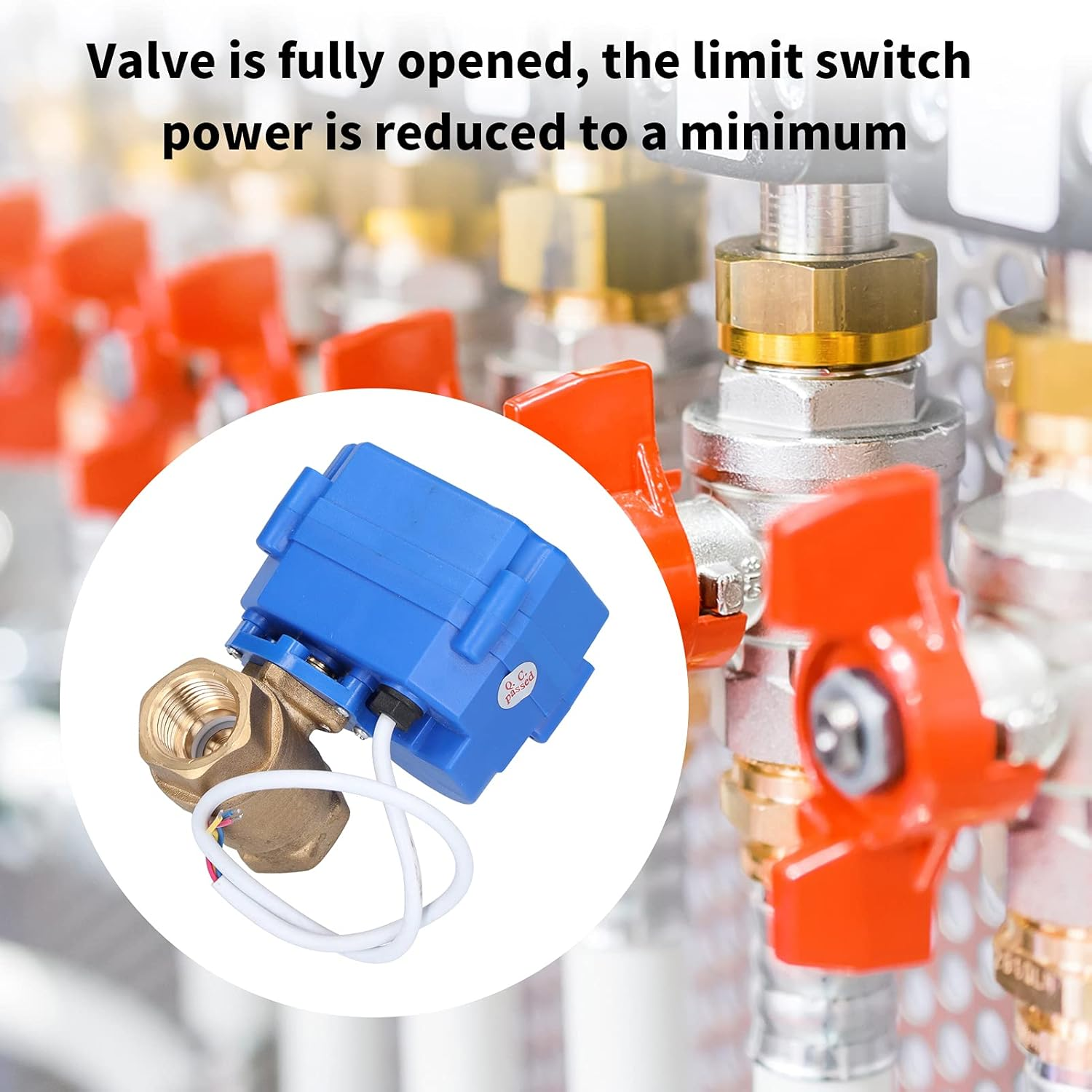

2. After the valve is fully opened, the limit switch reduces the power to a minimum
3. The three‑wire two‑control mode is convenient for wiring; if the power is off, will return to the fully closed state
4. A substitute for the solenoid valve, can automatically cut off the power when fully opened or fully closed, reducing the possibility of overheating
5. The valve is made of brass, safe and reliable, and has a long service life. Suitable for water treatment miniature electric ball valve
Spec:
Item Type: Electric Ball Valve
Model: CWX-15N-CR02-DC12V-DN15
Adaptation : DN15
Rated Voltage: DC12V
Medium Temperature: The Temperature is Equal to or Less than 100℃
Working Pressure: Maximum1.0Mpa
Protection Level: IP67
Connection Method: CR02
Commodity Use: Water Treatment Miniature Electric Ball Valve
Direction: DC
Cable Length: Approx. 35cm / 13.7in
Thread Standard: BSP
How to Use:
Please refer to the detailed manual for wiring before use

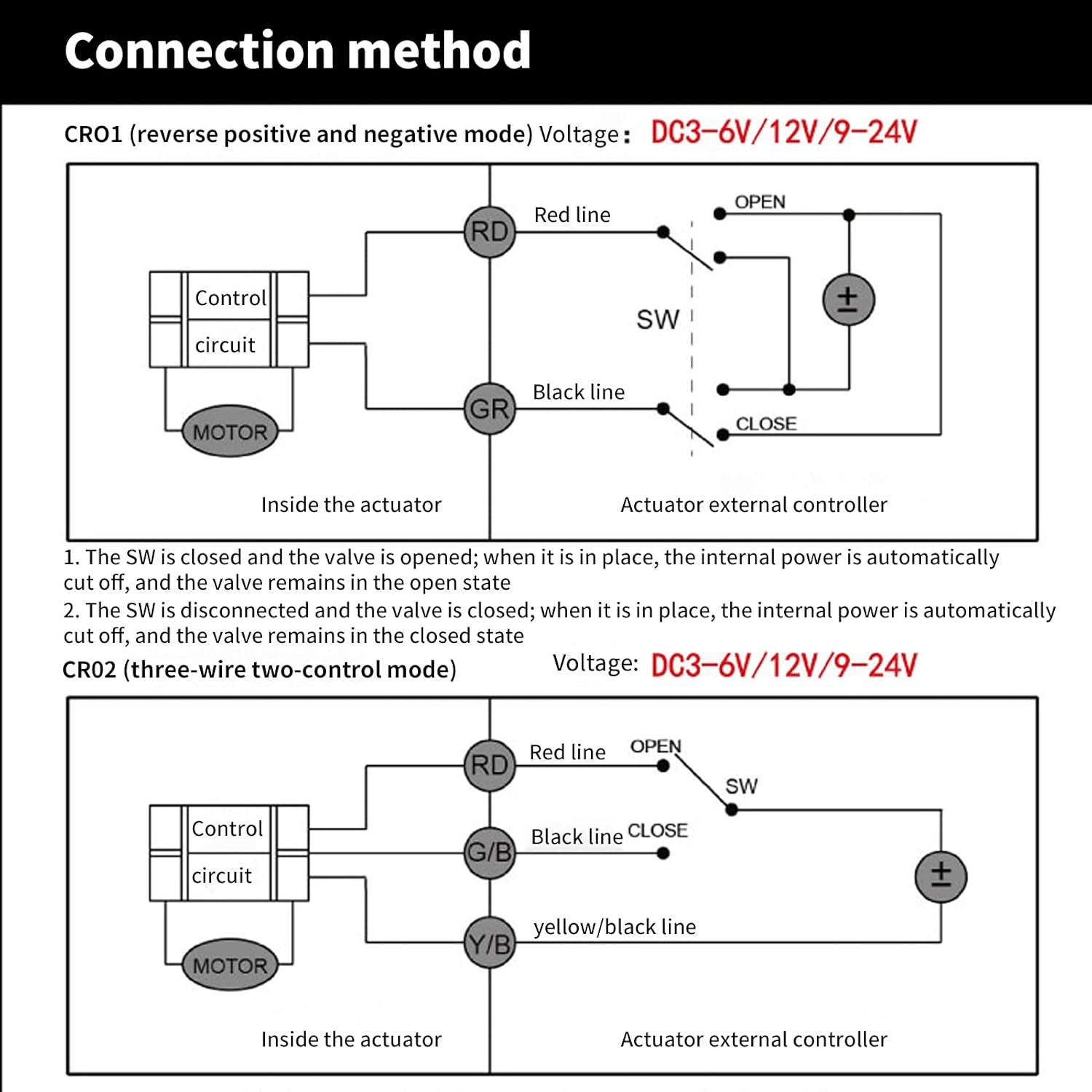

1. The SW is connected with OPEN, the valve opens; when it is in place, the internal power is automatically cut off and the valve remains in the open state
2. SW is connected with CLOSE, the valve is closed; when it is in place, the internal power is automatically cut off, and the valve remains in the closed state
packing list:
1 x Mini Electric Ball Valve
