Timer Relay Module DC12V Adjustable Relays Time Delay Timer Module LED Display Delay Turn off Switch

Timer Relay Module DC12V Adjustable Relays Time Delay Timer Module LED Display Delay Turn off Switch

Brand: YDuupxe
4.4
A$12.85
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

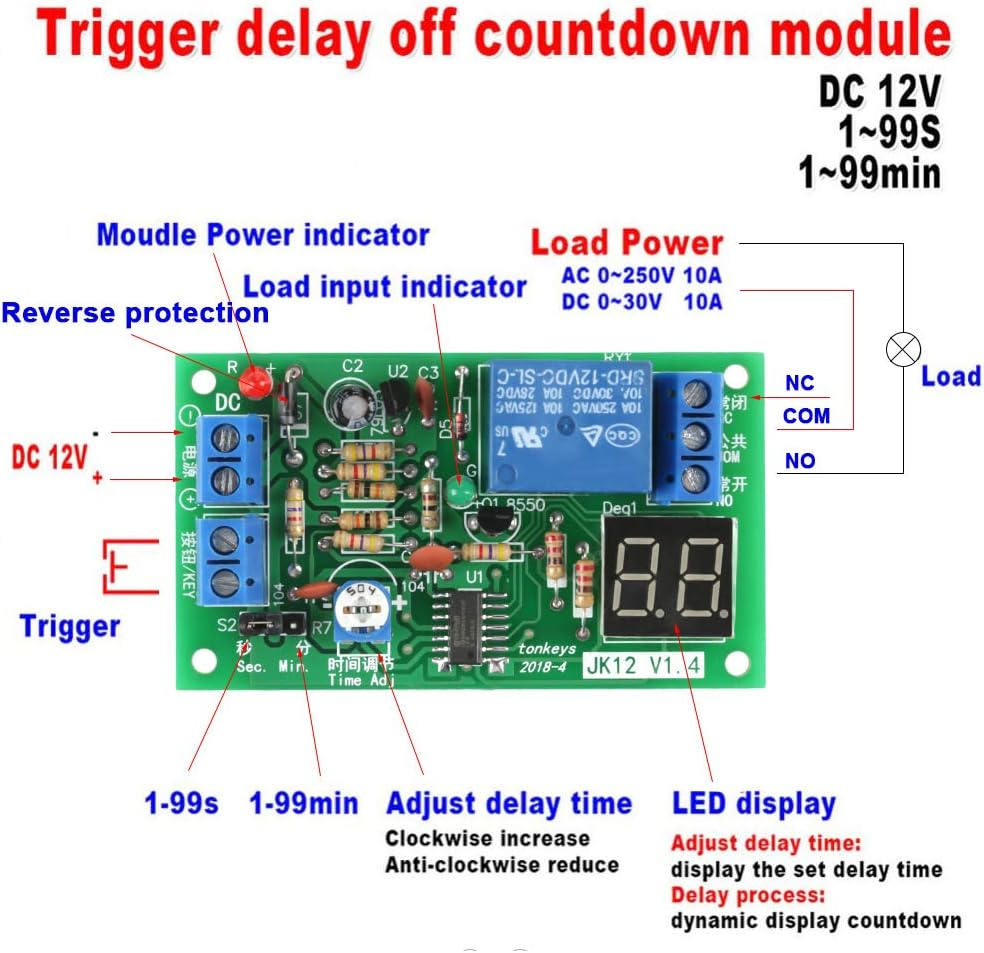

  • Switch Module Timer-Actuator ConnectTrigger to connect, and will disconnect after delay time; if Actuator during delay time, it will disconnect immediately
  • Switch Module Timer-Very PracticalNormally the module will start to work when triggered, if you need module to work immediately after power on, connect 2 terminals of Actuator
  • Relay Module Delay-Delay TimeThere is a wide time range, the delay time is adjustable from 1 second to 99 seconds, or 1 minute to 99 minutes; use a jumper to select second/minute

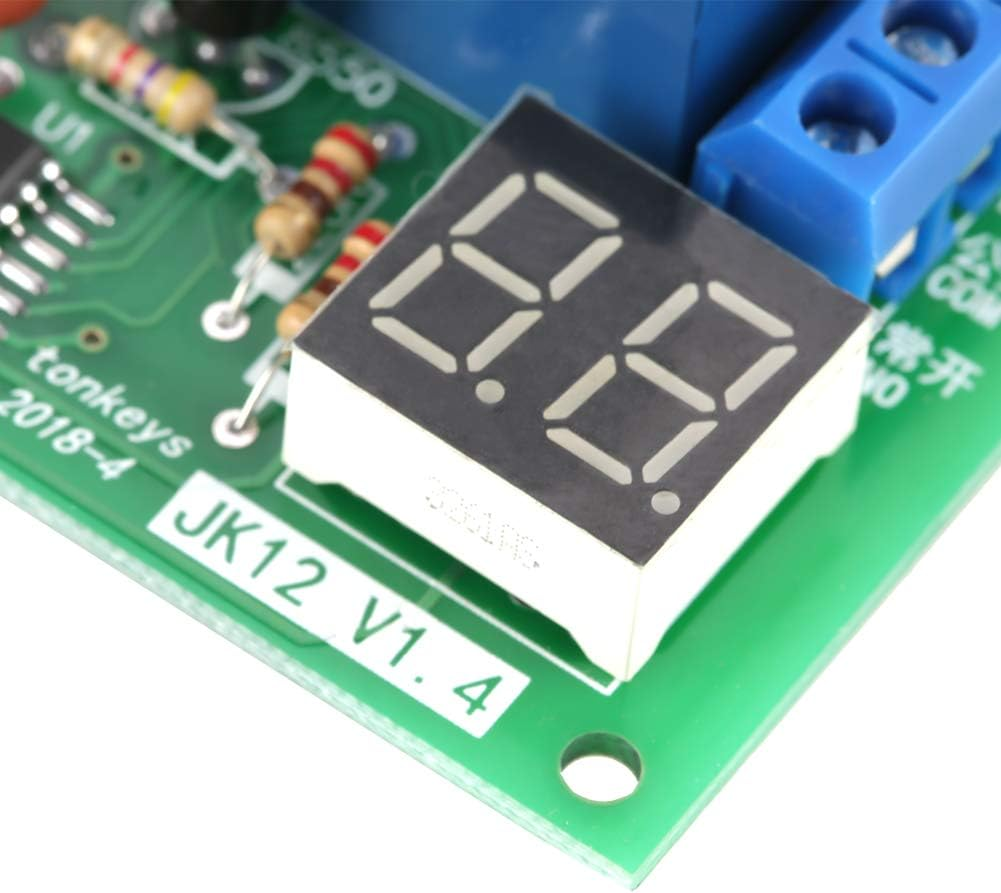

  • Off Switch Module-Good DesignDesigned with a LED display that will show the delay time. Load Capacity is 10A AC; 10A 30V DC
  • Adjustable Timer Module-High PerformanceIt is a timer relay countdown off module with high precision, stable and reliable performance

Product Description

YDuupxe Timer Relay Module DC12V Adjustable Relays Time Delay Timer Module LED Display Delay Turn Off Switch


Off Switch Module-Good DesignDesigned with a LED display that will show the delay time. Load Capacity is 10A AC; 10A 30V DC


Switch Module Timer-Actuator ConnectTrigger to connect, and will disconnect after delay time; if Actuator during delay time, it will disconnect immediately


Adjustable Timer Module-High PerformanceIt is a timer relay countdown off module with high precision, stable and reliable performance


Features:

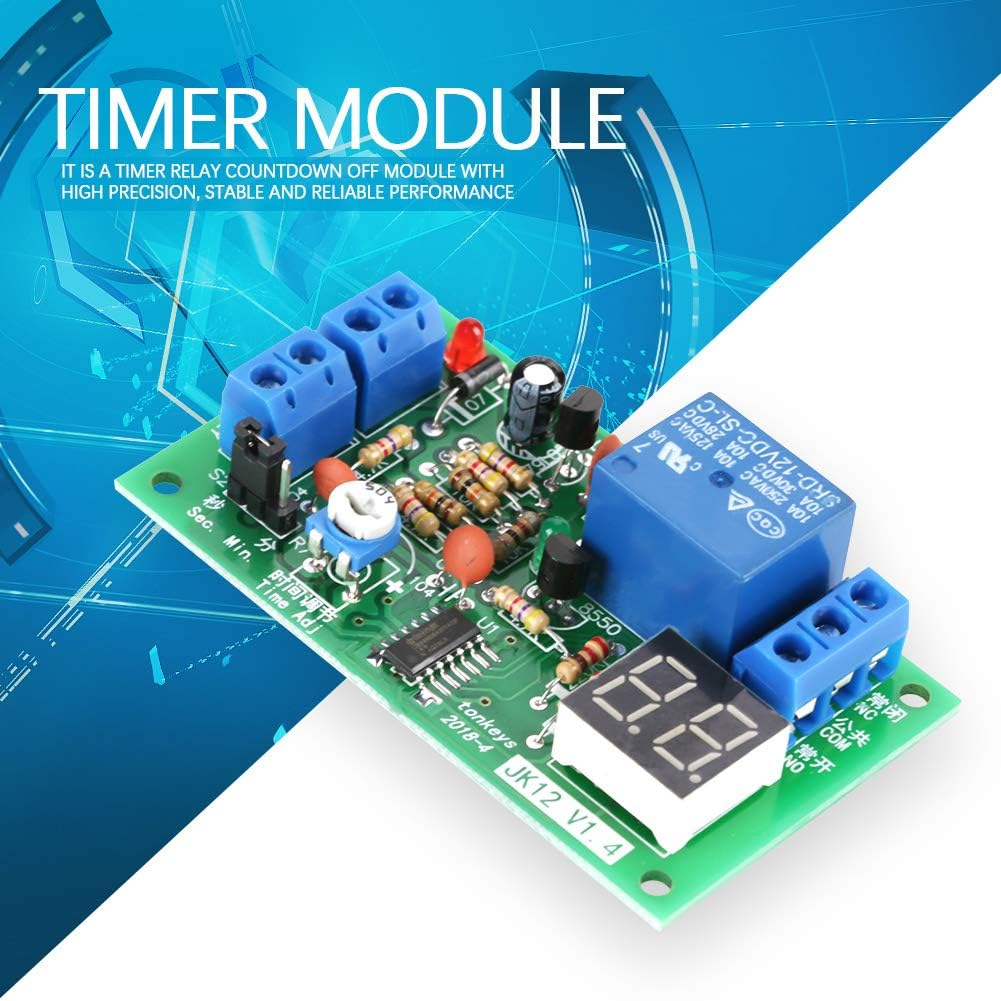

It is a timer relay countdown off module with high precision, stable and reliable performance.


Actuator to connect, and will disconnect after delay time; if Actuator during delay time, it will disconnect immediately.


Normally the module will start to work when triggered, if you need module to work immediately after power on, connect 2 terminals of Actuator.


There is a wide time range, the delay time is adjustable from 1 second to 99 seconds, or 1 minute to 99 minutes; use a jumper to select second/minute. Designed with a LED display that will show the delay time.



Specifications:


Voltage: D12V


Load Capacity: 10A AC; 10A 30V DC


Delay Time: 1~99Sec./1~99Min.(adjustable)

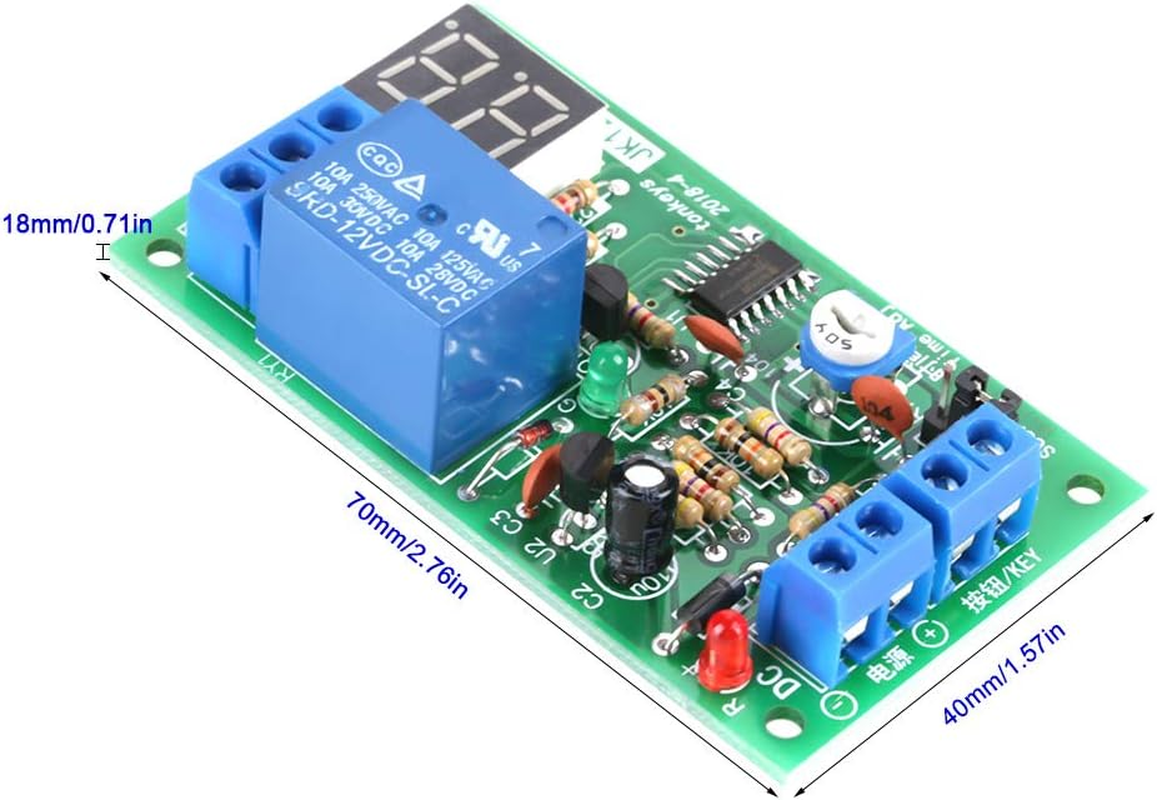

Size: 70 x 40 x 18mm / 2.75 x 1.57 x 0.7"


Quantity: 1



Package Includes:


1 x Timer Relay Module


  • Item Weight: 28 g
  • Brand: YDuupxe
  • Colour: #379
  • Model Number: YDuupxeq56npzhmid
  • Package Dimensions: 7 x 4 x 2 cm; 28 Grams
