HF7121 Serial Device Server, Rs485-To-Ethernet-Dtu-Short Messages Communication Module, 5-18 VDC Web Management System for Serial Data Communication Devices

HF7121 Serial Device Server, Rs485-To-Ethernet-Dtu-Short Messages Communication Module, 5-18 VDC Web Management System for Serial Data Communication Devices

Brand: ViaGasaFamido
5.0
A$35.40
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • For MIPS MCU (32 MB for SRAM) and 16 MB flash, based on the Linux operating system.
  • Support for website mode, for the simple configuration of the IOTService PC software. Support data for the configuration of the TLS / AES /3 security encryption. Support for registration and heartfelt function. Support for web / for IOTService OTA Wireless Upgrade.
  • Support for TCP / for IP / for Telnet / for Modbus TCP protocol. Supports RS485 to 10/100M Ethernet data transmission, the maximum speed of the serial interface is 460800 bit / s. Supports 10/100m Ethernet adaptive.
  • IP collection method: DHCP or static IP, autop support Virtual data channel: support Firmware update: website, IOTOService software Registration function: support Heartbeat function: support User -defined script function: support Package filtering: support Automatic serial framing: support For Modbusrtu for Modbus TCP: Support
  • NTP function + time zone setting: support Parameter Import and Export: Support Reload the resoad interface: none Environmental parameters: Working temperature: -45-85 ℃ Storage environment: -50-90 ° C, 5-95% RF (non-condensing) Performance parameters: Input voltage: 5-18VDC Interface shape: RJ45 interface Power protection: yes

Specification:
Element type: Serial Port Server
Model: HF7121
Functional declaration: serial to Ethernet
Core resources:
Processor: for Cortex-M3
Frequency: 96 MHz
Operating system: Freertos
Flash resources: 2 MB
RAM: 128 KB
Network interface parameters:
Ethernet standard: 802.3

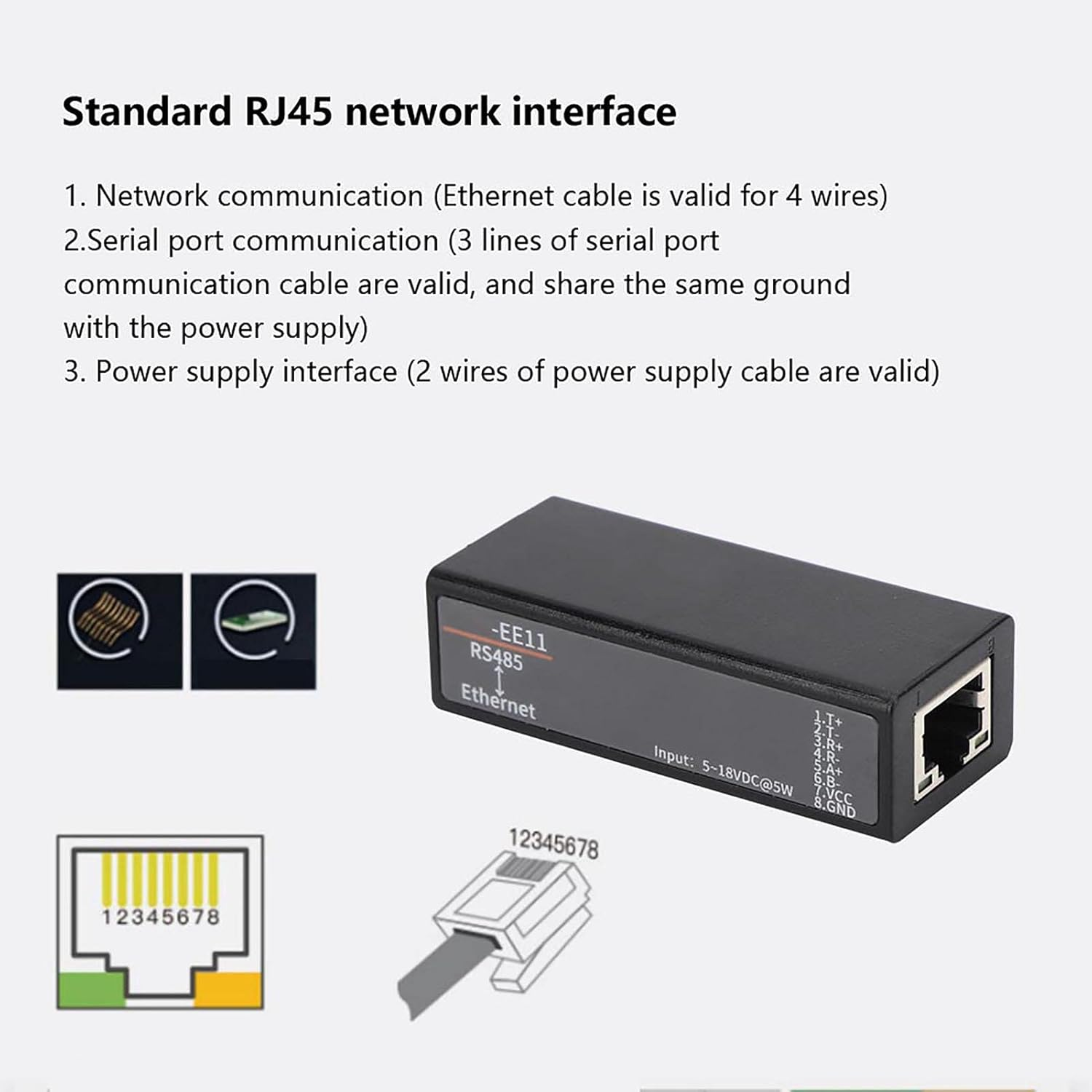

Ethernet interface shape: 1 RJ45 with LED
Interface standard: 10/100Base-T automotive negotiation
Network protocols: IP.TCP.UDP, DHCP, DNS, HTTPServer / Client, App.Boatp.Autoip, ICMP, Telnet.upnp
Security protocol (data communication): For TLSV1.2. For AES-128Bit, for Des3, for SSL
Network connection protection: 2 KV electromagnetic isolation
Network transformer: Integrated
Maximum number of connections: 3 socket
Parameters of the serial interface
Number of serial ports: 1
Interface standard: RS485
Building rate: 2400-460800BPS
Protection of the serial interface: yes
Product features:
Configuration method: for the website, for the CLI command, for the file import, for the cloak configuration, for the IOTService software
Web page: standard website or custom website

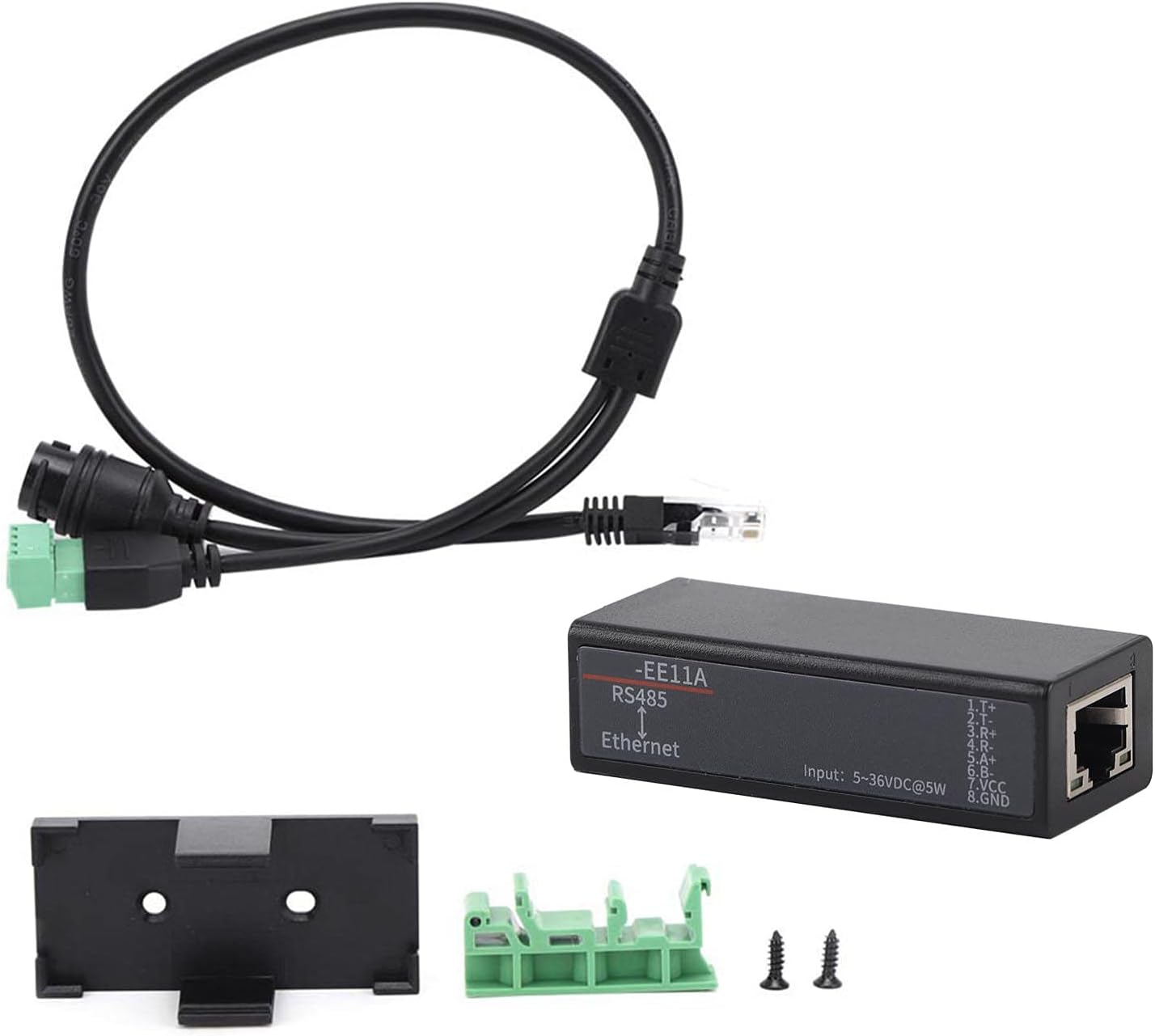

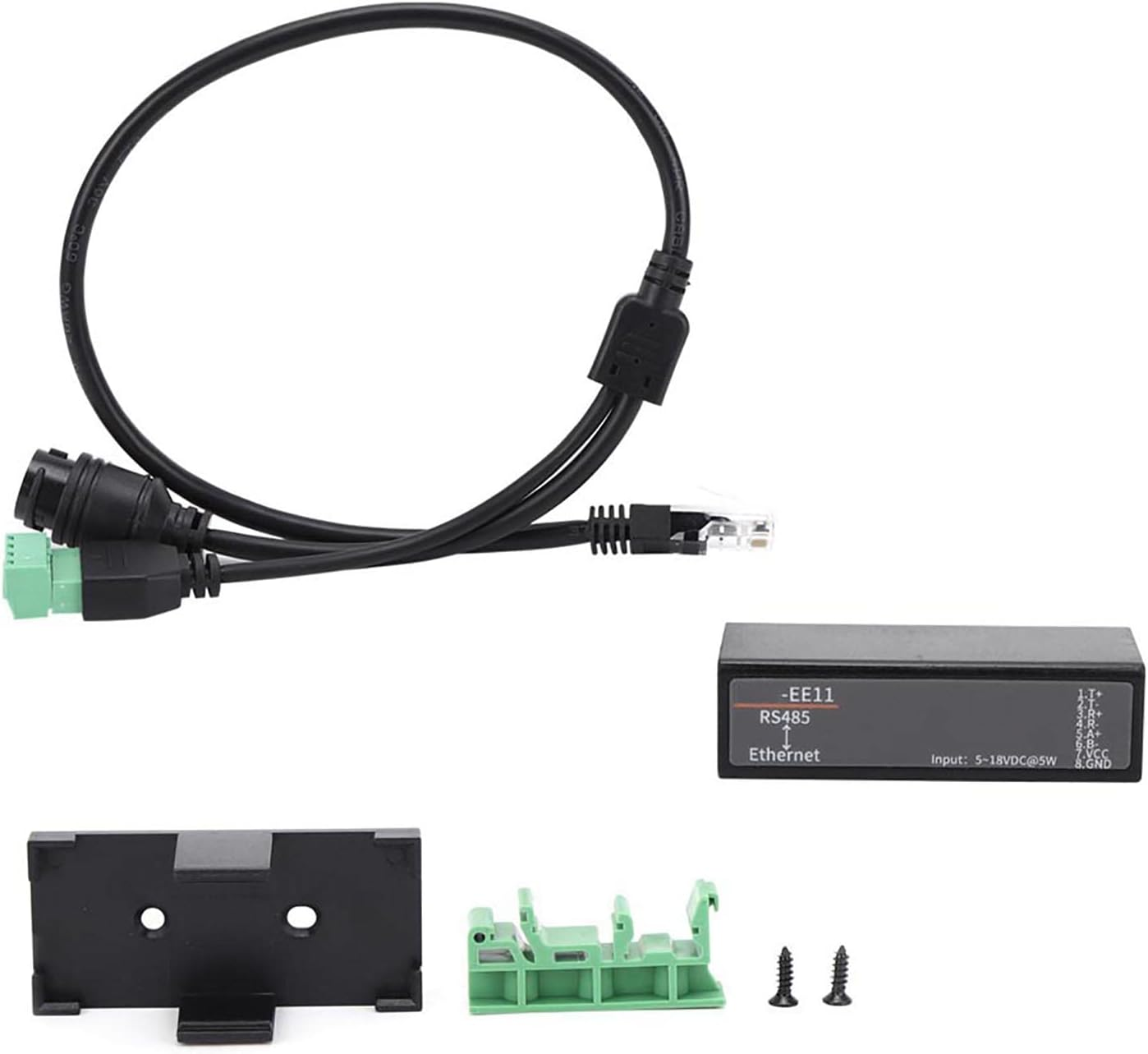

Package list:
1 x serial server
1 x custom network cable
1 x housing attachment bracket
1 x rail holder
2 x screw

  • Item Model Number: ViaGasaFamido3wkacrx8n0
  • Part Number: ViaGasaFamido3wkacrx8n0
  • Number of items: 1
  • Mounting Hardware: no
  • Batteries Required: No
  • Brand: ViaGasaFamido
  • Item Weight: 116 g
  • Model: ViaGasaFamido3wkacrx8n0
  • Package Dimensions: 16 x 11 x 5 cm; 116 Grams
  • Country/Region of origin: China
  • Manufacturer: ViaGasaFamido
