1: Circuit size 65x65x15 mm/2.56x2.56x0.59 inches. Positioning distance 56x56 mm/2.21x2.21 inches. Diameter 3.2 mm/0.13 inches.
2. 2 channels: double temperature control, alternately shows the temperature of two channels.
3. Flexible control: The low temperature zone and the temperature zone are established by buttons, the control is flexible and the adjustment range is large.
4. Alarm function: DC10–60V work voltage range, the switch can be configured to stop the alarm function. Alarm speed: less than 375 rpm.
5. Speed ​​measurement: 10–9990 rpm, if the speed is higher than this, always shows 999, the resolution is 10 rpm and the display unit is 10 rpm.
18
Speculation:

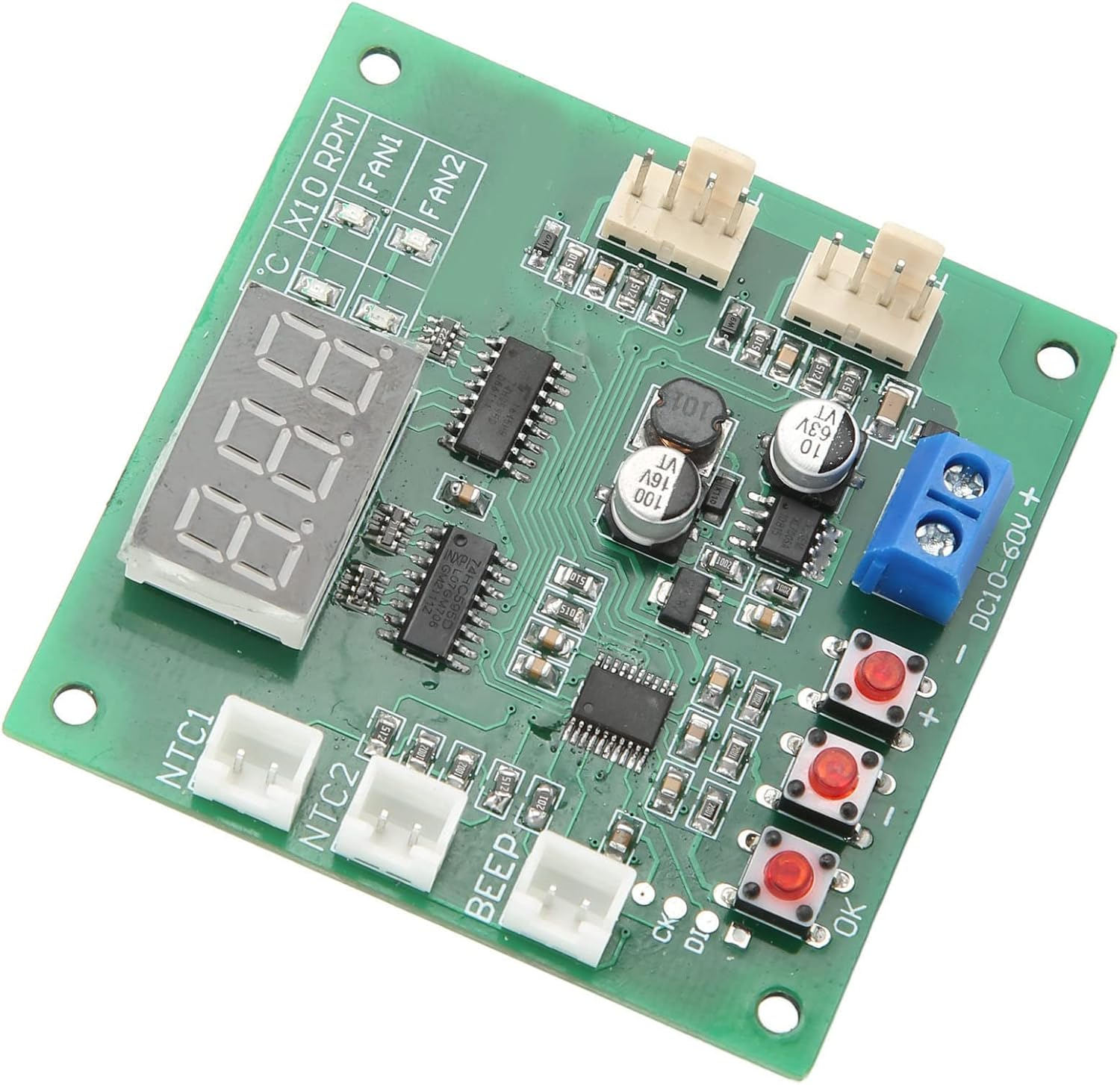

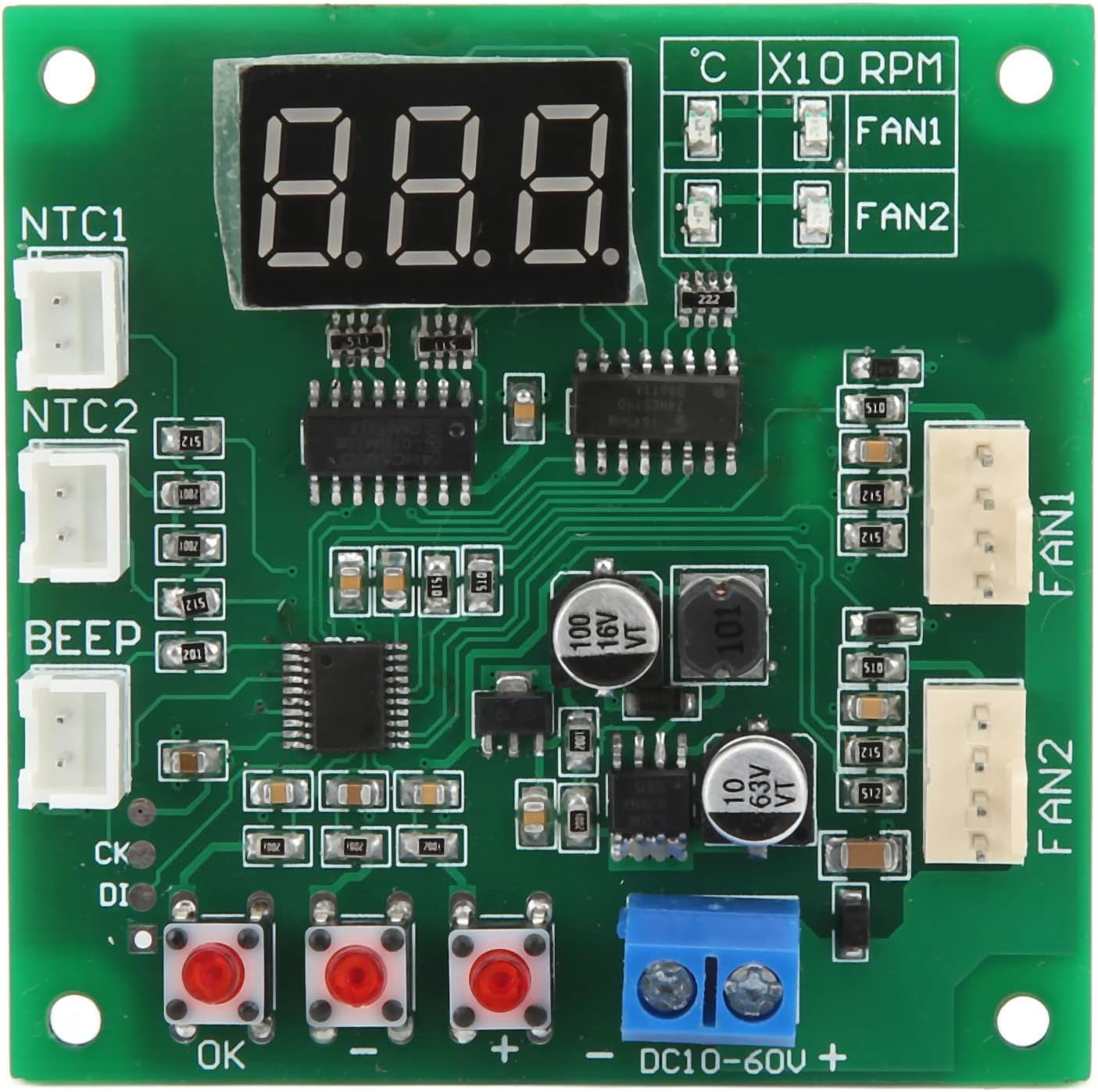

Element type: PWM fan speed temperature controller
Material: PCB
Work voltage: DC10-60V (it must be equal to the fan voltage, if you use a 12V fan, but you feel 24 V, it burns the fan)
Work tutor: current control plate 35 m (12 v) 22 mA (24 V)
CONTROL CAPACITY: The fan current cannot be done, but the pin of the fan interface on the plate should not be greater than the 3A current. Using a fan with a higher current, connect the fan feed cable directly to the main power supply!
Control output range: 10%- (This is the output range of the signal, the real situation depends on the fan performance)
Temperature probe: 10k B = 3950
Temperature measurement: -9.9 ° C -99.9 ° C, error 2 ° C (1% probe within 70 ° C) 3 ° C (above 70 ° C)
Temperature temperature range range: acceleration temperature 5-94 ℃, full speed temperature 10-99 ℃
Speed ​​measurement: 10-9990 rpm, if the speed is higher, it will always display 999, the resolution is 10 rpm and the display unit is 10 rpm (the speed measurement is designed according to the articular sheet of the signal, and most fans are 2 signal)
Alarm stop speed: less than 375 rpm.

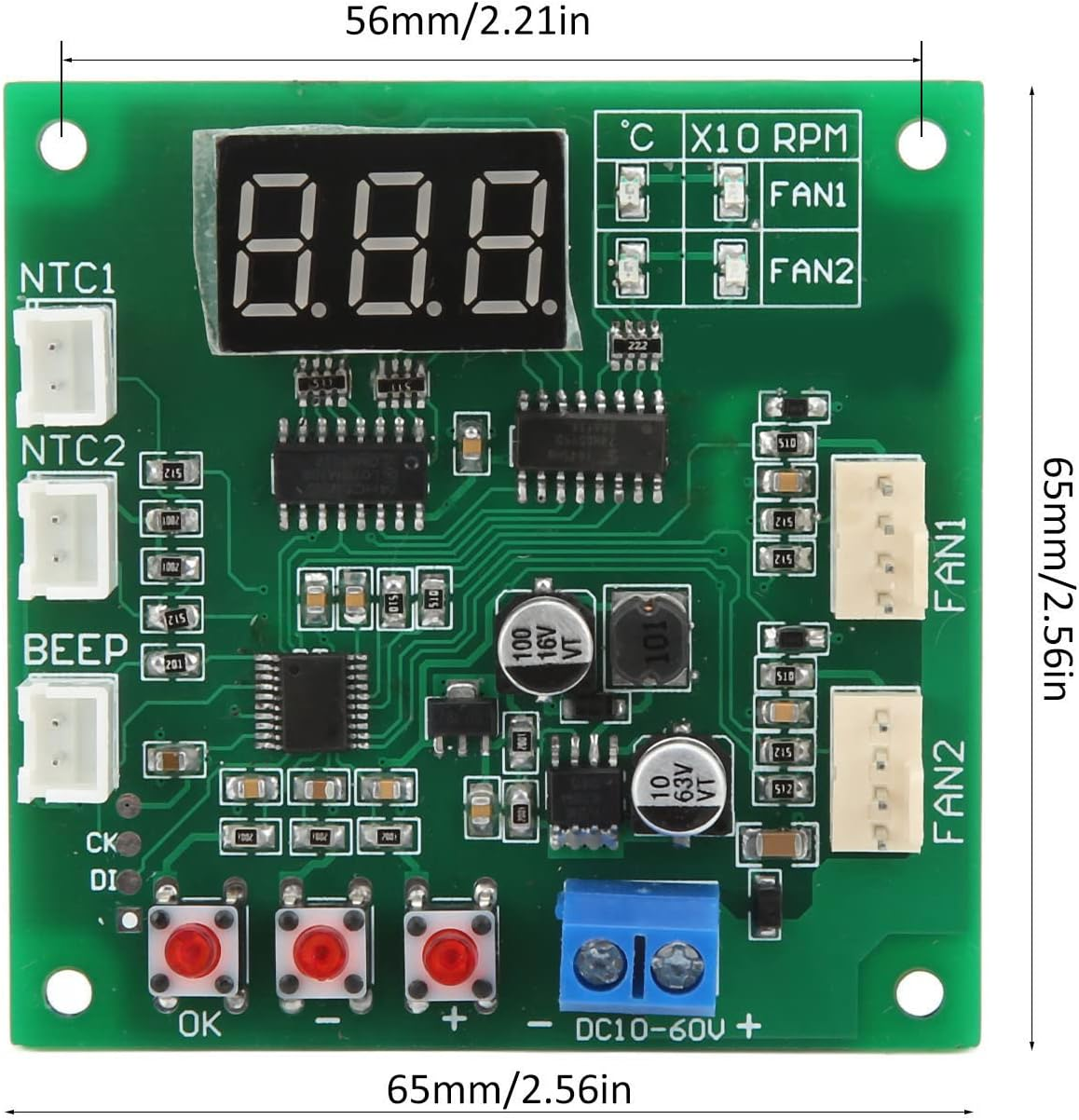

Circumference size: approx. 65x65x15 mm/2.56x2.56x0.59 inches
Medium distance positioning: approx. 56x56 mm/2.21x2.21 inches
Diameter: approx. 3.2 mm/0.13 inches

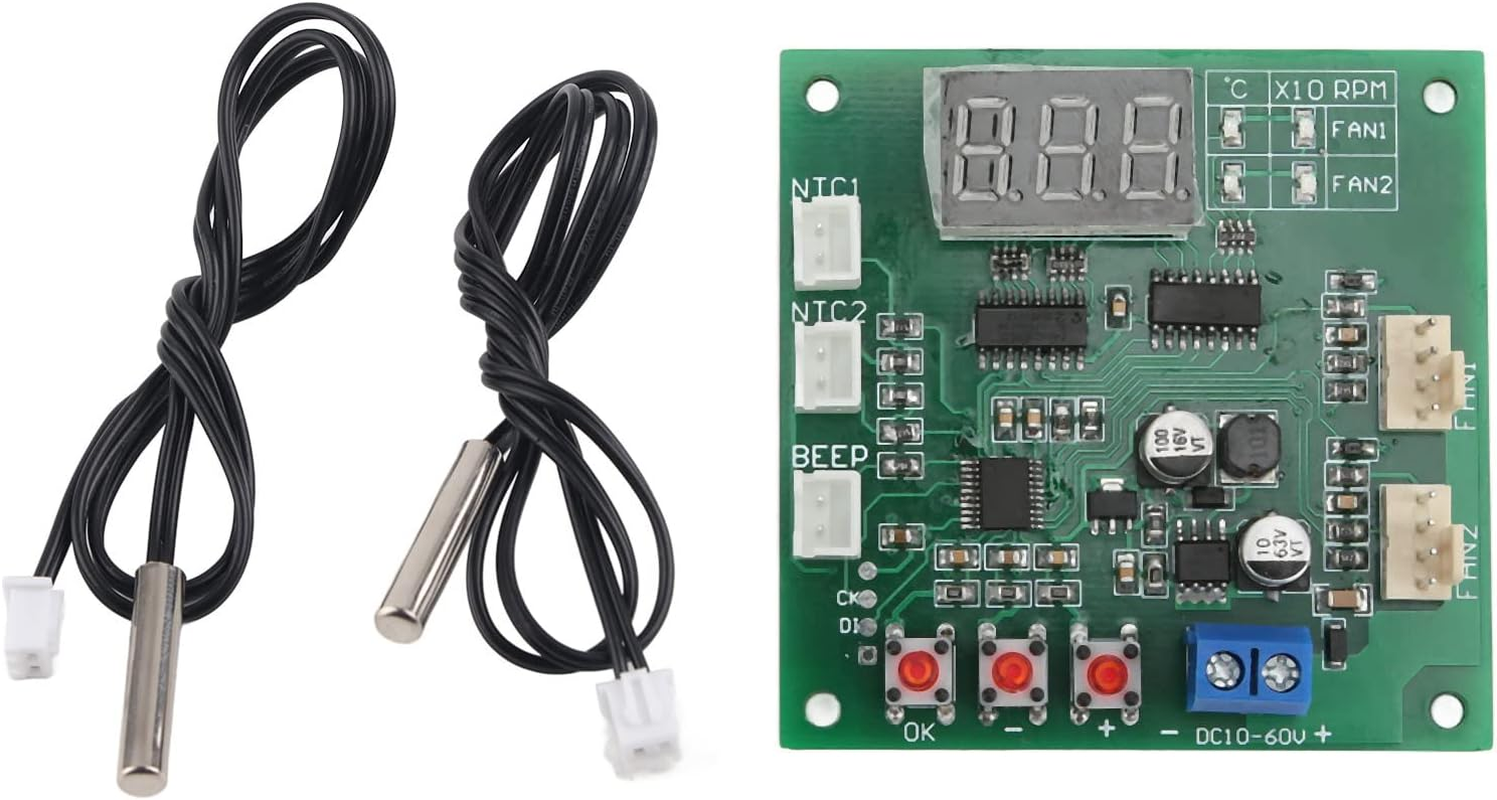

Packagelist:
1 x module
2 x cable
Note:
It should be remembered that the new type and old type of this product will be sent randomly and will ensure that you will not care about the order.
