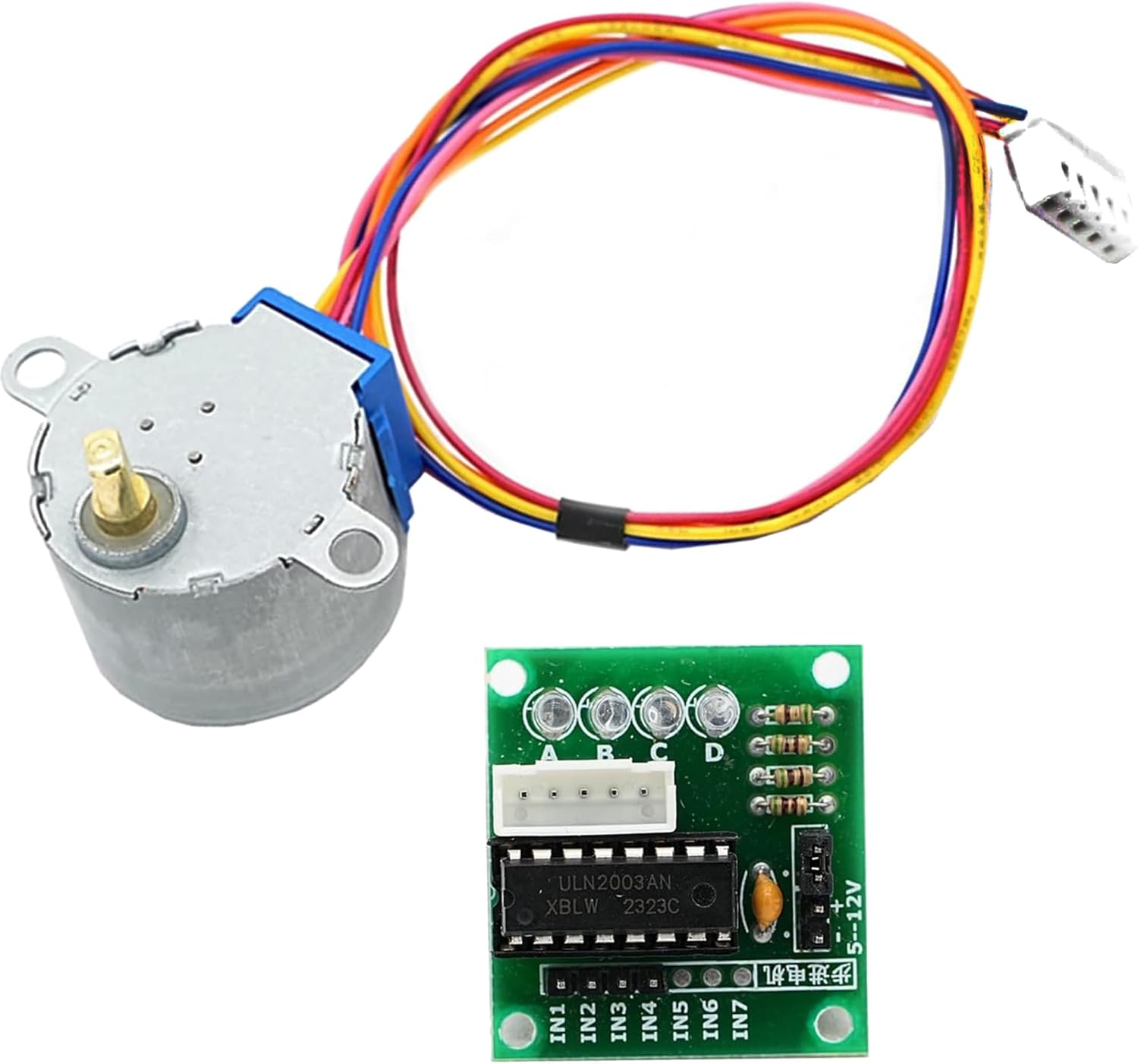

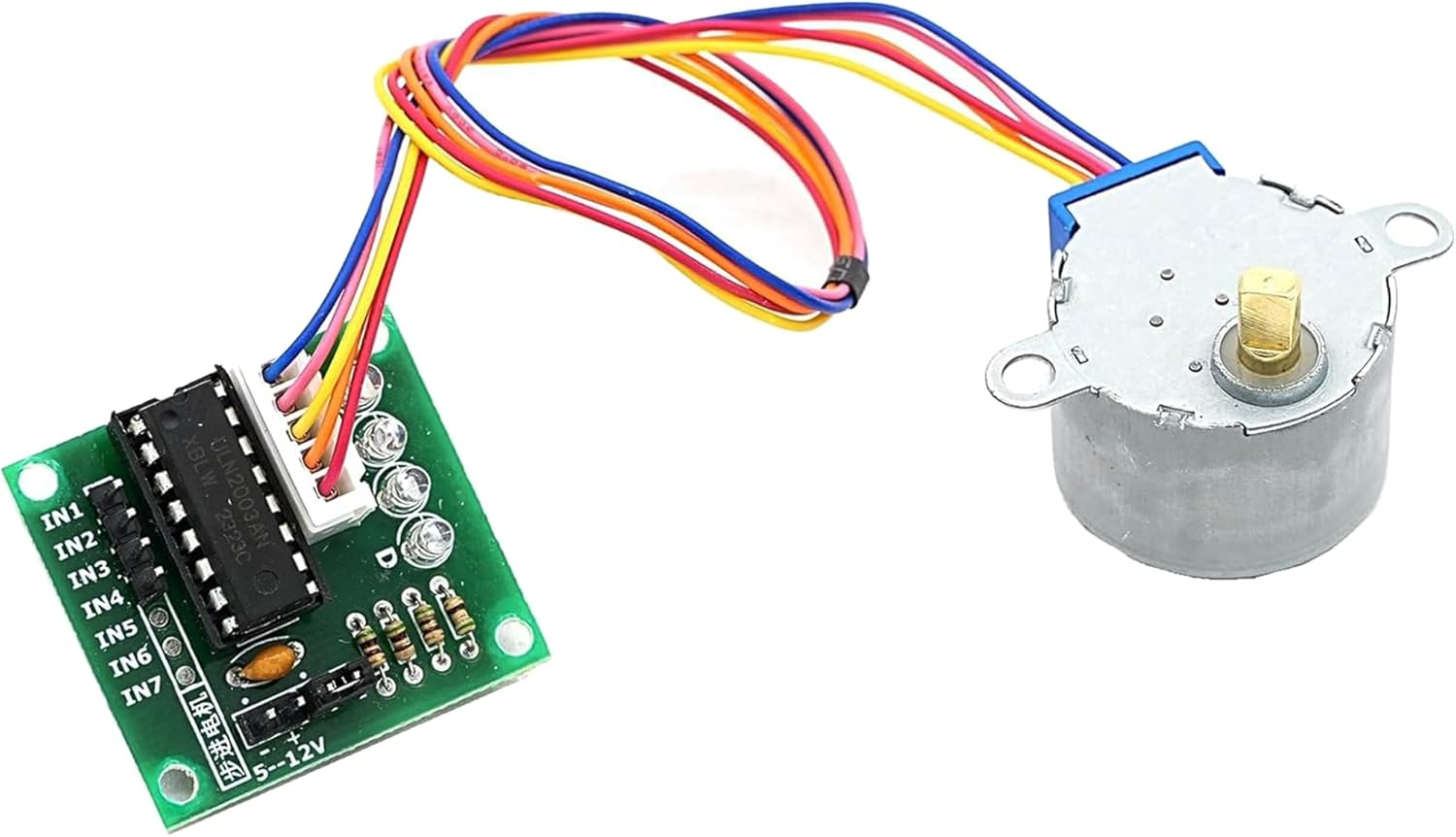

A-DIGISHUO 3Pcs ULN2003 28BYJ-48 5V 4-Phase Stepper Motors with Driver Board Suitable for Arduino PI PIC Raspberry PI
A-DIGISHUO 3Pcs ULN2003 28BYJ-48 5V 4-Phase Stepper Motors with Driver Board Suitable for Arduino PI PIC Raspberry PI
Brand: A-DIGISHUO
A$14.70

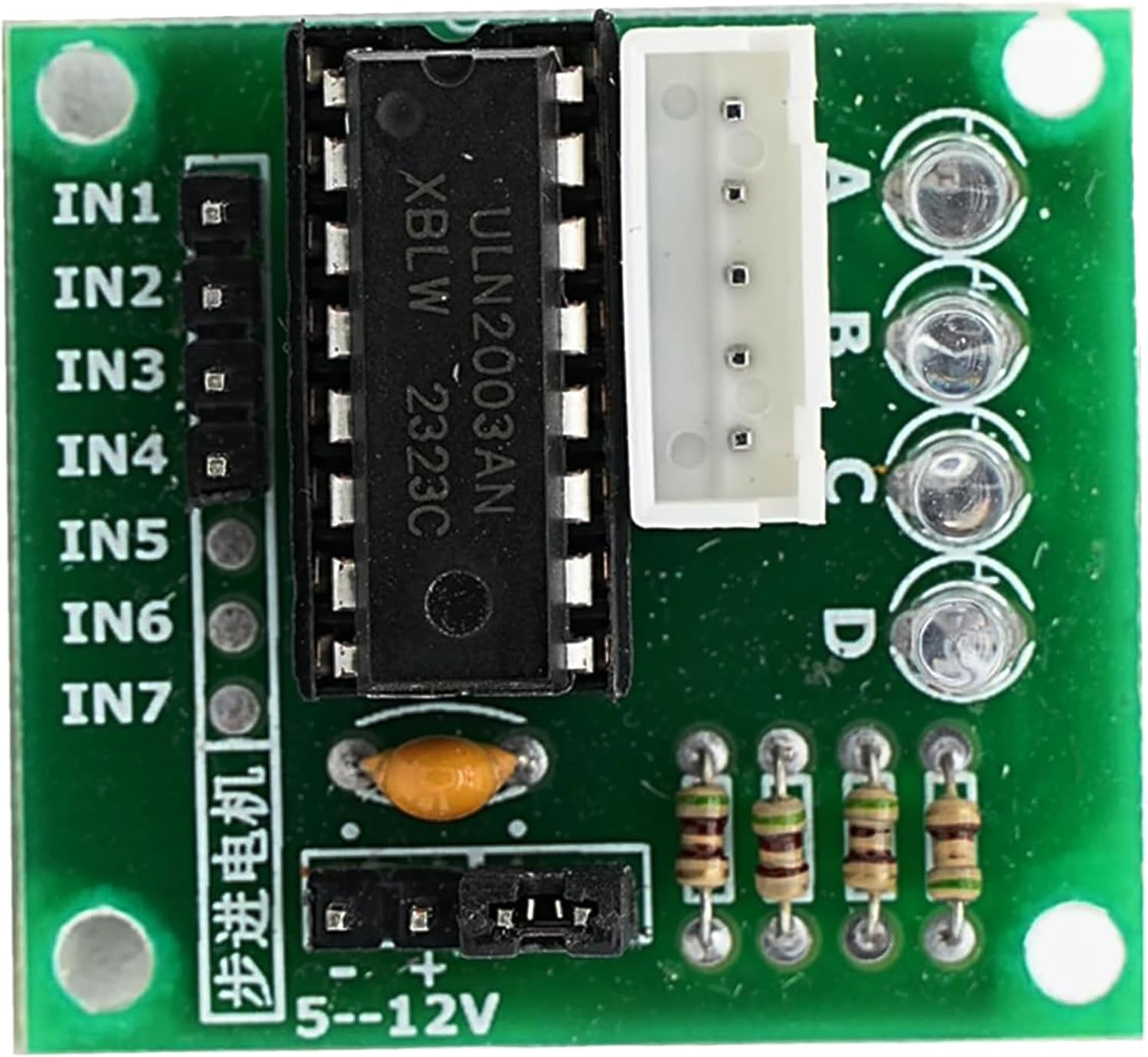

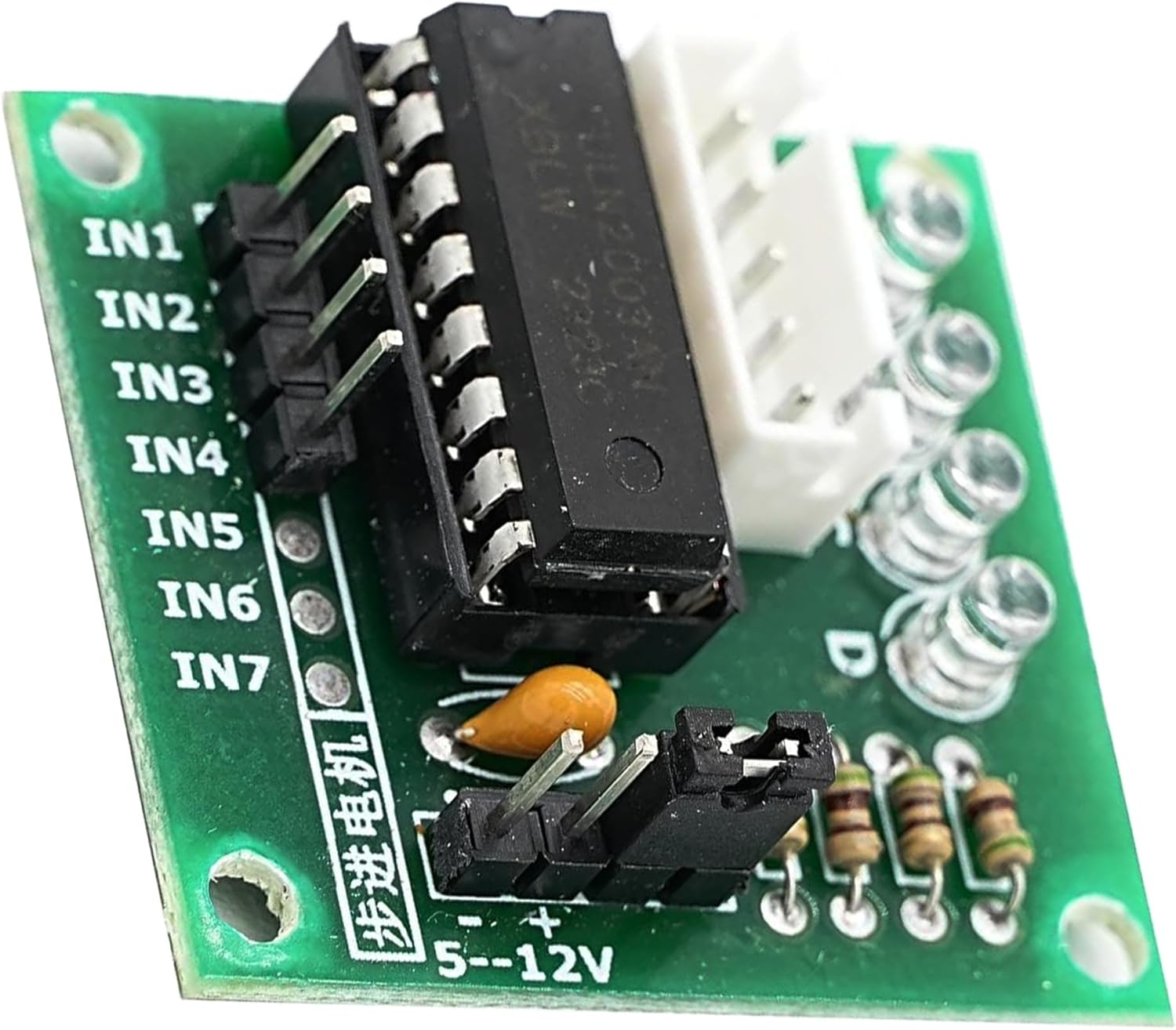

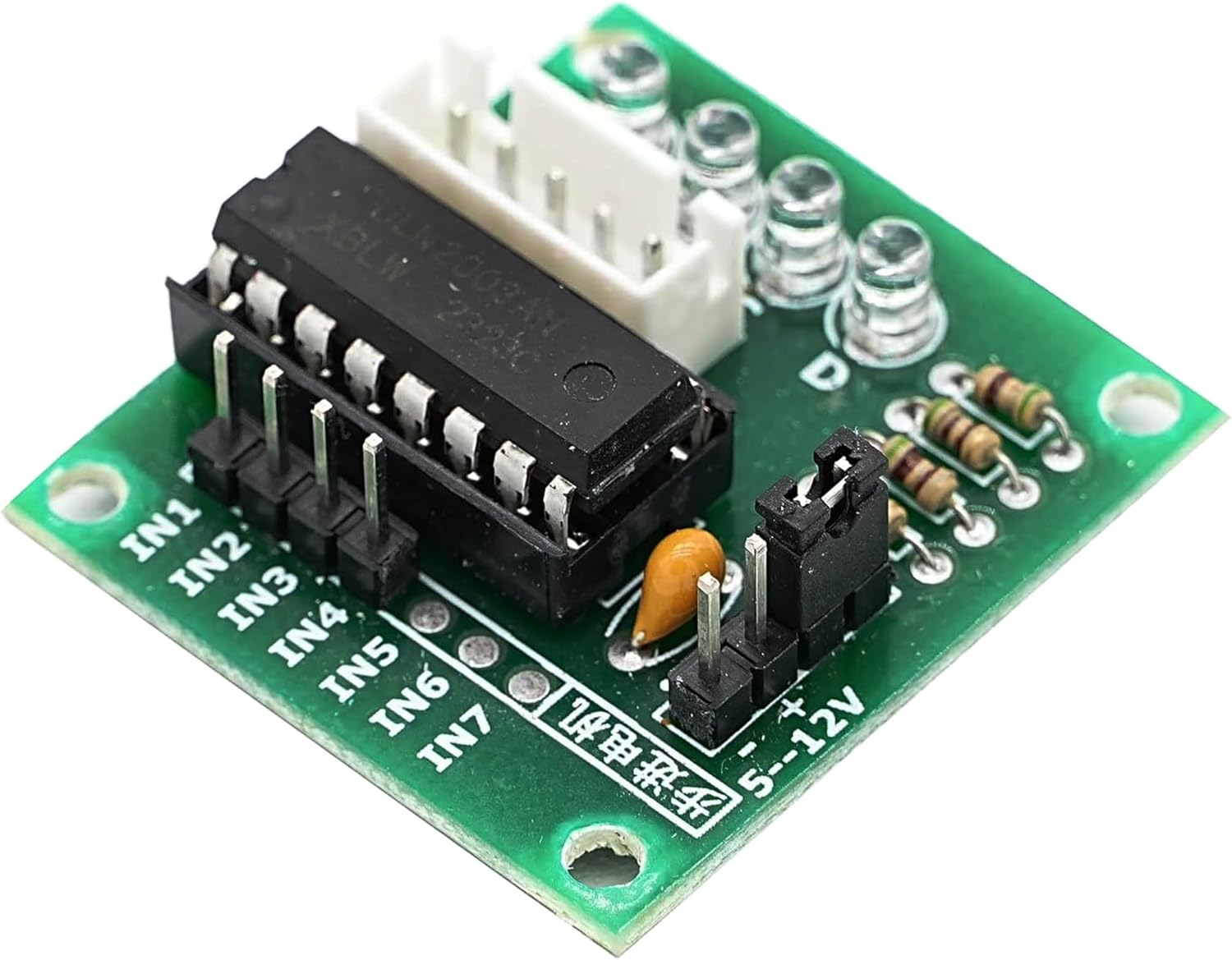

- The ULN2003 module is typically used to drive small five wire four phase motors, with four light-emitting diodes A, B, C, and D indicating the working status of the four phase stepper motor.

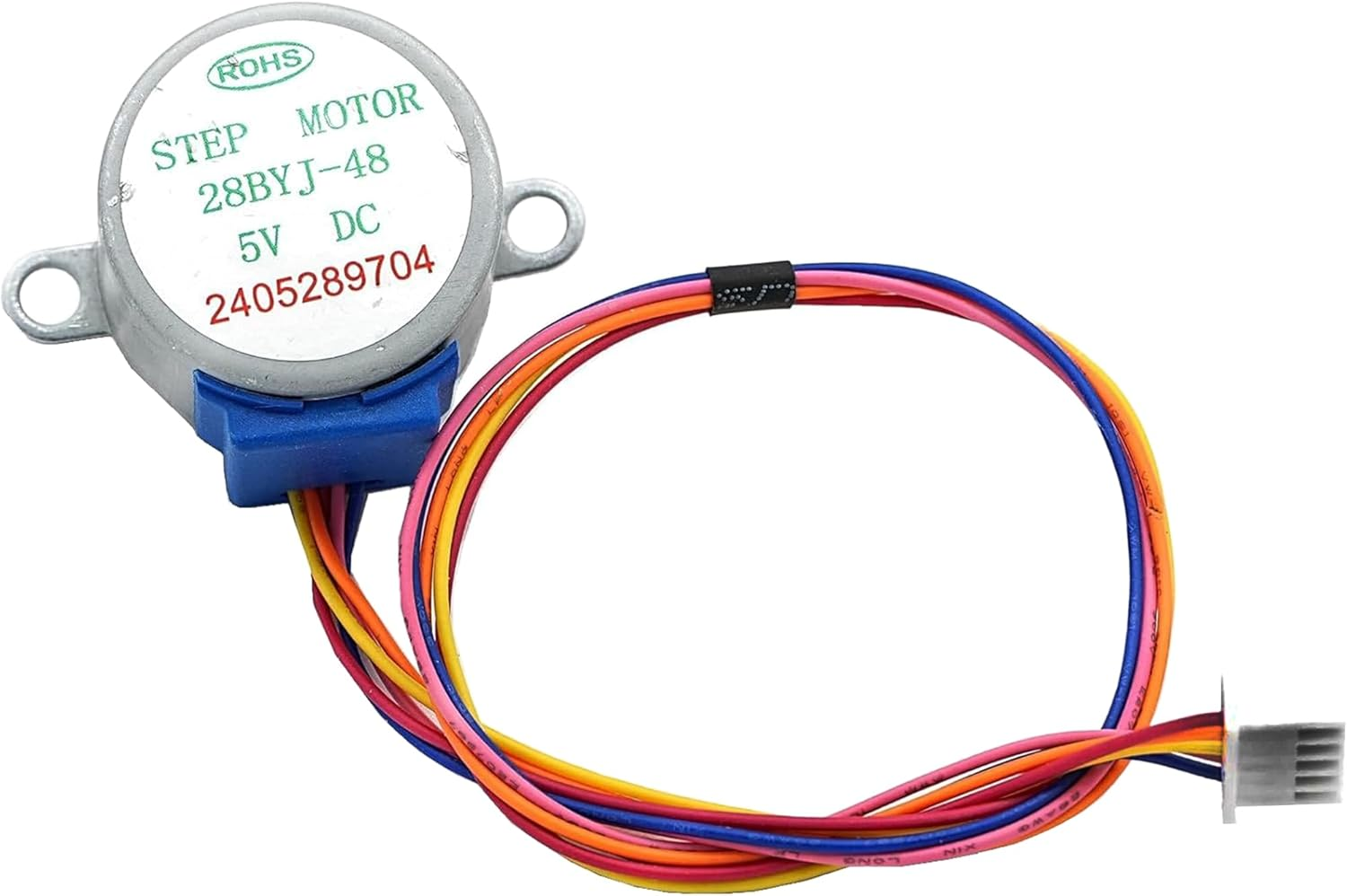

- The LN2003 28BYJ-48 4-phase stepper motor is equipped with a standard interface and can be directly plugged in and out.
- 5-wire 4-phase can be used for ordinary ULN2003 chip drivers, connecting 2-phase, supporting development boards, easy to use, directly docked
- Stepper motors can convert pulse signals into angular displacement or linear displacement. Deceleration stepper motor | Step angle: 5.625 X 1/64 | Diameter: 28mm
- Widely applicable to the design and development needs of Arduino and robots compatible with various platforms such as 51, AMR, AVR, etc.
Product Description
Specification:
- Rated voltage: DC 5V 4-phase
- Step angle: 5.625 x 1/64
- DC resistance: 200Ω±7% (25C)
- Insulation resistance: >10MΩ (500V)
- Dielectric strength: 600V AC / 1mA / 1s
- Insulation grade: A
- No-load pull in frequency: >600Hz
Specification:
- No-load pull out frequency: >1000Hz
- Pull in torque: >34.3mN.m(120Hz)
- Detent torque: >34.3mN.m
- Temperature rise: <40K(120Hz)
- Noise: <40dB (120Hz, No load, 10cm)
- Diameter: 2.5cm(0.98in)(approx)
- Width: 2cm(0.79in)(approx)
You Will Receive:
- 3Pcs Driver Boards
- 3Pcs Stepper Motors
- Item Model Number: 28BYJ-48
- Number of items: 3
- Country/Region of origin: China
- Batteries Required: No
- Brand: A-DIGISHUO
- Item Weight: 140 g
- Ram Memory Technology: DDR3
- Voltage: 5 Volts (DC)
- Model Name: Stepper Motor
- Model: 28BYJ-48
- Package Dimensions: 10.3 x 7.2 x 3.4 cm; 140 Grams
- Manufacturer: A-DIGISHUO
