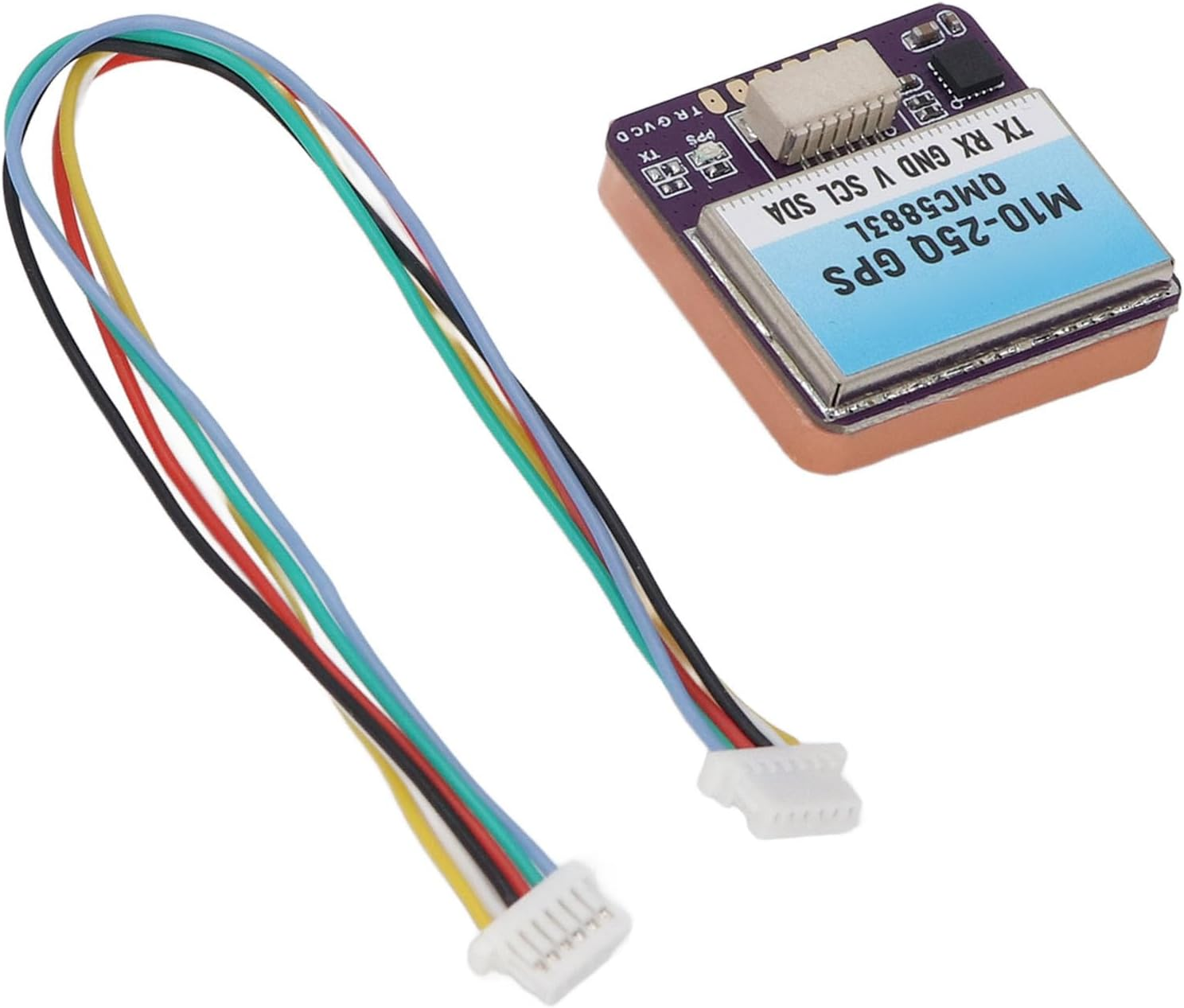

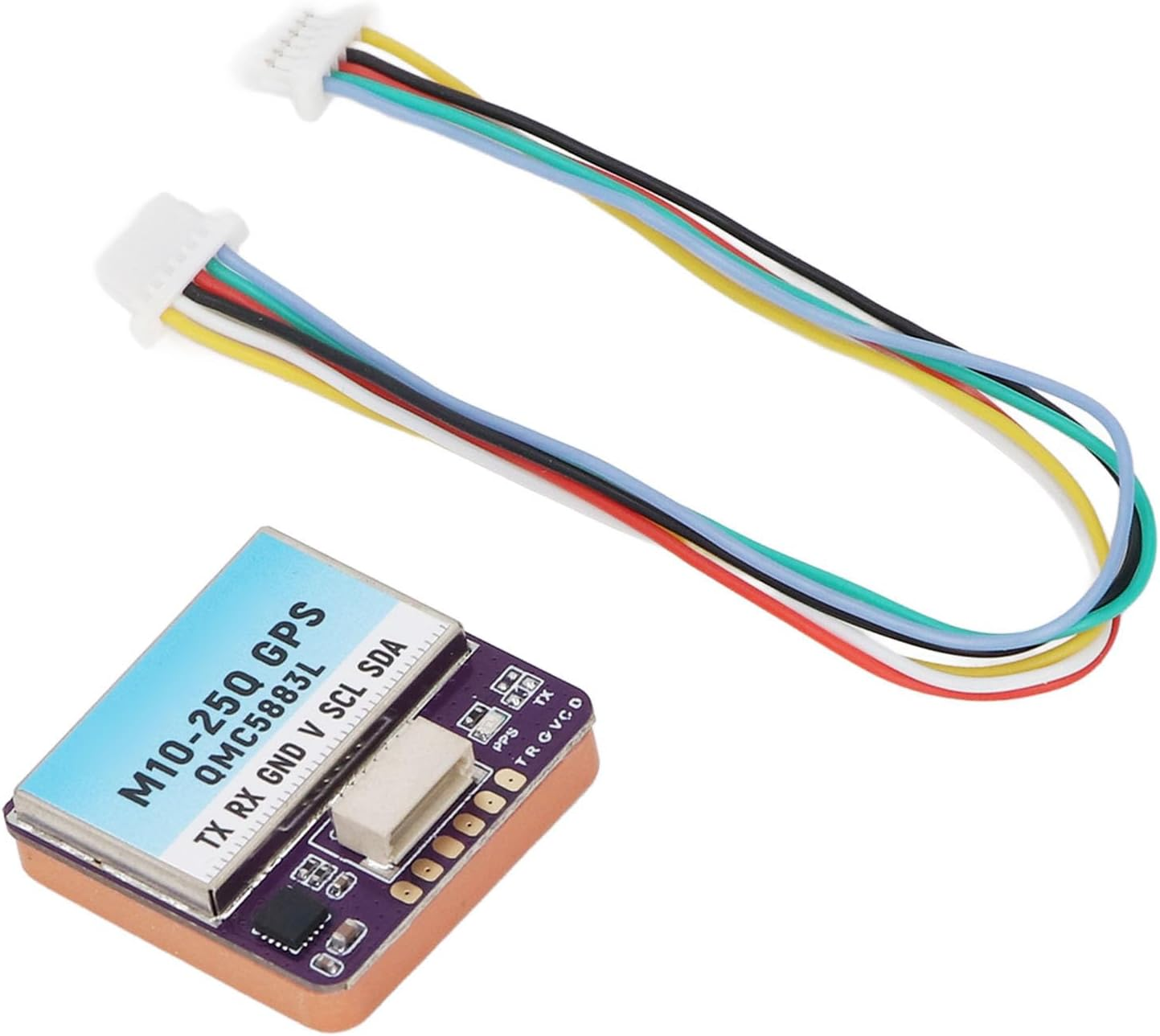

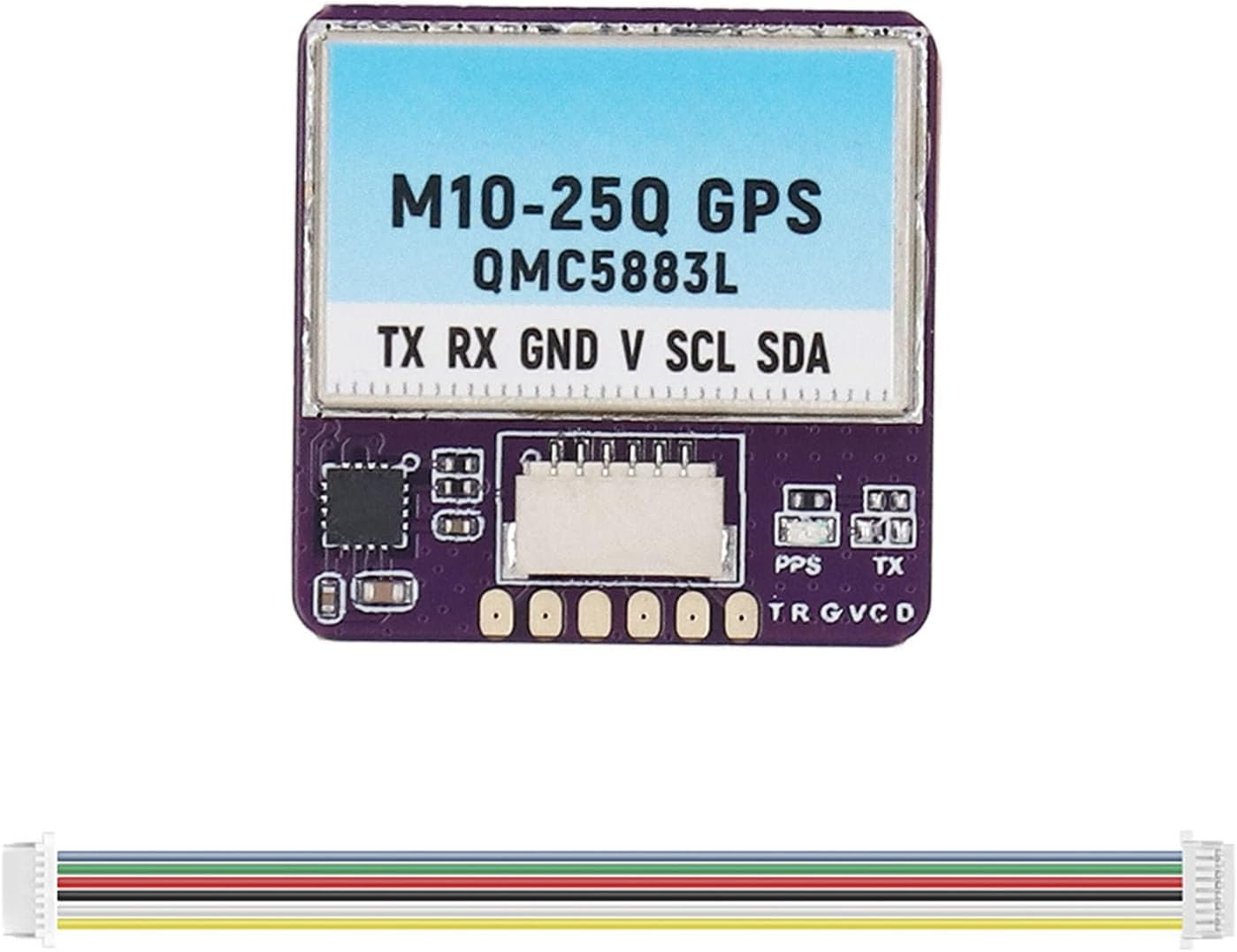

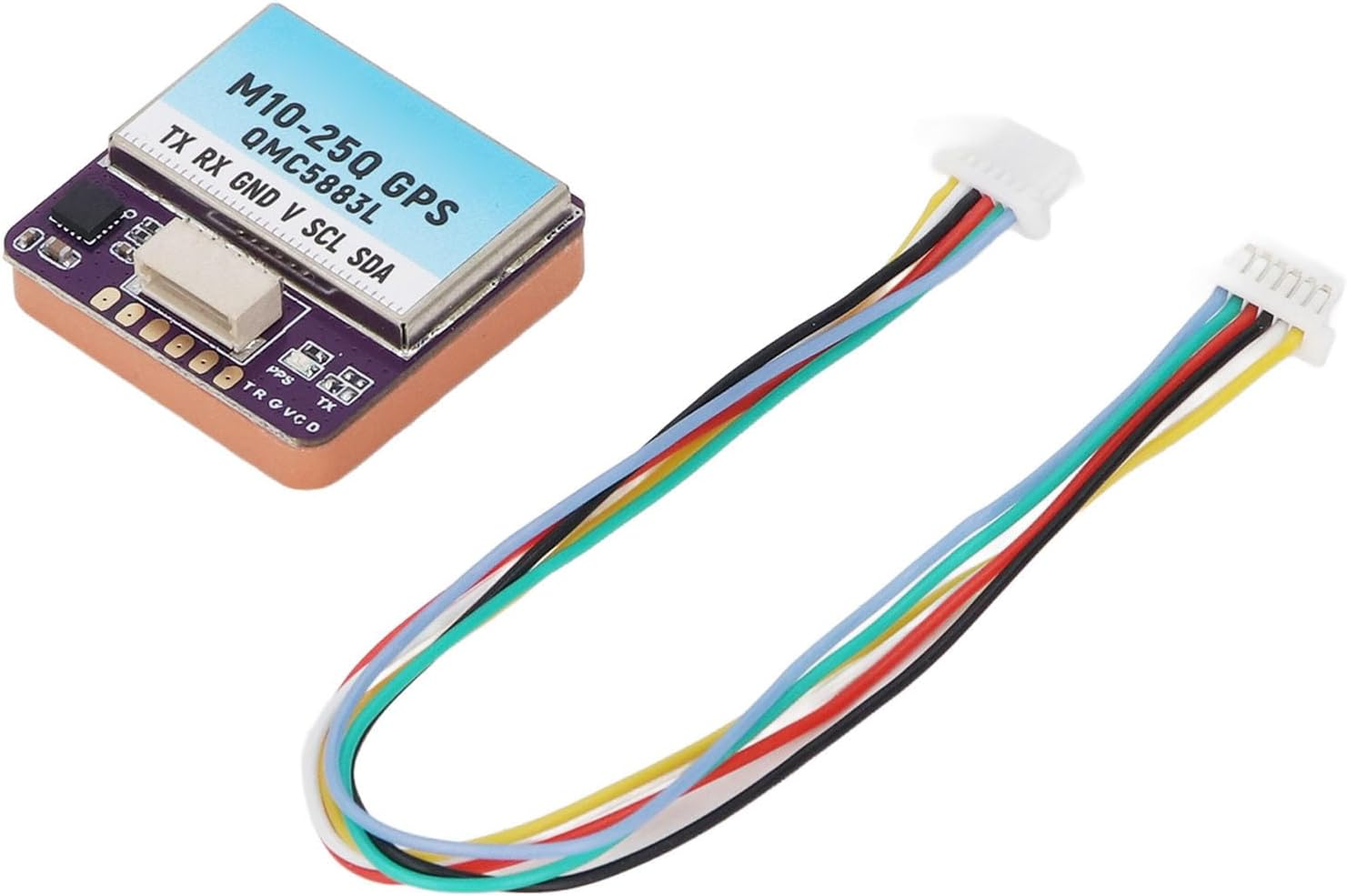

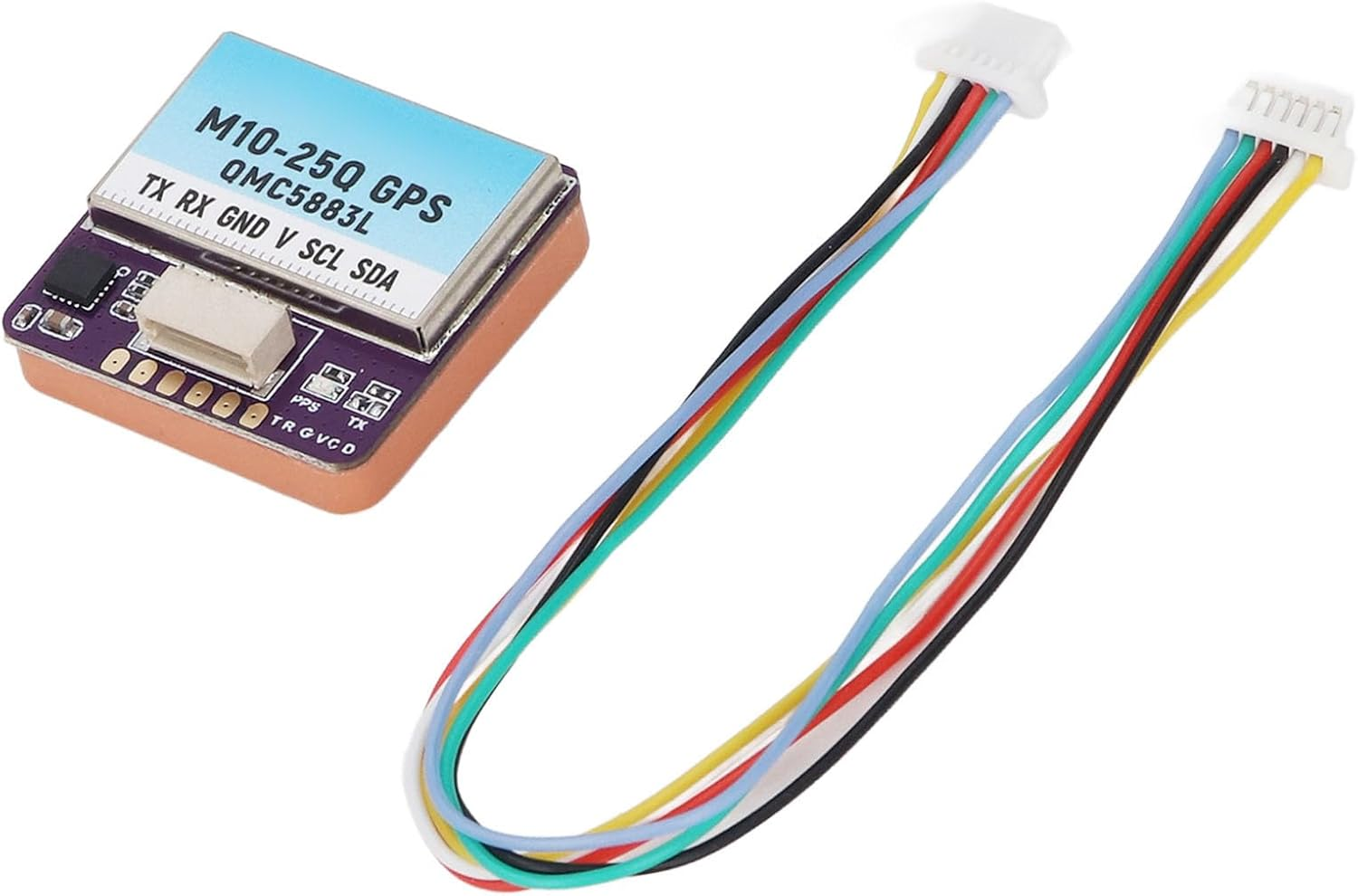

1. Module Specification: M10-25Q GPS module, integrated for compass QMC5883L, tenth generation chip, double output protocol and 10 Hz output frequency, with low energy consumption, fast appearance, rapid appearance
2. Ceramic tennis: This GPS module acquires excellent ceramic tennis that has a strong performance, better stability, high efficiency with 72 search channels and has a wide range of application
3. Simple installation: the GPS flight controller module has
4 .. Connection methods: This module supports two connection methods with a direct plug and a welding pad that has a strong compatibility with the SH1.0 -6P socks and the PCB PAD interface.
5. Exactly and sensitive: this GPS module has
Technical data:
Element Type: GPS Module
Model: M10-25Q GPS
Chip: For M10
Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Power supply: 5V
Product size: approx. 25 x 25 x 8 mm / 1 x 1 x 0.3in
Interfaces
Antenna: ceramic tennis
Reception channels: 72 search channels
BAUDOS RATE: 115200
Initial protocol: For NMEA for the protocol
Compass: for QMC5883L
Output frequency: 1Hz-10Hz, standard 10 Hz
Speed ​​precision: 0.05 m/s
Horizontal look: 2D ACC1.5M (open sky)
Sensitivity received: Persecution -162DBM, Acquisition -160 dBM
Work temperature: -40-85 ℃
Storage temperature: -40-105 ℃
How to use:
Prefer the corresponding type of model before it is used
Packaging list:
1 x GPS module
1 x Connection cable
