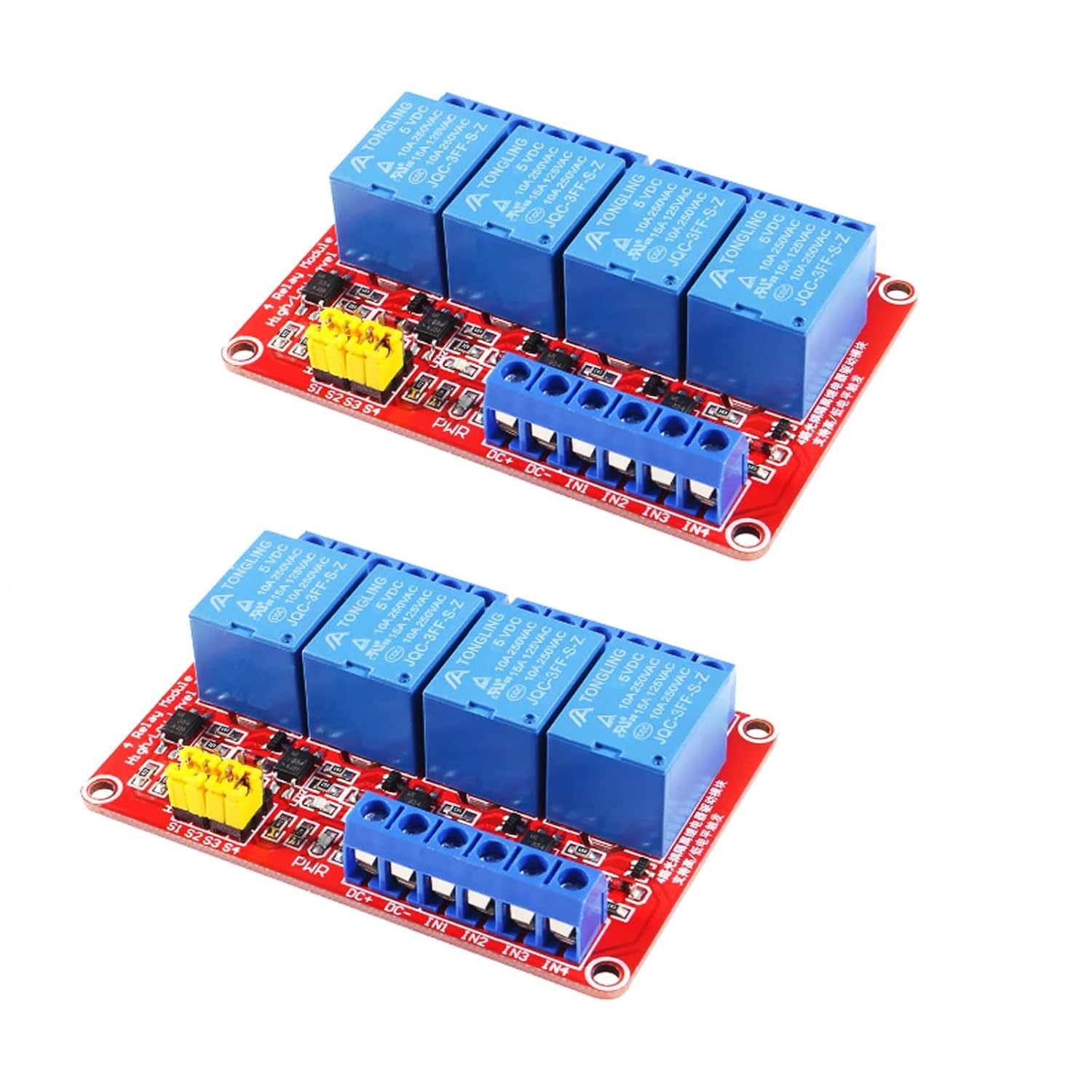

DIANN 2Pcs 4 Channel 12V Relay Module with Optocoupler High or Low Level Trigger Expansion Board
DIANN 2Pcs 4 Channel 12V Relay Module with Optocoupler High or Low Level Trigger Expansion Board
Brand: DIANN
A$12.60
- Relay Module : Channel: 4 Channel; Working Voltage: DC 12V; Equipped with High-Current Relay, Maximum Load: AC250V 10A, 15A 125VAC, DC30V 10A; Trigger Current of Opto-isolator: 5mA

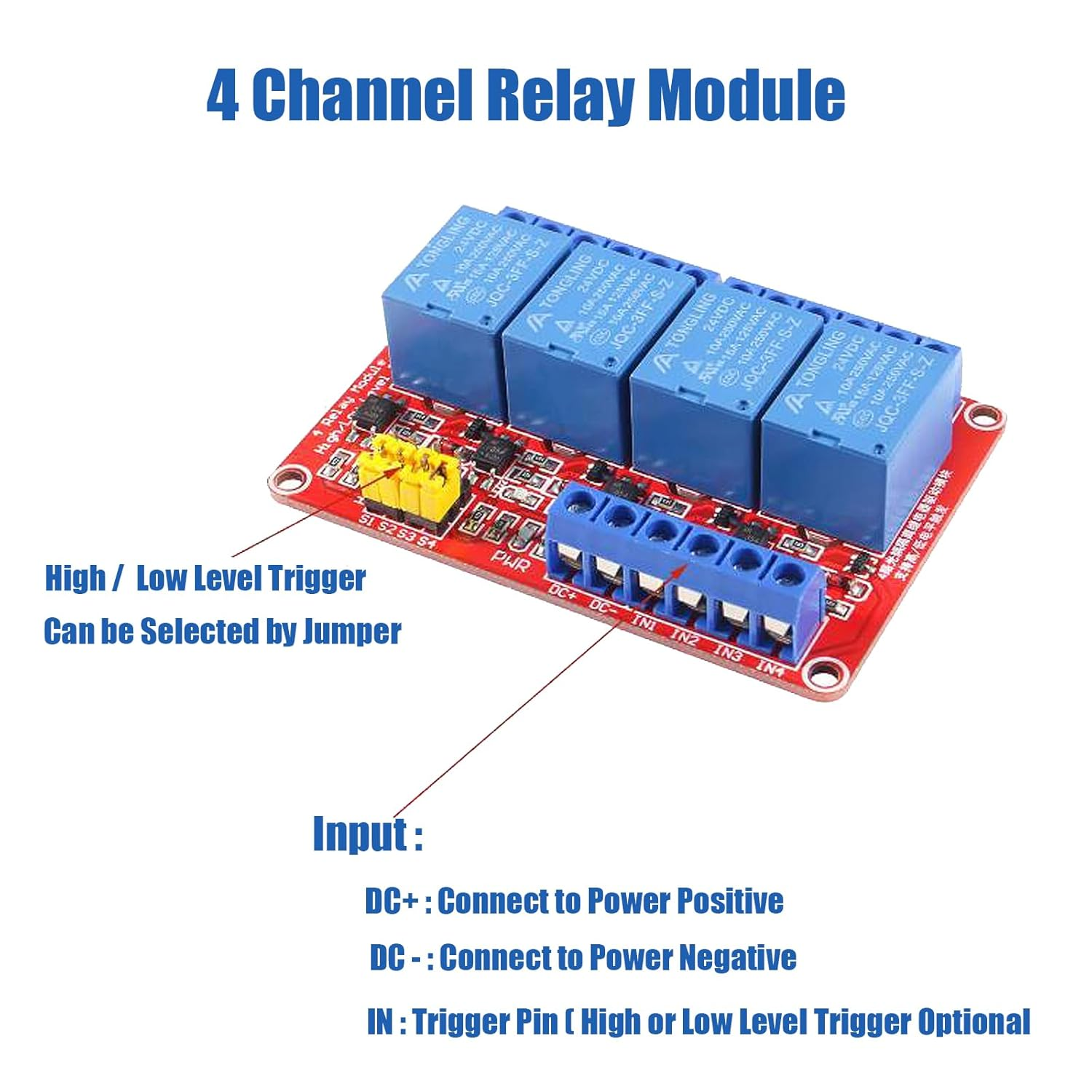

- 4 Channel Relay Module’s Path Can Be Triggered By High Level or Low Level Through Jumper Setting; 4 Channel Isolated, Each Relay Can Individually Switch On/Off By An Opto-Isolated Digital Input
- This Module Design With Fault-Tolerant , Even If The Control Line Breaks, The Relay Will Not Move; With Optical Coupling Isolation,Triggering More Reliable and Stable
- Convenient to Install :Relay Board Equipped with Screwed Terminal Plate and Fixed Bolt Holes(Diameter: 3.1 mm) on both Sides for Easy Installation
- Application: DC 12V Relay Module Works Well with ARM /PIC /AVR /MCU/Raspberry/CNC Machine/ PS4 etc.

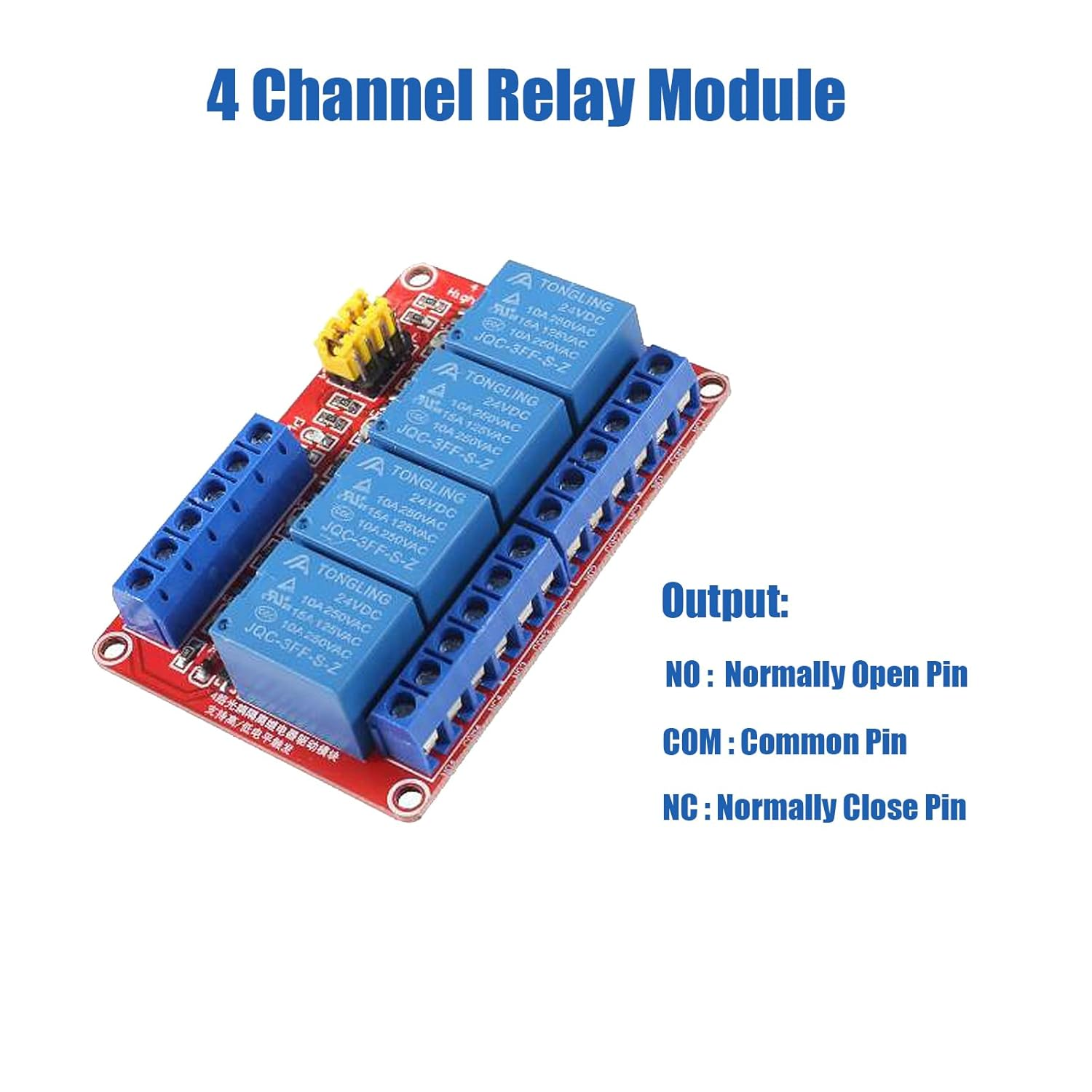

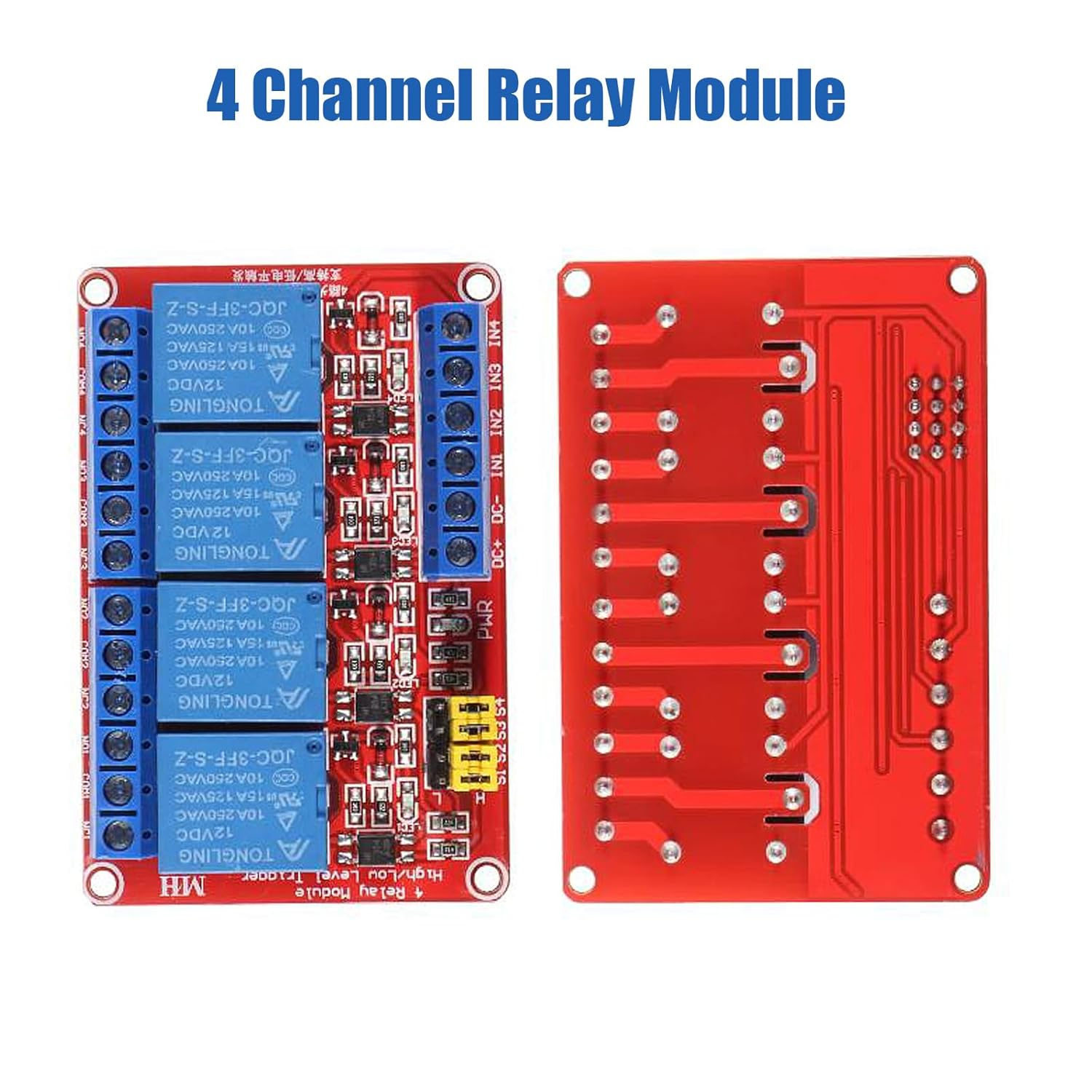

4 Channel Relay Module
- Country of origin: China
- Package Dimensions: 5.08 x 5.08 x 0.51 cm; 56.7 Grams
- Manufacturer reference: 0439402AU
- Manufacturer: DIANN
