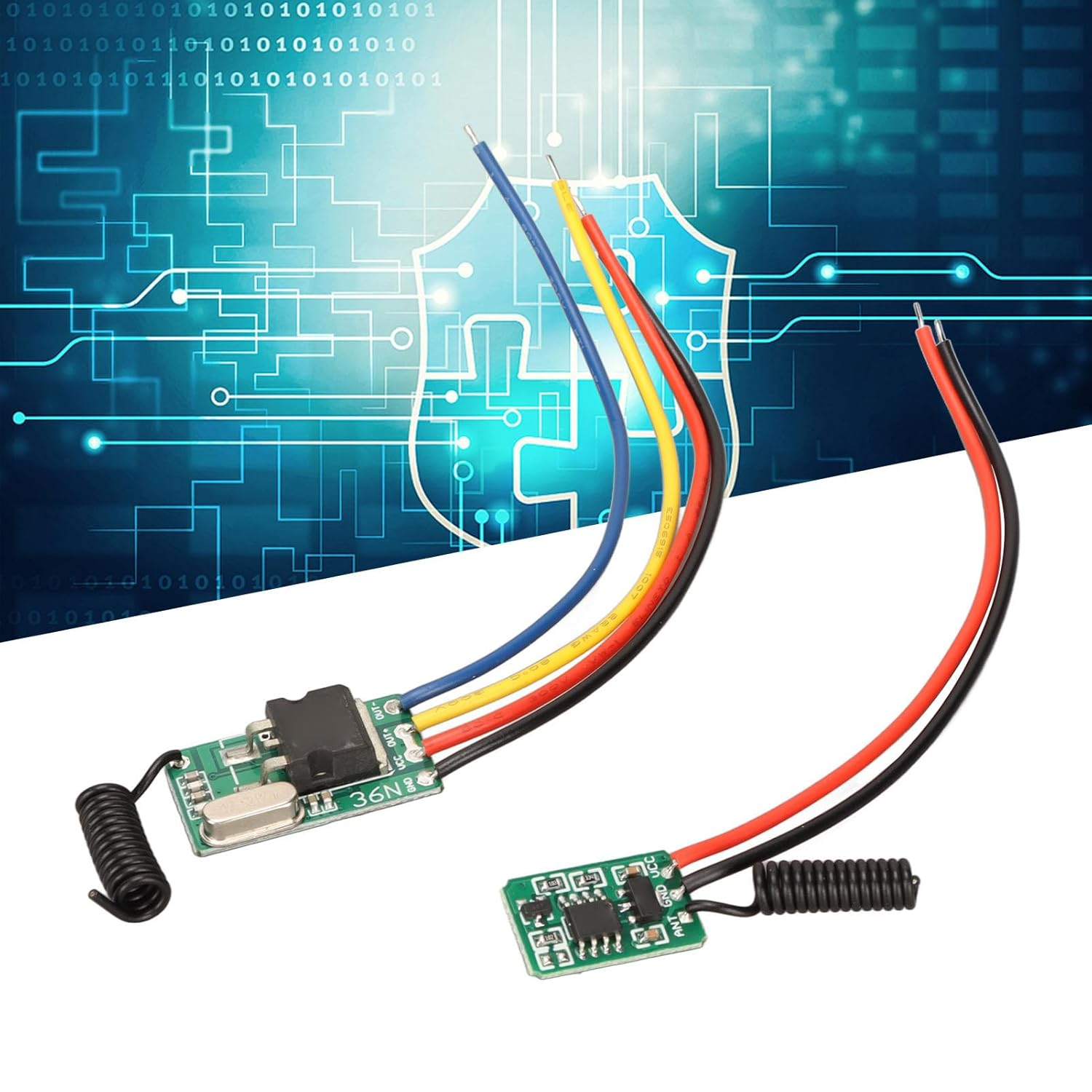

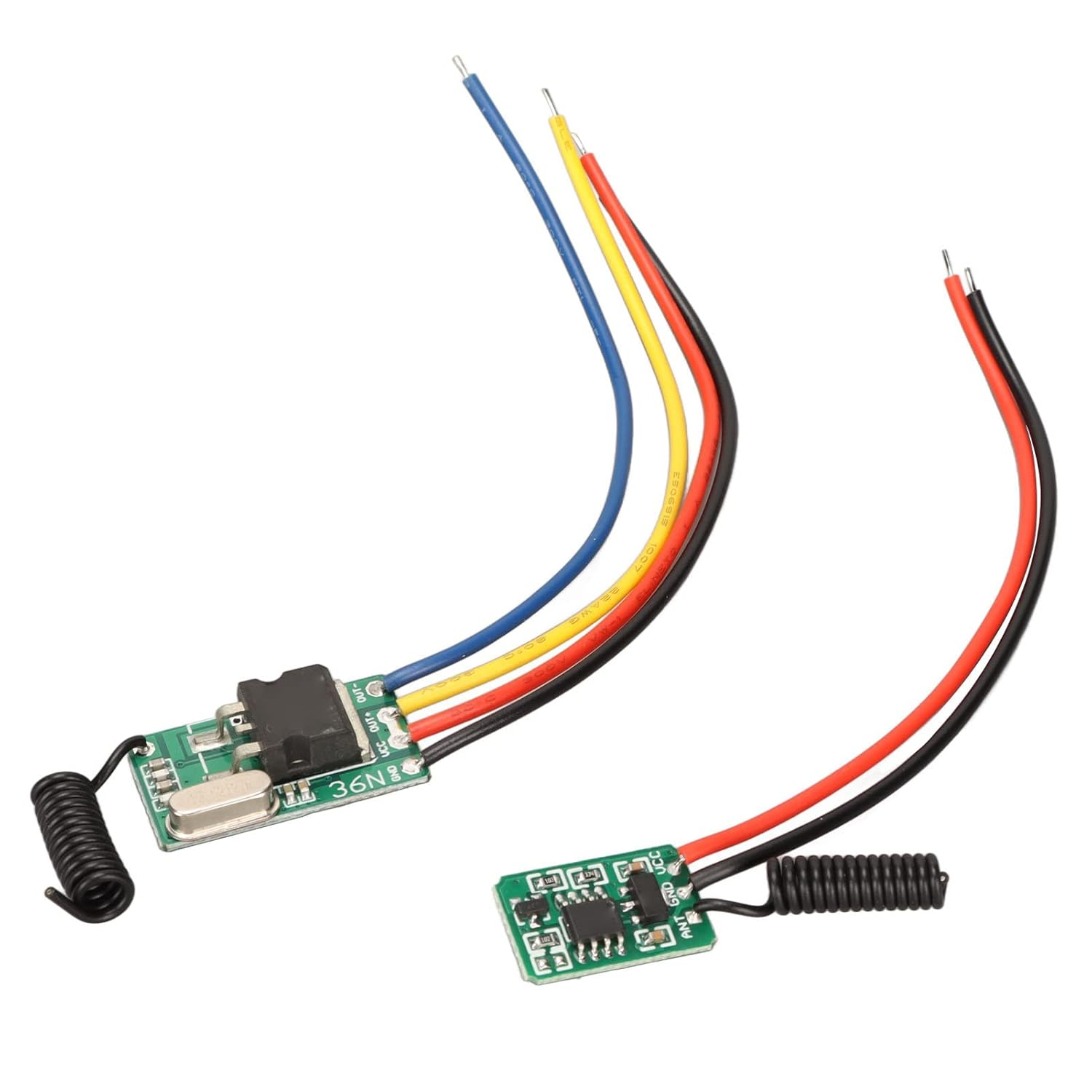

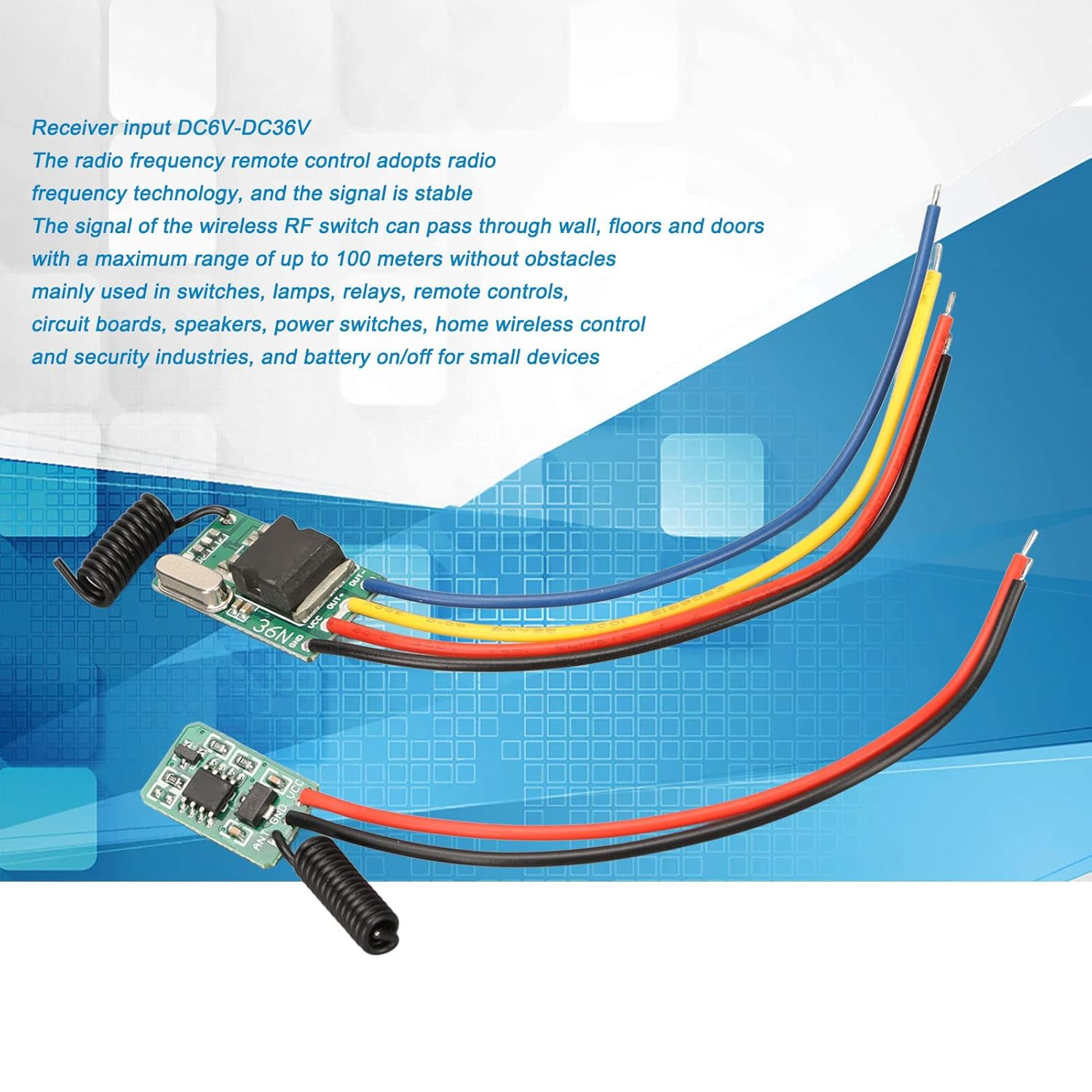

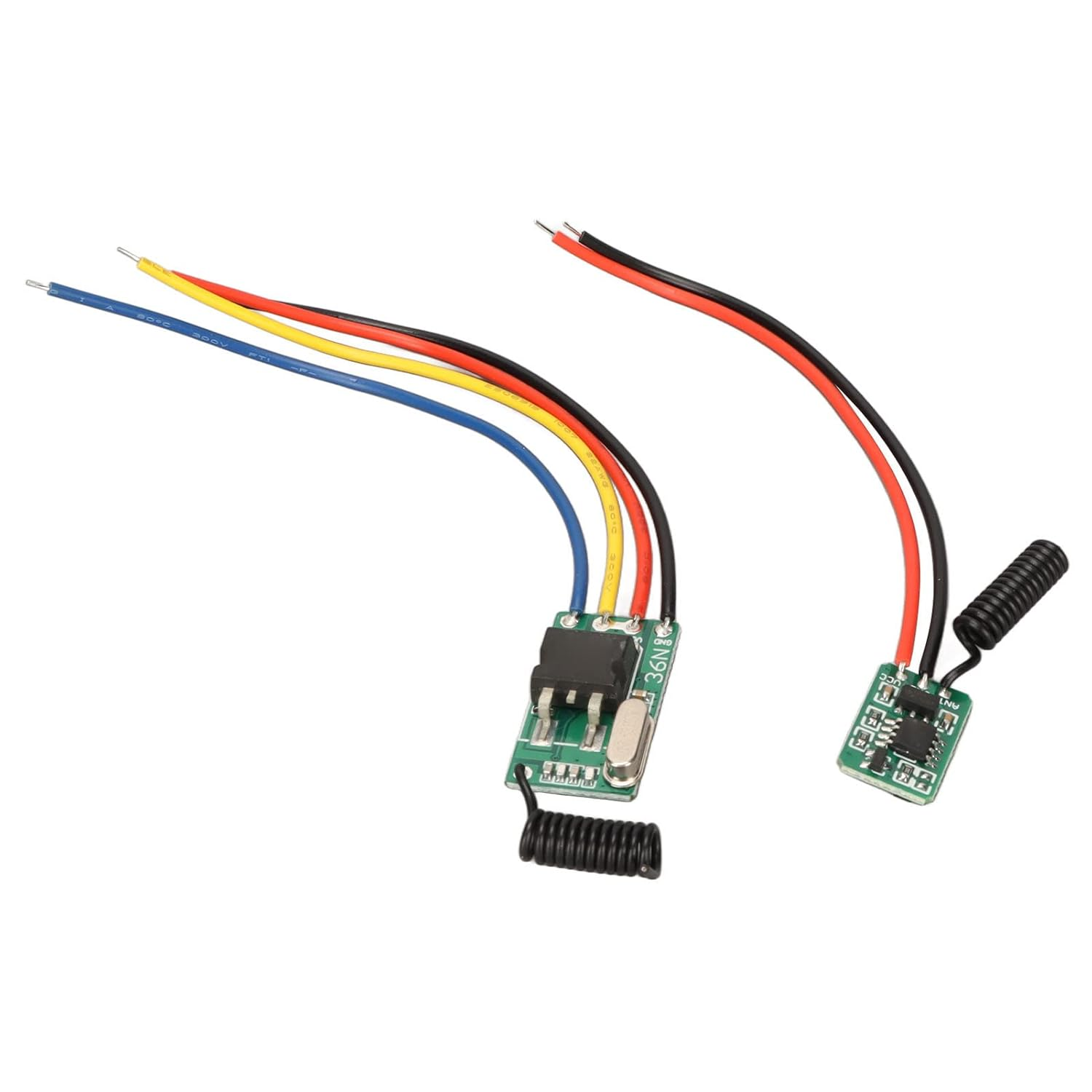

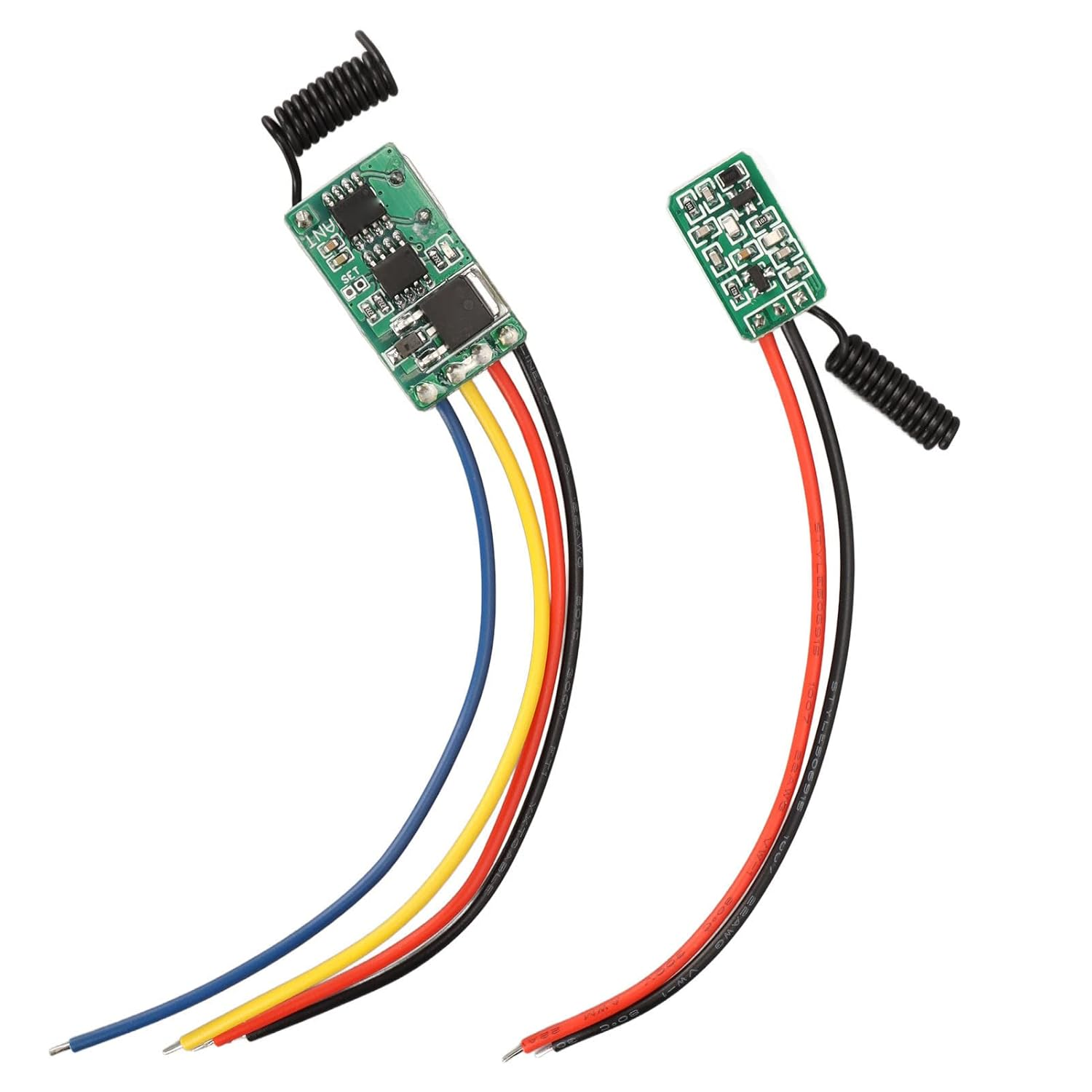

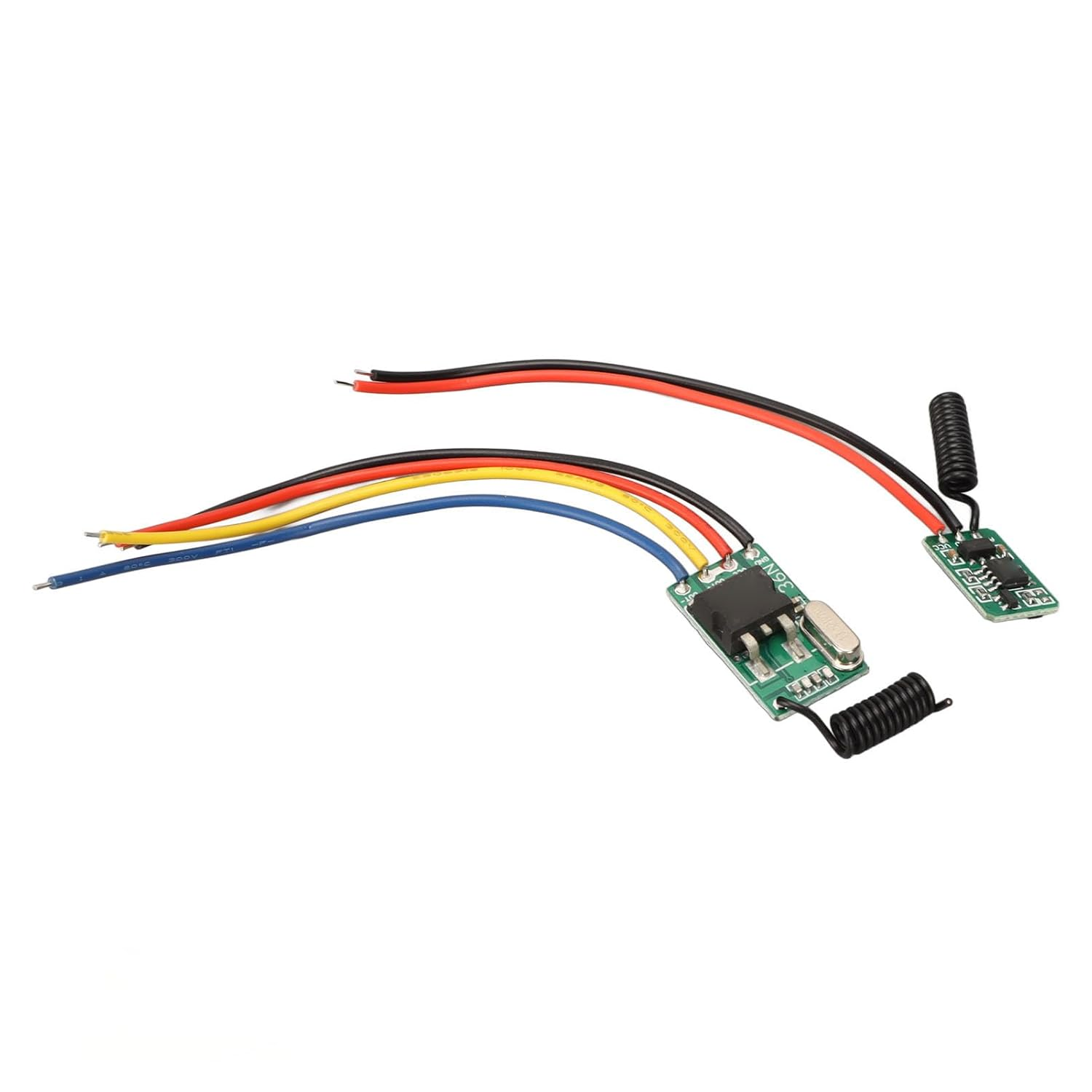

Mini Relay Remote Momentary Switch, Small RF Transmitter 433Mhz Control Switch PCB for Home with Smoke Sensor Alarm, 100M Range
Mini Relay Remote Momentary Switch, Small RF Transmitter 433Mhz Control Switch PCB for Home with Smoke Sensor Alarm, 100M Range
Brand: Eosnow
A$9.45
- Application: RF remote control switch is mainly used in switches, lamps, relays, remote controls, circuit boards, speakers, power switches, home wireless control and security industries, and battery on/off for small devices.
- Large Range: The signal of the mini RF switch can pass through wall, floors and doors, stably controlling the receiver from anywhere within a reliable distance, with a maximum range of up to 100 meters without obstacles.
- Stable Signal: The transmitter module can be controlled by smoke detectors or other sensors or microcontrollers. The radio frequency remote control adopts radio frequency technology, and the signal is stable.
- DC6V‑36V Receiver: Receiver input DC6V‑DC36V, miniature, the learning point is matched with the transmitter on the receiver, the low voltage relay is inward, the superheterodyne receiver module has high receiving sensitivity and good anti interference performance.
- DC5V‑24V Transmitter: It is a radio frequency transmitter board without shell and buttons, just input DC5V‑DC24V power supply to it, it can transmit signals, it is a miniature transmitter module for learning code receiver.
Product Description
Mini Relay Remote Momentary Switch, Small RF Transmitter 433MHz Control Switch PCB for Home with Smoke Sensor Alarm, 100m Range
DC5V‑24V Transmitter: It is a radio frequency transmitter board without shell and buttons, just input DC5V‑DC24V power supply to it, it can transmit signals, it is a miniature transmitter module for learning code receiver.
DC6V‑36V Receiver: Receiver input DC6V‑DC36V, miniature, the learning point is matched with the transmitter on the receiver, the low voltage relay is inward, the superheterodyne receiver module has high receiving sensitivity and good anti interference performance.
Large Range: The signal of the mini RF switch can pass through wall, floors and doors, stably controlling the receiver from anywhere within a reliable distance, with a maximum range of up to 100 meters without obstacles.
Specification:
Item Type: RF Remote Control Switch
Material: PCB
Receiver:
Working Voltage: DC6V-36V
Maximum Load: 5A (If You Control the Motor, the Load is Less Than 3A)
Working Frequency: 433MHz
Frequency Deviation: Greater or Less Than 0.2MHz
Operating Temperature: -20 Degrees Celsius - +80 Degrees Celsius
Receive Sensitivity: ≥-109dBm
Modulation: Amplitude Modulation (AM)
Encoding Type: Learning Point Add Emitter
Output Status: Momentary. Switch. Lock and Adjust by Connecting Different Points
Transmitter:
Working Voltage: DC5V-24V
Modulation Mode: ASK
Working Frequency: 433MHz
Working Current: 8-10mA
Transmit Power: 21mW
Coding Type: Learning Code (Ev1527)
Transmission Distance: Approx. 10-100m/32.8-328ft
Receive Sensitivity: 108dBm
How to Use:
Momentary: Press the to open. Release your finger, the closes
Toggle: Press one at a time to turn on. Press the same again to close
Momentary: Connect the learn . Until the receiver LED indicator flashes 2 times, it means the replacement is successful
Toggle: Connect Learning . Until the receiver Led indicator flashes 1 time, it means the change is successful
Learning code: input 12V to the receiver, connect the learning , the receiver Led indicator lights up.
PackageList:
1 x Receiver
1 x Transmitter
- Item Model Number: Eosnowiyo3cw65sf
- Package Dimensions: 13.6 x 9.1 x 4.5 cm; 380 Grams
- Manufacturer: Eosnow
