5 Pack 12V 40/30 Amp Car Relay DC 5 Pin SPDT and Harness - Heavy Duty 12 AWG Copper Wires Relays Kit Bosch Style for Automotive Truck Van Motorcycle Boat

5 Pack 12V 40/30 Amp Car Relay DC 5 Pin SPDT and Harness - Heavy Duty 12 AWG Copper Wires Relays Kit Bosch Style for Automotive Truck Van Motorcycle Boat

Brand: XIAOYIXIAO
4.5
A$17.75
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

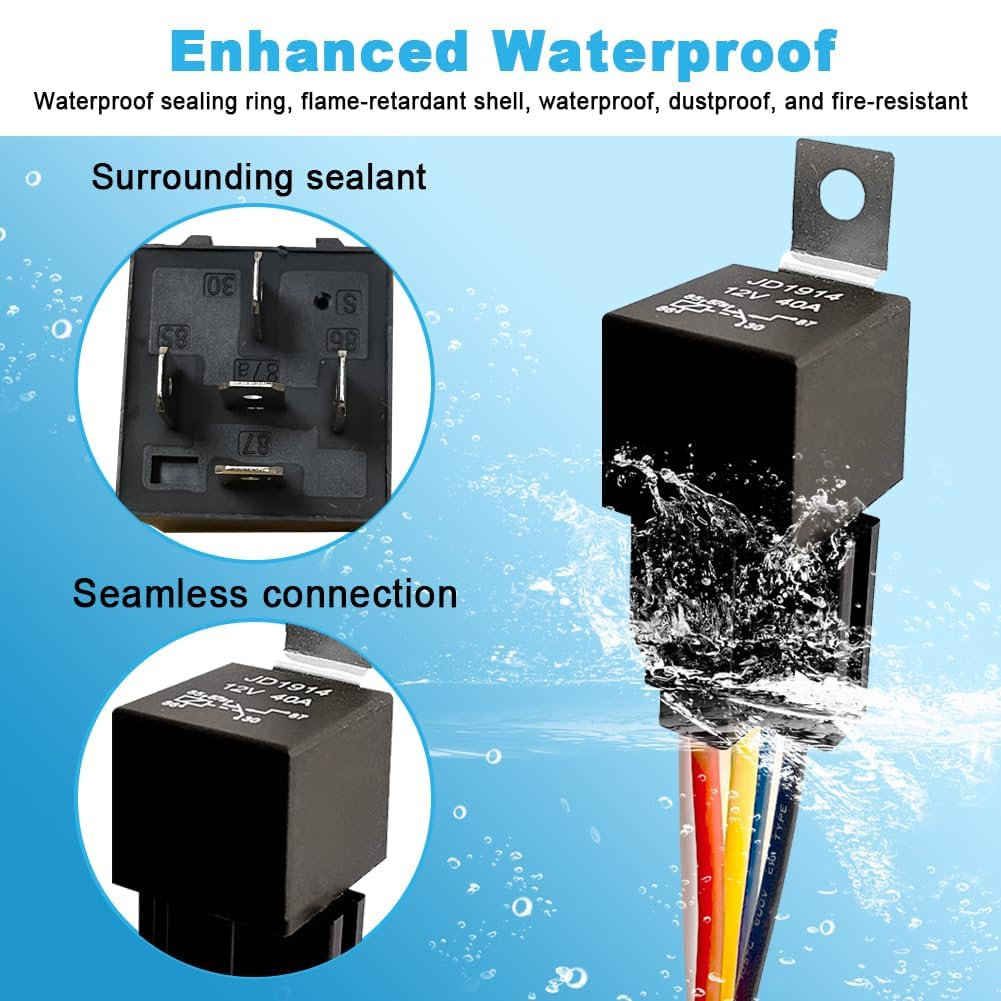

  • High-Performance Waterproof Design ：This 12V DC automotive relay (max 14V) features a robust nylon shell with excellent electrical insulation and waterproof capabilities. Designed for harsh environments, it ensures reliable performance in cold and hot conditions without deformation or rust. Perfect for vehicles and outdoor applications.

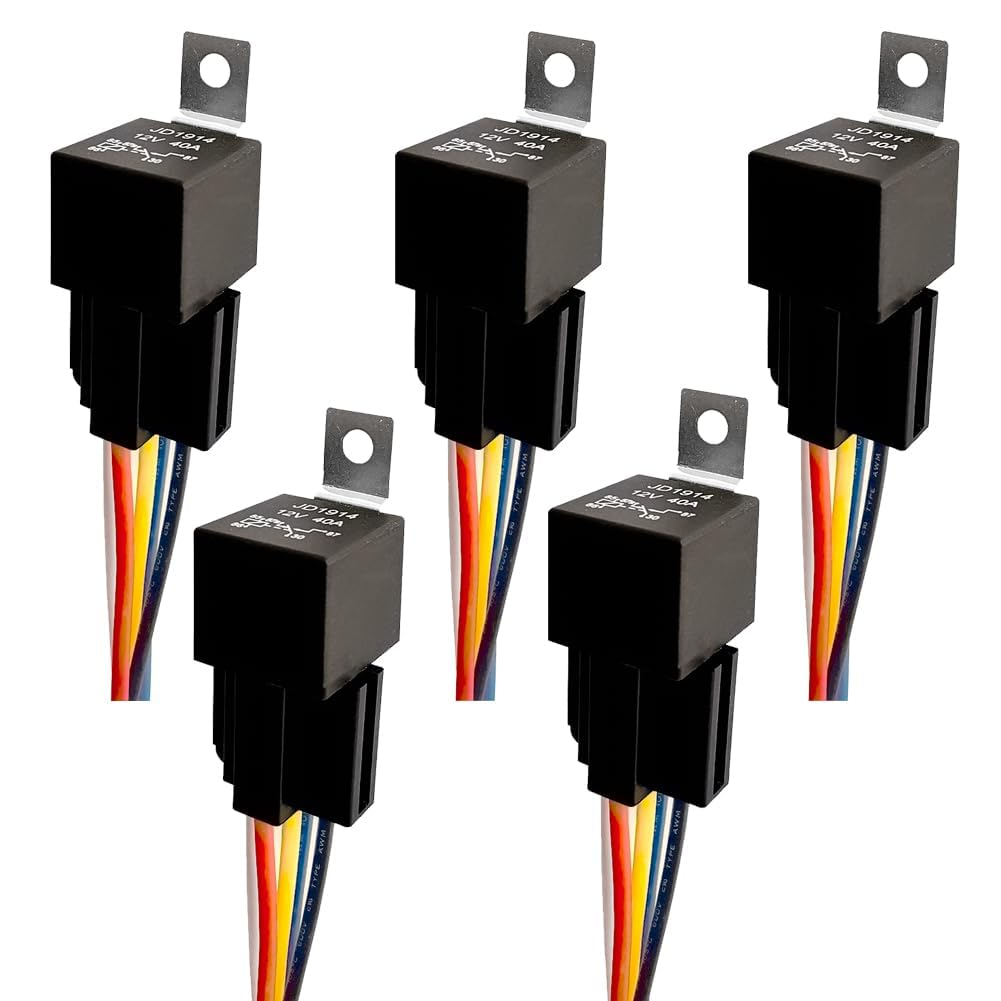

  • Complete Package： Includes 5Pack 5-pin 12V 30/40A relays with pre-wired harnesses. Whether you’re upgrading existing systems or installing new ones, this kit provides everything you need for reliable and efficient operation.

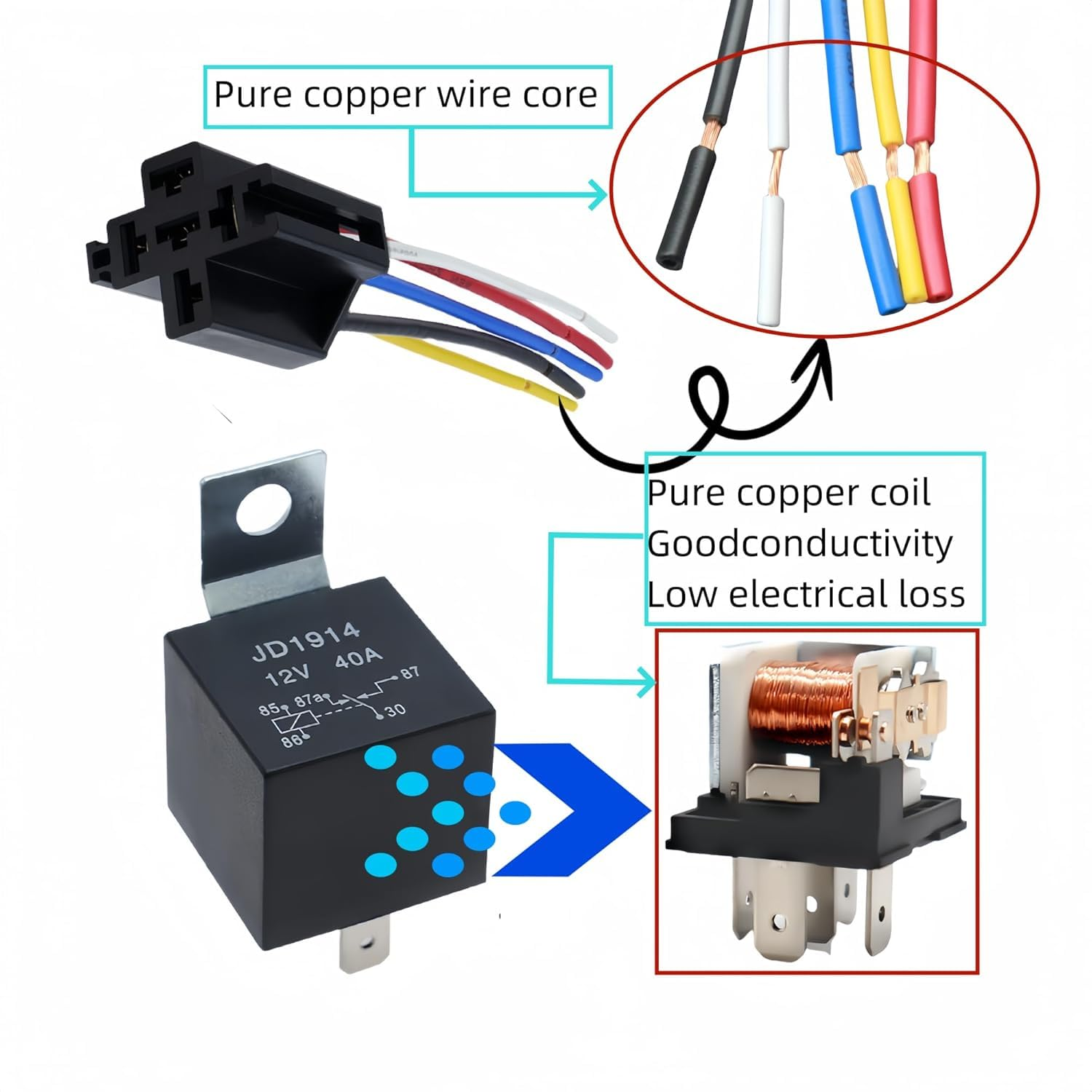

  • Conductivity：Engineered with a high-quality pure copper coil, this relay offers strong conductivity and minimal energy loss. The precision design ensures safe and stable electrical performance, making it ideal for long-term use in demanding conditions.
  • Easy to install： Equipped with a heavy-duty 16/14 AWG wiring harness for quick and hassle-free installation. Color-coded wires (Black - 16AWG Pin85, Red - 14AWG Pin30, White - 16AWG Pin86, Yellow - 14AWG Pin87a, Blue - 14AWG Pin87) simplify setup and ensure proper connections.
  • Versatile：5-Pin 12V 30/40A Relay - Suitable for a wide range of automotive systems, including LED work lights, fog lamps, starters, wipers, fans, speakers, central locking, alarms, and electric windows. Its 30/40A capacity ensures durability and efficiency in multiple applications.

Specification:
Material: Ag Alloy
Color: Black
Size: Dimensions: Length * Width * Height: 195* 160* 30MM
Contact Ratings: NO 40A 14VDC Contact Resistance: 100mMAX (at6VDC 1A) Max Switching Current: 40A
Max Switching Power: 560W
Product Usage: Automotive Control Device
Contact form: 1a, 1c
Contact capacity: 1a/2a: 40A 14VDC
1b:30A 14VDC
1c:40A/30A 14VDC
Coil voltage: 12VDC
Coil power (W): 1.80
Contact resistance: ≤ 50mΩ
Insulation resistance: ≥ 1,00MΩ
Dielectric withstand voltage: 500VAC between open circuit contacts
500VAC between coil contacts
Environmental temperature: -40 ℃~+125 ℃
12AWG Copper Wire: Pin 87a Yellow
12AWG Copper Wire: Pin 87 Blue
12AWG Copper Wire: Pin 30 Red
16AWG Copper Wire: Pin 85 Black
Product List
5 Pcs x 12v Waterproof Relay Kit
Note:
Due to manual measurement, the size and weight may have a certain error.
Due to the difference between monitors, there may be a slight color difference existed.

  • Item Weight: 0.1 g
  • Country of origin: China
  • Package Dimensions: 0.25 x 0.25 x 0.25 cm; 0.1 Grams
  • Manufacturer reference: JIOPSK
  • Manufacturer: XIAOYIXIAO
