Waveshare Industrial 8-Channel ESP32-S3 Wi-F Relay Module, Isolated CAN Interface, Xtensa 32-Bit LX7 Dual-Core Processor, 240Mhz, Multiple Isolation Protection Circuits, Poe Ethernet Port

Waveshare Industrial 8-Channel ESP32-S3 Wi-F Relay Module, Isolated CAN Interface, Xtensa 32-Bit LX7 Dual-Core Processor, 240Mhz, Multiple Isolation Protection Circuits, Poe Ethernet Port

Brand: Waveshare
5.0
A$126.00
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

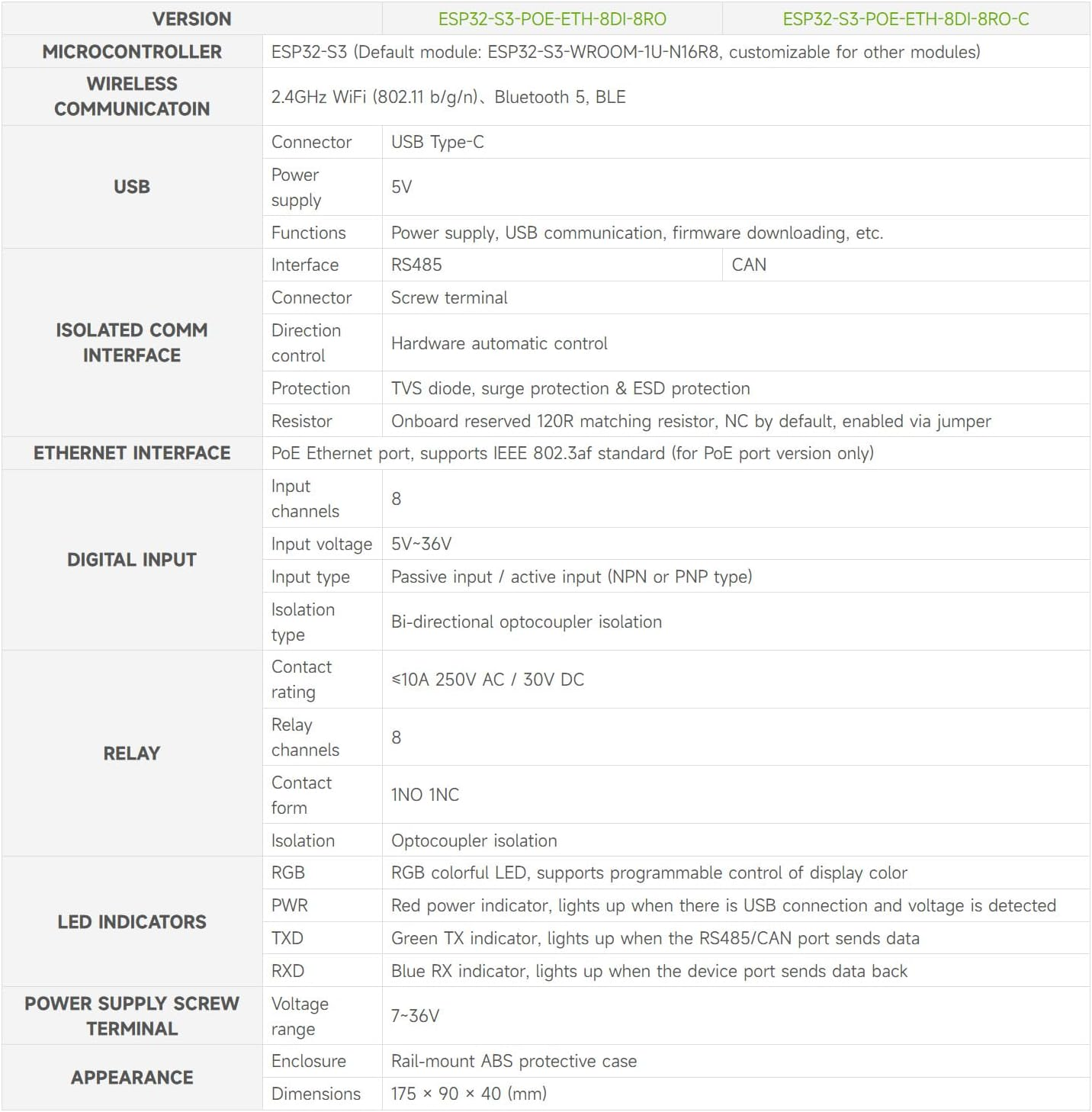

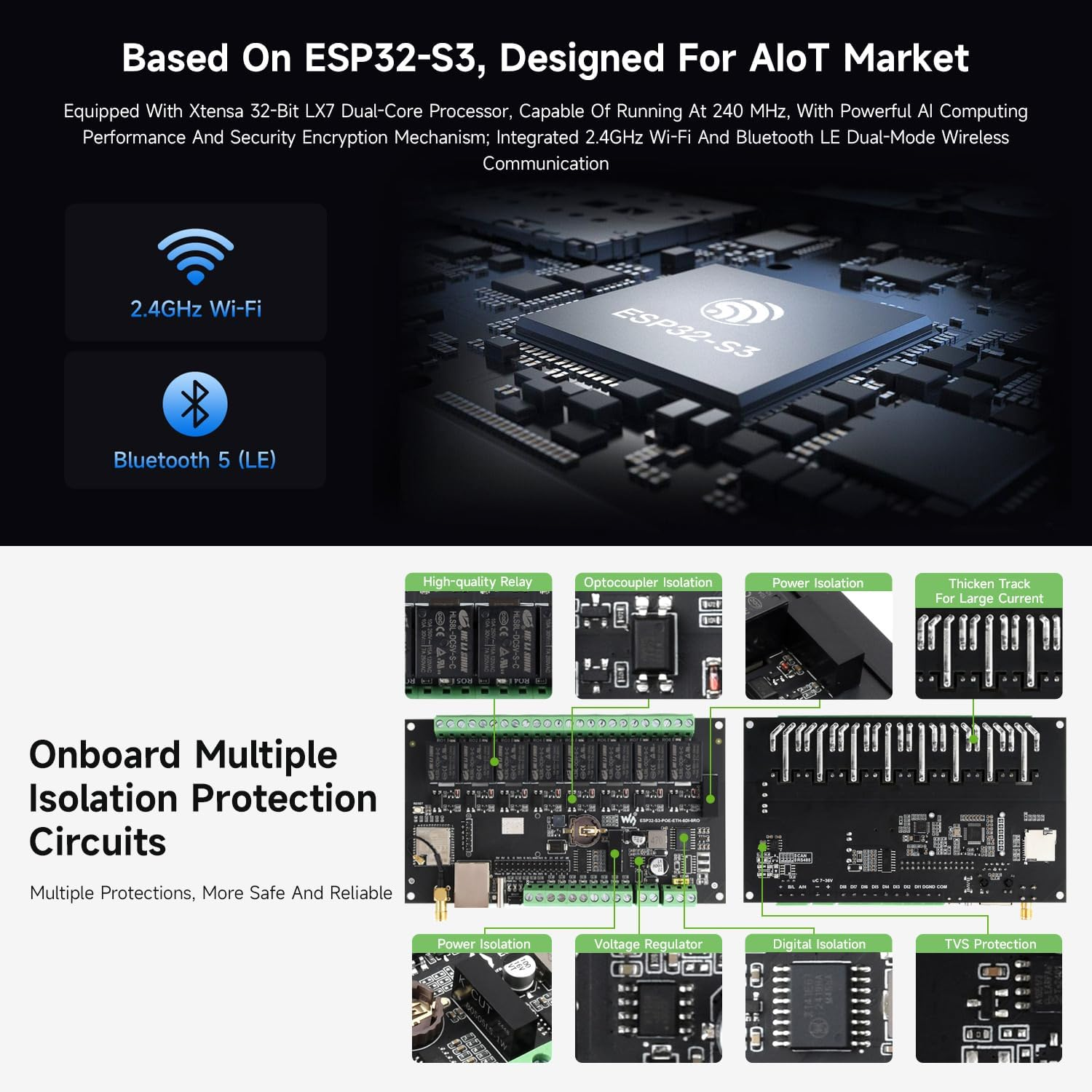

  • Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources;ESP32-S3 Microcontroller: Powered by the ESP32-S3 microcontroller with a dual-core Xtensa 32-bit LX7 processor, running at up to 240 MHz for optimal performance.
  • wire-less Communication: Integrated 2.4GHz Wi-Fi and Blue-T LE dual-mode support, ensuring excellent RF performance for seamless connectivity.

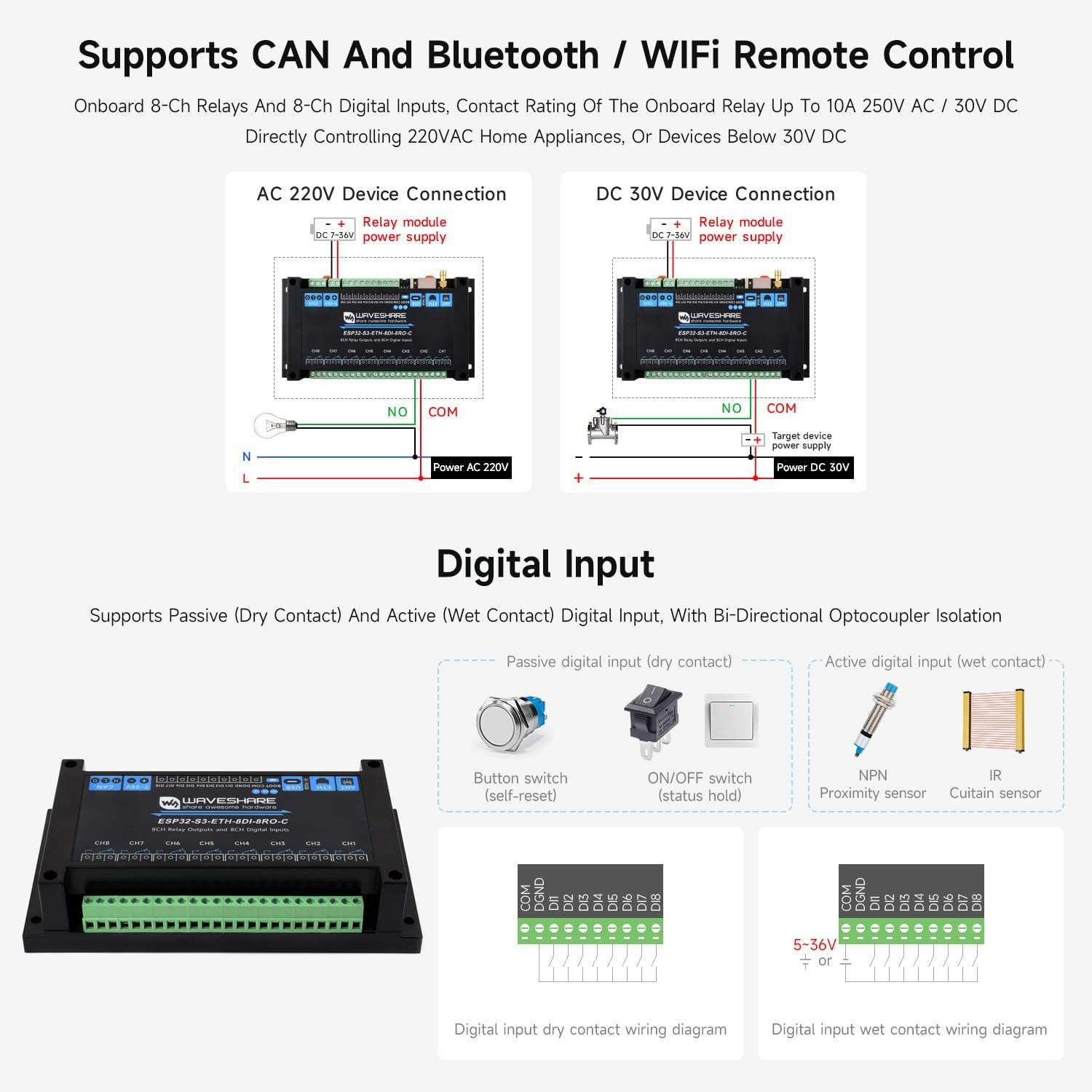

  • Relay and Digital Input: High-quality relay with a contact rating of ≤10A 250V AC / 30V DC, supporting both passive and active digital inputs with bi-directional optocoupler isolation and digital input linkage control.

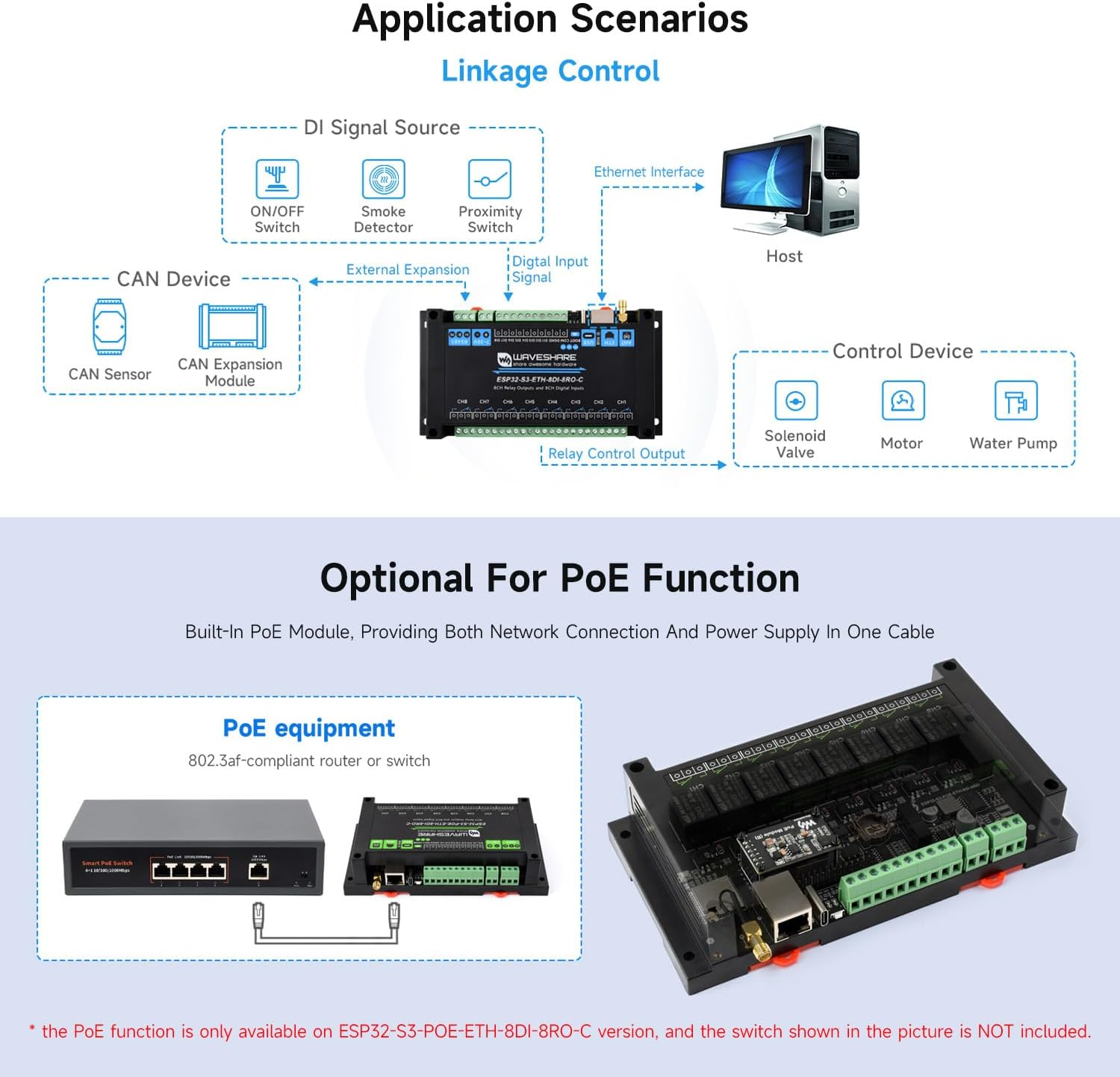

  • CAN Interface & Connectivity: Equipped with an isolated CAN interface for communication with CAN devices, plus a pin header for connecting to other external devices. It also includes an optional PoE version with built-in PoE capability for power over Ethernet.
  • Power, Monitoring, and Installation: Onboard USB Type-C for power, debugging, and firmware downloading, with a wide voltage input (7~36V). Additional features include an RTC chip, W5500 Ethernet chip, TF card slot, built-in buzzer, RGB LED, and CAN TX/RX indicators. The device comes in a rail-mounted ABS case for easy installation.
  • Item Model Number: ESP32-S3-POE-ETH-8DI-8RO-C
  • Part Number: ESP32-S3-POE-ETH-8DI-8RO-C
  • Graphics Card Interface: Integrated
  • Model Name: ESP32-S3-POE-ETH-8DI-8RO-C
  • Batteries Included: No
  • Batteries Required: No
  • Brand: Waveshare
  • Compatible Devices: Personal Computer, Server, Embedded System
  • Item Weight: 450 g
  • Number of Ports: 8
  • Total USB ports: 1
  • Ram Memory Technology: LPDDR4
  • Chipset Type: ESP32-S3
  • Model: ESP32-S3-POE-ETH-8DI-8RO-C
  • Package Dimensions: 20.7 x 15.1 x 5.5 cm; 450 Grams
  • Manufacturer: Waveshare
