AC Current Digital Mmeter AC 80-260V 100A LCD Display Current Voltage Power Energy Current Meter Voltmeter Multimeter Universal Strip Split Type Current Transformer CT

AC Current Digital Mmeter AC 80-260V 100A LCD Display Current Voltage Power Energy Current Meter Voltmeter Multimeter Universal Strip Split Type Current Transformer CT

Brand: LEVANLIGHT
3.7
A$26.25
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

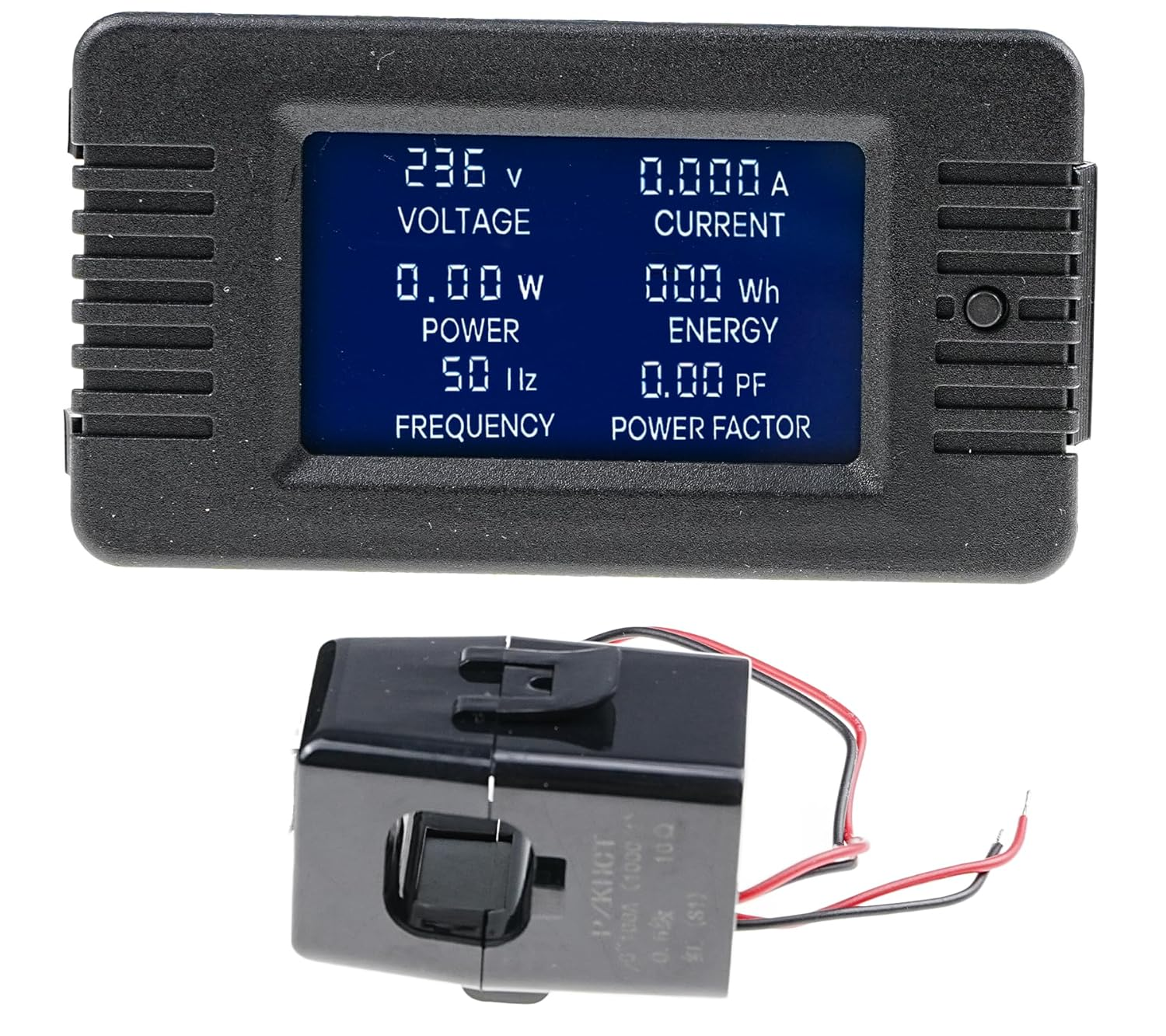

  • *Digital multimeter: Large screen LCD display, capable of simultaneously displaying six parameters including current, voltage, energy, active power, frequency, and power factor.Split type current transformers are more convenient to install.
  • *Overload alarm: When the value exceeds the preset value, the backlight and power supply will flash simultaneously to issue an alarm. You can set the preset value by yourself, but it cannot exceed the rated value.
  • *Power outage data storage: When the power suddenly shuts down, the last value will be automatically stored without worrying about data loss.
  • *One click control: This button can be used to control backlight, reset energy, and preset battery alarm settings. Short press the button to start or turn off the backlight, and automatically save the backlight status after power failure.
  • *LED data display: Large screen LCD display, full view 180 °, blue backlight can be manually turned on/off.

Product Description

Function:

  • Electrical parameter measurement: Six in one measuring instrument, measuring voltage, current, active power, frequency, energy, and power factor.
  • One click control: This button can control the backlight, reset energy, and preset power alarm threshold with one click.
  • Overload alarm: If it exceeds a certain preset value, an alarm will be triggered through backlight and power flashing.
  • Preset power alarm value: You can set the power alarm threshold by yourself.
  • Power off storage: When the power suddenly shuts down, the last measured value will be automatically stored without worrying about losing data.
  • Large LCD screen: Full screen 180 ° viewing angle, can manually turn on and off backlight, and can read normally even in dark or strong light conditions.

Measuring Range:

  • Voltage: 80~260VAC
  • Current: 0~100A
  • Power: 0~22000W
  • Energy: 0~999kWh
  • Frequency: 45~65Hz
  • Power Factor: 0~1PF

Specification Parameters:

  • Working Voltage: 80 ~ 260VAC
  • Voltage Test: 80 ~ 260VAC
  • Rated Power: 100A/22000W
  • Operating Frequency: 45/65Hz
  • Operating Temperature Range: 14℉~140℉/-10℃~60℃
  • Measurement Accuracy: 1%

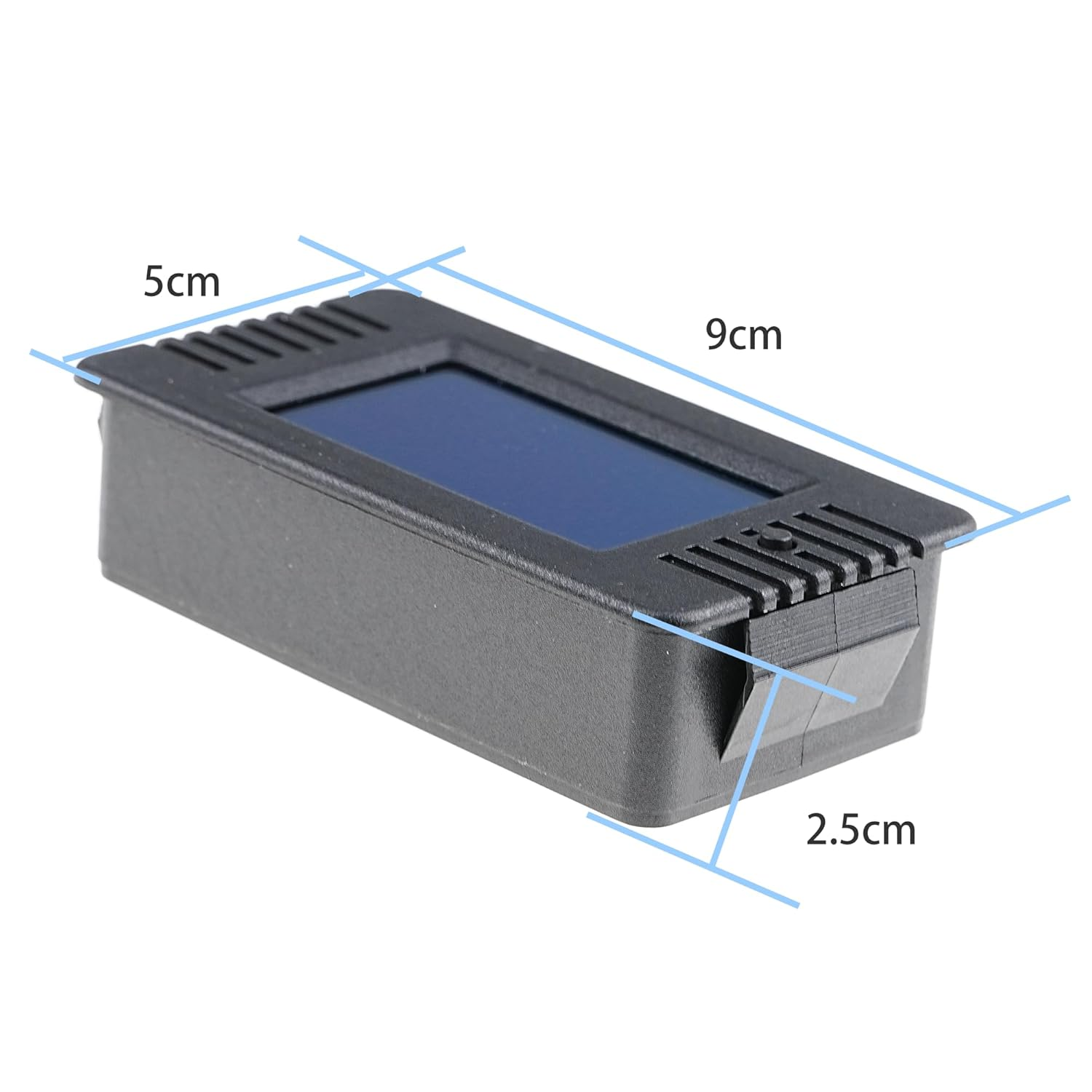

  • Dimension: 90x49.6x25mm/3.54x1.95x0.98 inch
  • Screen size: 51x30mm/2x1.18 inch

Note:

  • Please make sure the AC input is Pure Sine Wave. (Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converted from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave.
  • Applied load should not exceed the rated power.

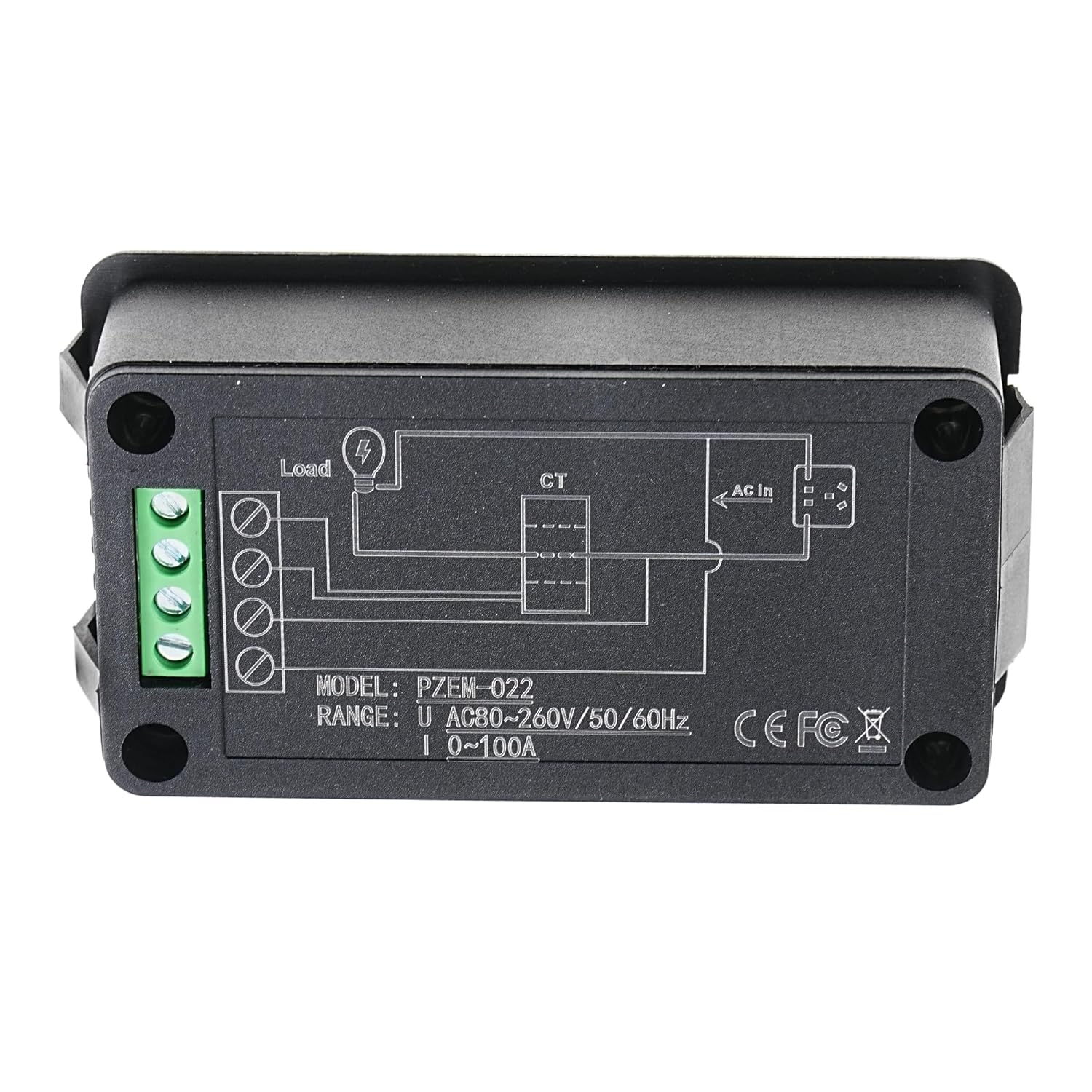

  • Wiring order cannot be wrong.
  • This meter is used for single-phase power with one hot line and one neutral line. If you want to measure the circuit with 2 hot lines, you will need 2 meters, one for each line.
  • This module is suitable for indoor applications, please do not use outdoors.

You Will Receive:

  • 1Pcs AC Digital Meter

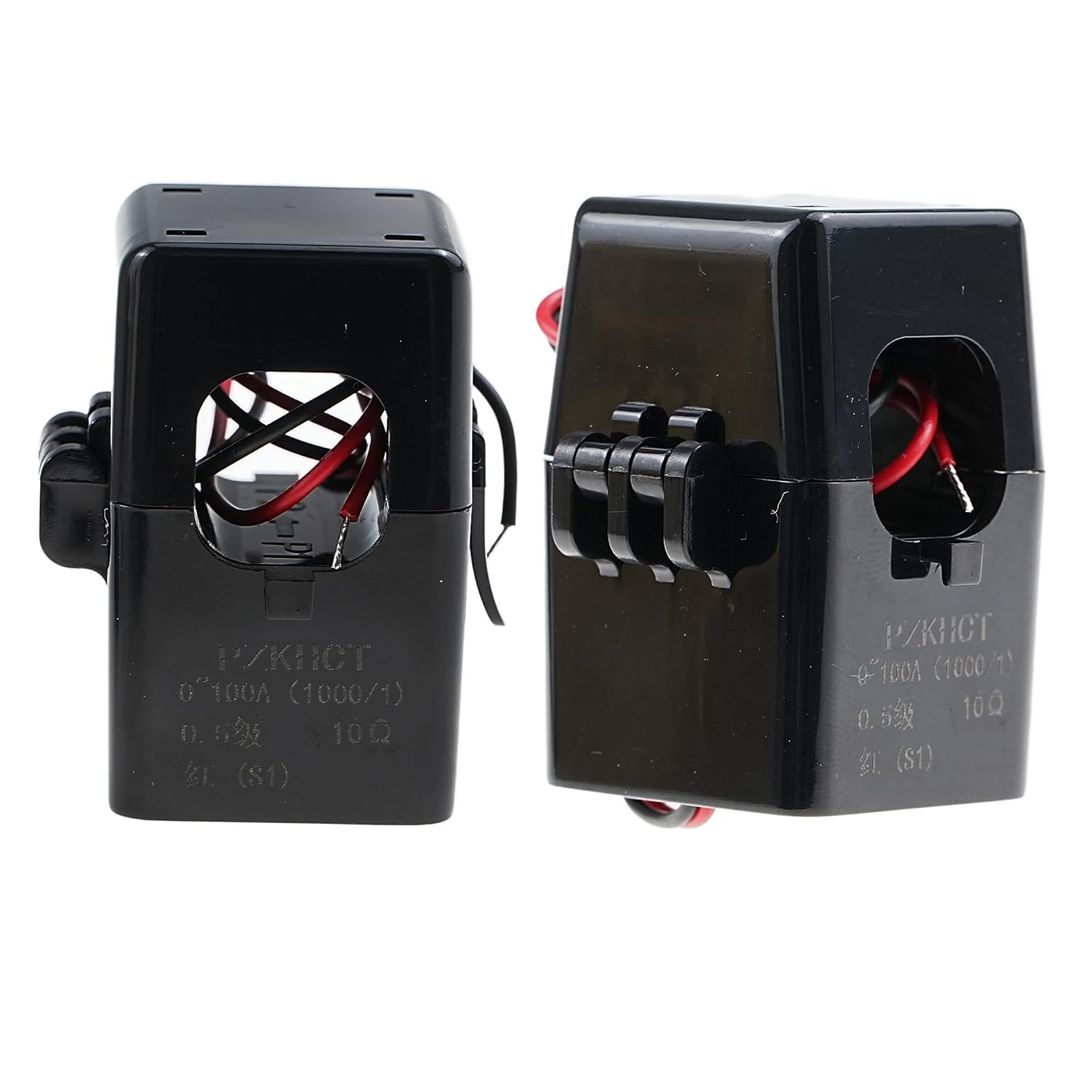

  • 1Pcs 100A Split Core Current Transformer
  • Product dimensions: 9 x 5 x 2.5 cm; 65 Grams
  • Country of origin: China
  • Manufacturer reference: 3-01-1458
  • Manufacturer: LEVANLIGHT
