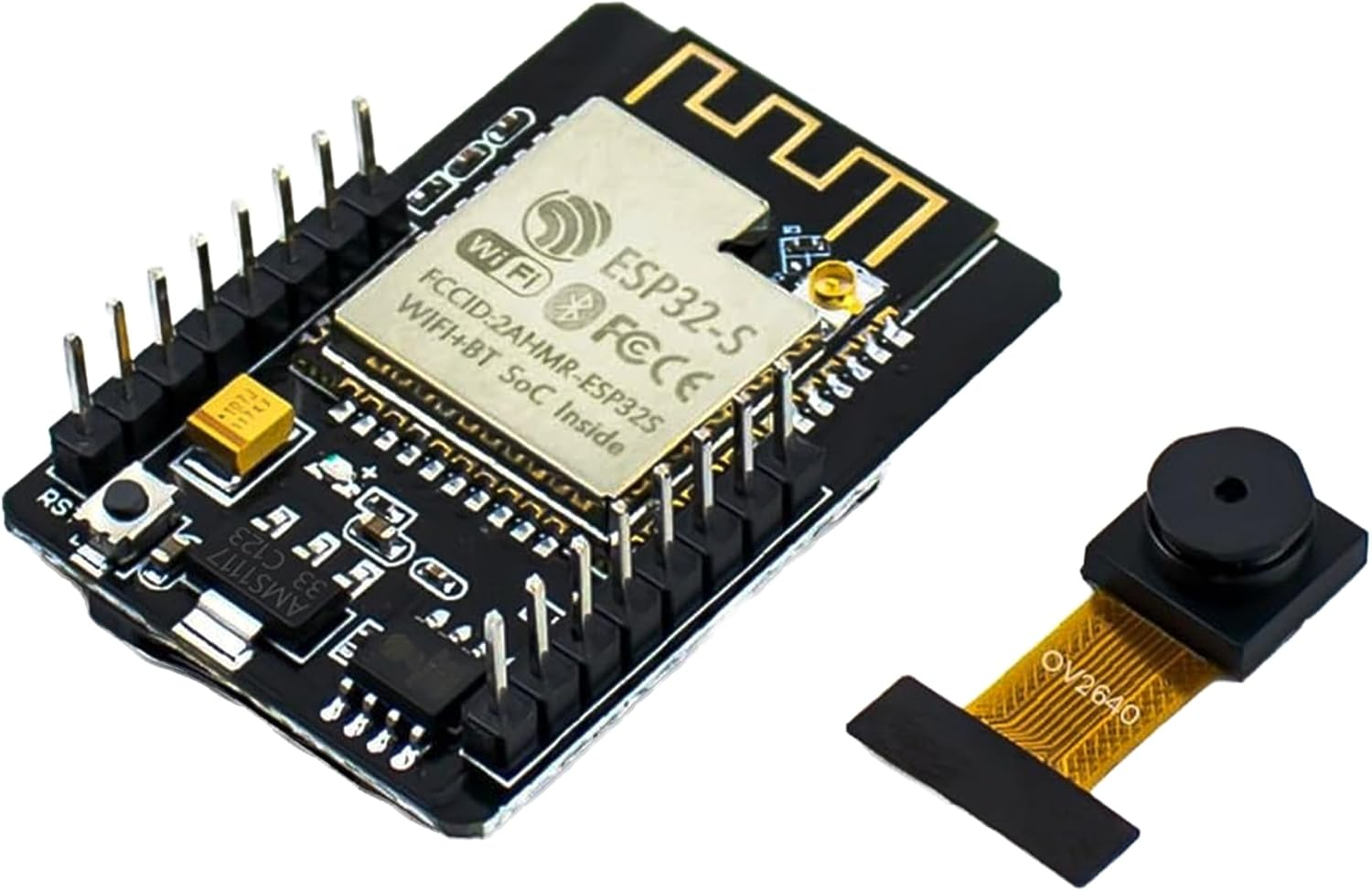

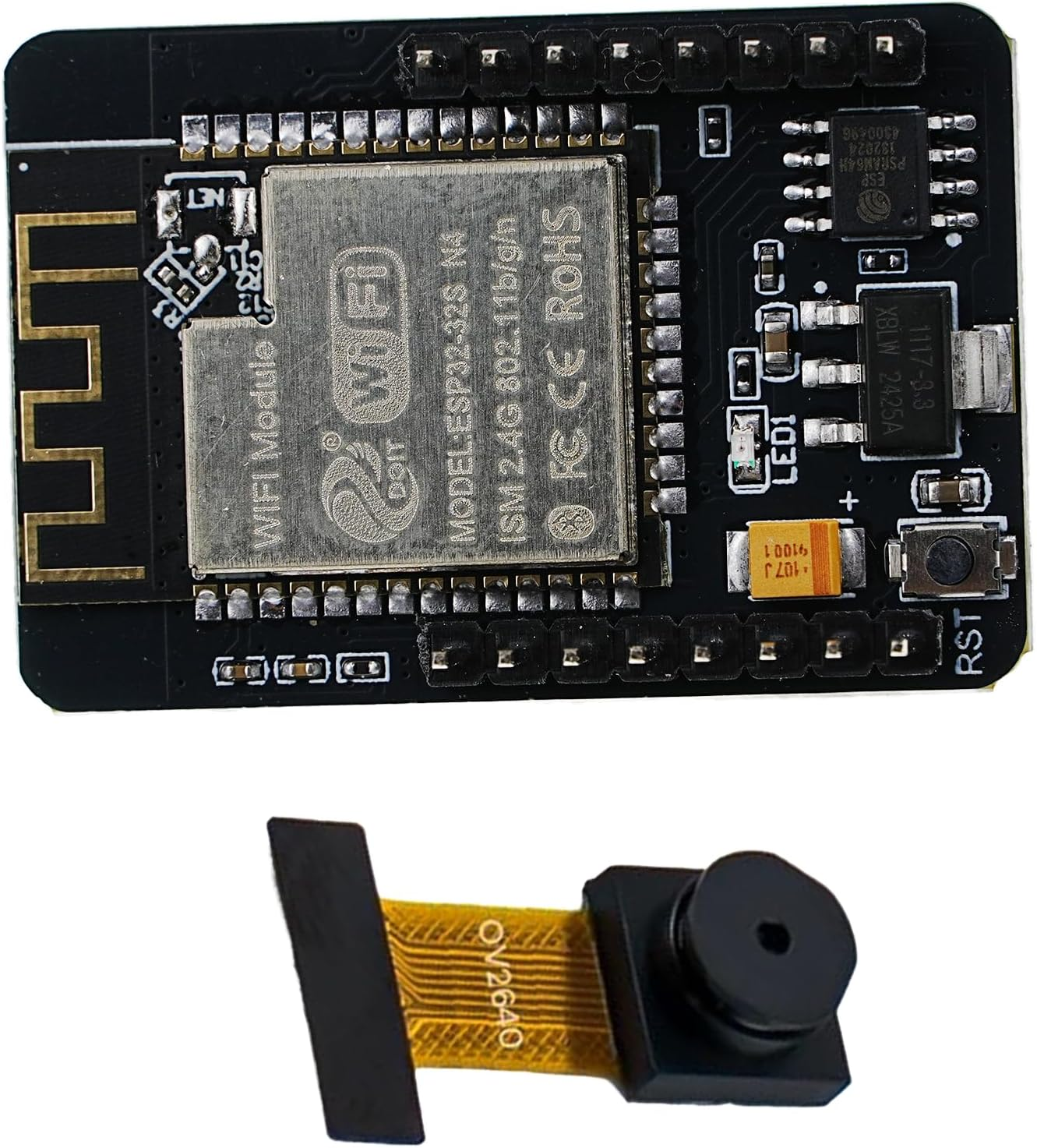

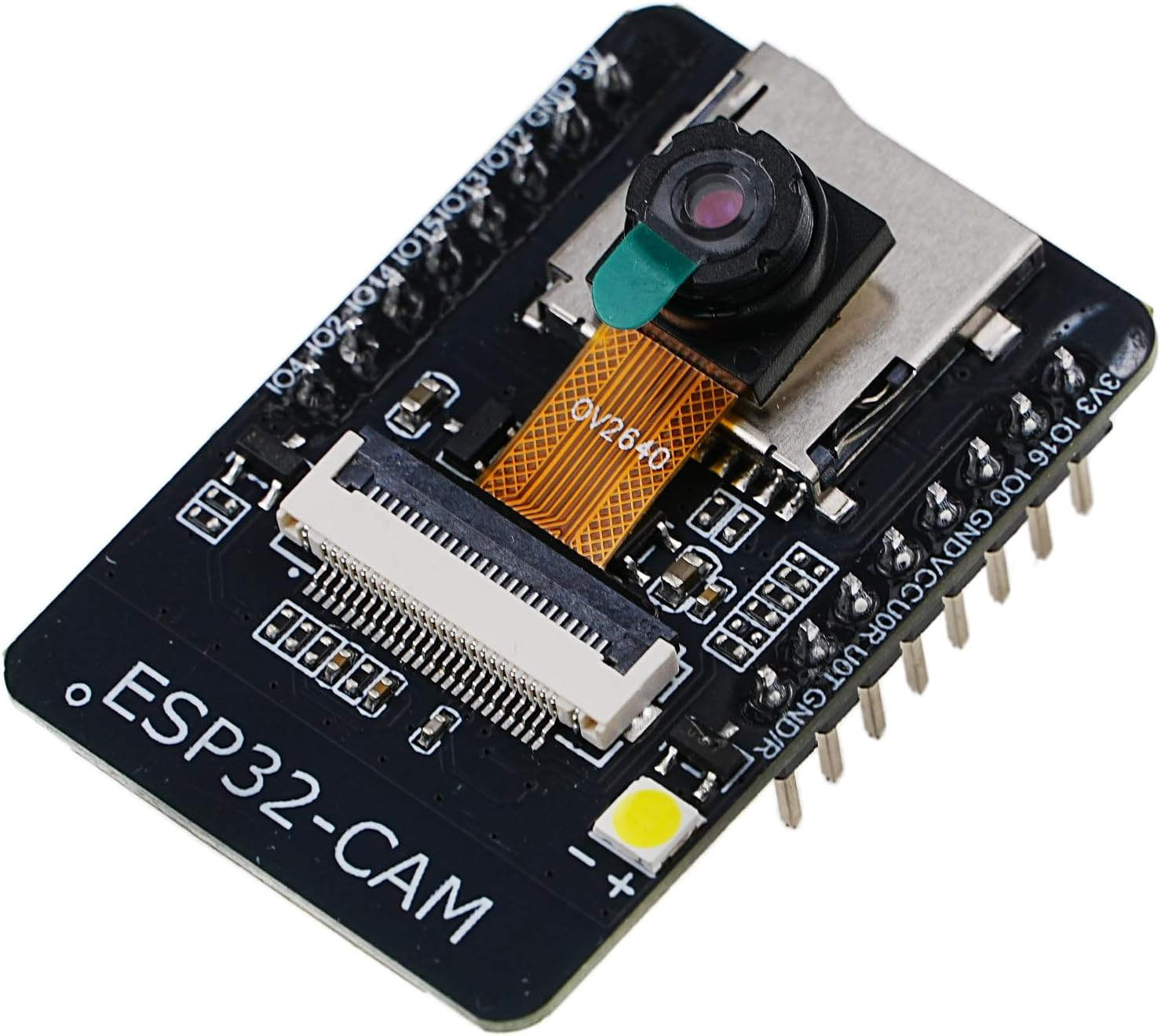

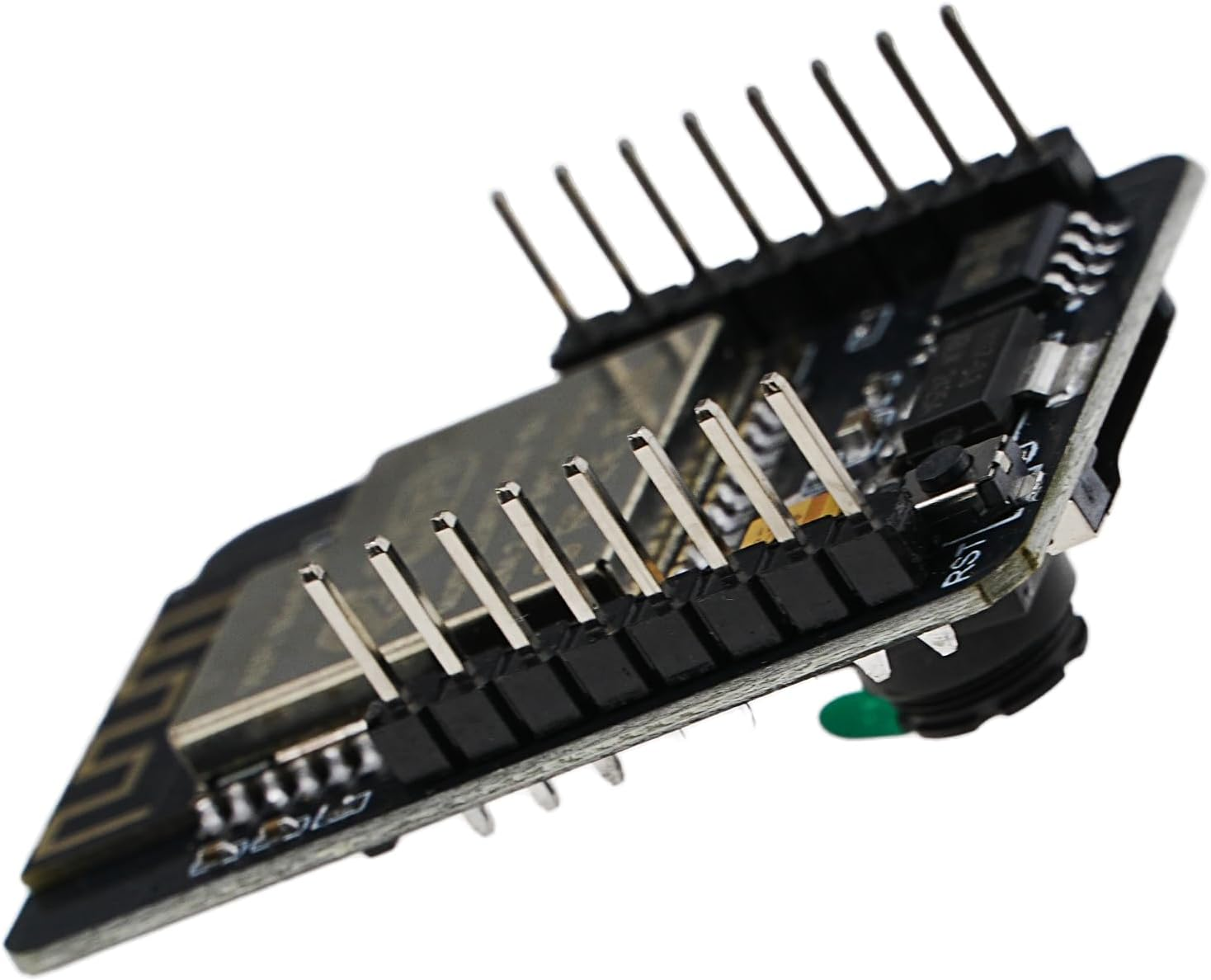

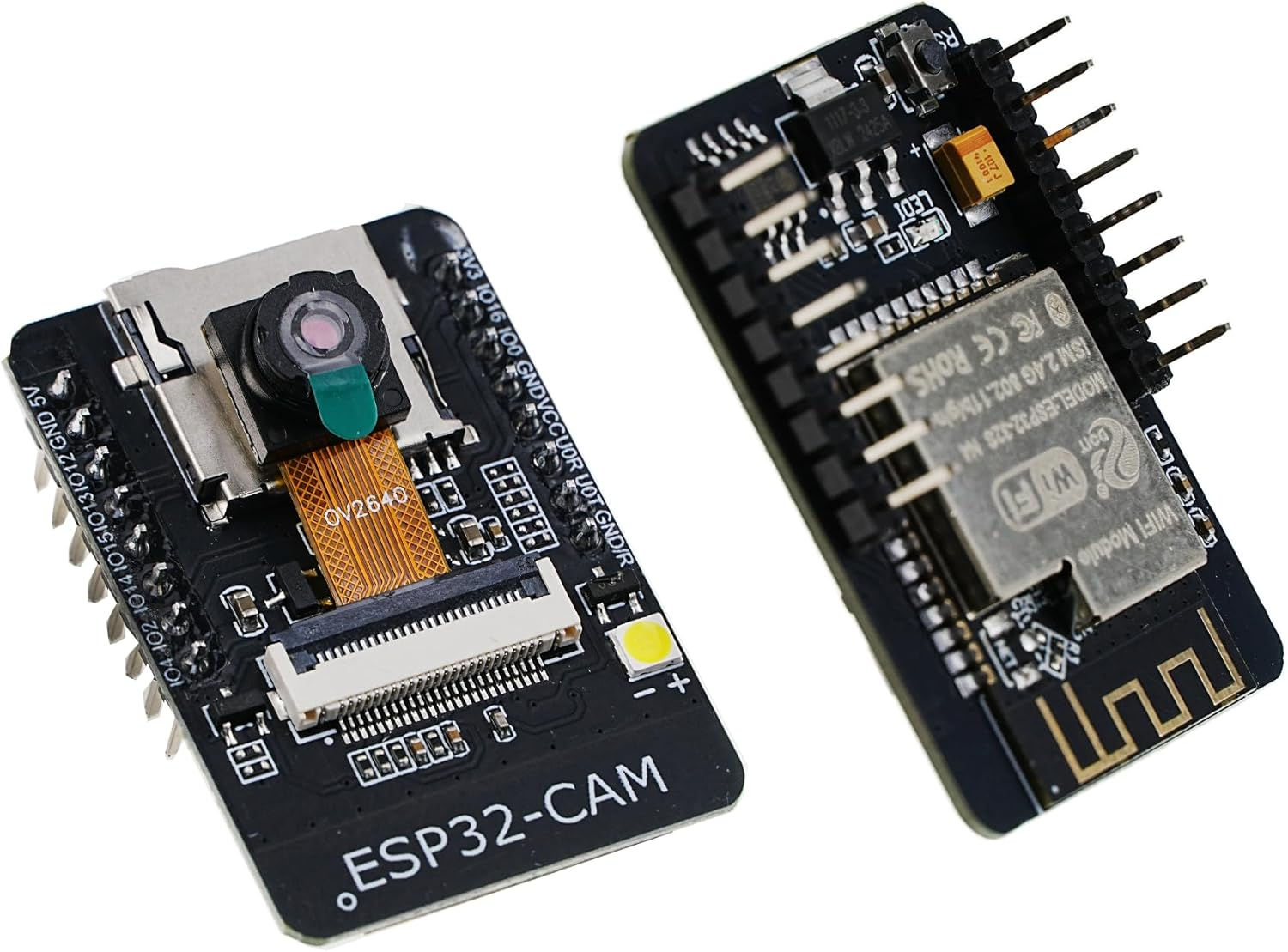

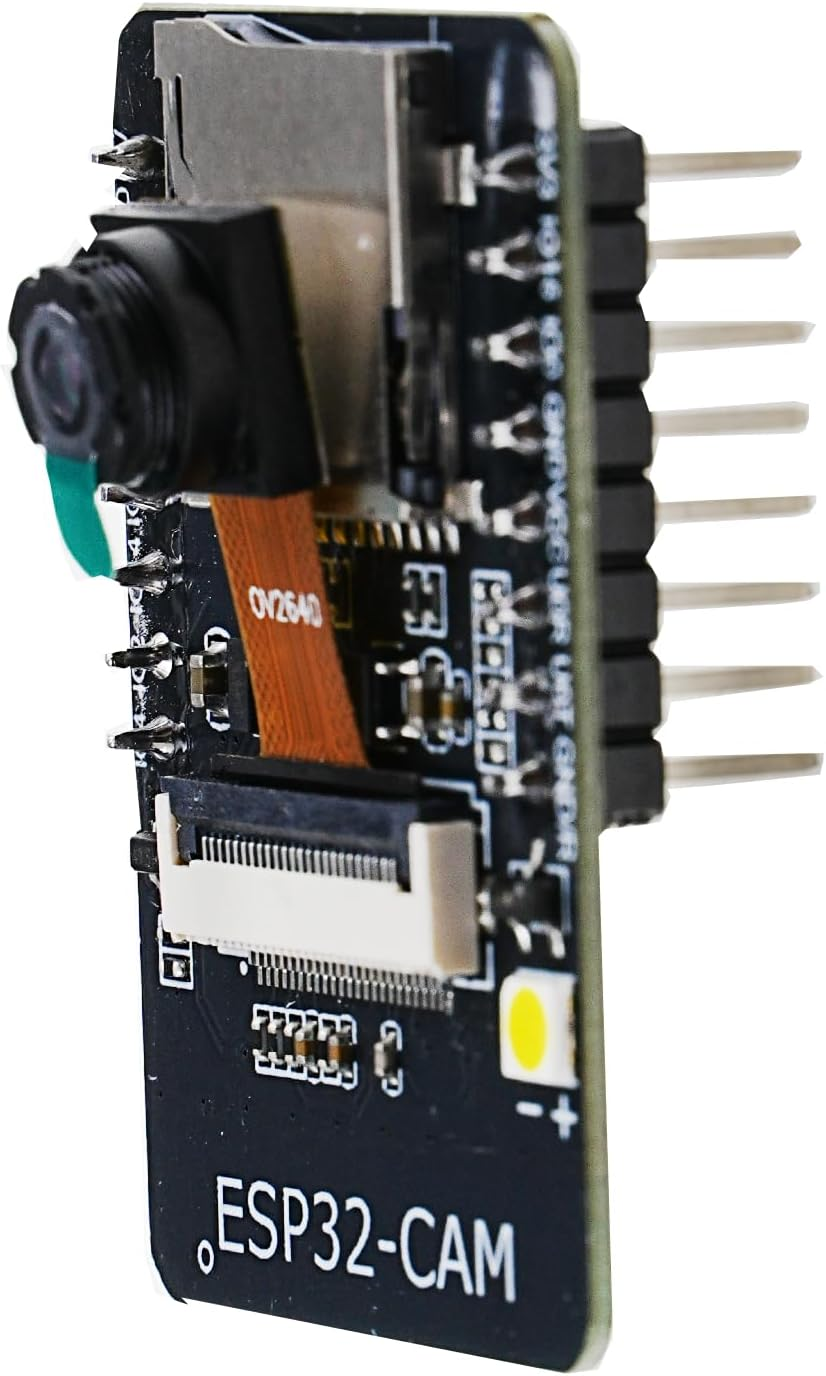

A-DIGISHUO 1Pcs ESP32-CAM Development Board Wireless Wifi+Bluetooth with OV2640 Camera Module for Arduino（1Set
A-DIGISHUO 1Pcs ESP32-CAM Development Board Wireless Wifi+Bluetooth with OV2640 Camera Module for Arduino（1Set
Brand: A-DIGISHUO
A$17.85
- *ESP32-CAM is based on ESP chip and OV2640, using a low-power dual core 32-bit CPU, which can be used for application processors
- *.Main frequency up to 240MHz, computing power up to 600 DMIPS
- *Support UART/serial peripheral interface/I2C/PWM/ADC/DAC and other interfaces;Support wireless image upload, TF card, multiple sleep modes, STA/AP/STA+AP working modes, and secondary development.
- *It is an ideal solution for LOT applications, which can be directly inserted into the backplane to achieve rapid production. Provided customers with a reliable connection method.
- *ESP-32CAM can be widely used in various IoT applications. Suitable for smart home devices, wireless monitoring, wireless QR code recognition, industrial wireless control, wireless tracking system signals, and other IoT applications.
Product Description
Parameters:
- Using a low-power dual core 32-bit CPU, it can be used as an application processor
- Main frequency up to 240MHz, computing power up to 600DMIPS
- Built in RAM 520 KB SRAM, external 8MB PSRAM
- Supports interfaces (2Mbps) such as UART, SPI, I2C, PWM, ADC, DAC, etc
- Supports OV2640 and OV7670 cameras, with built-in flash
- Support wireless image upload
- Supports TF card, maximum 4G support
- Support multiple sleep modes
- Embedded Lwip and FreeRTOS
- Support STA/AP/STA+AP working mode
- Support intelligent configuration/AirKiss one click network configuration
- Support secondary development
Specifications:
- Working voltage 4.75-5.25V
- Working temperature -20 ℃~ 70 ℃
- Storage environment -40 ℃~ 125 ℃, <90%RH
- SPIFlash default 32Mbit
- IO port 9
- Serial port rate default 115200bps
- Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE Packaging method DIP-16
- Power consumption Turn off the flash: 180mA@5V
- Turn on the flash and adjust the brightness to the maximum: 310mA@5V
- Deep-sleep: The lowest power consumption can reach 6mA@5V
- Moderm-sleep: the lowest can reach 20mA@5V
- Light-sleep: the lowest can reach 6.7mA@5V
- Security WPA/WPA2/WPA2-Enterprise/WPS
You Will Receive:
- 1Pcs ESP32-CAM Module with OV2640 Camera Module
- Part Number: ESP-32CAM
- Number of items: 2
- Country/Region of origin: China
- Processor Socket: BGA 437
- Batteries Required: No
- Memory Storage Capacity: 8 MB
- Brand: A-DIGISHUO
- Manufacturer reference: ESP-32CAM
- Ram Memory Technology: DDR
- Item Weight: 25 g
- Product dimensions: 4 x 3.6 x 1.6 cm; 25 Grams
- Manufacturer: A-DIGISHUO
