A-DIGISHUO 1Pcs 2.8-Inch ESP32-2432S028R with Wifi+Bt Display Resistive Touch Screen | ILI9341 Driver 240X320 TFT LCD Screen Module with Transparent Acrylic Case

A-DIGISHUO 1Pcs 2.8-Inch ESP32-2432S028R with Wifi+Bt Display Resistive Touch Screen | ILI9341 Driver 240X320 TFT LCD Screen Module with Transparent Acrylic Case

Brand: A-DIGISHUO
3.8
A$44.10
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • *Controller: ESP32 development board with dual core CPU running at a frequency of up to 240MHz. Dual core MCU, integrated Wi Fi and Bluetooth, with 520KB SRAM and 448KB ROM memory, and 4MB flash memory.

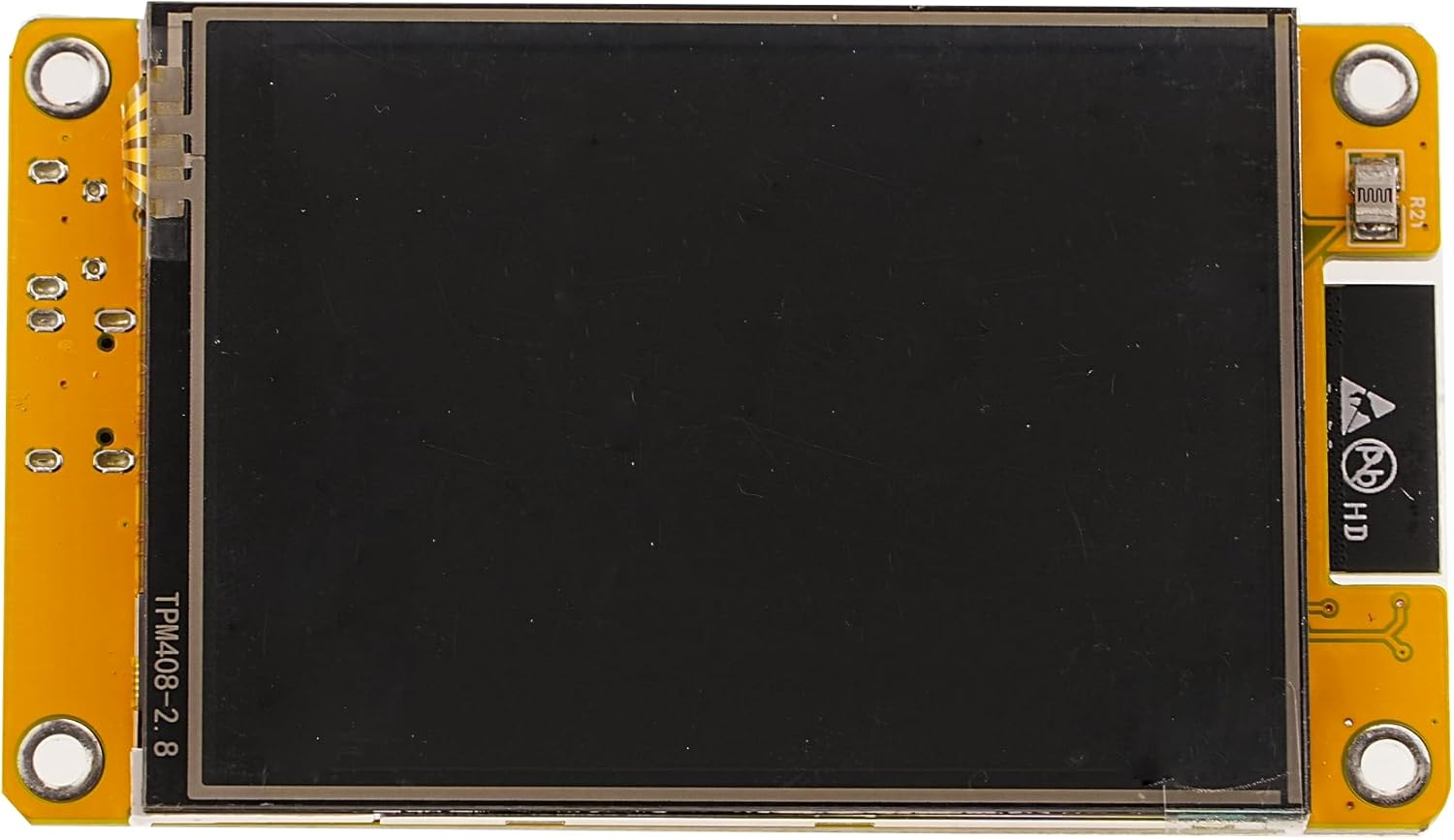

  • *Touch screen: 2.8-inch LCD color screen, 240x320 resolution, 16 bit RGB 65K color display, rich colors, with resistive touch function.
  • *User experience: This module is equipped with a 2.8-inch touch sensitive LCD display, providing an interactive and user-friendly interface. TFT monitors provide clear visual effects for data visualization and easy monitoring of connected devices.

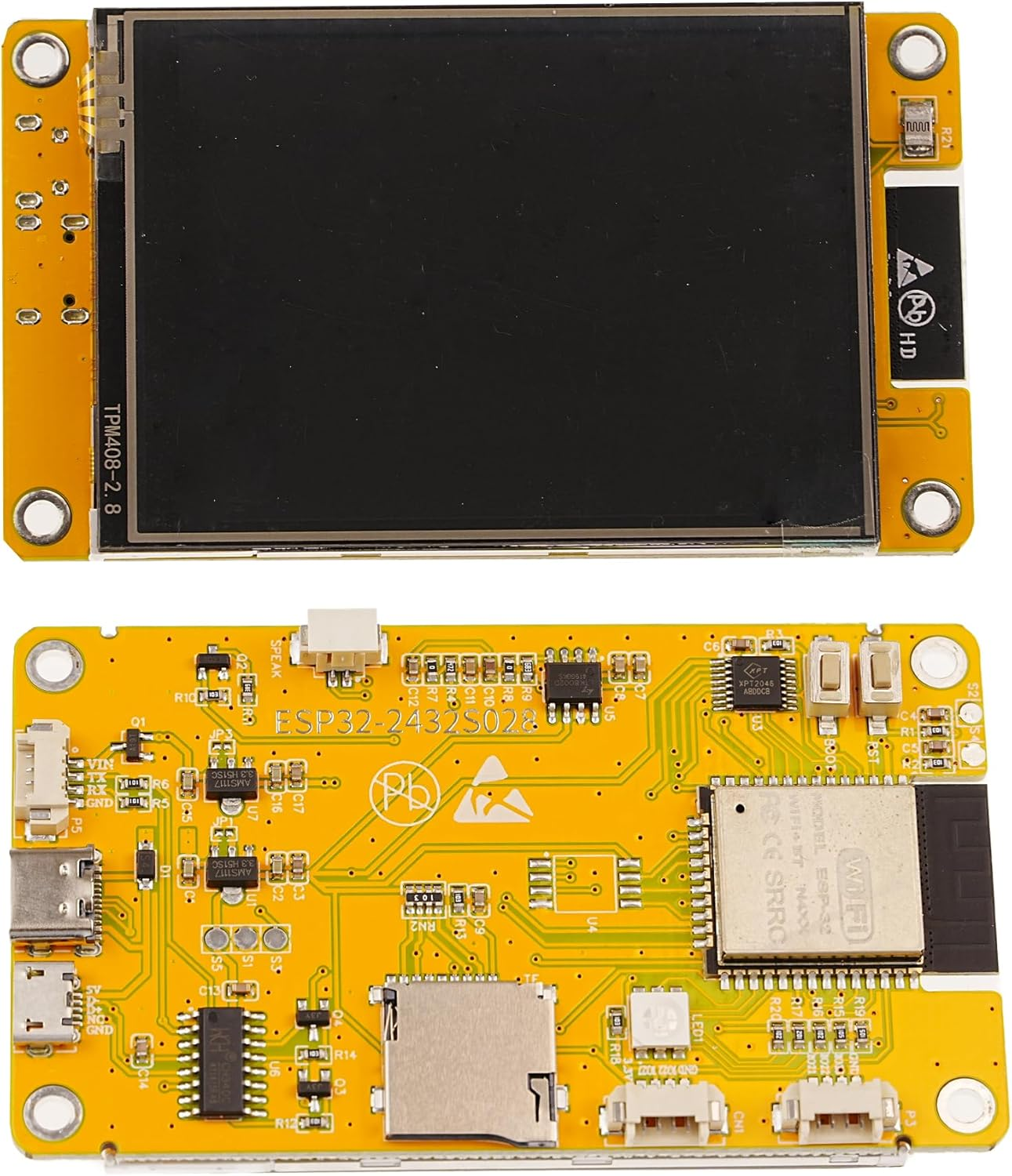

  • *Multi-function: Contains LCD display, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit.
  • *Application:Provides compatible with Arduino library functions and sample programs, supports one-click download of programs, and supports Arduino IDE, ESP IDE, Micropython and Mixly development.

Product Description

Product Parameters:

  • Display color: RGB 65K color
  • Type: TFT
  • Driver chip: ILI9341
  • Resolution: 320*240(Pixel)
  • Effective display area: 43.2*57.6(mm)
  • Module size: 86.0*50.0(mm)
  • View: >60°
  • Operating temperature: -20℃~70℃
  • storage temperature: -30℃~80℃
  • Operating Voltage: 5V
  • Power consumption: About 115mA
  • In the P3 connector, it has a GND pin and GPIO 35, GPIO 22, and GPIO 21. GPIO 22 is also used for CN1 connectors, while GPIO 21 is used for backlighting displays. Therefore, as long as the backlight is turned on, GPIO 21 will turn on.
  • In the CN1 connector, it has GND, GPIO 22, GPIO 27, and 3V3 pins. GPO22 can also be used on P3 connectors. The pins on CN1 can be used to connect I2C devices as it has 2 available GPIO for I2C bus, power, and GND pins.

Note:

  • If these pins are used to connect I2C sensors, custom I2C pins need to be set. You cannot use the default SDA and SCL pins (GPIO 21 and GPIO 22) because GPIO 21 is used for backlighting.

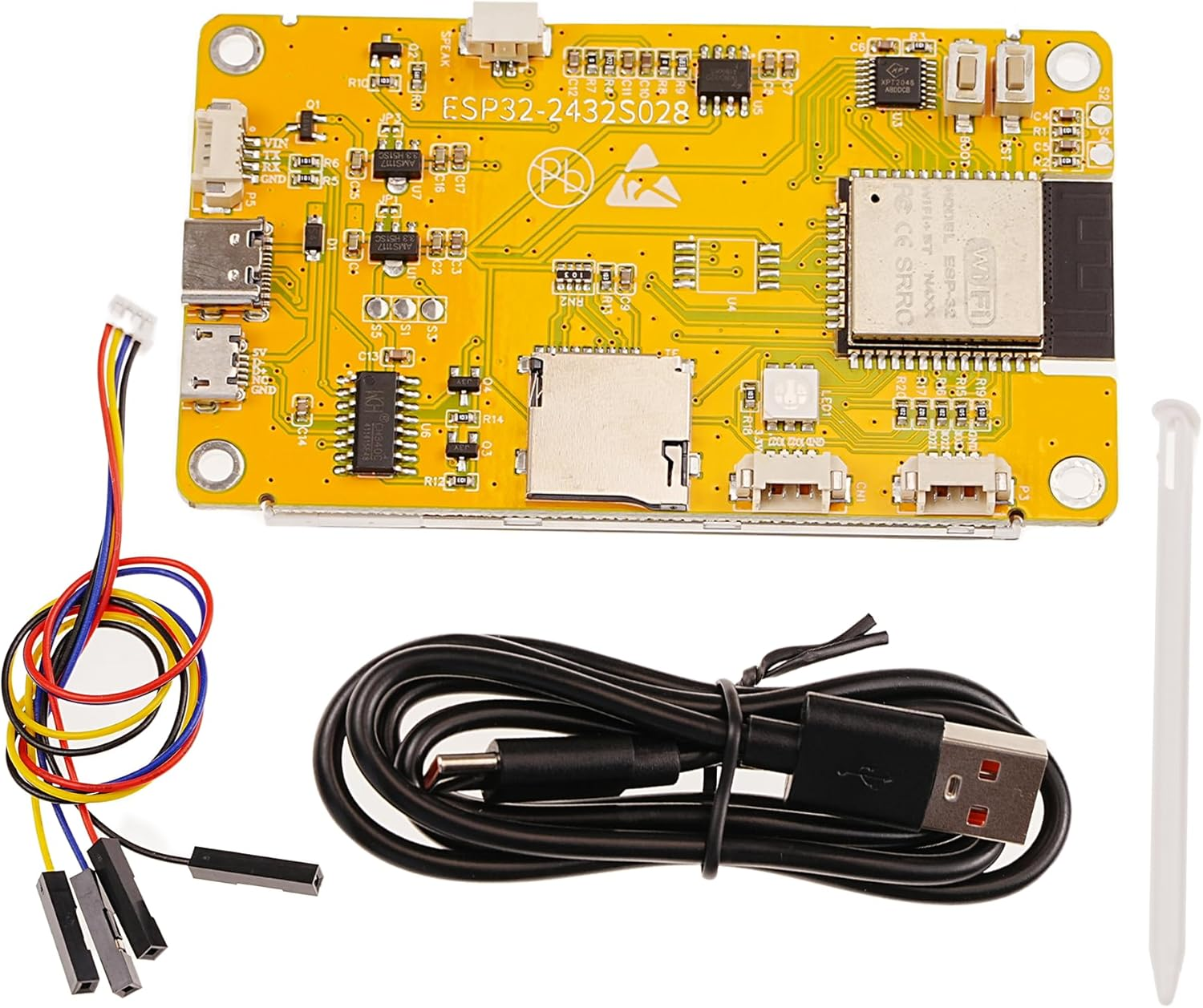

You Will Receive:

1Pcs 2.8-inch yellow display board ESP32

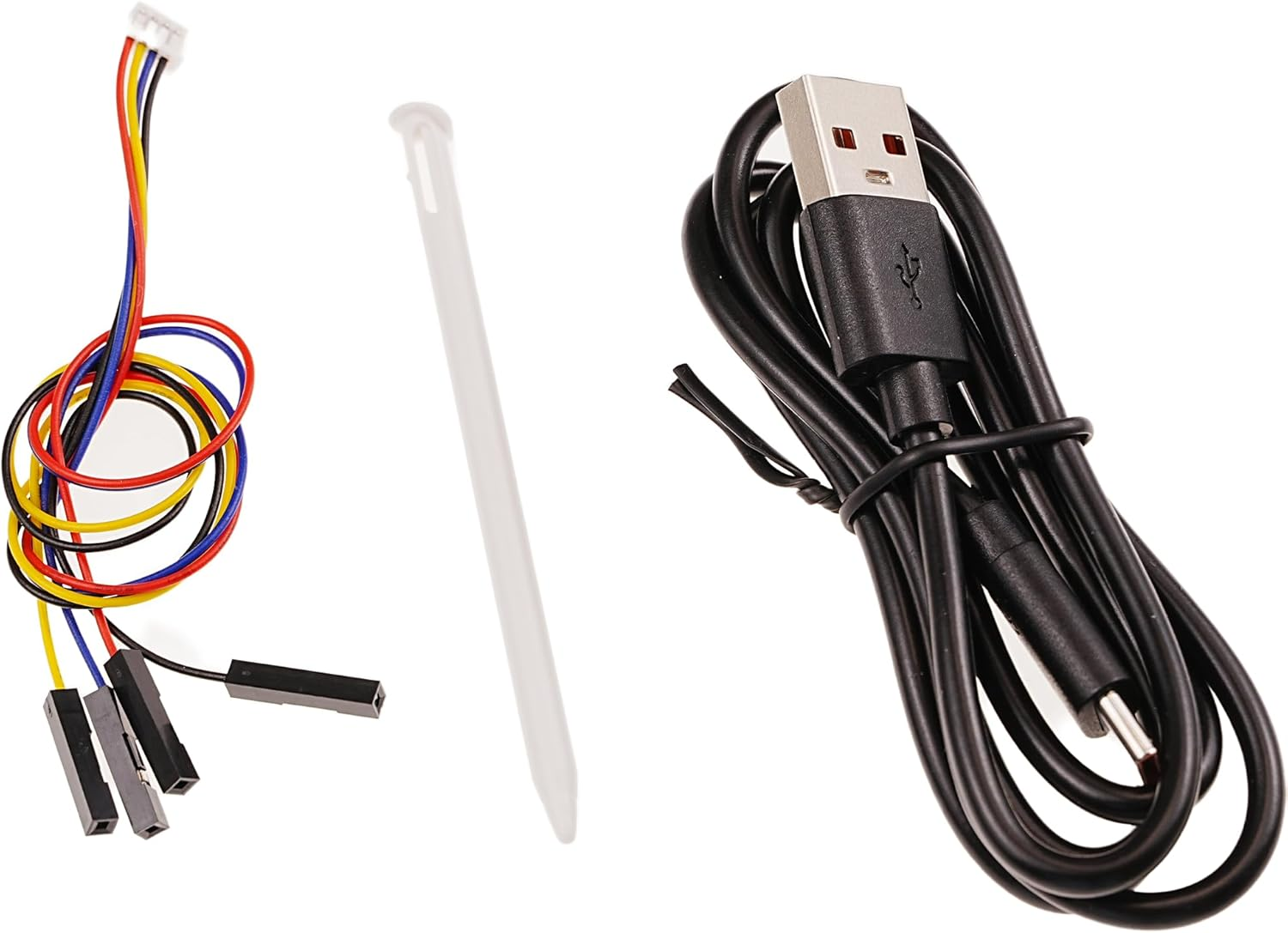

1Pcs 4pin dupont female cable

1Pcs touch pen

1Pcs USB 2.0 to micro USB data cable 1M

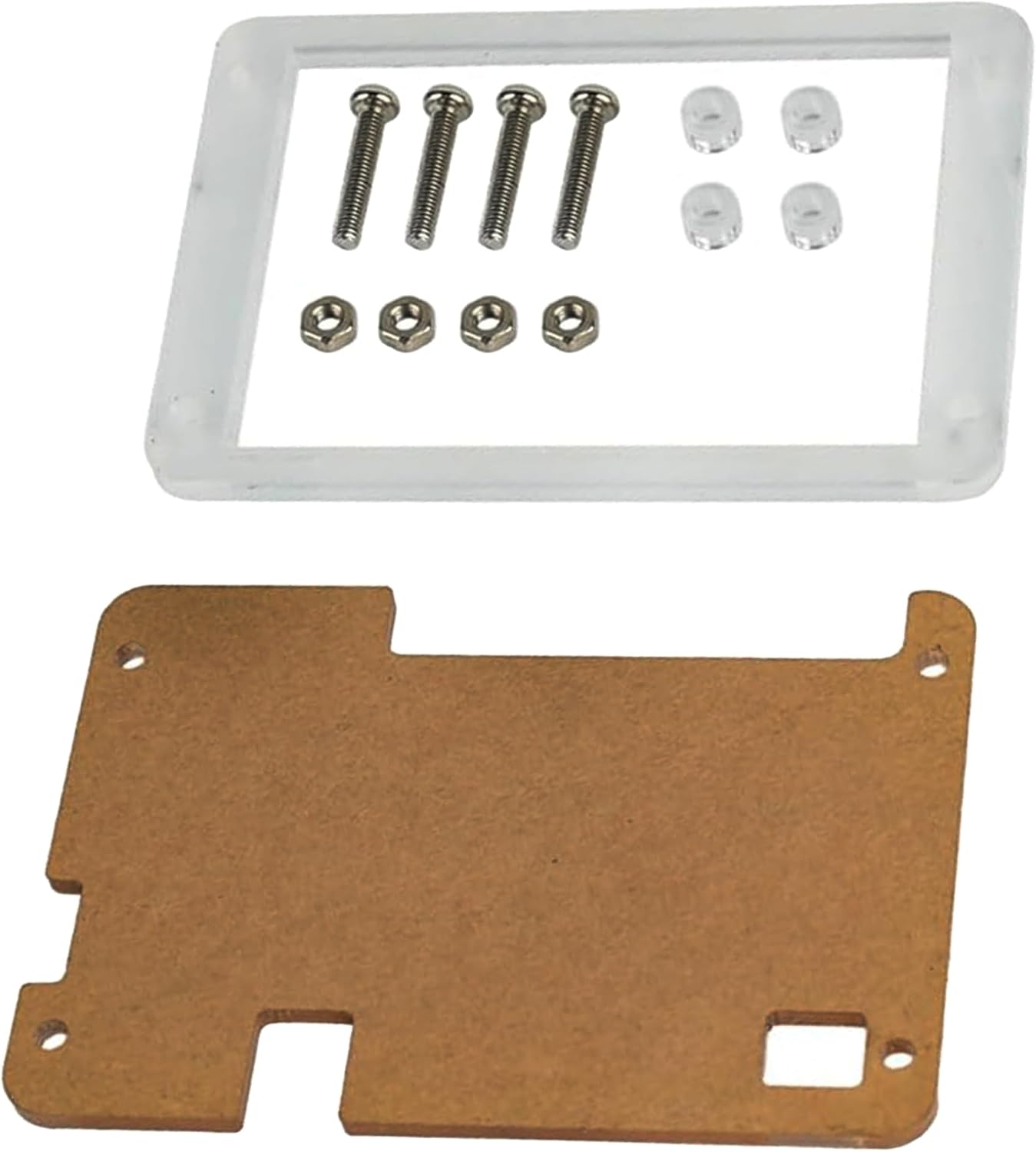

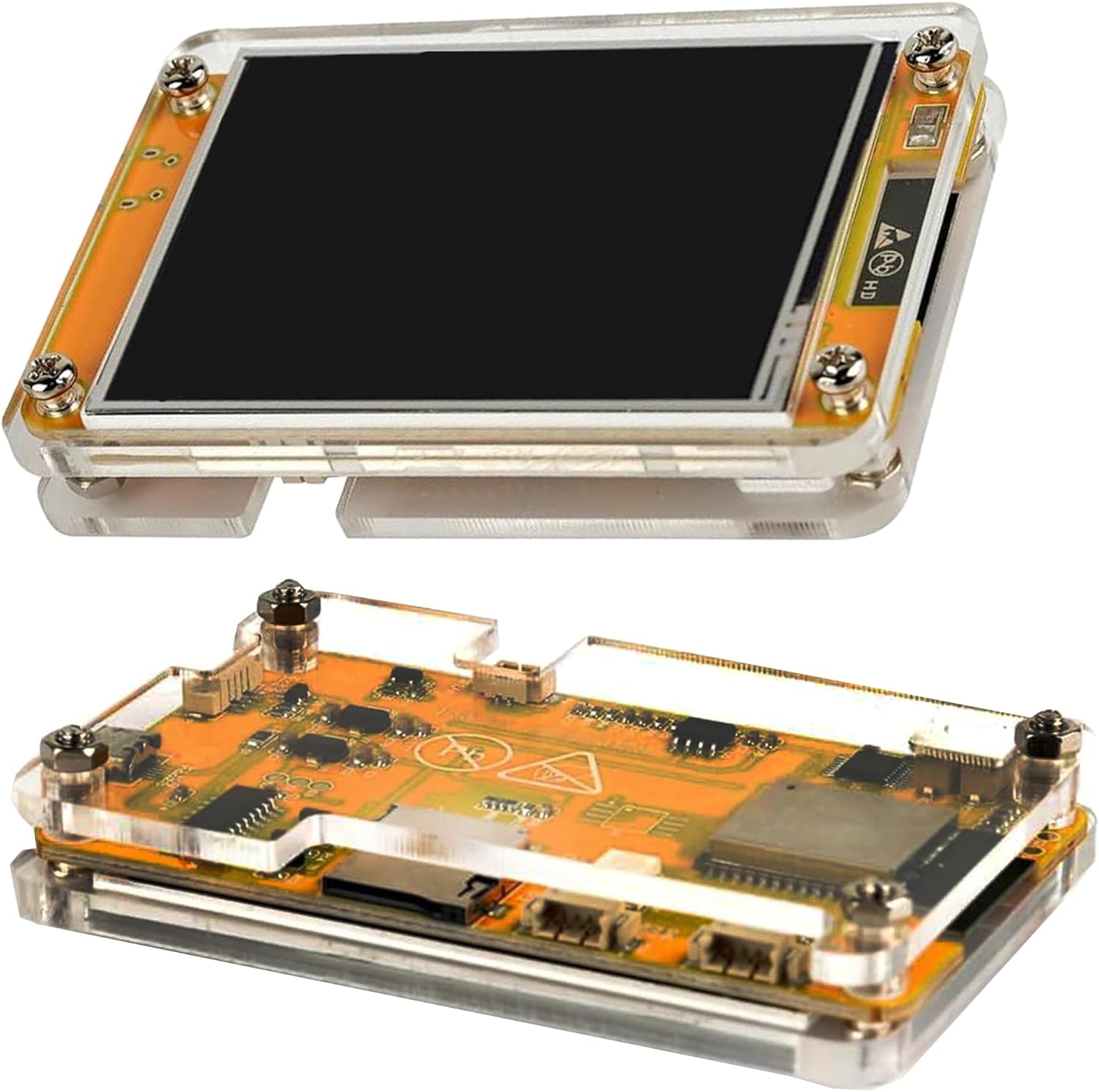

1Pcs Transparent acrylic case

  • Number of items: 10
  • Mounting Hardware: 1
  • Batteries Required: No
  • Brand: A-DIGISHUO
  • Item Weight: 40 g
  • Ram Memory Technology: DDR3
  • Processor Count: 2
  • Product dimensions: 8.6 x 5 x 1 cm; 40 Grams
  • Country/Region of origin: China
  • Manufacturer: A-DIGISHUO
