1. AUTOMATIC TRANSFER FUNCTION: When the main power supply fail or the voltage is abnormal, the ATS automatically transfer the load from the main power supply to the standby power supply to ensure uninterrupted power supply. Priority is L1>L2>L3. ATS ensure smooth switching between the primary and backup power supplies, preventing power fluctuations or interference. After the main power supply recovers, the ATS automatically transfer the load back to the main power supply to ensure a seamless system restart

2. FLEXIBLE SETTINGS: This three phase automatic transfer switch enables you to freely prioritize mains power, generator, and inverter. You can set the voltage threshold for switching, so automatically switch when there is under voltage or over voltage. The switch speed can also be set within the range of 1s to 600s, with a default of 30s

3. ADJUSTABLE PARAMETERS: The transfer time, reset time, over under voltage protection, and overcurrent protection parameters are all adjustable within the specified range

Spec:

Model: CHLT-GX3

Material: Mystical/Fantasy retardant PC

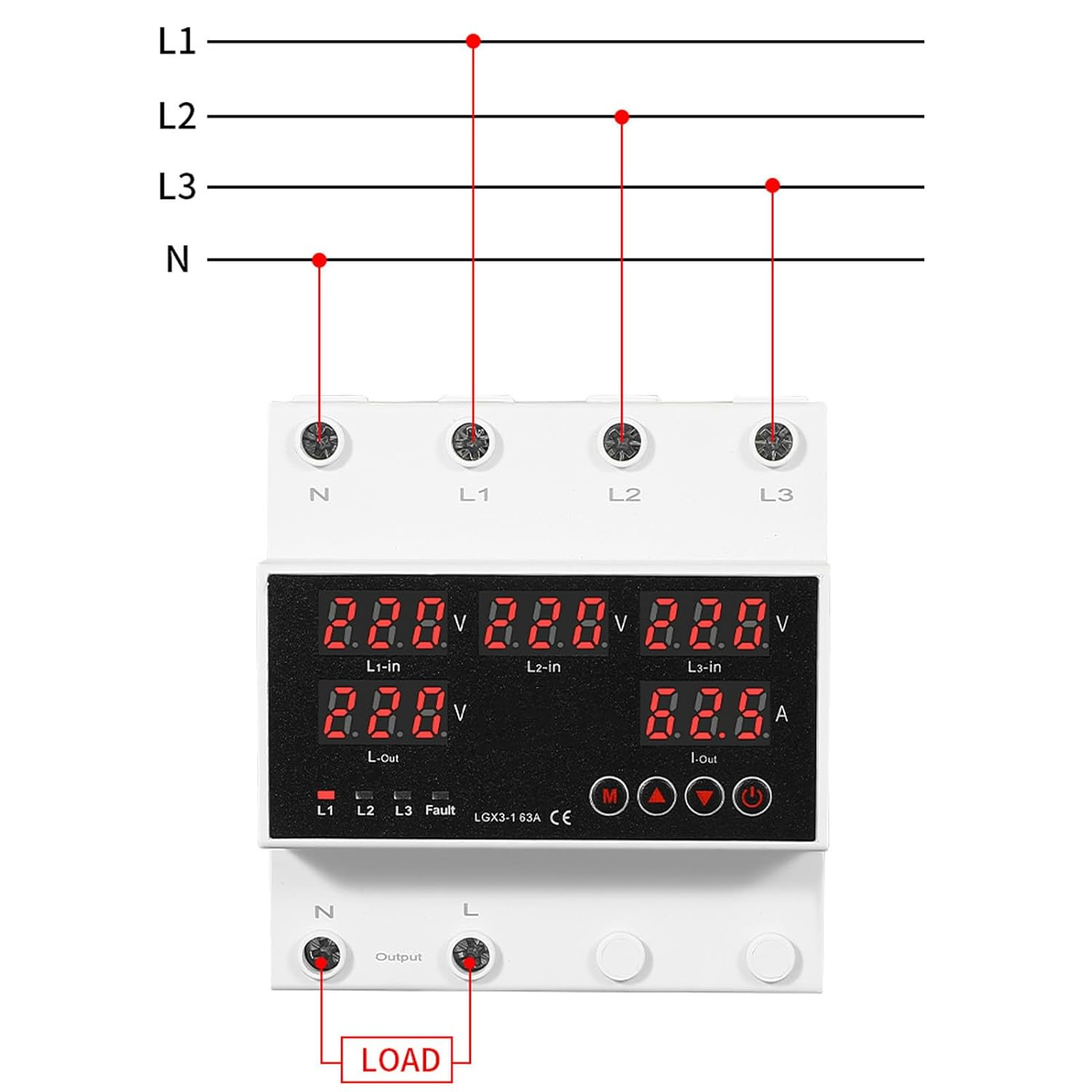

Power Terminals: N, L1, L2, L3

Auto Reclosing Delay(Ton): 1-600s

Return Priority Stage Delay: 1-600s

Switch Delay To Reserve Phase: Overvoltage Trip Delay: 0.1s; ≥350V: 0.02s

Undervoltage Trip Delay: 0.1s; ≥350V: 0.02s

Rated Operating Current: 63A

Maximum Operating Current: 80A

Pollution Degree: 3

Altitude: ≤2000m

Operating Temperature: -25℃~+50℃

Relative Humidity: ≤50% at 40℃(non condensing)

Wire Size: 0.5mm²-1mm²

Installation: 35mm standard mounting rail

Package List:

1 x Automatic Transfer Switch

1 x User Manual
