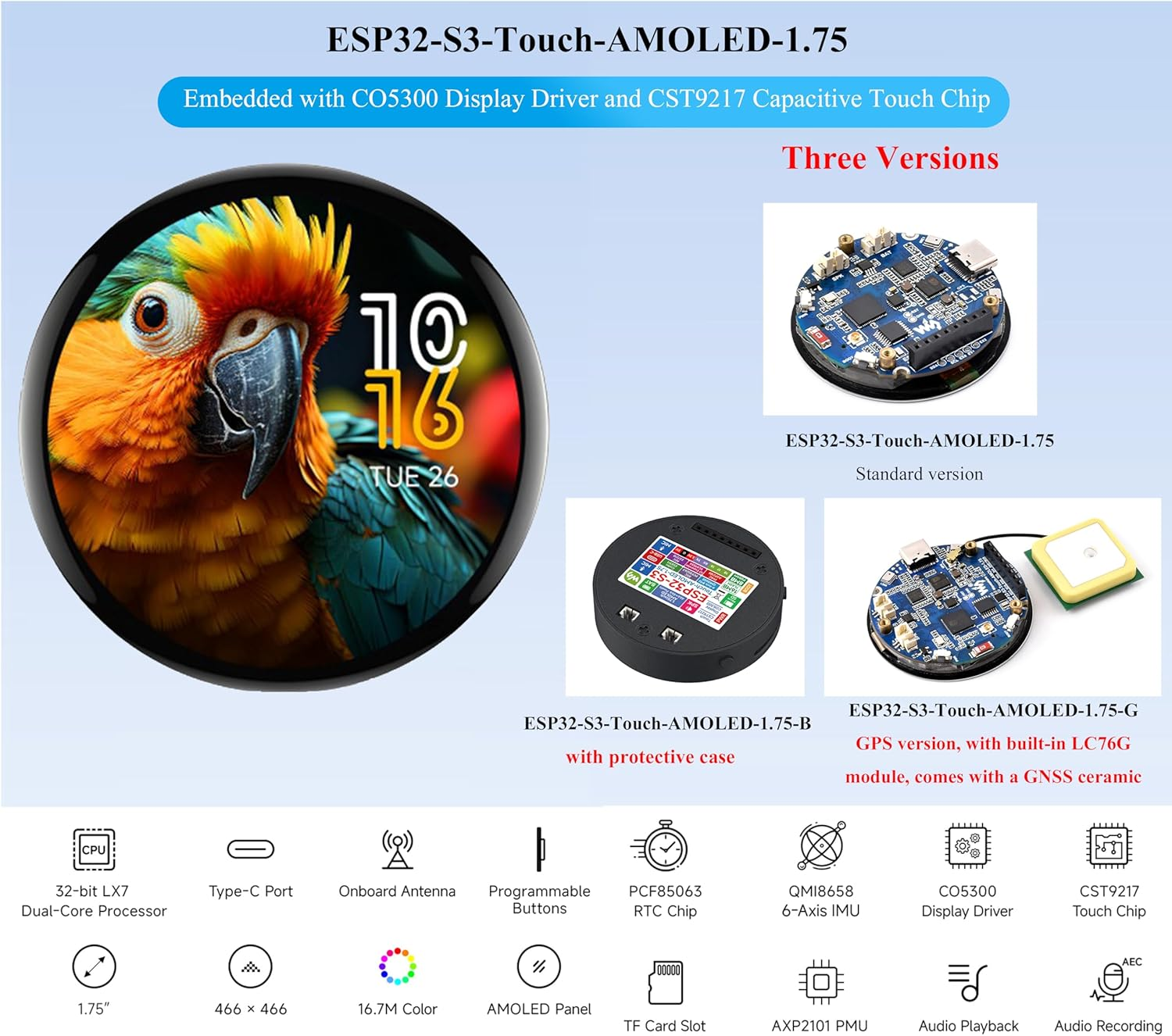

Features
Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz W-F--i (802.11 b/g/n) and BLE 5 (LE), with onboard antenna. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory.
Onboard 1.75inch AMOLED capacitive touch display for clear color picture display, 466 x 466 resolution, 16.7M color, 178° wide viewing angle. Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images.
Onboard audio codec, supports high-quality audio processing, providing clear and high-quality audio input and output. Allows access to online large model platforms such as DeepSeek, ChatGPT, Doubao, etc.
Built-in CO5300 display driver (QSPI Interface) and CST9217 capacitive touch chip ( I2C Interface), using QSPI and I2C communication respectively, effectively saving the IO resources. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
Equipped with dual digital microphones array for audio algorithms such as noise reduction and echo cancellation, suitable for accurate speech recognition and near-field / far-field voice wake-up applications.
Power Management: Onboard PCF85063 RTC chip, powered by Lithium battry through AXP2101 chip for uninterrupted power supply. Onboard 3.7V MX1.25 Lithium battry recharge/discharge header.
Onboard 8PIN 2.54mm header adapting 3 x GPIO and 1 x UART, and reserved pads of I2C and 3 x expanded IO interfaces, for connecting peripherals and debugging.
Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3Z9UjE0
Package Content
ESP32-S3-Touch-AMOLED-1.75 x1
8Ω 2W speaker ×1
