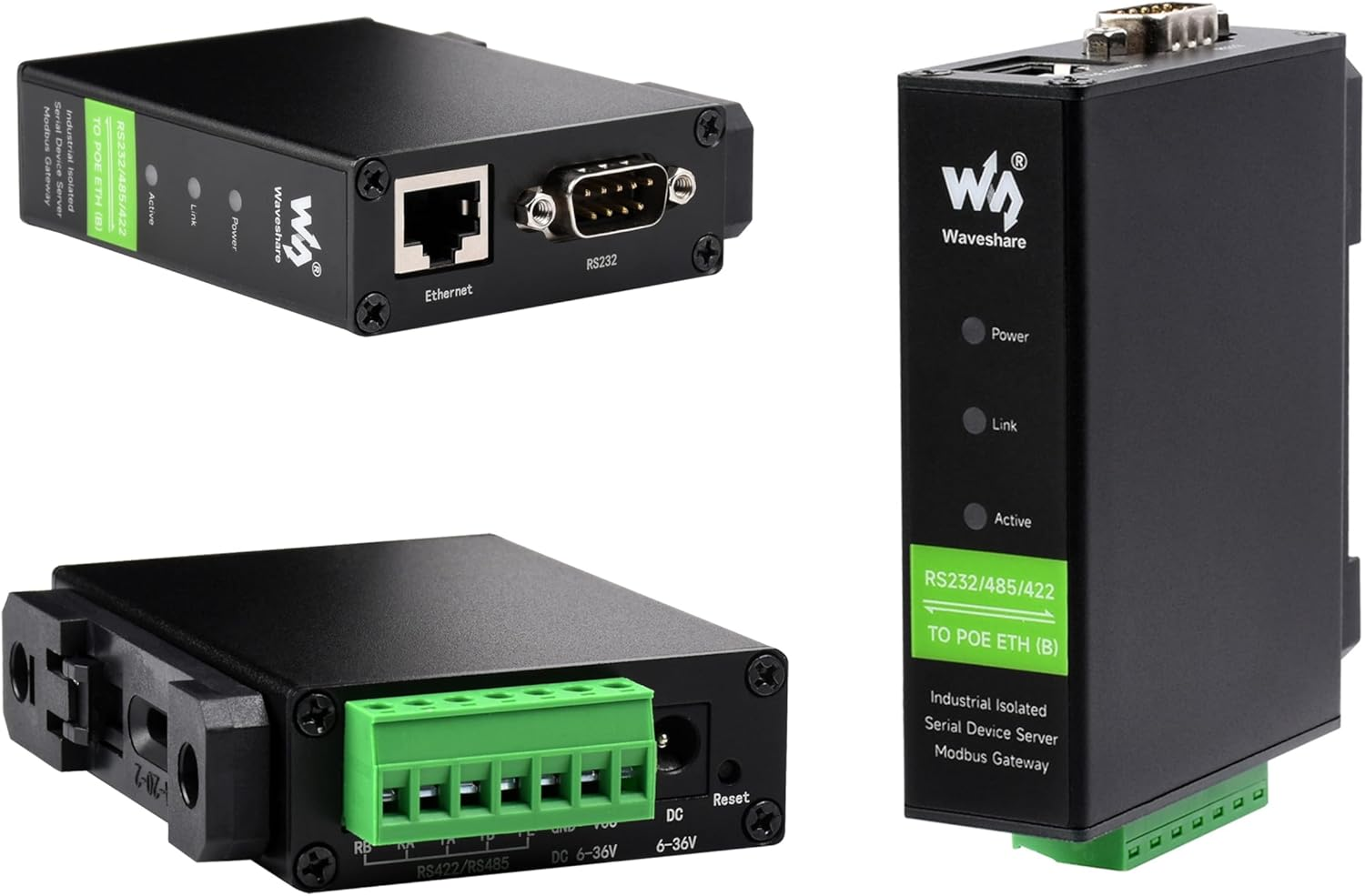

RS232/485/422 to RJ45 Ethernet Converter, with POE Function, Bi-Directional Transparent Data, TCP/IP to Serial, Serial Server for Data Acquisition, Iot Gateway Intelligent Instrument Monitoring
RS232/485/422 to RJ45 Ethernet Converter, with POE Function, Bi-Directional Transparent Data, TCP/IP to Serial, Serial Server for Data Acquisition, Iot Gateway Intelligent Instrument Monitoring
Brand: UeeKKoo
A$62.00
- This is an Industrial Isolated, Rail-mount RS232/485/422 Serial Server device data acquisitor / IoT gateway (with POE Function, ) designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. Suitable for data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, etc.

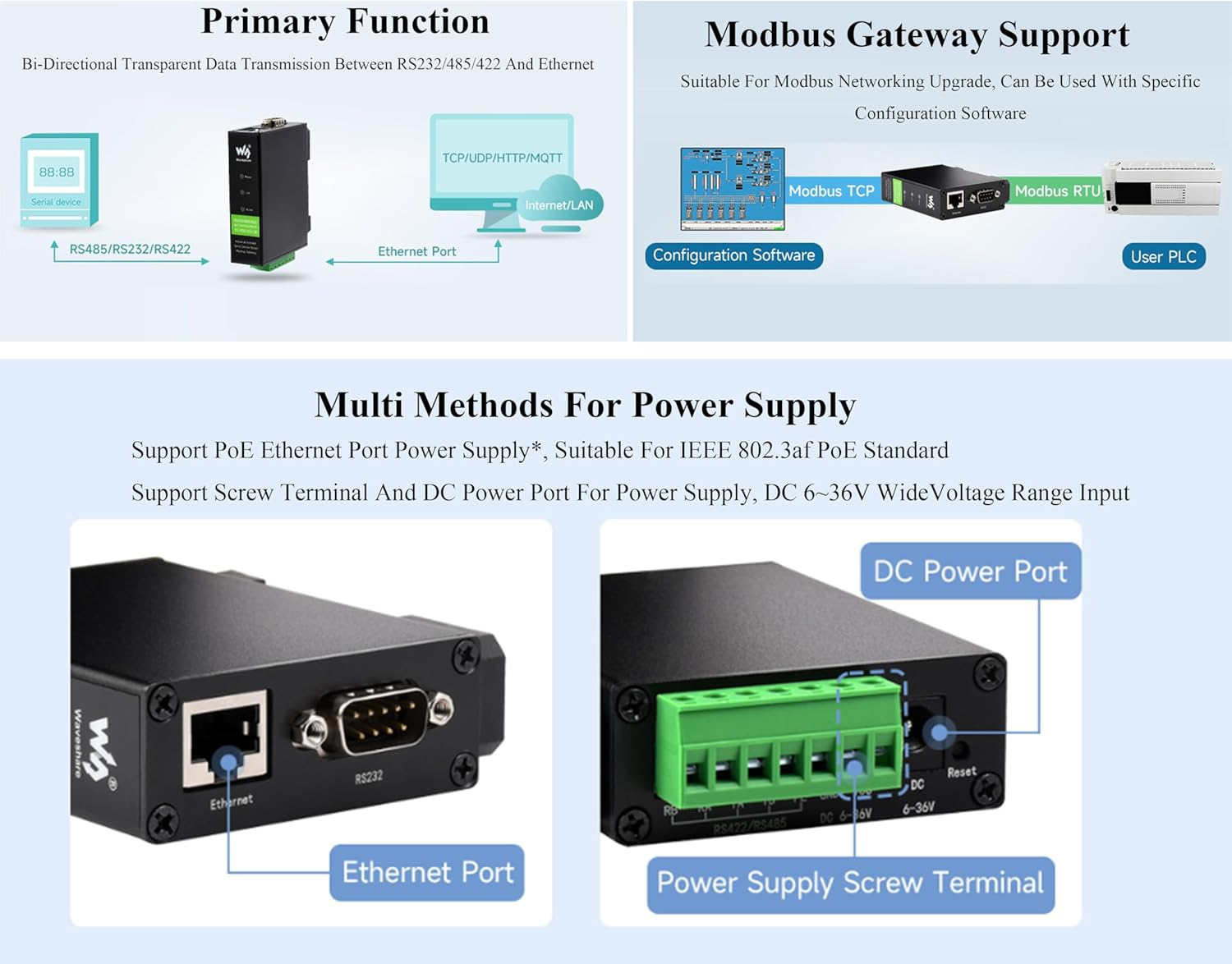

- Bi-Directional transparent data transmission between RS232/485/422 and Ethernet. Three Different Interfaces---Onboard RS232 / 485 / 422 Interfaces, Suitable For More Application Scenarios. (Support Rail-mount and Aluminium Alloy Enclosure)
- Ethernet Port To RS232/485/422---The Ethernet port can send data to three serial ports at the same time. RS232 / 485 / 422 To Ethernet Port---Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time.
- Multi Power Supply Methods---Support PoE Ethernet port power supply, Suitable for IEEE 802.3af PoE standard. Support Screw Terminal and DC Power Port for Power Supply, DC 6~36V ide Voltage Range Input.
- Modbus Gateway Support---Suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software. Multi Configuration Methods---Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.
- Multi Communication Modes---Supports TCP server / TCP client / UDP mode / UDP multicast. MQTT/JSON to Modbus---More flexible conversion between different protocols. NTP protocol support---Getting network time info for serial output or data upload. User-defined heartbeat/registration packet---Easy for cloud communication and device identification.
- Multiple Protection, Safe And Stable---Onboard power supply and signal isolation, Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, light-ningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance.
- Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3AGuDCQ

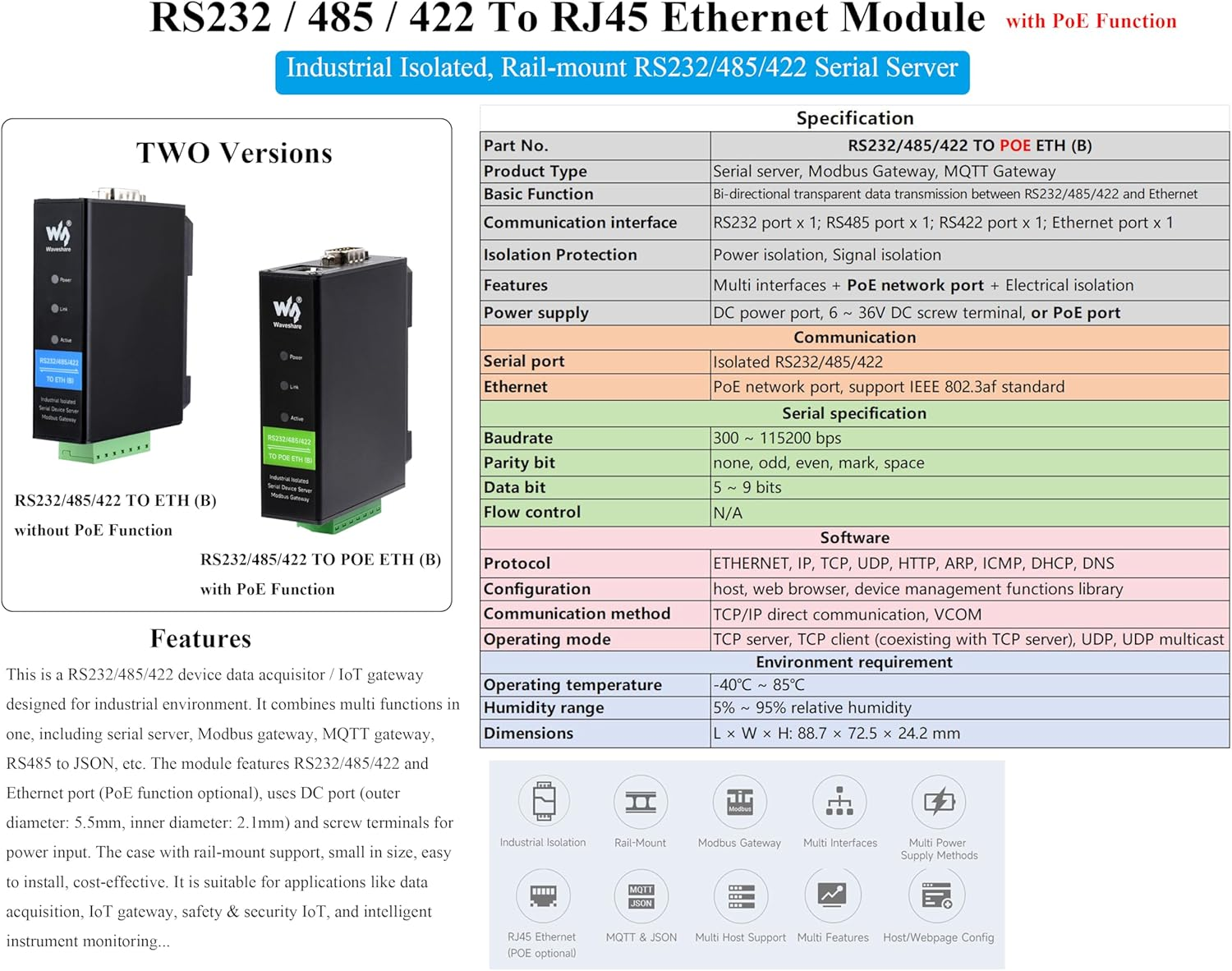

Product Description
- Item Model Number: RS232/485/422 TO POE ETH (B)
- Mounting Hardware: RS232/485/422 TO POE ETH (B) x1
- Batteries Included: No
- Batteries Required: No
- Brand: UeeKKoo
- Item Weight: 9.07 g
- Model: RS232/485/422 TO POE ETH (B)
- Package Dimensions: 1.27 x 0.51 x 0.51 cm; 9.07 Grams
- Manufacturer: UeeKKoo
