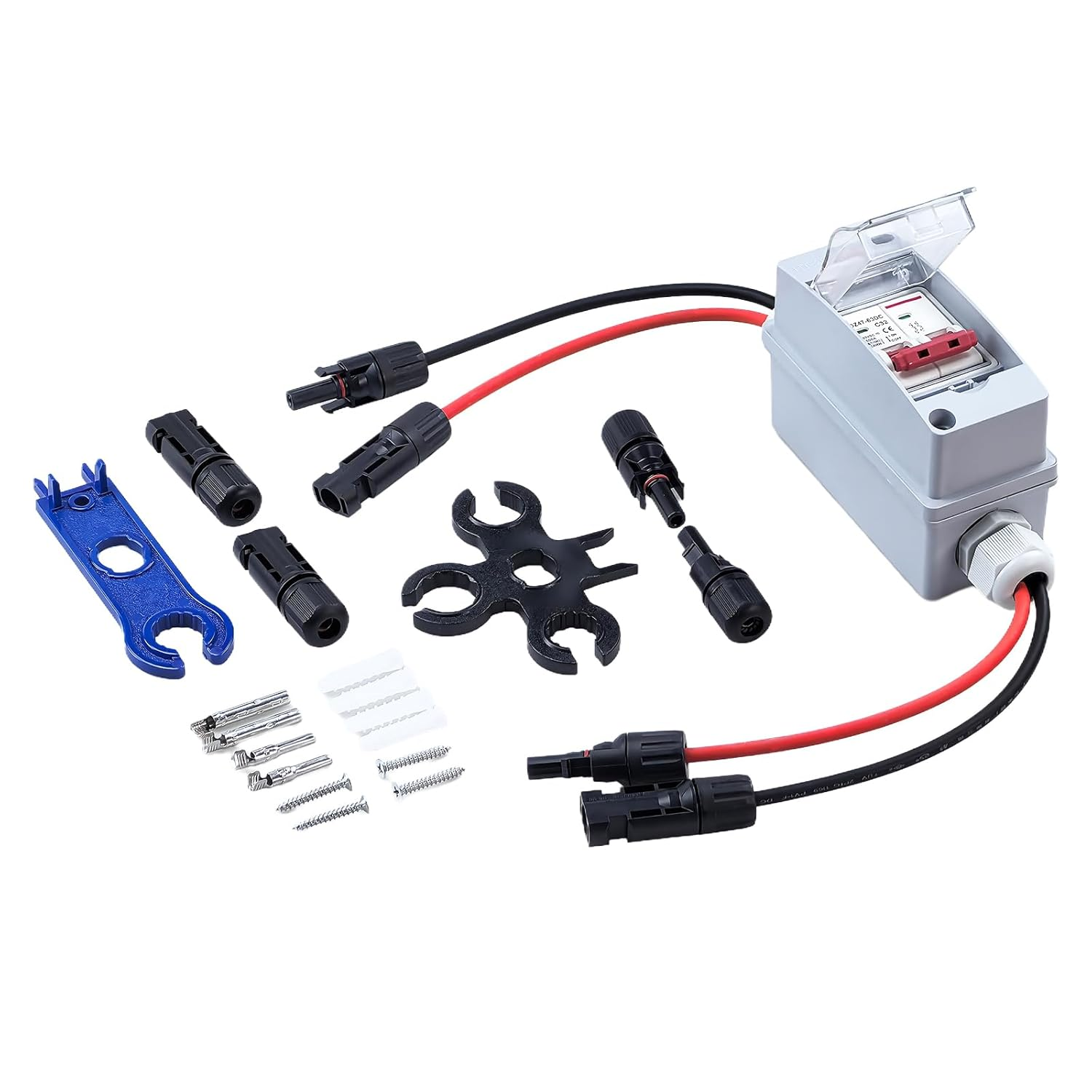

Solar Panel Disconnect Switch, 2 Pole Waterproof Solar Circuit Breaker DC500V 32A PV Disconnect Switch for Solar PV Homes Battery
Solar Panel Disconnect Switch, 2 Pole Waterproof Solar Circuit Breaker DC500V 32A PV Disconnect Switch for Solar PV Homes Battery
Brand: Flylin
A$36.25
- PREMIUM QUALITY: The Solar Panel Disconnect Switch features upgraded connectors that eliminate the need to differentiate between male and female wires, ensuring a quick and effortless installation. Crafted from premium material, including thickened purple copper coils and a wider operating handle, it includes a transparent cover for easy monitoring of operational status.
- PROTECTION FUNCTIONS: This Solar Panel Disconnect Switch integrates advanced over-voltage, overload, and lightning protection mechanisms, ensuring the safety and longevity of your solar system. The unit allows for long-distance communication, effectively extending the working life of your solar installation.

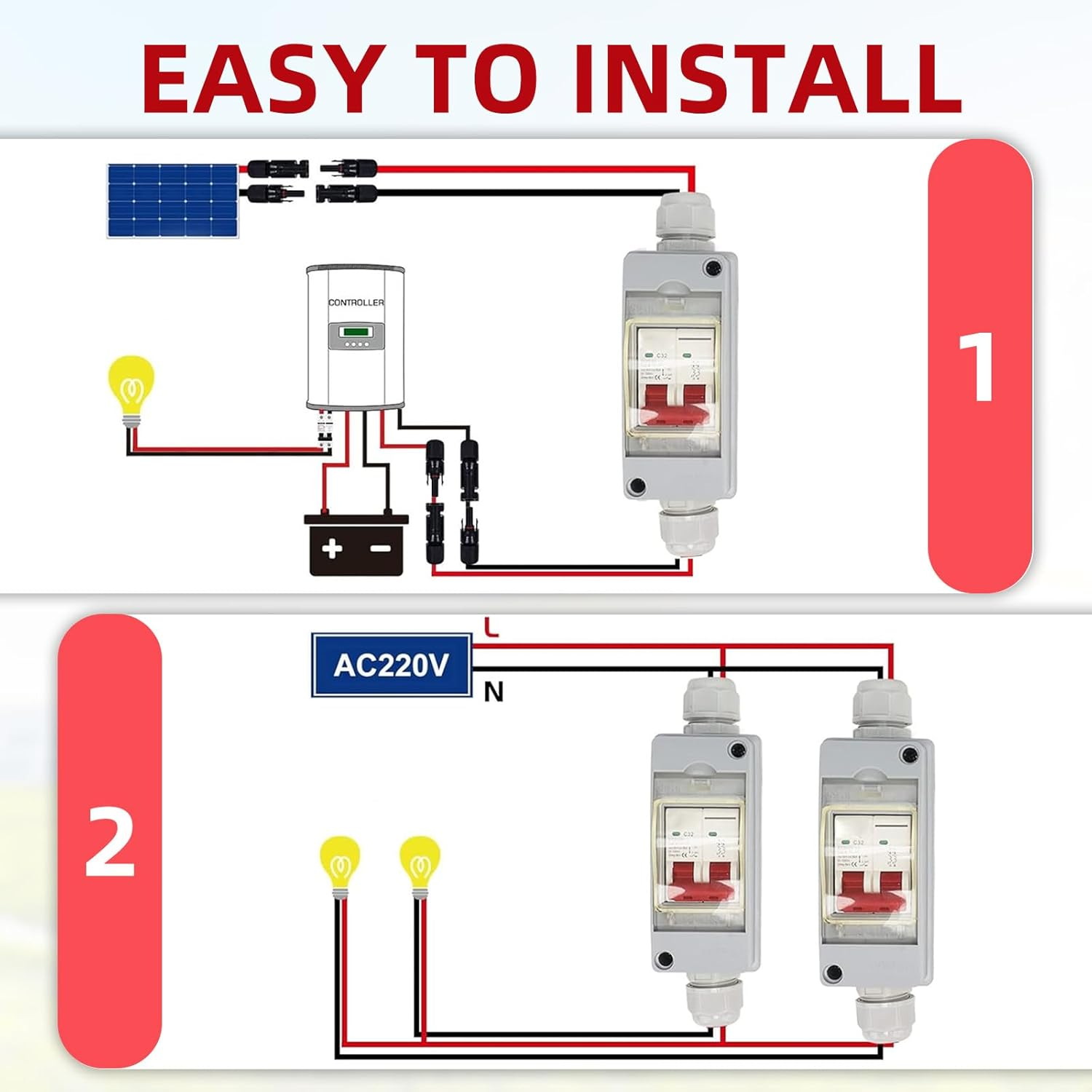

- EASY INSTALLATION: Installation of the Outdoor Miniature Circuit Breaker is straightforward and efficient; simply position it between the solar panel and the solar inverter. With plug-and-play functionality, assembling and disassembling is easy, facilitated by two waterproof connectors on the top and bottom and pre-drilled holes on the back for easy mounting.
- WIDELY USED: Ideal for a variety of applications, this Solar Panel Disconnect Switch is suitable for photovoltaic solar panel grid-connected systems as well as off-grid solar power generation setups. It serves households, RVs, and more, making it an excellent choice for anyone looking to harness solar energy efficiently.
- GREAT DESIGN: Featuring a user-friendly DC module and a transparent cover, the Outdoor Miniature Circuit Breaker maximizes the effectiveness of photovoltaic DC disconnectors. This design not only enhances functionality but also simplifies the process of checking the circuit breaker's status, providing peace of mind and assurance of your solar system's operation.
Specification:
Maximum Voltage: DC 500V
Maximum Current: 32A
Product Material: ABS/PC
Waterproof Rating: IP65
Impact Resistance Rating: IK10
Insulation Voltage: DC 500V
Rated Voltage: DC 400V
Operating Temperature: -25°C to +55°C
Humidity Index: 0-95%
Installation Method: Wall-mounted

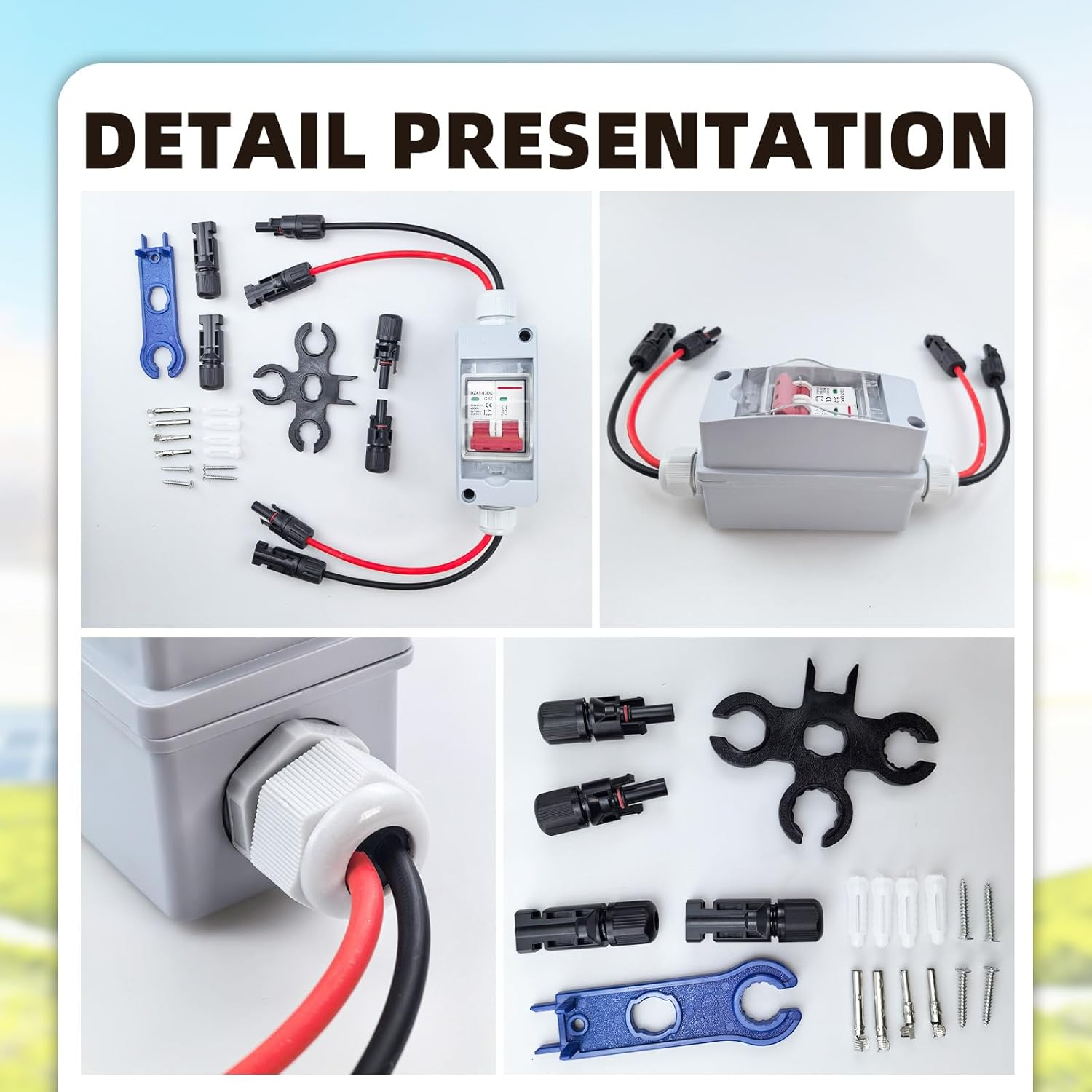

Features:
Silicone Seal Ring: Integrated molded seal ring for enhanced sealing, high corrosion resistance, and improved waterproofing.
Two Holes: Can be mounted on the wall, good material load-bearing capacity, and easy installation.
Transparent Viewing Window: PC transparent material flip-top window with good sealing, waterproof, and leak-proof.
- Country of origin: China
- Package Dimensions: 27 x 10 x 8 cm; 530 Grams
- Manufacturer reference: JY2025045-01
- Manufacturer: Flylin
