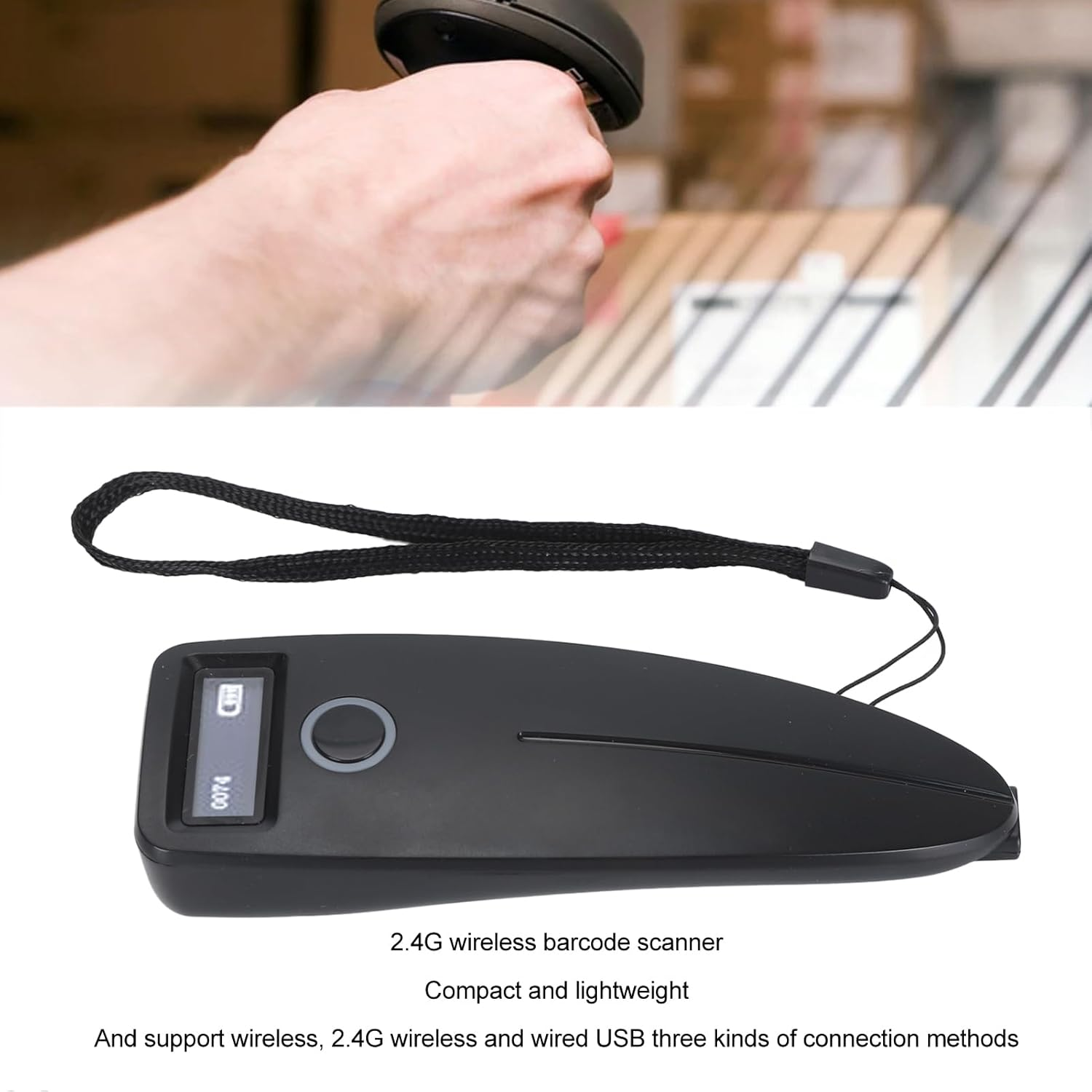

1. 3 TYPES CONNECTION: 2.4G wireless barcode scanner is compact and lightweight, and supports wireless , 2.4G wireless and wired USB three types of connection to meet the needs of different occasion.

2. FAST AND ACCURATE: Mini barcode reader uses 640x480 high resolution sensor, which can quickly and accurately recognize 1D and 2D barcodes, and the scanning rate is up to 30 frames per second, which improves work efficiency.

3. OMNI DIRECTIONAL SCANNING: Scanning angle all round coverage, can recognize a variety of one dimensional, two dimensional code, support for cell phone screen reading, to adapt to a variety of use environment.

4. SHOCK : 2D 1D barcode scanner adopts high toughness design, shock can withstand 1.5m high altitude drop, in order to meet the needs of use in a variety of work environments.

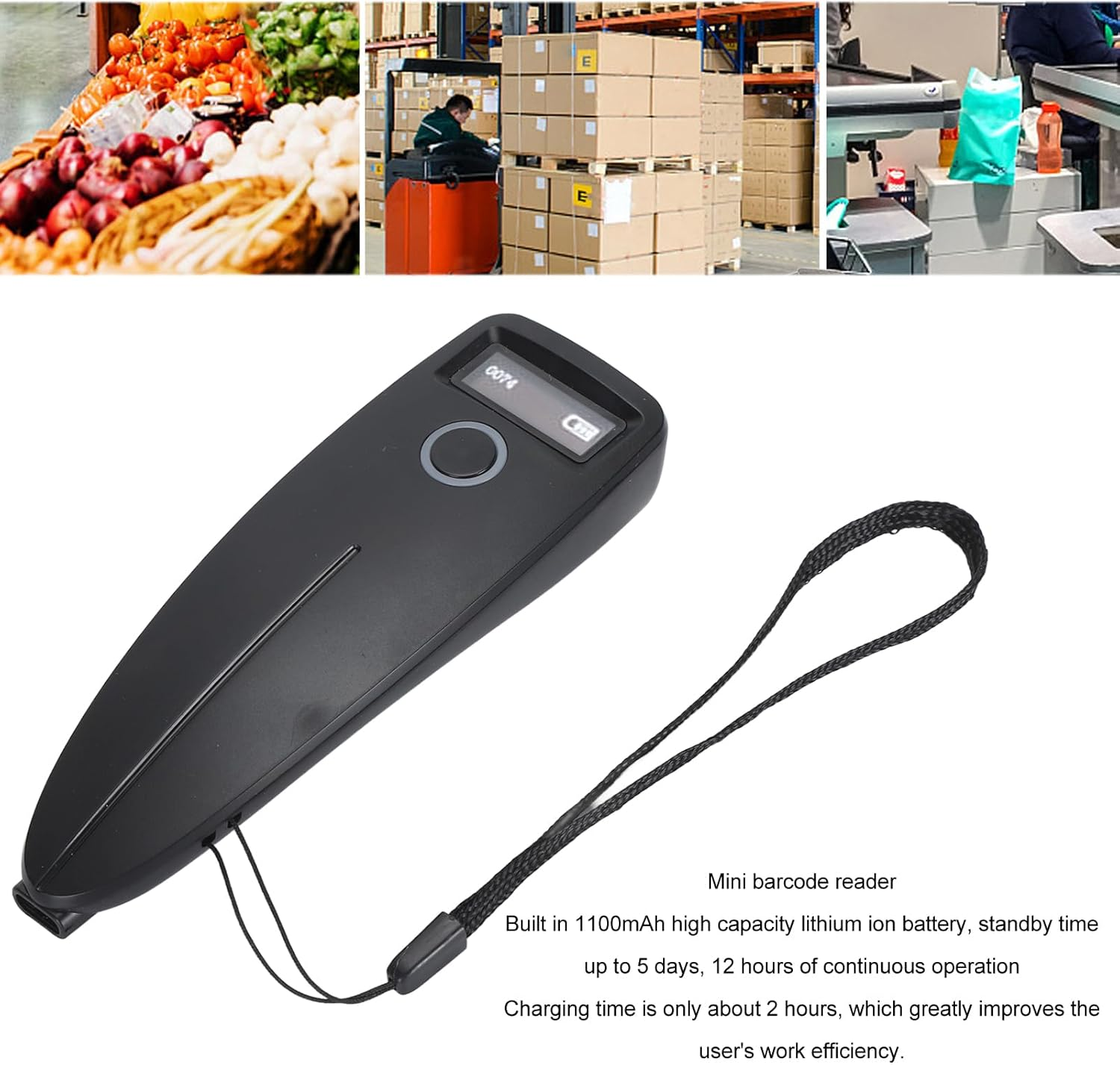

5. 1100MAH BATTERY: Mini barcode reader built in 1100mAh high capacity lithium ion battery, standby time of up to 5 days, 12 hours of continuous work, charging time is only about 2 hours, which greatly improves the user's work efficiency.

Specification:

Item Typ: Mini 2D Barcode Scanner

Material: ABS

Connection: Wireless / 2.4G / Wired USB Three Mode Connection

Wireless 2.4G Distance: Approx. 0-80meter / 0-262ft(Open Environment)

Wireless Distance: Approx. 0-20meter / 0-66ft (Open Environment)

Wired Cable Length: USB Straight Approx. 1meter / 3.3ft

Scanning Mode: Button Trigger, Automatic Induction, Continuous Scanning

Prompt Mode: Buzzer, Display, Vibration Motor

Setting Mode: Manual Scanning Setting Code One by One

Internal Storage: 900K

Sensor: 300K CMOS

Resolution: 640x480

Light Source: White LED

Scanning Angle: ±60°, ±60°, 360° (Angle of Altitude, Declination, Rotation)

Scanning Rate: 30 Frames/Sec

Field of View: 48° (Horizontal) x 30° (Vertical)

Print Contrast: 15% Minimum

Decoding Type:

1D:EAN 13, EAN 8, UPC A, UPC E, ISSN, ISBN, CodaBar, Code 128, Code93, Interleaved 2 of 5, Industrial 2 of 5, 2 of 5, GS1 Databar(RSS), Code39, Code 11, Plessey, etc.

2D: , Data , PDF417, Micro QR, Aztec, etc. Support Cell Phone Screen Reading Code

Minimum Resolution: 1D Code 5MIL; 2D Code 7MIL

Depth of Field:

QR (7mil) Approx. 70-115mm / 2.76-4.53in

EAN 13 (13.3mil) Approx. 70-310mm / 2.76-12.2in

Data (10 mil) Approx. 50-110mm / 1.97-4.33in

(8.3 mil) Approx. 65-205mm / 2.56-8.07in

PDF 417 (7 mil) Approx. 55-140mm / 2.17-5.51in

Code 128 (8.3 mil) Approx. 75-235mm / 2.95-9.25in

Battery Type: Built in 1100mAh Lithium Ion Battery

Charging Time: About 2 Hours

Operating Time: 5 Days (Standby), 12 Hours (Work: Scanning Every 5 Seconds)

Ambient Brightness: Maximum 5,000 Lx (Fluorescent)

Shock : Withstand Approx. 1.5meter / 4.9ft Drop

How to Use:

Wired or wireless 2.4G connection: plug and play

Wireless connection: search connection after power on and pairing can be

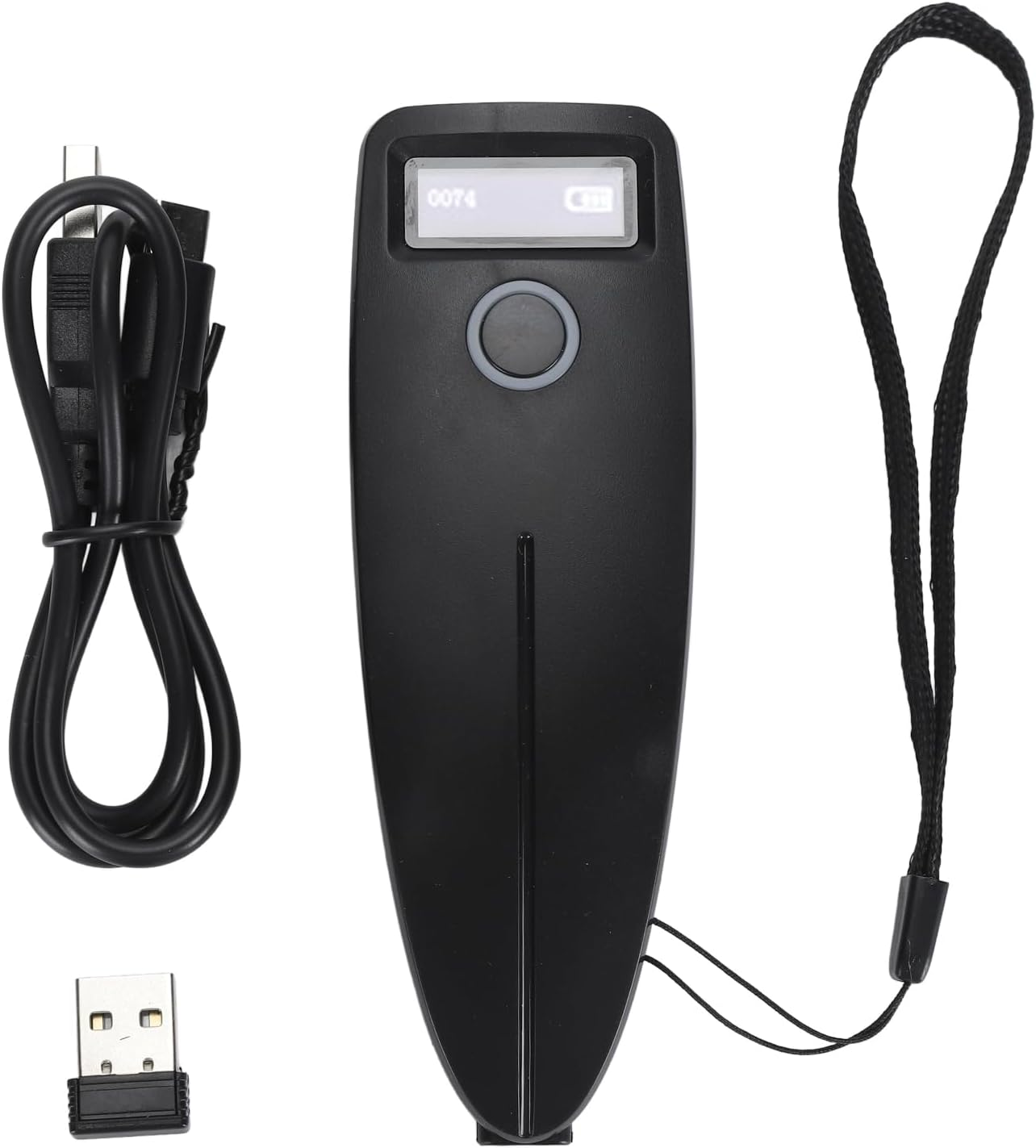

Package List:

1 x Scanner (Ship with Inbuilt Battery)

1 x Data Cable

1 x Receiver

1 x Instruction Manual
