1. Security : Includes functions against overload, overload and ray that can offer long distance communication and extend the useful life of the solar system.

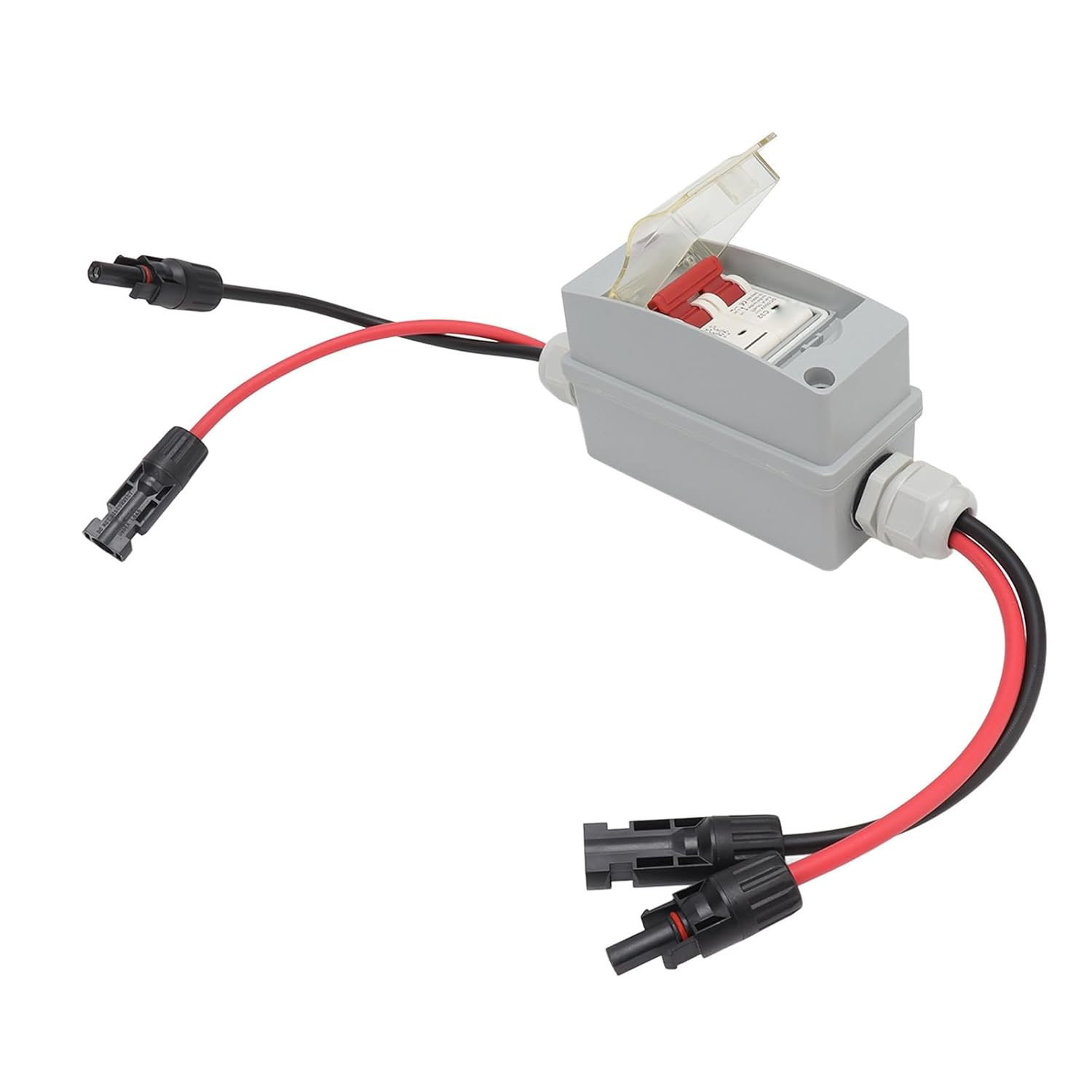

2. Great construction: Equipped with the DC module to maximize the of photovoltaic interruption, and the transparent cover is also convenient to verify the status of the circuit switch.

3. Reliability: The separation can be installed inside and outdoors with the integrated CC switching load, which can effectively protect itself in Box/Cover of and environment.

4 .. extensive with: applicable for solar generation systems of photovoltaic and solar format of the network system. Also for home, motorhome, etc.

5. Easy to install: The 500 V photovoltaic CC Combinator box that is installed between the solar panel and the solar inverter, can achieve an installation, plugs and and safe games.

Technical data:

Element Type: Circuit switch

Model: LQX C32.2

Material: Polycarbonate, ABS

Enter: 1 chain

Edition: 1 chain

Maximum voltage: 500 V

Maximum DC Short Circuit -Input current ISC: 32a, interchangeable.

Degree of : IP65

Product size: approx. 120 x 55 mm / 4.72 x 2.17 x 3.54 inches

Cable input: M20 6 mm*2

Output cable gland: M20 6 mm*2

Nenisolation Voltage UI: 500 V

Current Evaluation Le: 32a

UCPV maximum work voltage: 500V

Evaluation voltage: 500 V

Packaging list:

1 Xcircuit Breaker

1 x User Manual

either

1 x dyeing

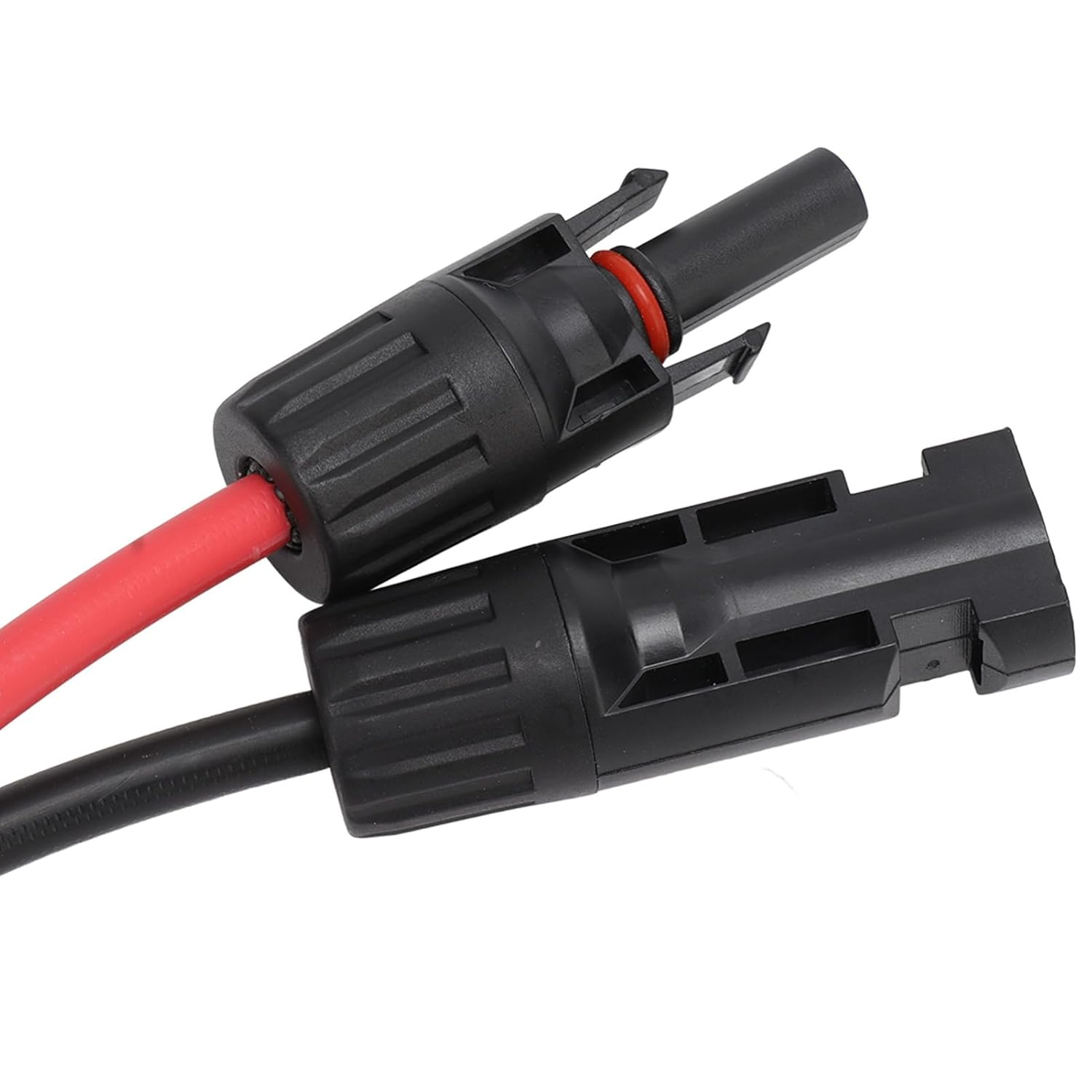

4 x Connection (2pcs male plugs, 2 -piece female plugs)

4 x nucleus

4 x screw

4 x wall plugs

1 x photovoltaic key

1 x User Manual
