ATOMSTACK R8 Pro Laser Rotation with Chuck and Rollers, Claw Disc Roller for Irregular, Spherical and Cylindrical Objects, for P1 A5 A10 A20 A30 A40 Pro All Laser Engravers
ATOMSTACK R8 Pro Laser Rotation with Chuck and Rollers, Claw Disc Roller for Irregular, Spherical and Cylindrical Objects, for P1 A5 A10 A20 A30 A40 Pro All Laser Engravers
Brand: ATOMSTACK MAKER
A$405.80
- Irregular Shaped Objects The R8 Pro Claw Chuck securely holds a variety of irregularly shaped objects such as cups, wine bottles, thermos, balls and rings for precise engraving.

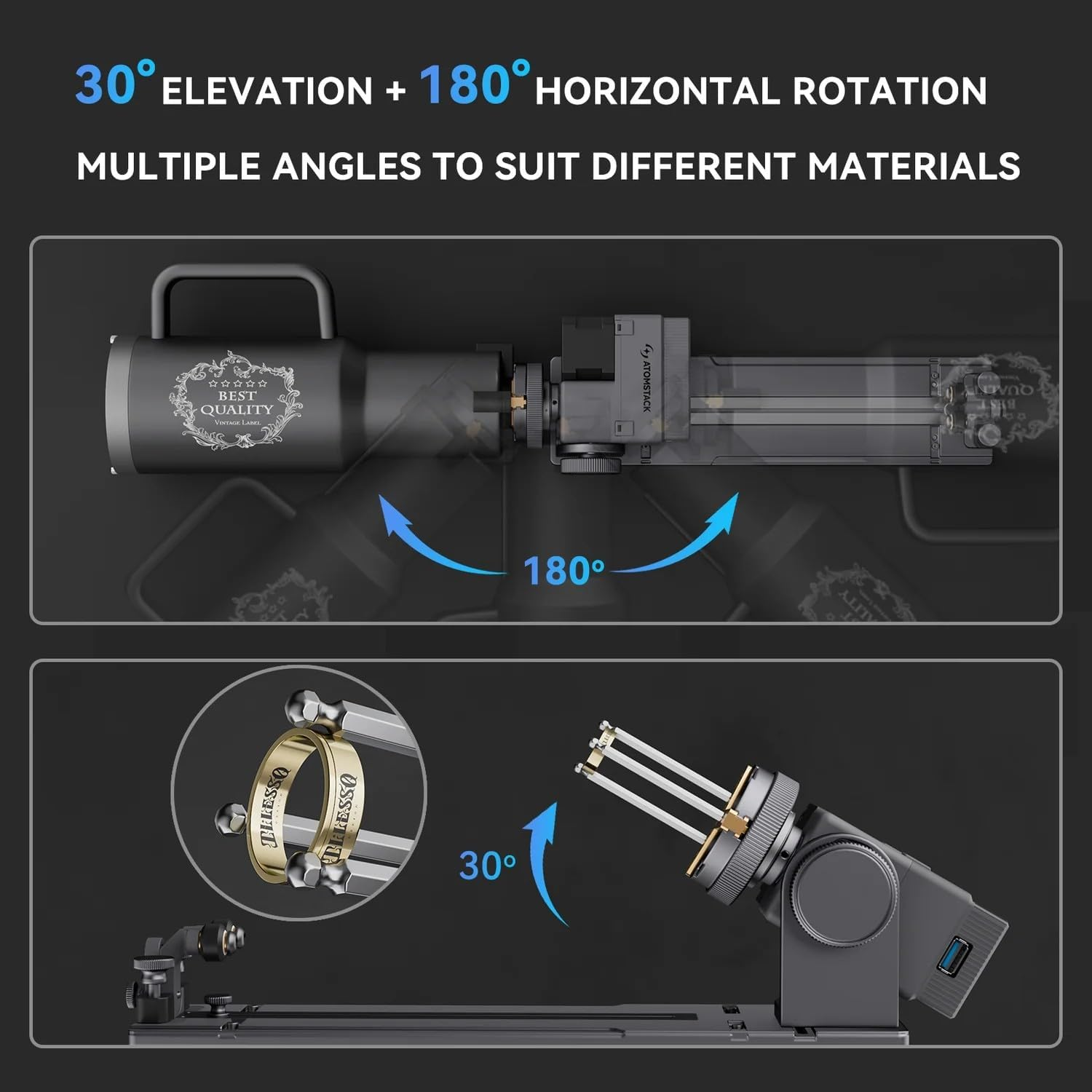

- Flexible adaptability: 30° elevation + 180° horizontal rotation - for adapting to different shapes and sizes. The R8 provides stable and reliable hold throughout the engraving process.

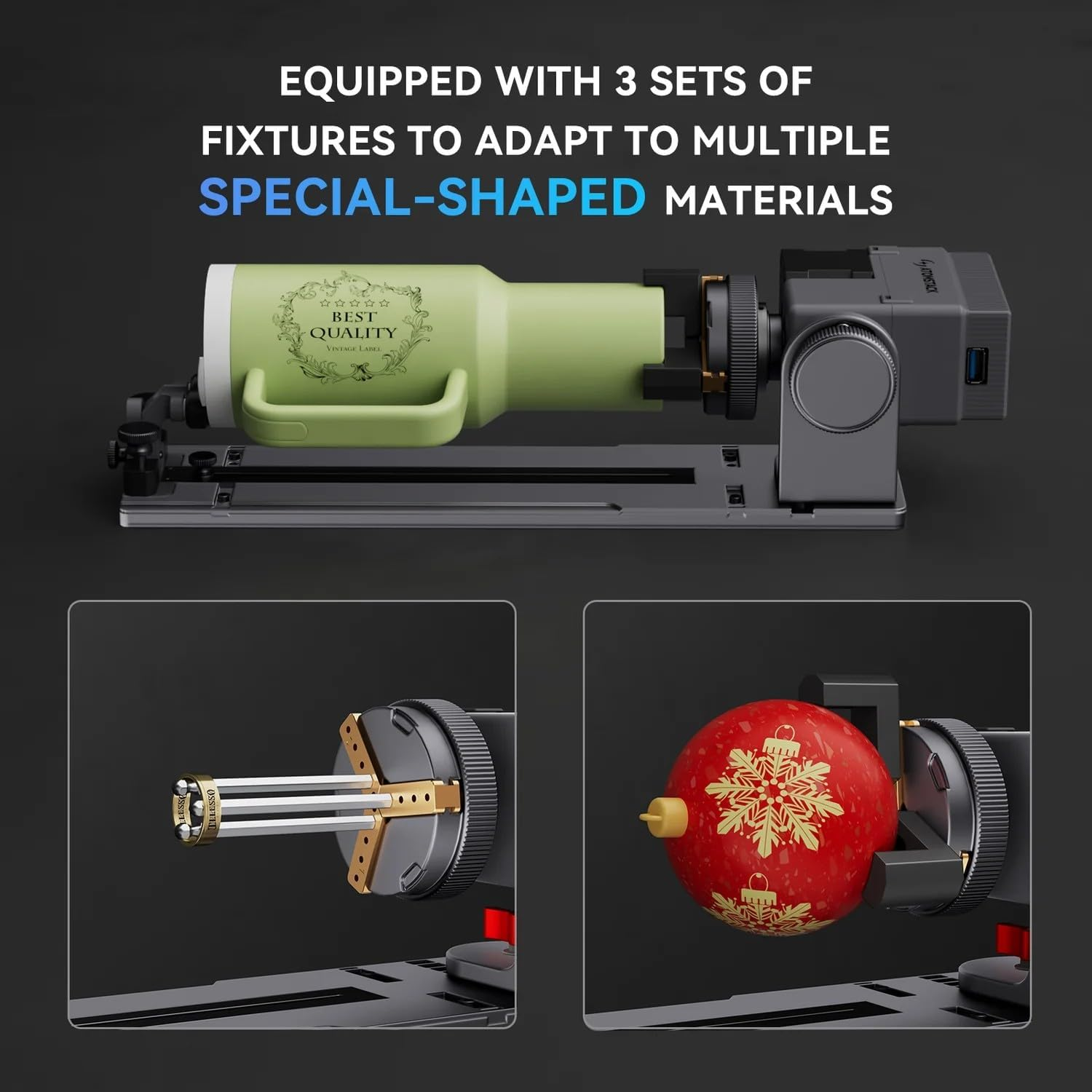

- EXTENDED APPLICATIONS The R8 Pro rotary chuck is equipped with adjustable jaws or clamps that ensure a secure grip for objects of different thickness and shape. Expand your engraving options beyond flat surfaces and effortlessly edit irregularly shaped objects.
- Intelligent detection: The integrated detection chip integrates seamlessly with Atomstack Studio, eliminating the need for manual parameter adjustments. Fully compatible with LightBurn.

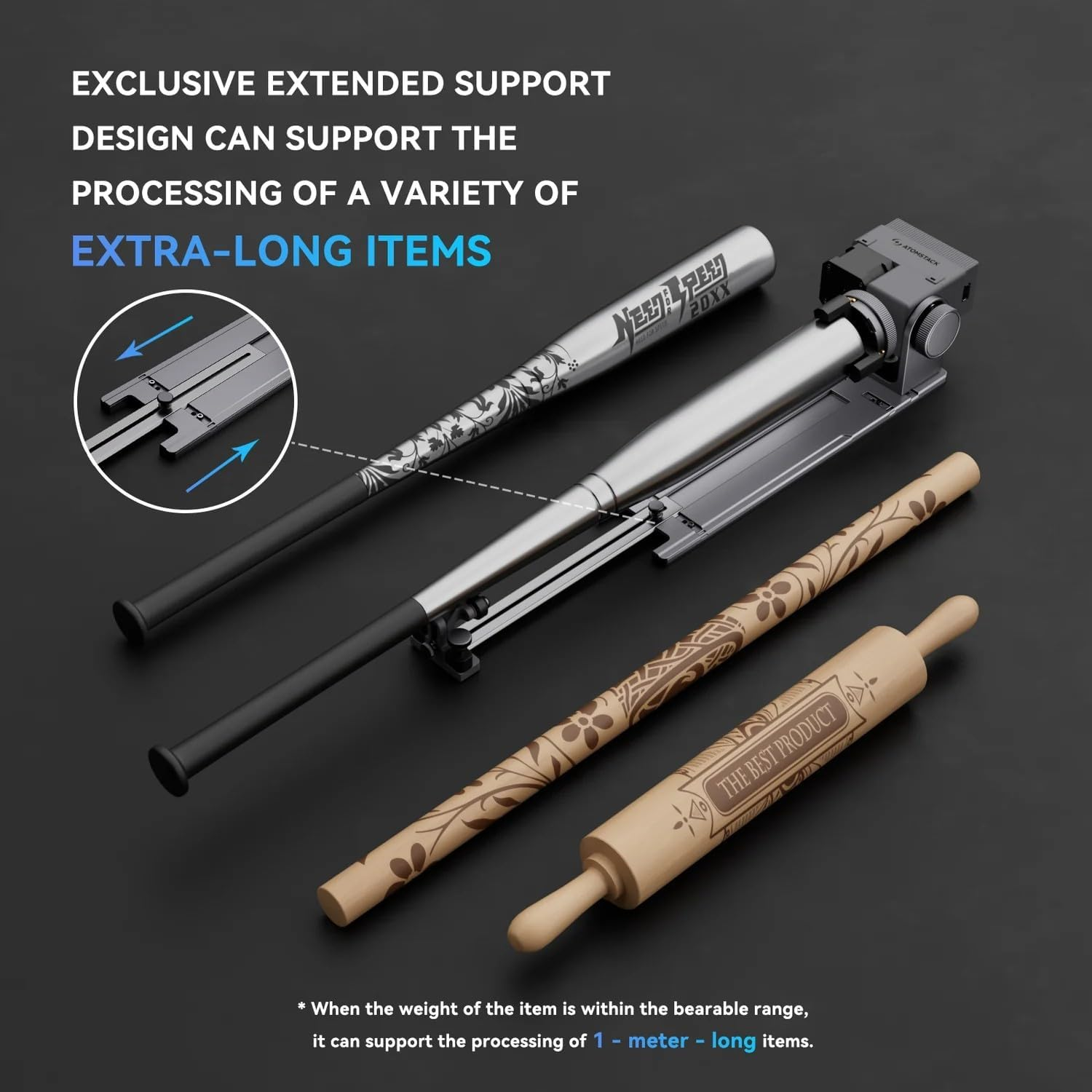

- EXPANDABLE DESIGN The upgraded ATOMSTACK R8 Pro chuck is suitable for longer workpieces and exceeds the limits of standard chucks for greater versatility.

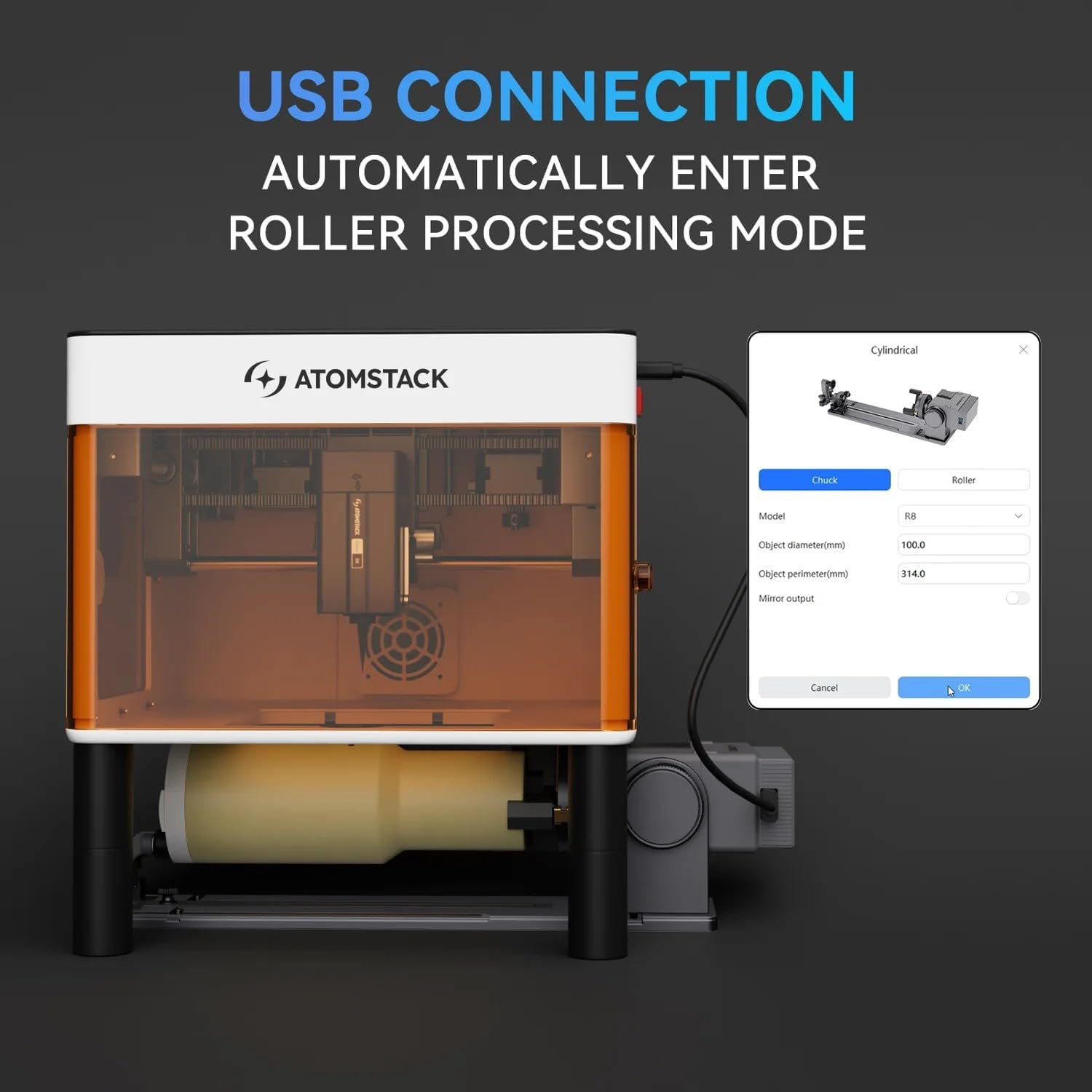

- PLUG AND PLAY - No installation required - simply connect via USB for effortless setup and operation.
- Sturdy and Safe The ATOMSTACK R8 Pro rotating tension pulley is made of high quality aluminum alloy and high-strength brass, ensuring exceptional durability and stability.

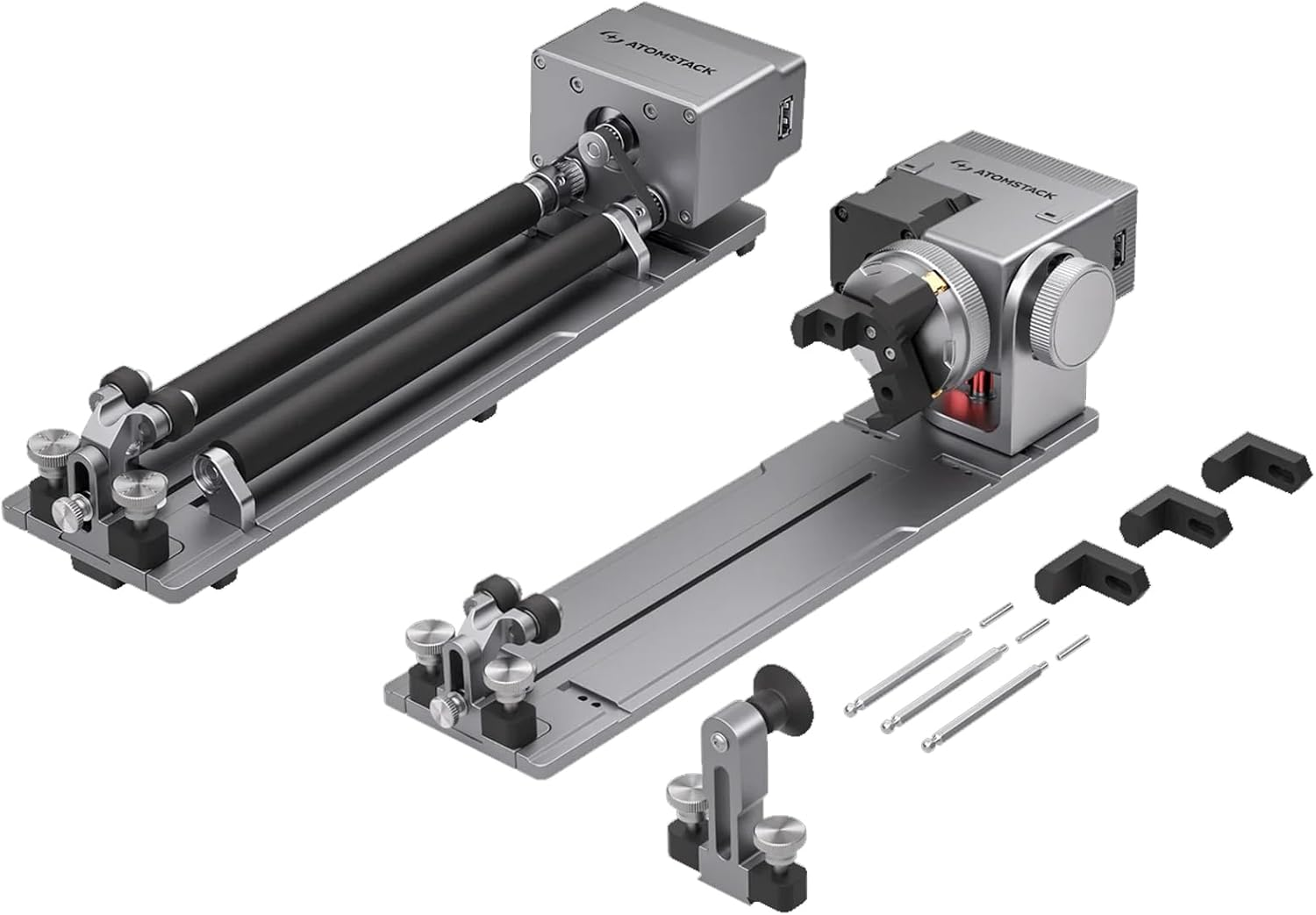

Atomstack R8 Pro rotary laser engraver with improved chuck and roller

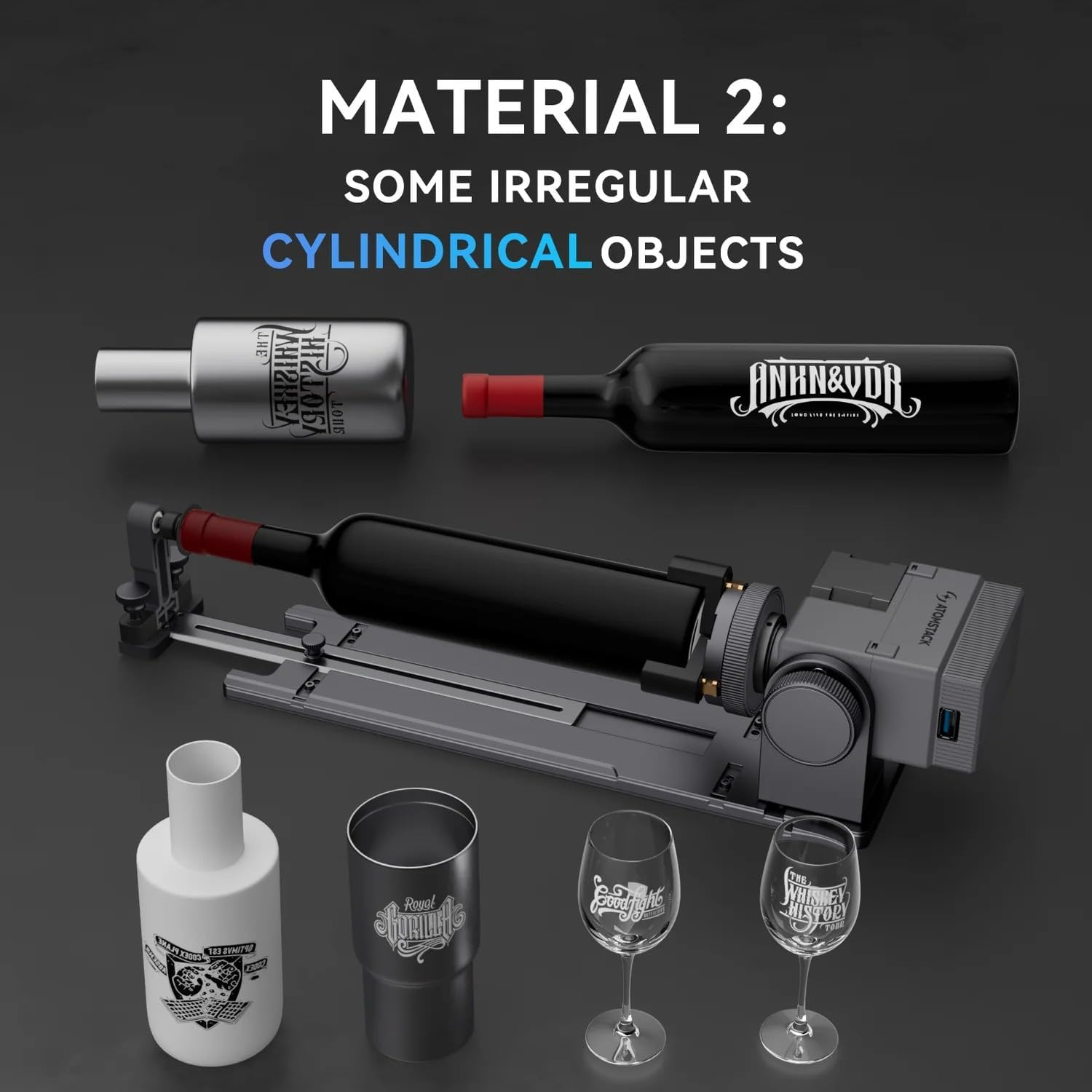

➤ VERSATILE - Engraved standard and irregular cylindrical objects.
➤ Intelligent: Automatic detection thanks to chip for seamless setup.
➤ Expandable: Supports longer objects for more flexibility.
➤ Simple: USB plug and play for hassle-free use.
➤ Adjustable: Secure hold for different diameters.
Specifications:
R8 Lathe Chuck
Total weight: 1.5 kg.
Rotation angle: 25°.
Engraving Diameter (Cylindrical Objects): 0-80mm
Engraving diameter (round objects): 10-70mm
Engraving diameter (spherical objects): 25-80 mm.
Load capacity: 1.5 kg.
Compatibility:
Older frame models do not have the automatic detection function and require the old motor cable (included) for compatibility reasons.
All Atomstack Laser Diode Machines:
USB cable connection.
P1 (MINI), K2 (POWER), L1, K60 (HURRICANE).
Motor cable connection.
A5 M30 A5 M40 A5 M50.
A5 M50 PRO A5 PRO A5 PRO+
A10 A10 PRO A20 A20 PRO
A30 PRO A40 PRO
A40 MAX A70 PRO
A70 MAX P7 M30
P7 M40 P9 M40 P9 M50.
A6 PRO A12 PRO A24 PRO
A24 PRO 1064NM A48 PRO
A12 ULTRA A24 ULTRA
A48 ULTRA A5 PRO V2
A10 PRO V2 A20 PRO V2
A5 PRO V2 BLACK
A10 PRO V2 BLACK
A20 PRO V2 BLACK
All AtomStack machines
Packing list:
1 x chuck main unit.
1 x motor connection cable.
1 x white plug connection cable.
1 x black plug connection cable.
3 x L-shaped jaws.
3 x ladder jaws.
3 x hexagonal jaws.
3 x grub screws.
1 x tailstock holder.
1 x mini spirit level.
1 x soft tape measure.
Vernier caliper x 1.
1 x screw set.
1 x Allen key.
1 x user manual.
- Item Model Number: R8PRO
- Part Number: R8PRO
- Batteries Required?: No
- Power Source: AC
- Item Weight: 2.6 kg
- Batteries Included?: No
- Manufacturer: ATOMSTACK MAKER
- Package Dimensions: 39 x 31 x 13.5 cm; 2.6 kg
- Included Components: 1 x Atomstack R8 Pro laser rotation
