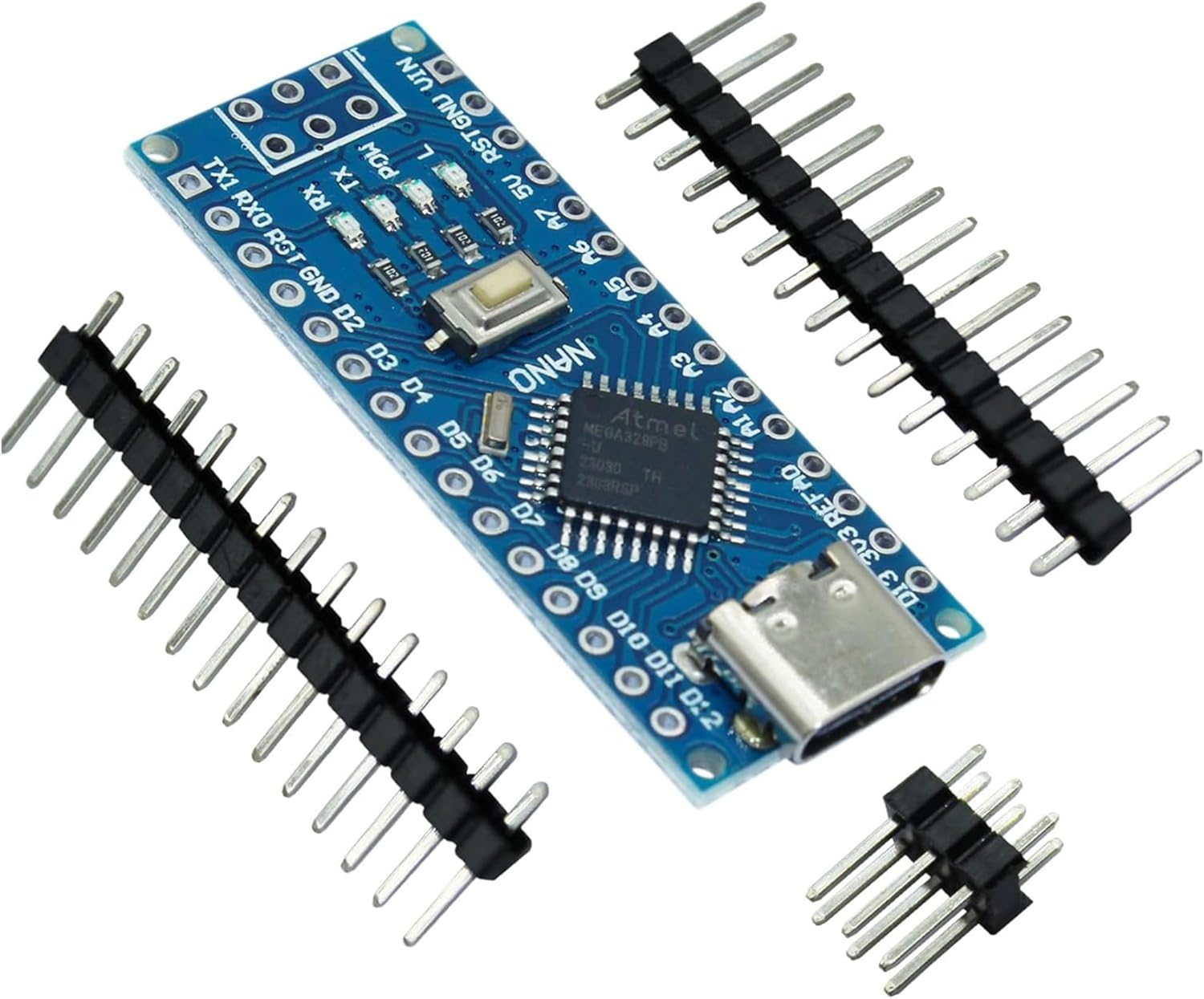

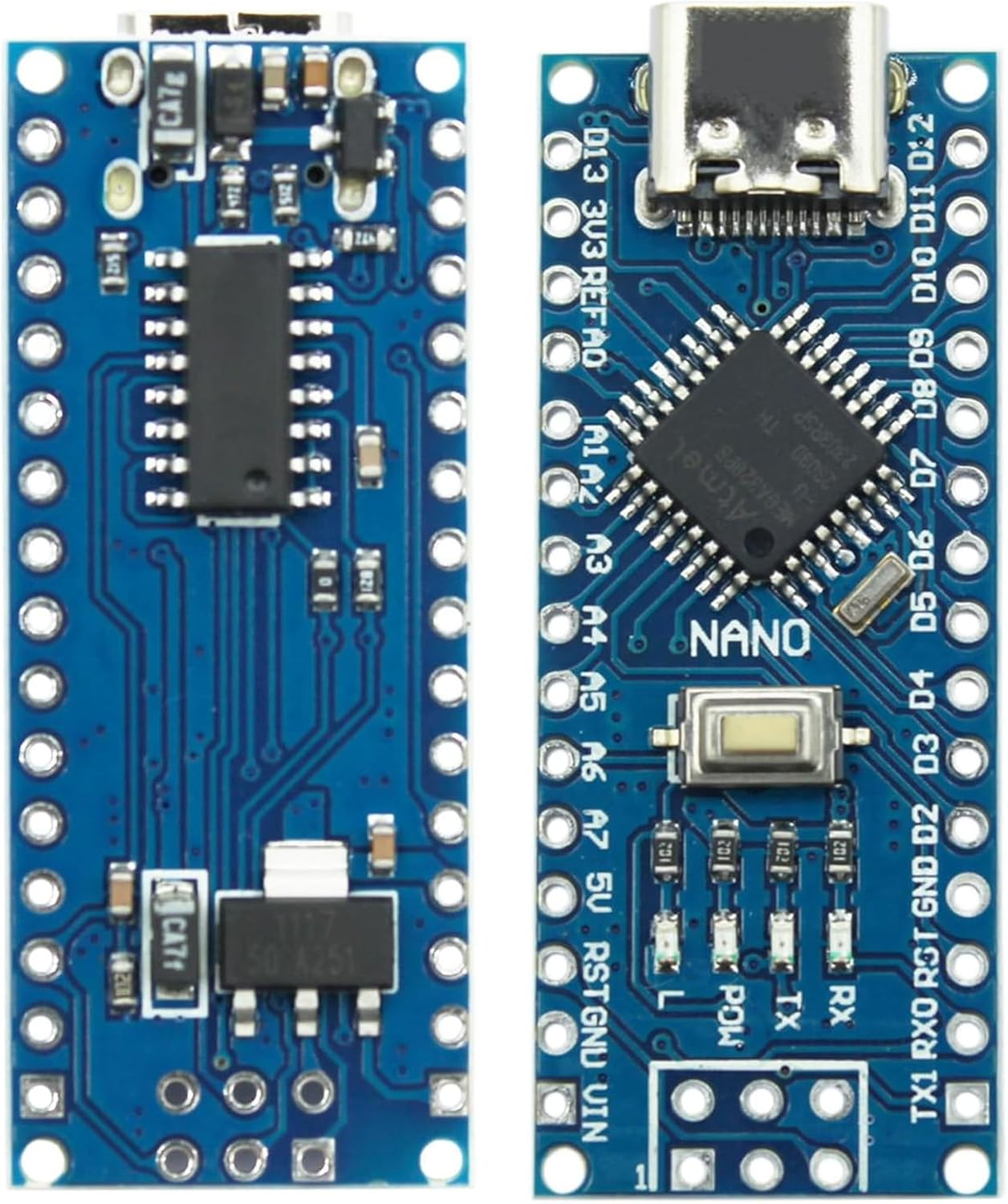

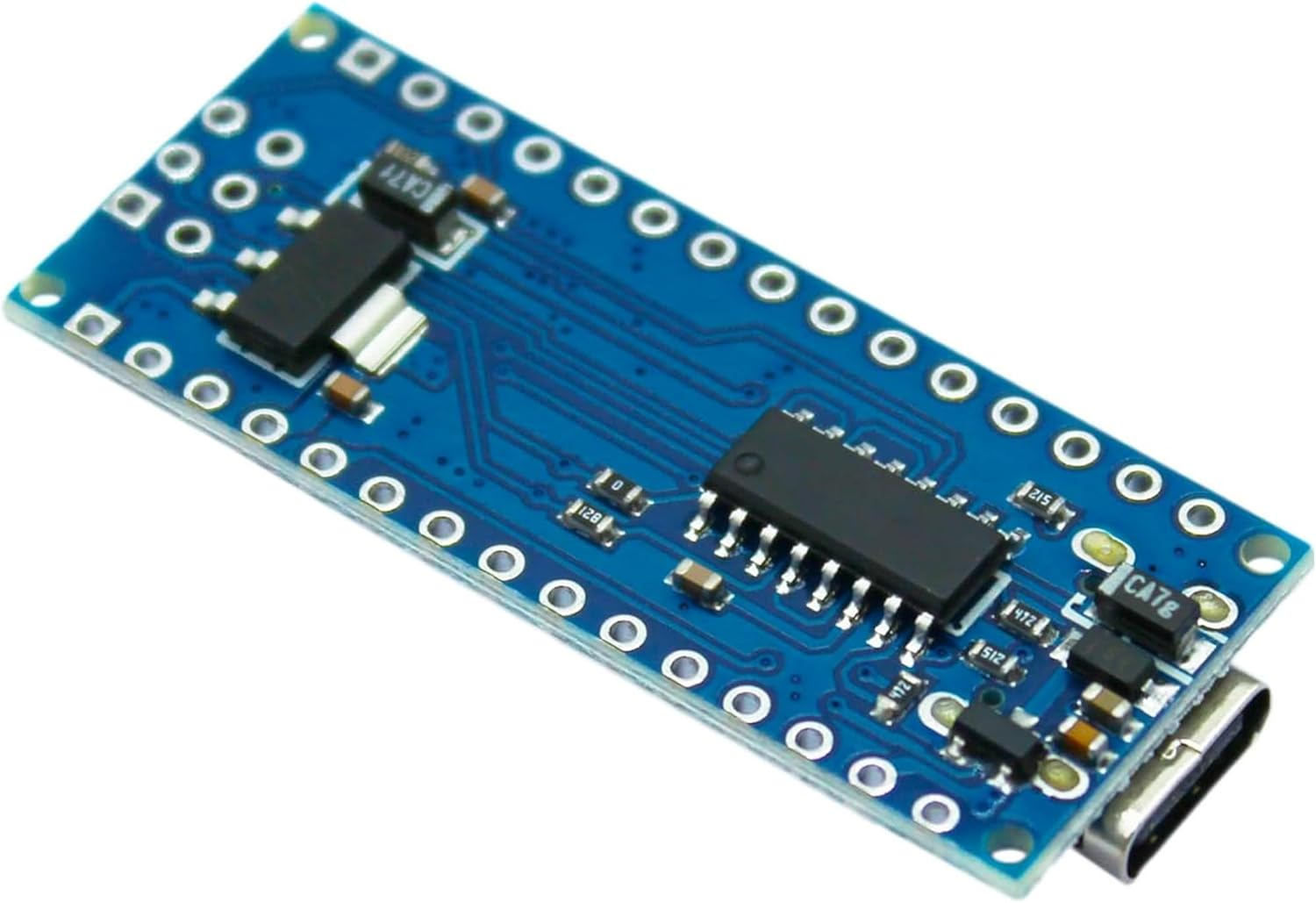

A-DIGISHUO 2Pcs Nano V3.0 Atmega328P CH340G | Microcontroller Board Development Board |5V 16M Type-C Port Module with PIN Connector Pins Not Soldere
A-DIGISHUO 2Pcs Nano V3.0 Atmega328P CH340G | Microcontroller Board Development Board |5V 16M Type-C Port Module with PIN Connector Pins Not Soldere
Brand: A-DIGISHUO
A$19.95
- The ATmega-328P and CH340 chips are faster, more reliable, and easier to use than the FT232. Strong driver capability, the downloaded program can be quickly installed.
- Using Nano's pin layout can maximize the use of your test board space - it works well with Mini or Basic Stamps, and has a TX on the top RX、ATN、GND， The other top has power and grounding.
- Nano Board is small in size, fully functional, and suitable for breadboards. It has more analog input pins and onboard+5V AREF jumpers than Diecimila/Diemilianove.
- Nano can power your project in the way you want - Nano can be powered through Mini-B USB connection, 7-12V non regulated external power supply (pin 30), or 5V regulated external power supply (pin 27).
- Nano uses CH340G instead of FTDI FT232RL IC to improve transmission speed, increase Windows stability, and solve the problem of FTDI driver program damage to non original chips. ATMEGA328P can provide more programming and data memory space.
Product Description
Specifications:
- CH340G Replace FT232RL
- Operating Voltage(logic level):5V
- 6 PWM ports:D3, D5, D6, D9, D10, D11
- 14 Digital input / output ports:TX,RX,D2 ~ D13
- 8 analog inputs ports:A0 ~ A7
- 1 pairs of TTL level serial transceiver ports RX / TX
- external 5V ~ 12V DC power supply
- Using Atmel Atmega328P-AU MCU
- power supply by 9V battery
- Support USB download and Power
FTDI USB Chip
- The FTDI FT232RL chip on the Nano is only powered if the board is being powered over USB.
Microcontroller
- ATmega328P – 8 bit AVR family microcontroller.
Reset button
- When the controller malfunctions, this button can reset the microcontroller
You will receive：

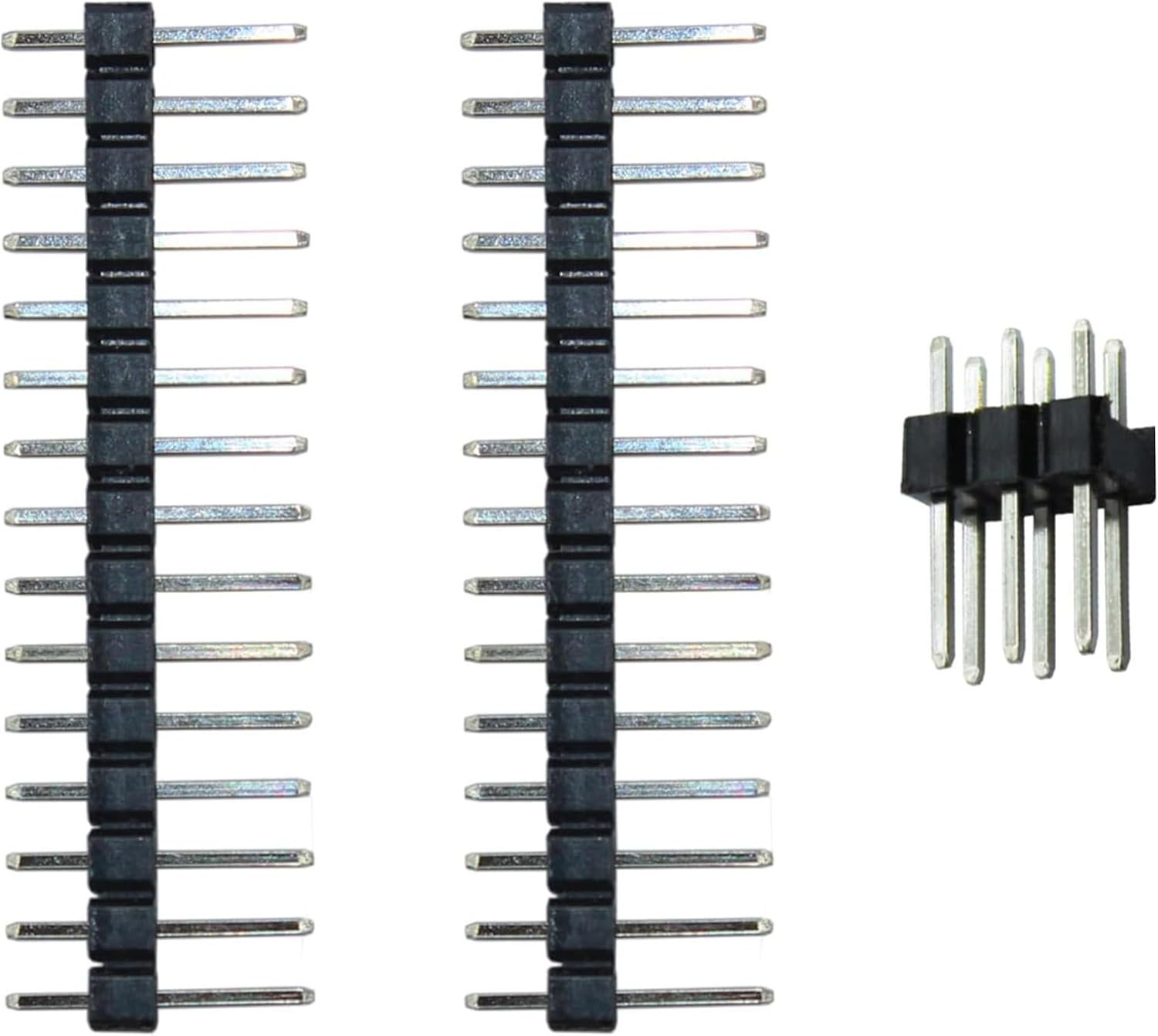

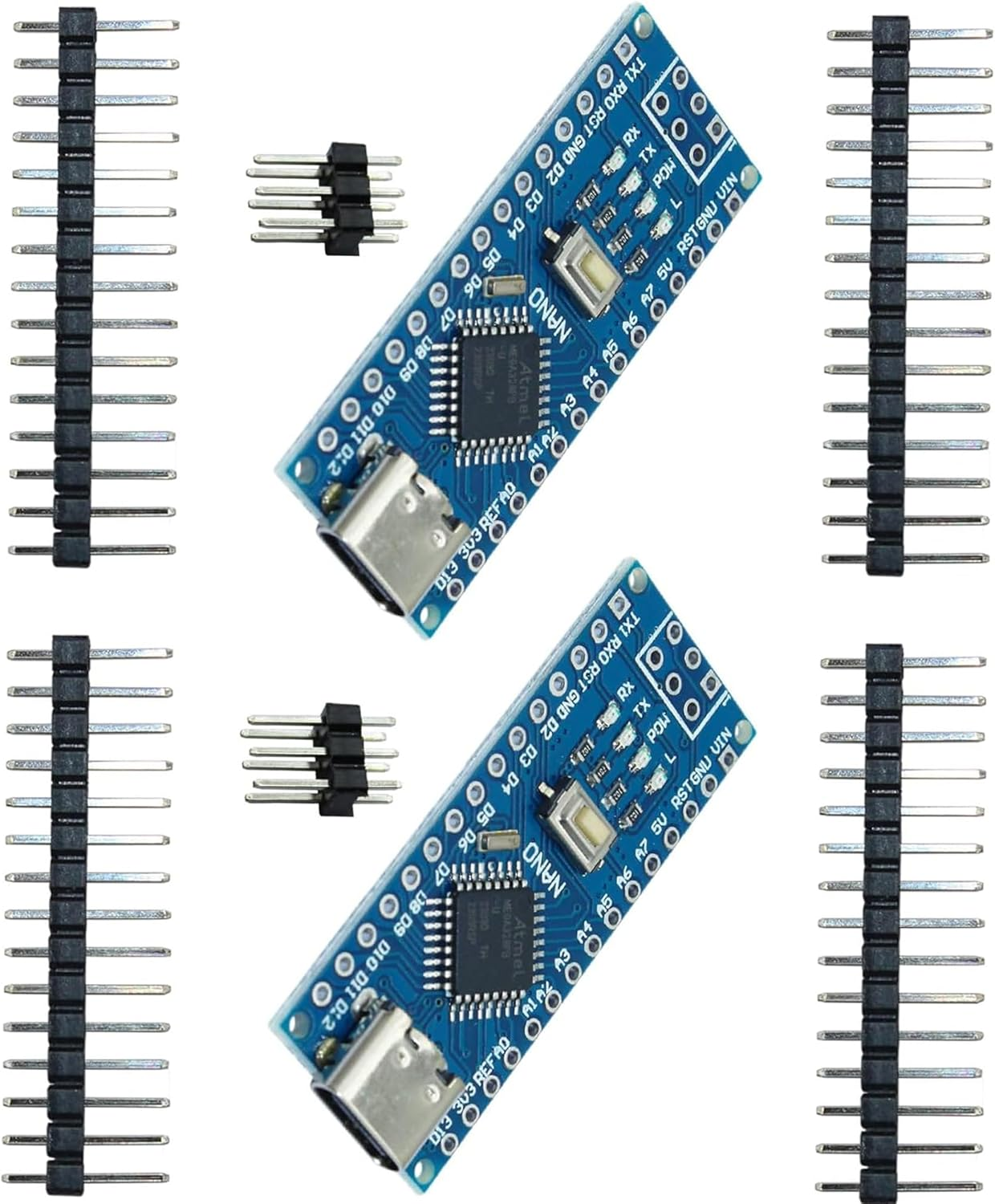

- 2Pcs Nano V3.0 ATmega328P CH340G Controller Board( Type-C USB Port Module)
- Number of items: 1
- Country/Region of origin: China
- Batteries Required: No
- Brand: A-DIGISHUO
- Item Weight: 30 g
- Ram Memory Technology: DDR3
- Voltage: 5 Volts
- Package Dimensions: 10.2 x 10.1 x 2.2 cm; 30 Grams
- Manufacturer: A-DIGISHUO
