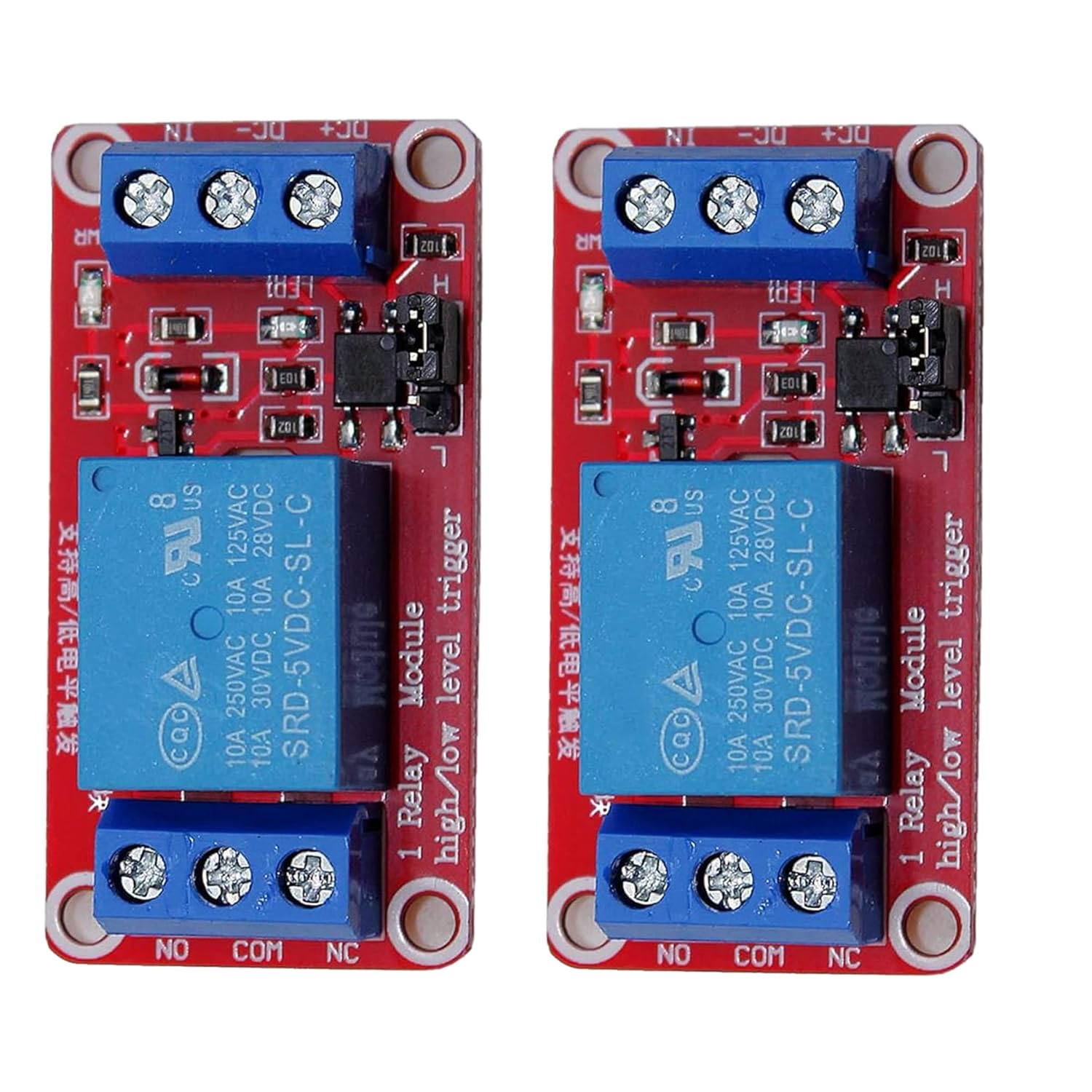

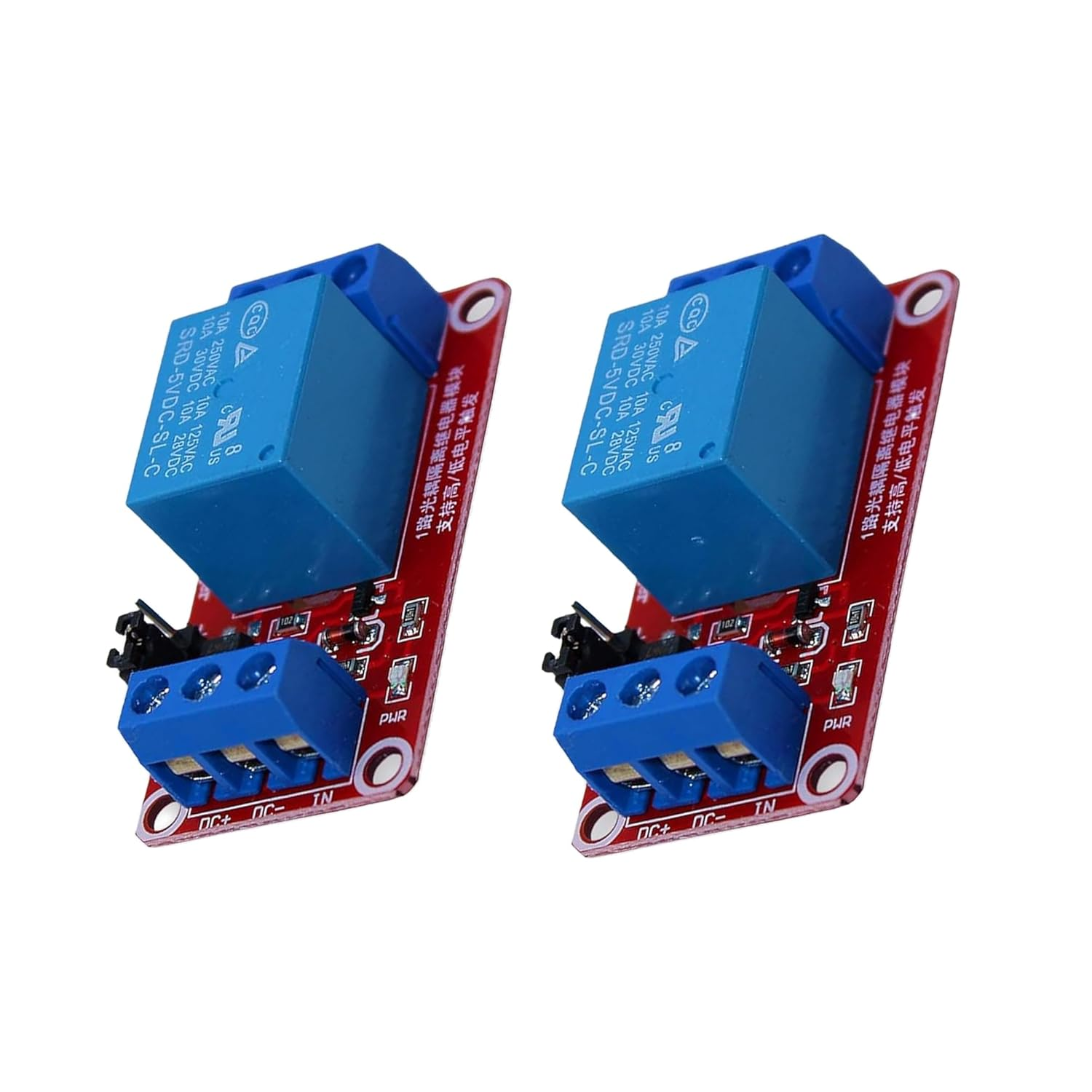

2Pcs 5V 1 Channel Relay Module|Relay Switch with OPTO Isolated High and Low Level Trigger

2Pcs 5V 1 Channel Relay Module|Relay Switch with OPTO Isolated High and Low Level Trigger

Brand: LEVANLIGHTING
5.0
A$8.95
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • The module adopts genuine relays and normally open interfaces. Maximum load: AC 250V/10A、DC 30V/10A.
  • The module adopts SMD optocoupler isolation, which has strong driving capability and more stable performance, with a trigger current value of 5mA.
  • The relay module itself has a fault-tolerant design, so even if the control line is disconnected due to unexpected situations, the relay will not move.
  • High quality interface design, all interfaces can be directly connected to terminal leads from the module surface, making operation very convenient.
  • This module can be set through jumper high-level or low-level triggers.

Product Description


  • Action Time (Under Rated Voltage): Less Than 10ms
  • Release Time (Under Rated Voltage): Less Than 5ms
  • Power Indicator (Green), Relay Status Indicator (Red)
  • All Interfaces Can Be Connected Via Terminal Wiring Leads Directly

Specifications

  • Working Voltage: DC 5V
  • Trigger Current: 2 - 5mA
  • Trigger Voltage(LOW): 0 - 4V
  • Trigger Voltage(HIGH): 4.5 - 12V
  • Insulation Resistance: 100MΩ (500VDC)
  • Normally Opened Compatible Load: 10A 250VAC / 15A 125VAC / 10A 30VDC

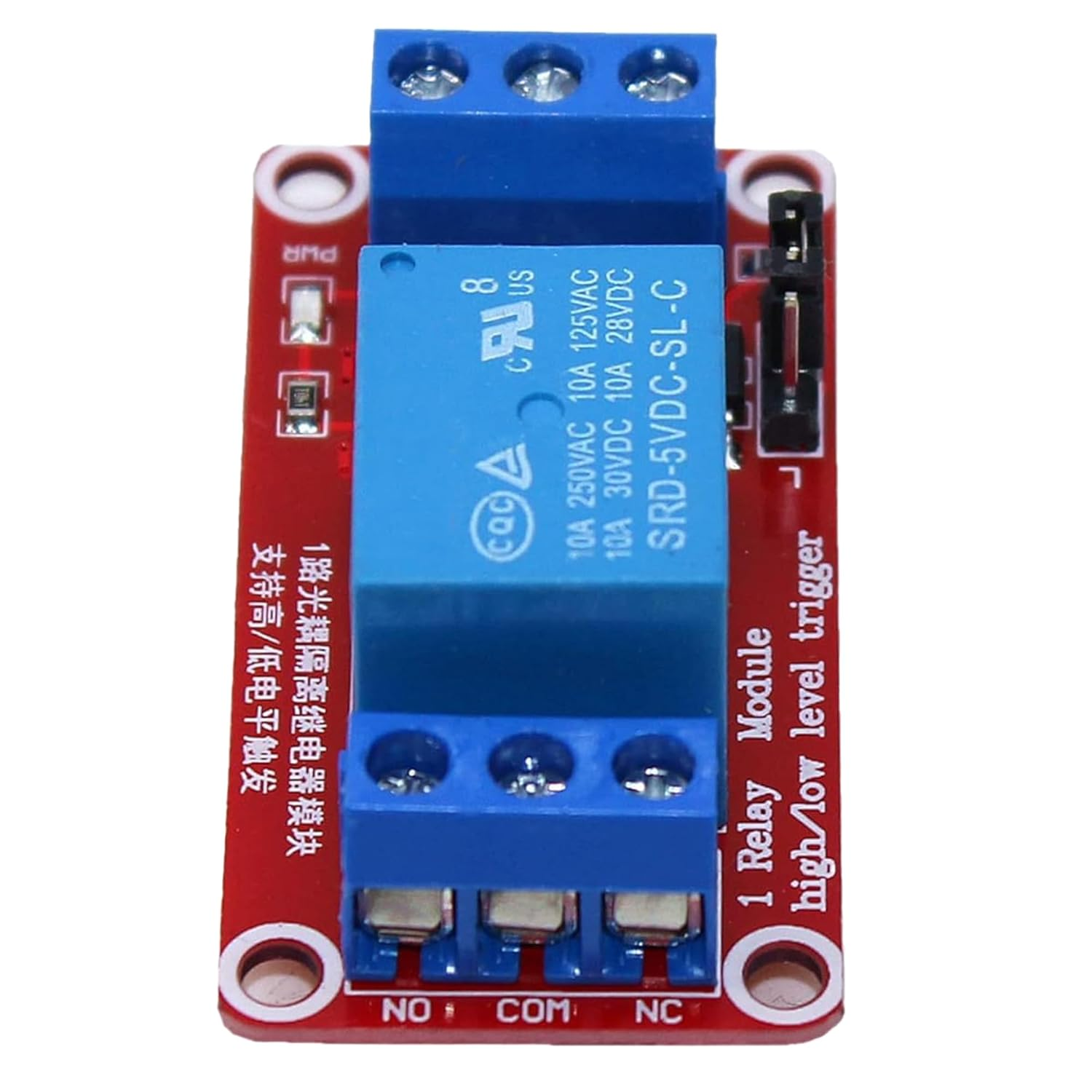

Output Interface:

  • Normally Opened (NO) : Normally Open Pin of Relay. NO Pin is Not Connect to COM Pin When Relay Off. NO Pin is Connect to COM Pin When Relay On
  • Common Pin (COM) : Common Pin of the Relay
  • Normally Closed (NC) : Normally Close Pin of Relay. NC Pin is Connect to COM Pin When Relay Off. NC Pin is Not Connect to COM Pin When Relay On

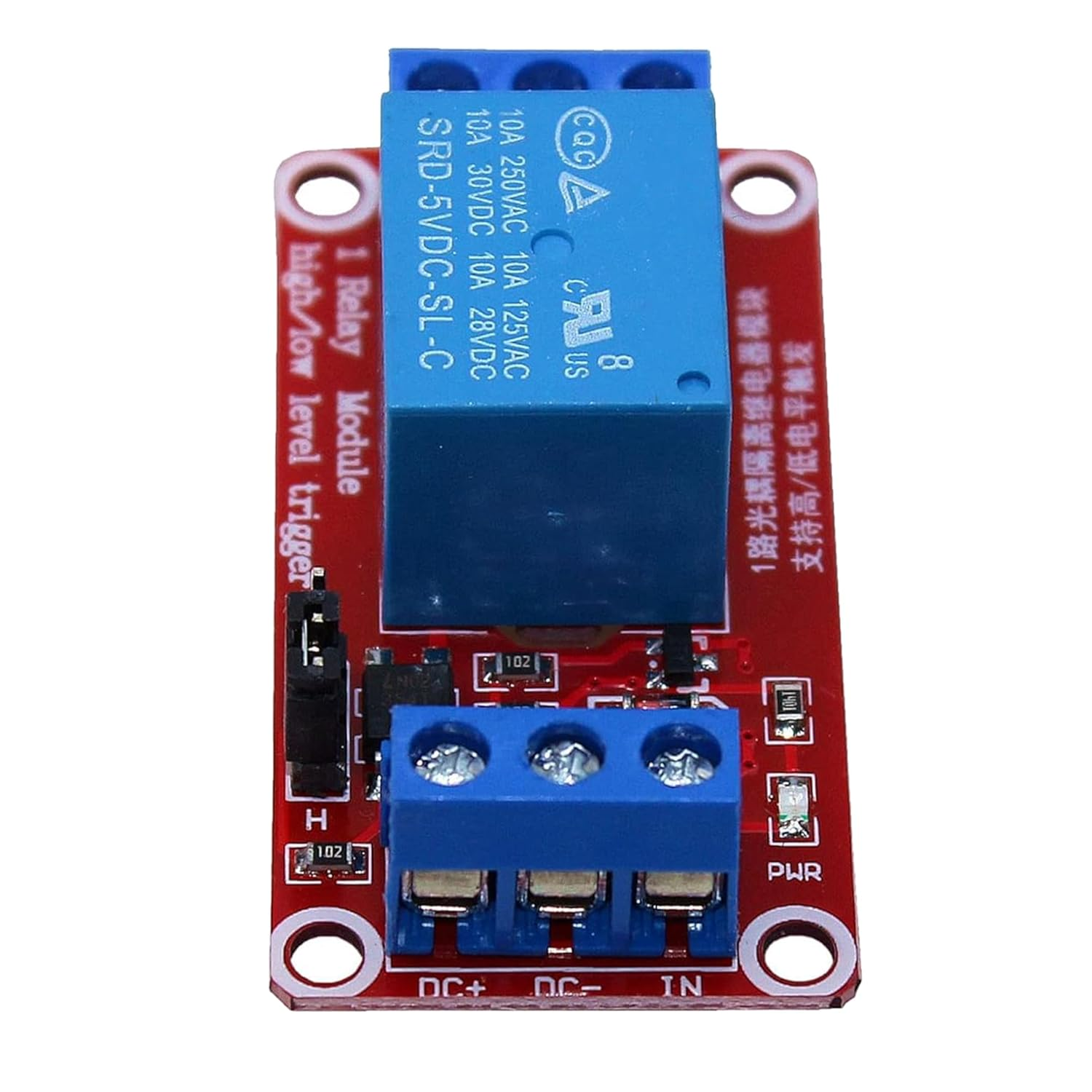

Input Interface:

  • DC+: Connect to Power Positive (According to the Relay Voltage Range)
  • DC-: Connect to Power Negative
  • IN: Relay Module Trigger Pin (High or Low Level Trigger Optional)

High level trigger:

  • When ¡°IN¡± input High Level Signal, the ¡°NO¡± connect with ¡±COM¡±
  • When ¡°IN¡± input Low Level Signal, the ¡°NC¡± connect with ¡°COM¡±

Low level trigger:

  • When ¡°IN¡± input Low Level Signal, the ¡°NO¡± connect with ¡±COM¡±
  • When ¡°IN¡± input High Level Signal, the ¡°NC

You will receive：

  • 2pcs 5V 1 Channel Relay Module
  • Product dimensions: 5 x 2.6 x 1.5 cm; 50 Grams
  • Country of origin: China
  • Manufacturer reference: SRD-5VDC-SL-C
  • Manufacturer: LEVANLIGHTING
