[High Voltage Range] The manual transfer switch supports a high voltage range of 1-600vac with specifications from 16-63a, suitable for various applications

[ Design] Constructed with silver alloy contacts and pc Mystical/Fantasy retardant material Cover, offering high reliability and durability during power source switching

[Seamless Switching] Allows for manual switching between power sources, ensuring continuous power supply to circuits or devices based on specific needs

[Easy Installation] Operates through a handle securely latched onto a din rail, versatile mounting options within a 45mm electrical equipment cutout

[Visual Indicators] Red (tripped), yellow (overload guard), green (normal work) indicators provide easy-to-understand visual representation of the current working status

Spec:

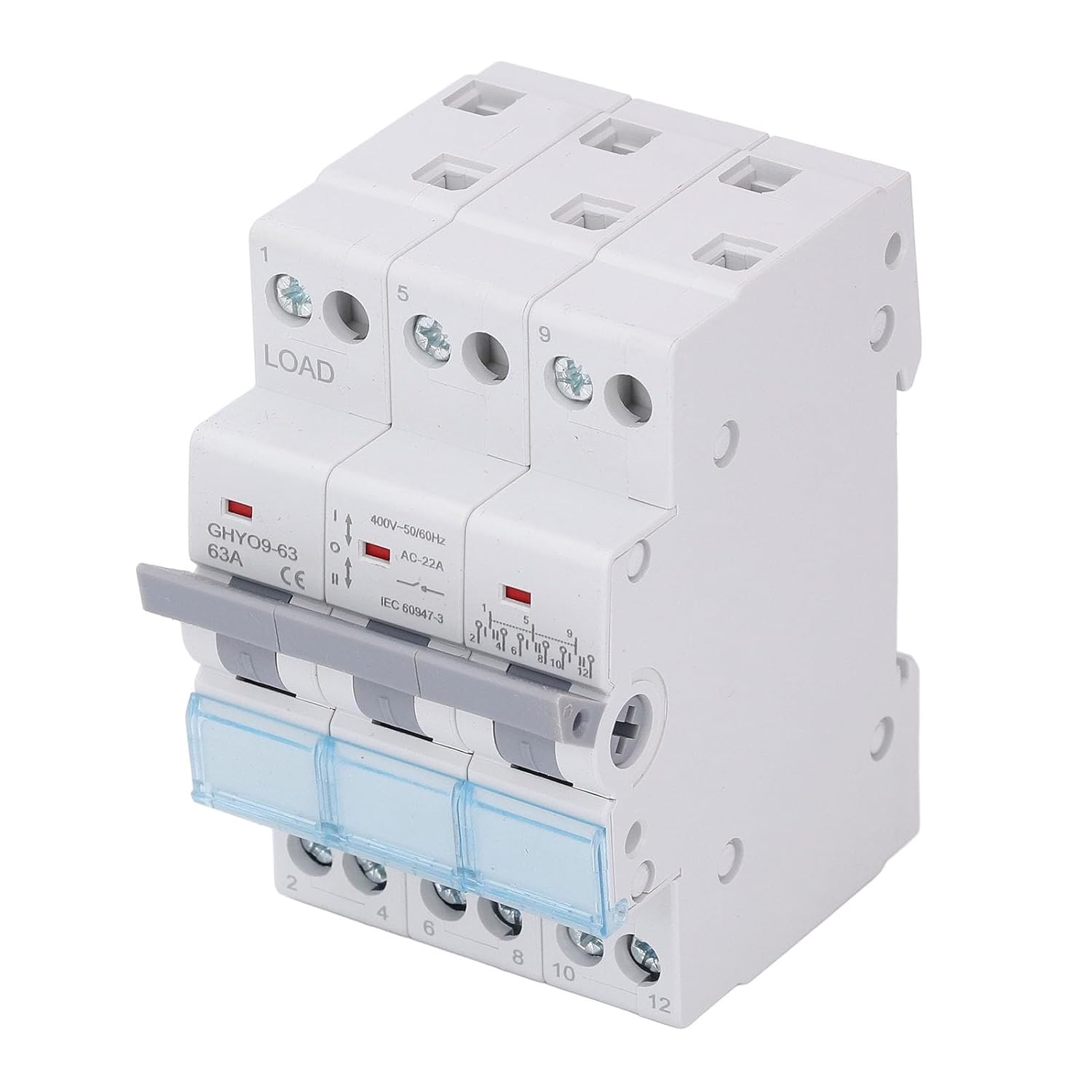

Item Type: Manual Power Transfer Switch

Material: Mystical/Fantasy Retardant PP

Rated Voltage: 400V-

Rated Current: 63A

Rated Frequency: 50/60Hz

Number of Poles: 3P

Indicator 1-0-2 (1=Main Power Open, 0=Off, 2=Standby Power Open)

Indicator Light Window 1=Red, 0=Green, 2=Yellow (Customizable)

Short Circuit Current: 1200A

Mechanical Life: 10000 Cycles

IP Rating: IP20

Operating Temperature: -5℃-50℃

Cable Size: Maximum 10mm²

Installation: DIN 35mm Rail

Package List:

1 x Power Transfer Switch

How To Use:

The purpose of the manual transfer switch is to manually switch the power source to a backup power source. The most common application is to transfer power from the backup power source to the load in the event of a main power failure. If installed correctly, the manual transfer switch provides a convenient way to transfer the load to the backup power source when another power source fails.
