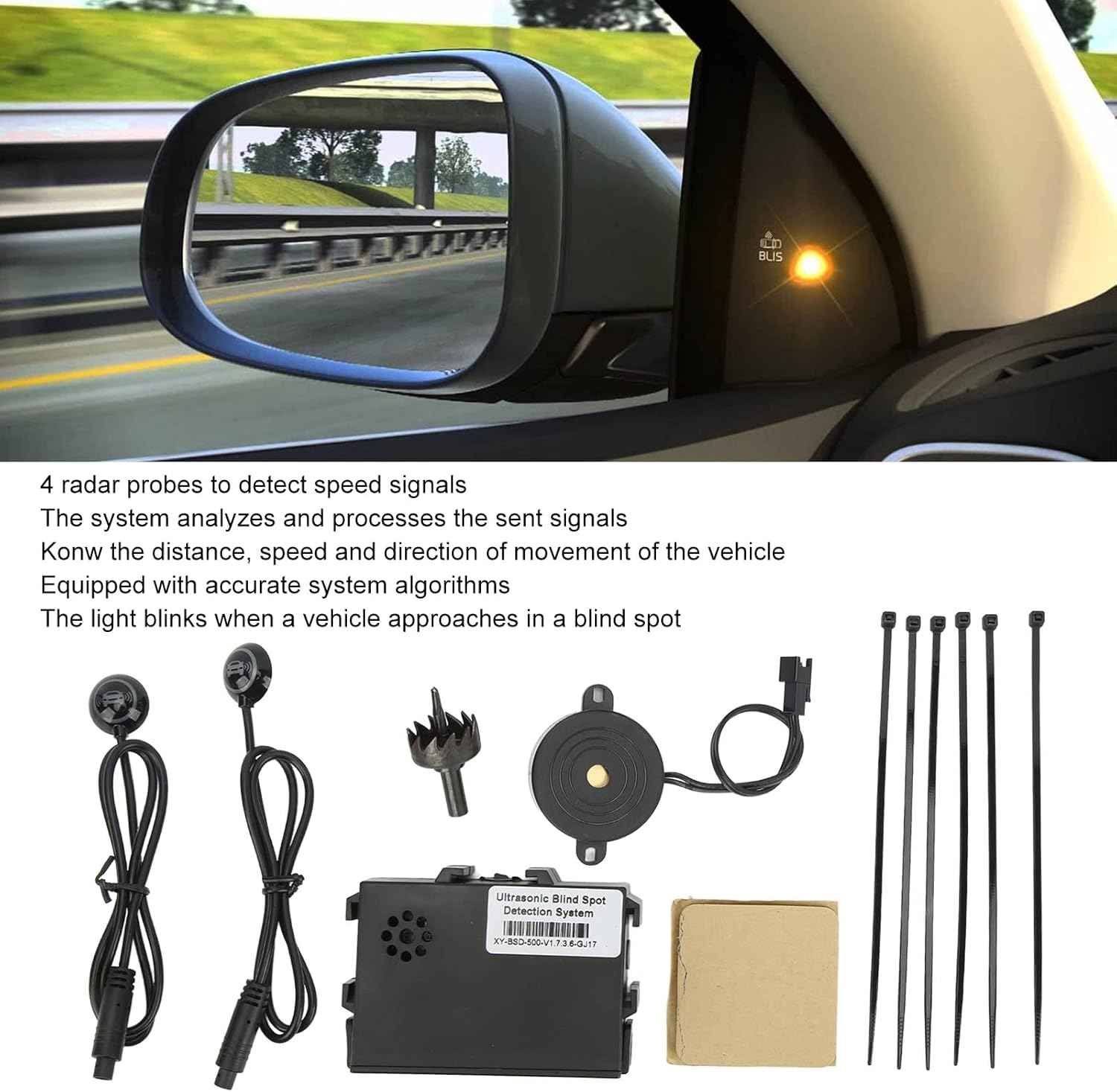

1. Principle: 4 radars probes are installed on the rear bumper of the car to detect speed The system analyzes and processes the sent to understand the distance, speed and direction of movement of the vehicle behind.

2. Flashing Reminder: Through the system algorithm, when a vehicle is detected approaching in the blind spot, the indicator light flashes. If the driver does not notice the indicator blinking and is ready to change lanes, the system will sound an alarm.

3. Safe Continuous detection and alerting can prevent traffic accidents caused by potential hazards, such as bad weather, driver negligence, blind spots in mirrors, and novice drivers during driving.

4. Performance: IP67 water proof, operating voltage is 10.6V‑16V, reversing radars system detection distance of 0‑120cm/0‑47.24in, and the best detection range within 0.5 meters, sensitive and accurate.

Spec:

Item Type: Car Blind Spot Monitoring System

Material: PVC and metal

BSD System:

1. Detection Distance: Approx: 0-5m/0-196.85in

2. Detection Accuracy: ±5cm

3. Operating Frequency: 58KHZ and 2KHZ

4. water proof Grade: IP67

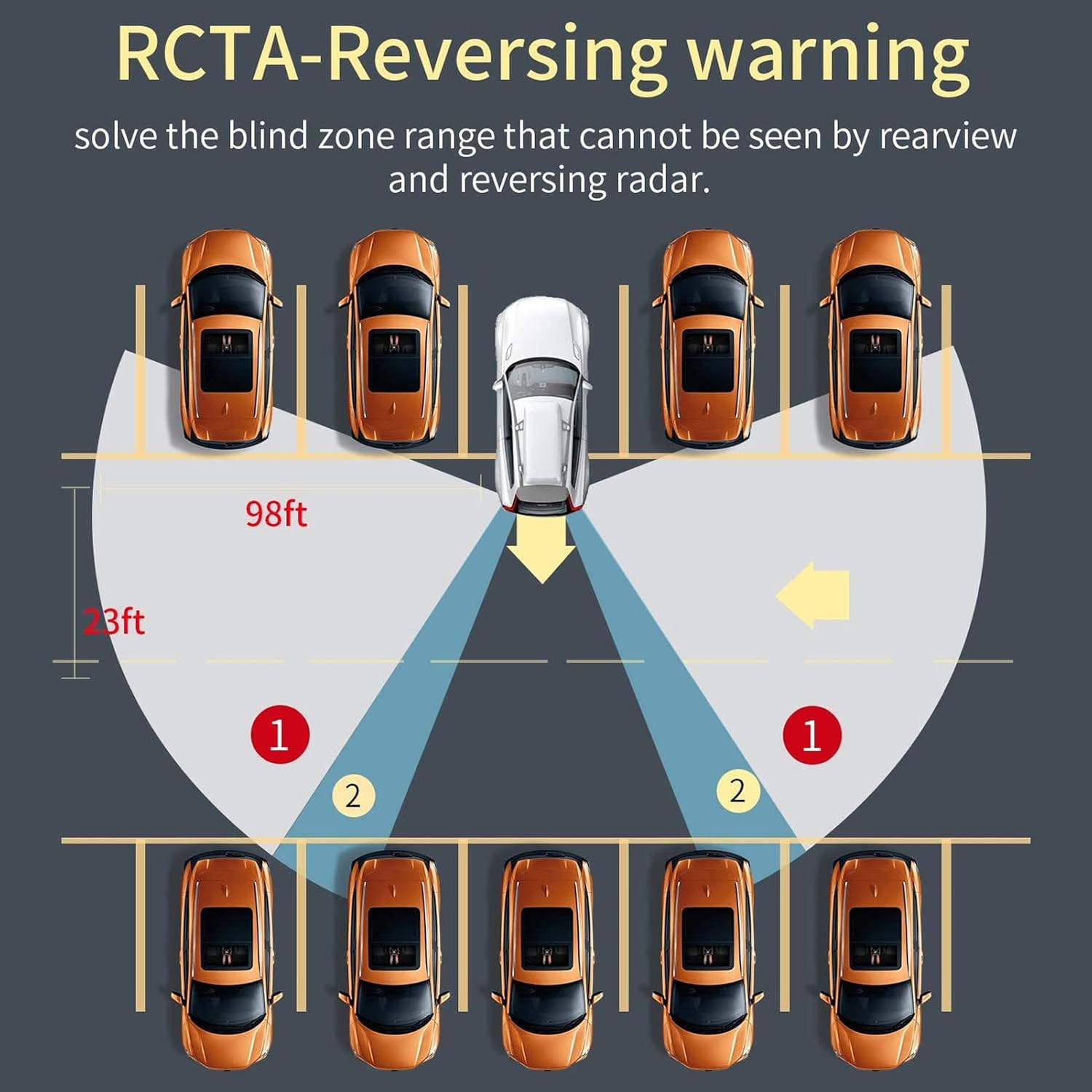

Reversing radars System:

1. Detection Range: 0-120cm/0‑47.24in

2. Detection Accuracy: ±5cm

3. The Best Detection Range: Within 0.5 m

4. Operating Frequency: 58KHZ and 2KHZ

5. Sensor Detection Range: Horizontal Angle: 120°±15°; Vertical Angle: 60° ±15°

6. Sound: 85-105 decibels (at 10 cm)

Controller:

1. Working Voltage: 10.6V-16V

2. Working Current: Less than 90mA

3. Operating Temperature: -30°C-+80°C

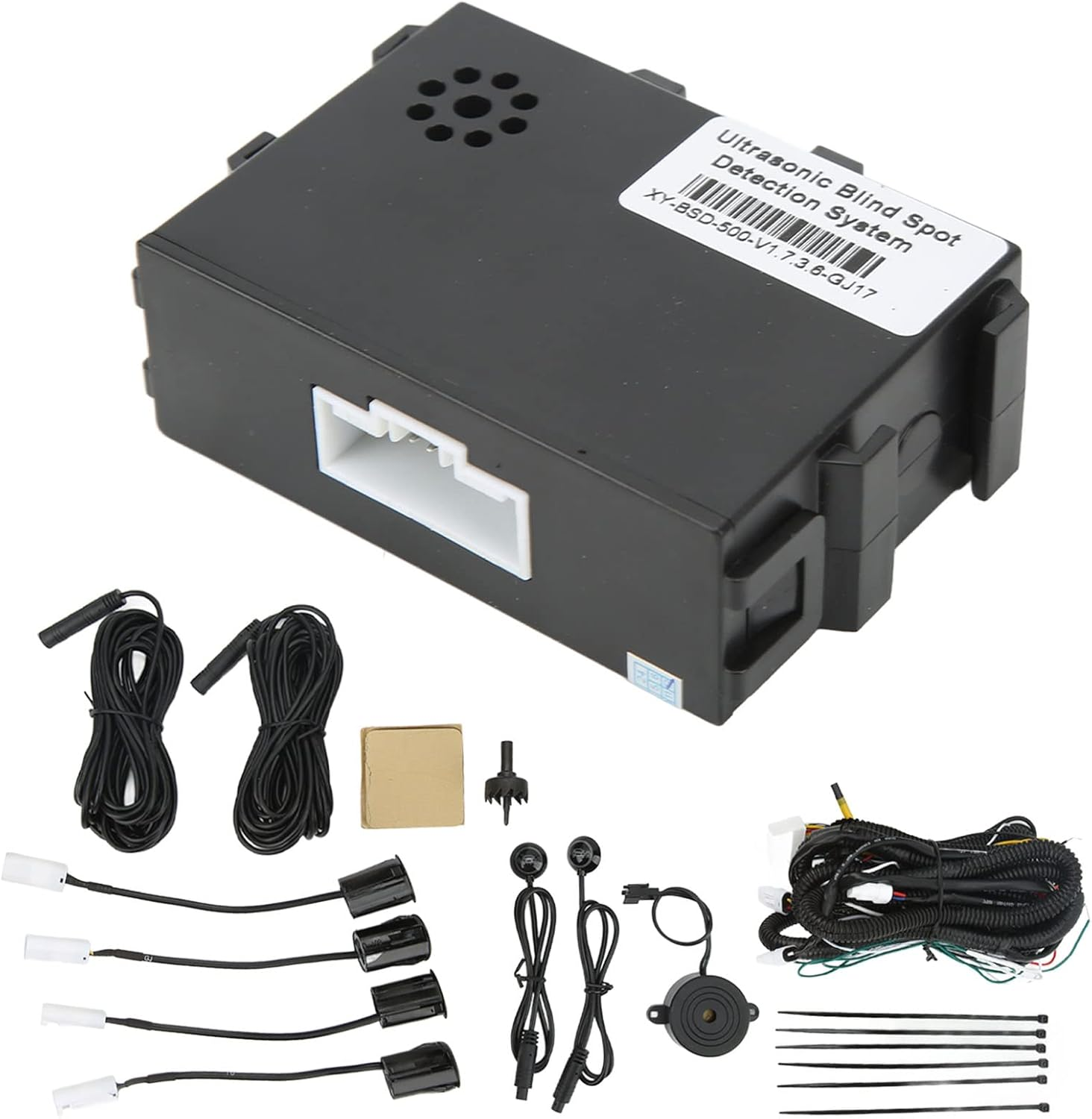

PackageList:

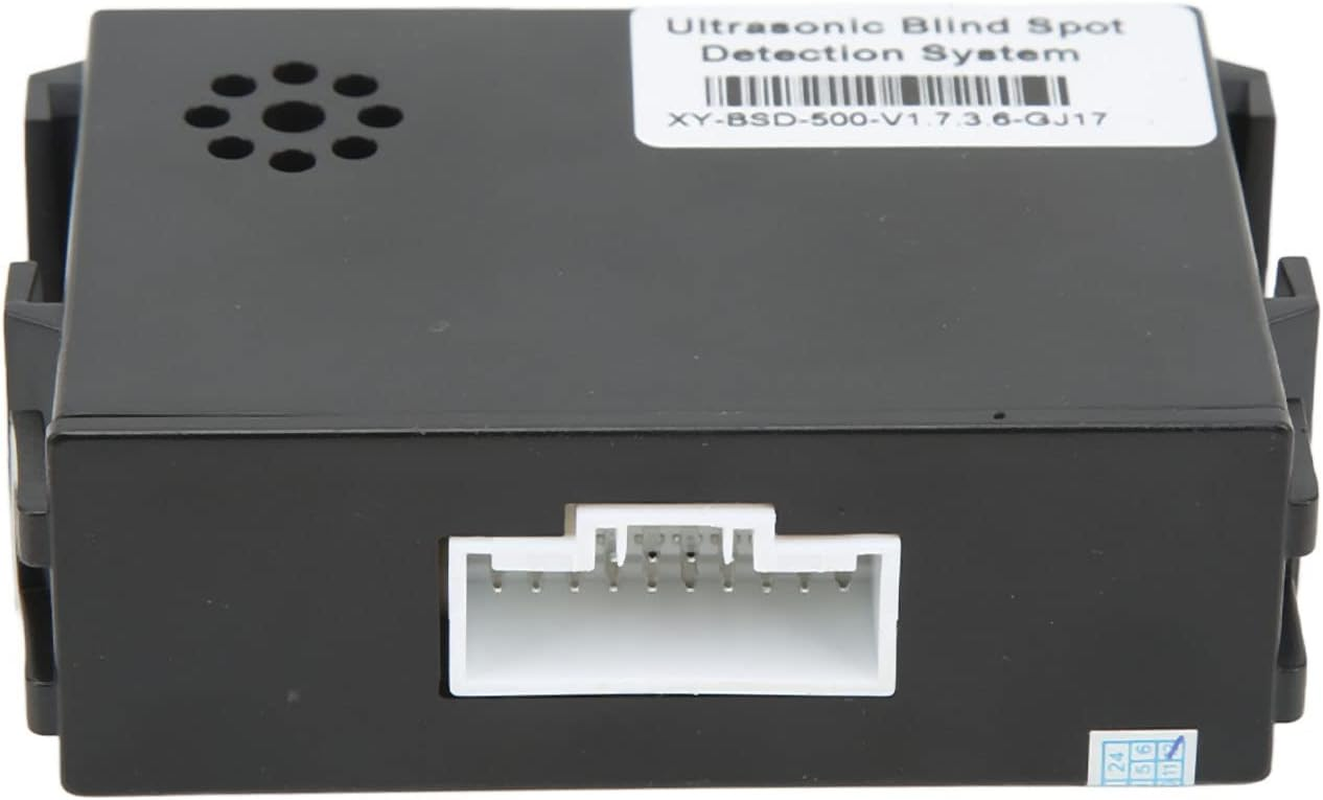

1 x Control Box

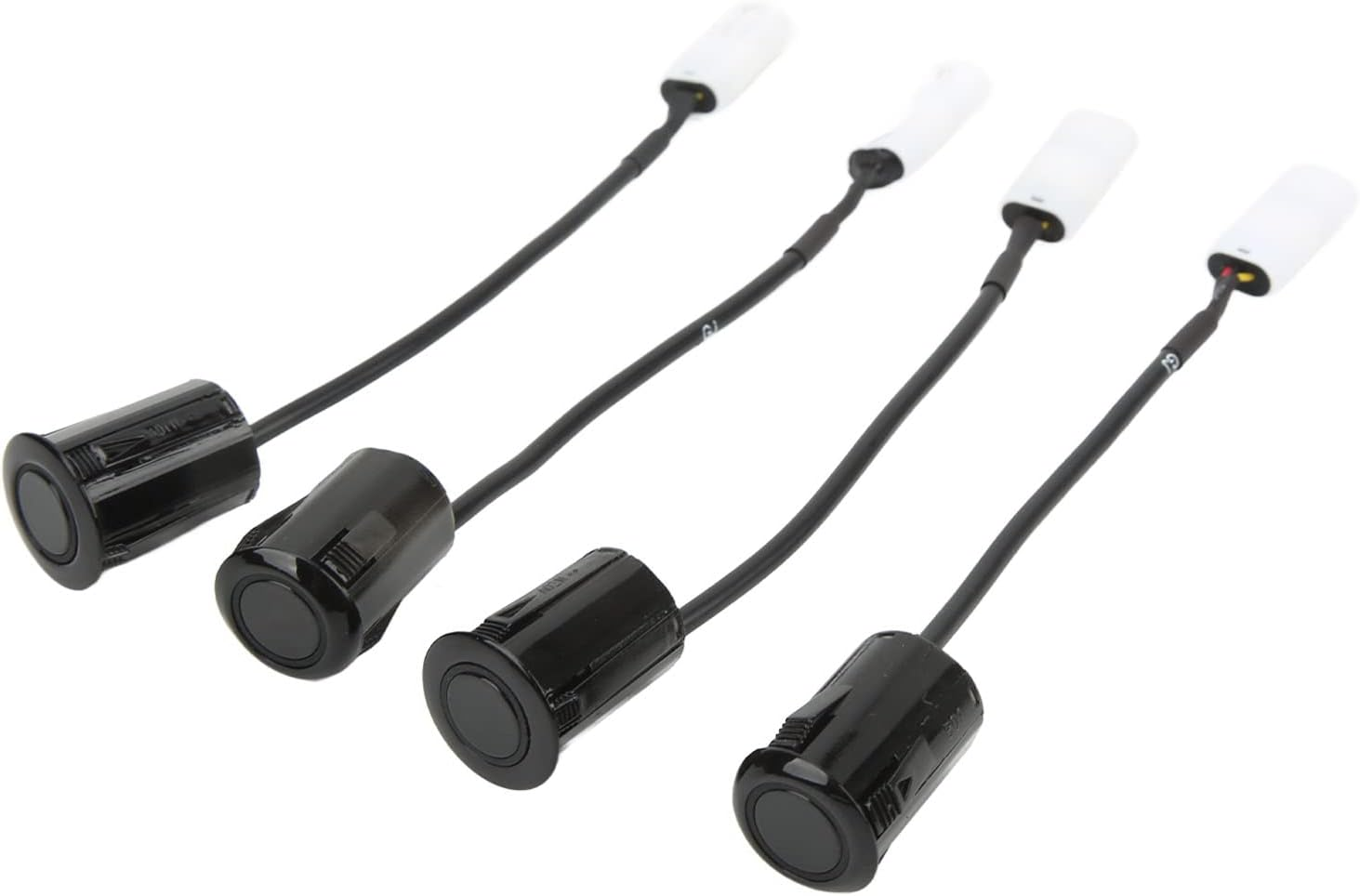

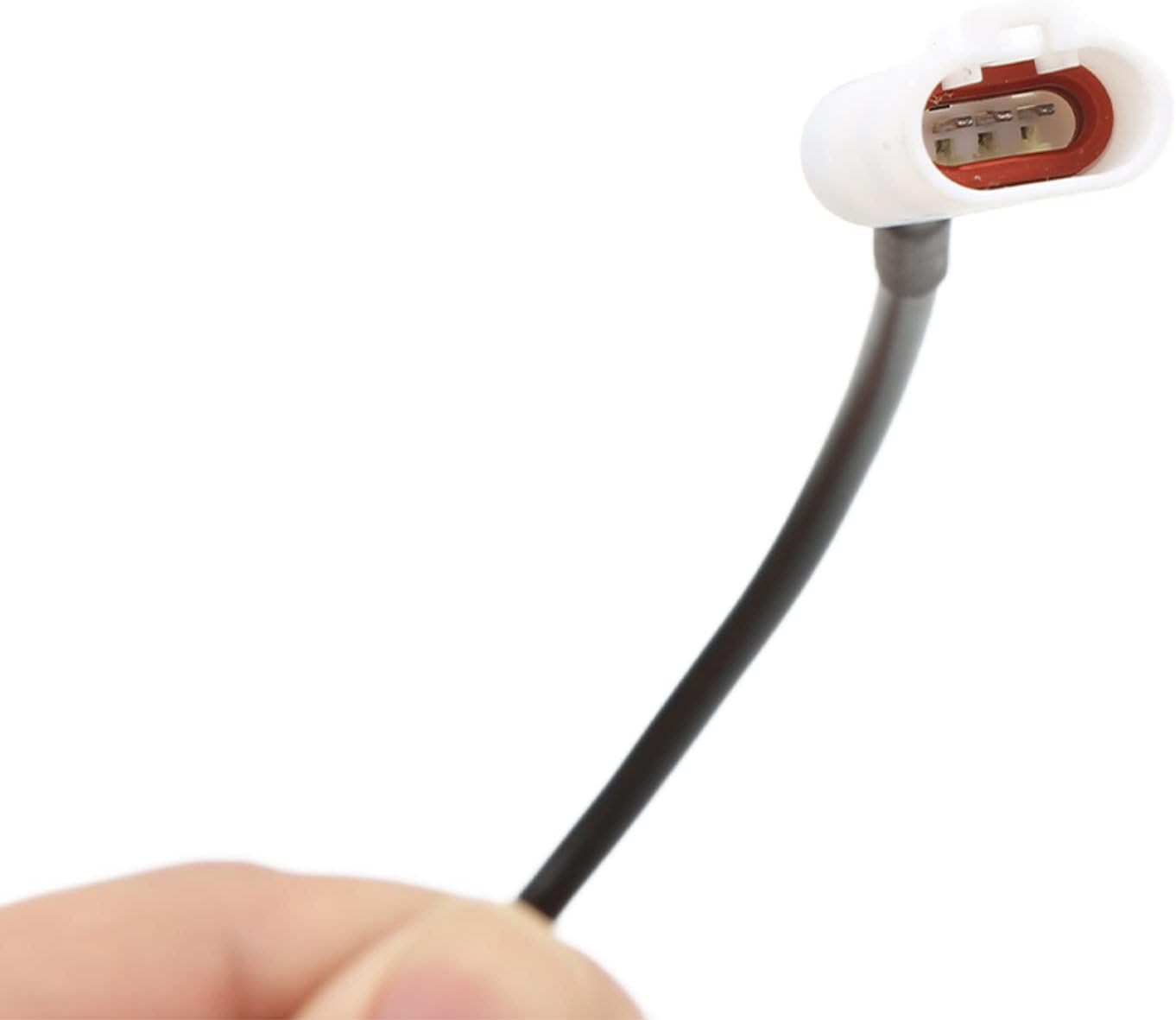

4 x Probe

1 x Buzzer

1 x Main Harness

2 x LED Light

2 x LED Light Extension Cable

1 x User Manual

1 x Hole Opener

6 x Tie

1 x Sticker
