Spec:

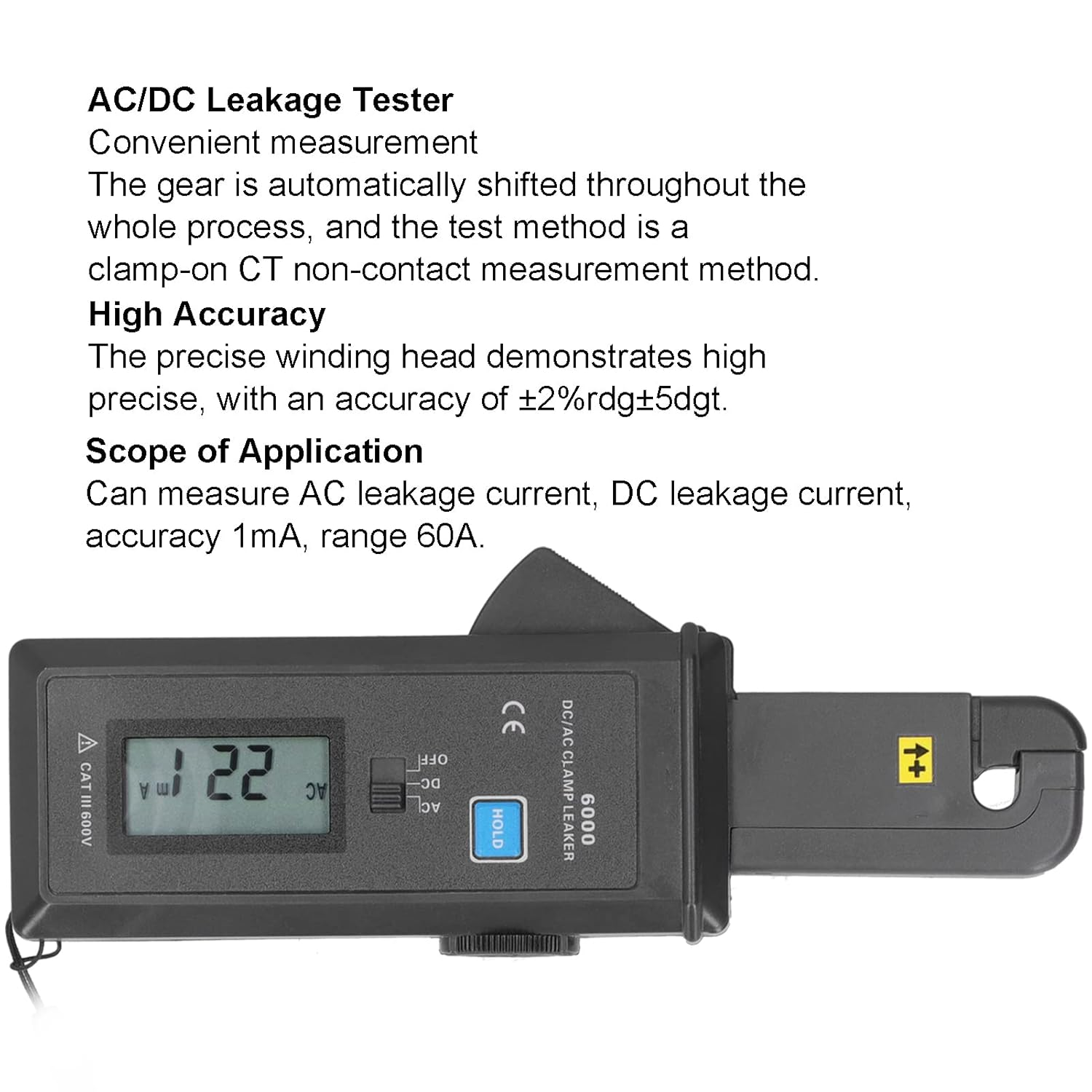

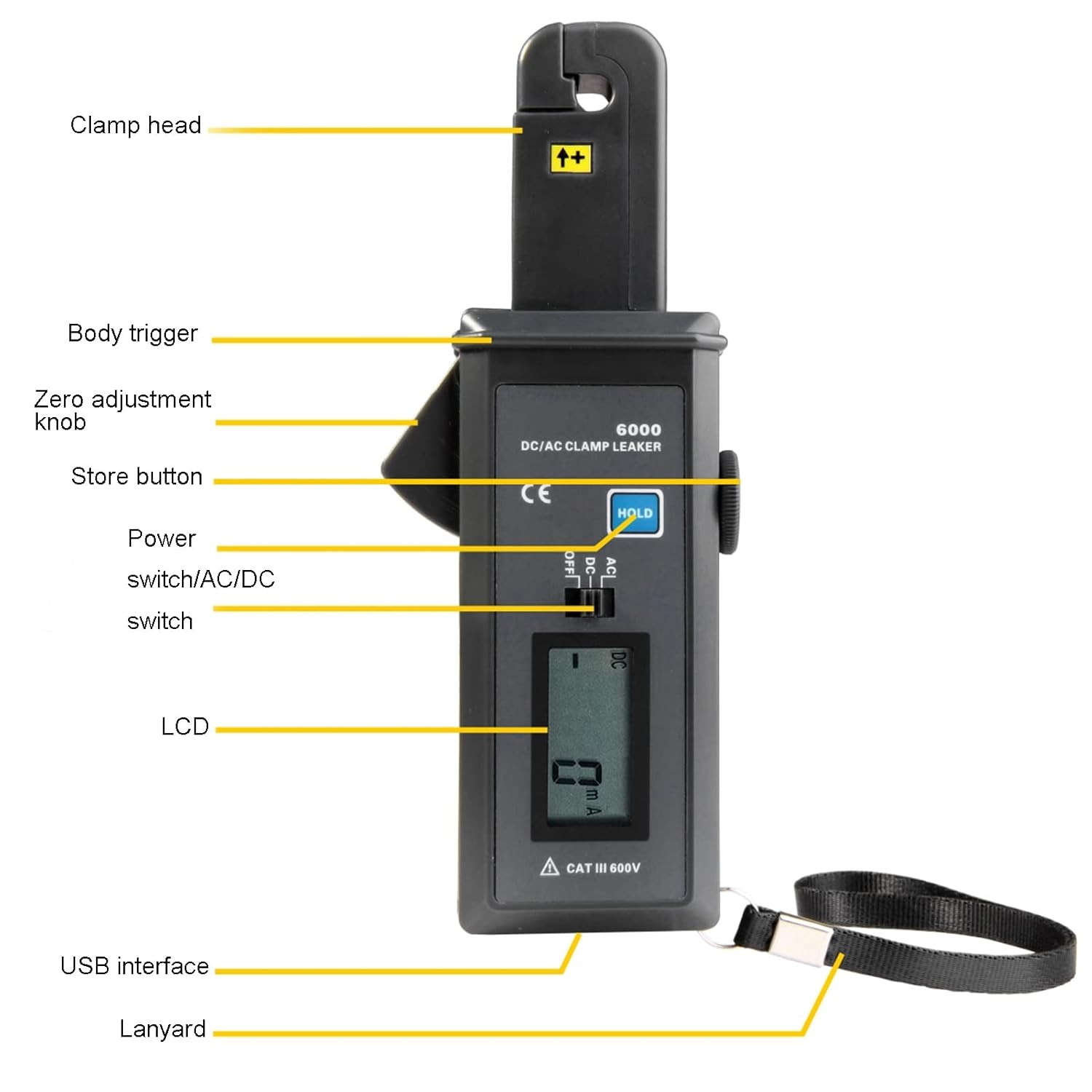

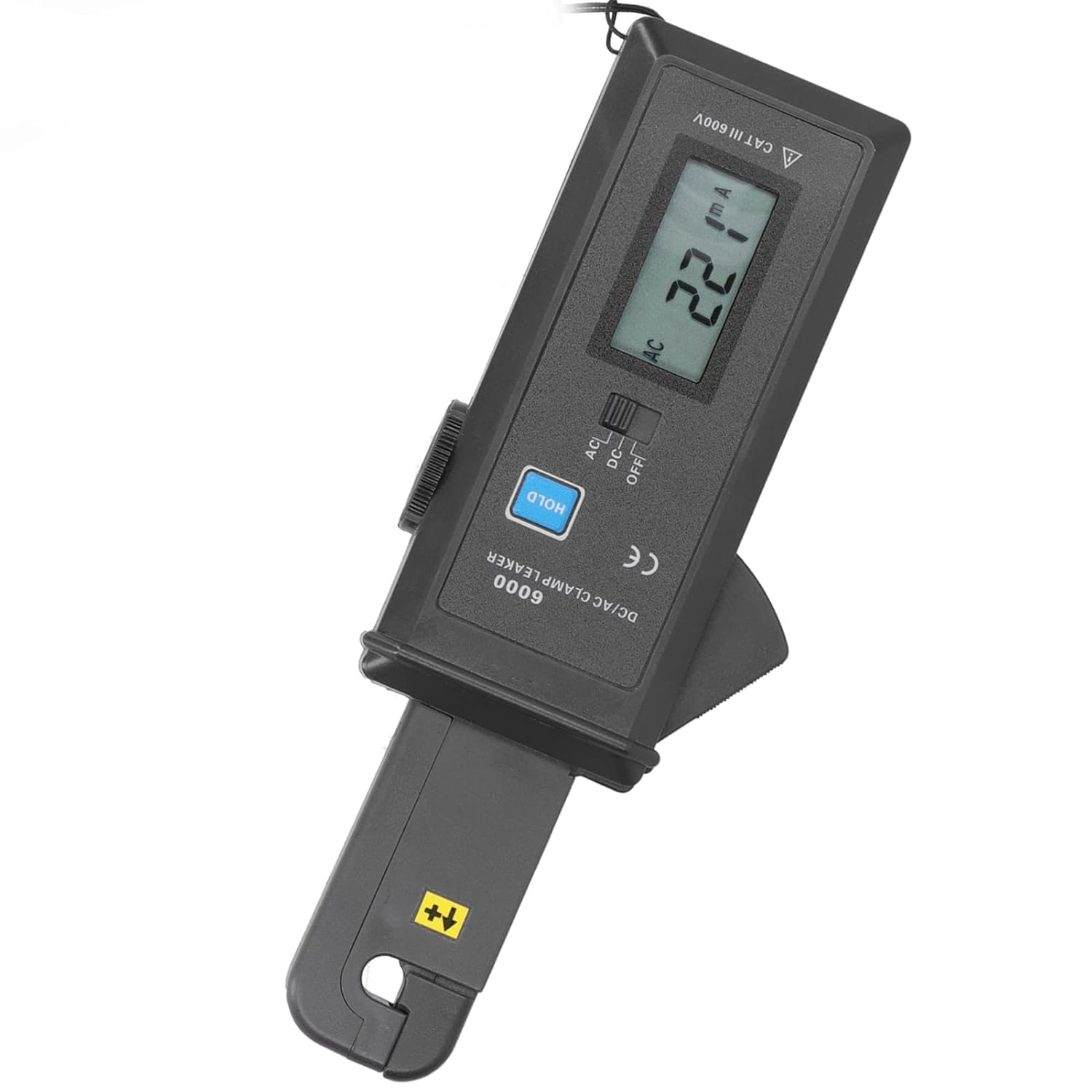

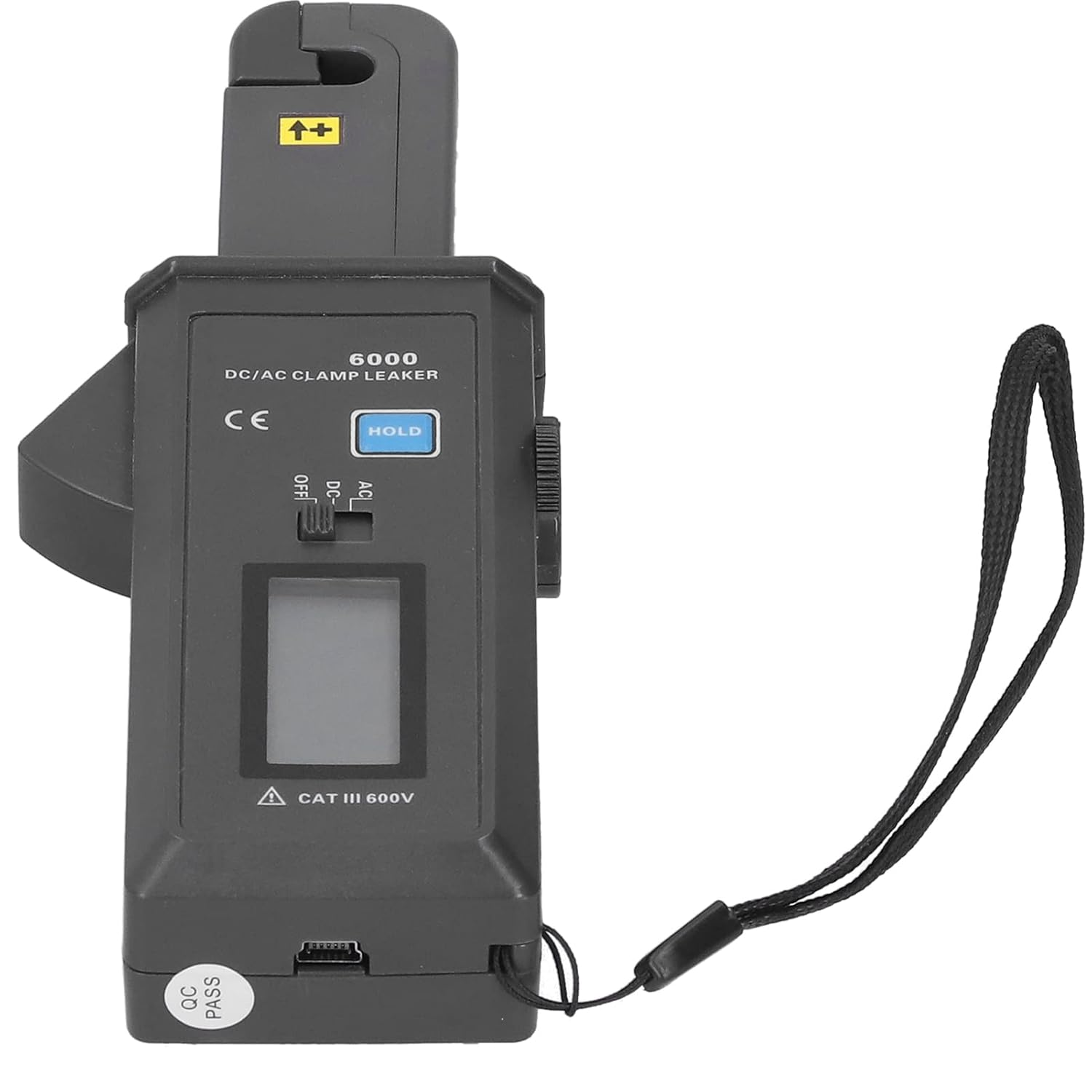

Item Type: Leakage Current Tester

Material: ABS

Model: ETCR6000

Measurement Function: AC and DC leakage current, current measurement

Working Power Supply: 6F22 9Vx1(Not Included)

Test Method: Clamp-on CT, non-contac measurement

Jaw Size: Φ7mm

Range: 0mA~60.0A AC/DC

Resolution: 1mA AC/DC

Accuracy: ±2%rdg±5dgt (23℃±5℃, below 75%rh)

Display Mode: 4-digit LCD display

Sampling Rate: 2 times/sec

Frequency Response: AC 45Hz~400Hz

Polarity Indication: Automatic recognition when DC current is detected, display - sign.

Wire Position: The wire to be detected is at the center of the jaws

: Fully automatic switching

Line Voltage: 600V and below line test

USB Interface: With a USB interface, the stored data can be uploaded to the computer, saved and printed.

Communication Parameters: Baud rate 9600, data bit 8, stop bit 1, parity bit NONE

Support Functions: Data retention, overflow display, automatic shutdown, battery voltage.

Working Current: 10mA

Working Temperature and Humidity: -10℃~50℃; below 80%RH

Limit Temperature Error: -10℃~0℃ and 40℃~50℃, the maximum error increases by 2%rdg

Storage Temperature and Humidity: -10℃~60℃; below 70%RH

Insulation strength: AC 3700V/rms (between core and box)

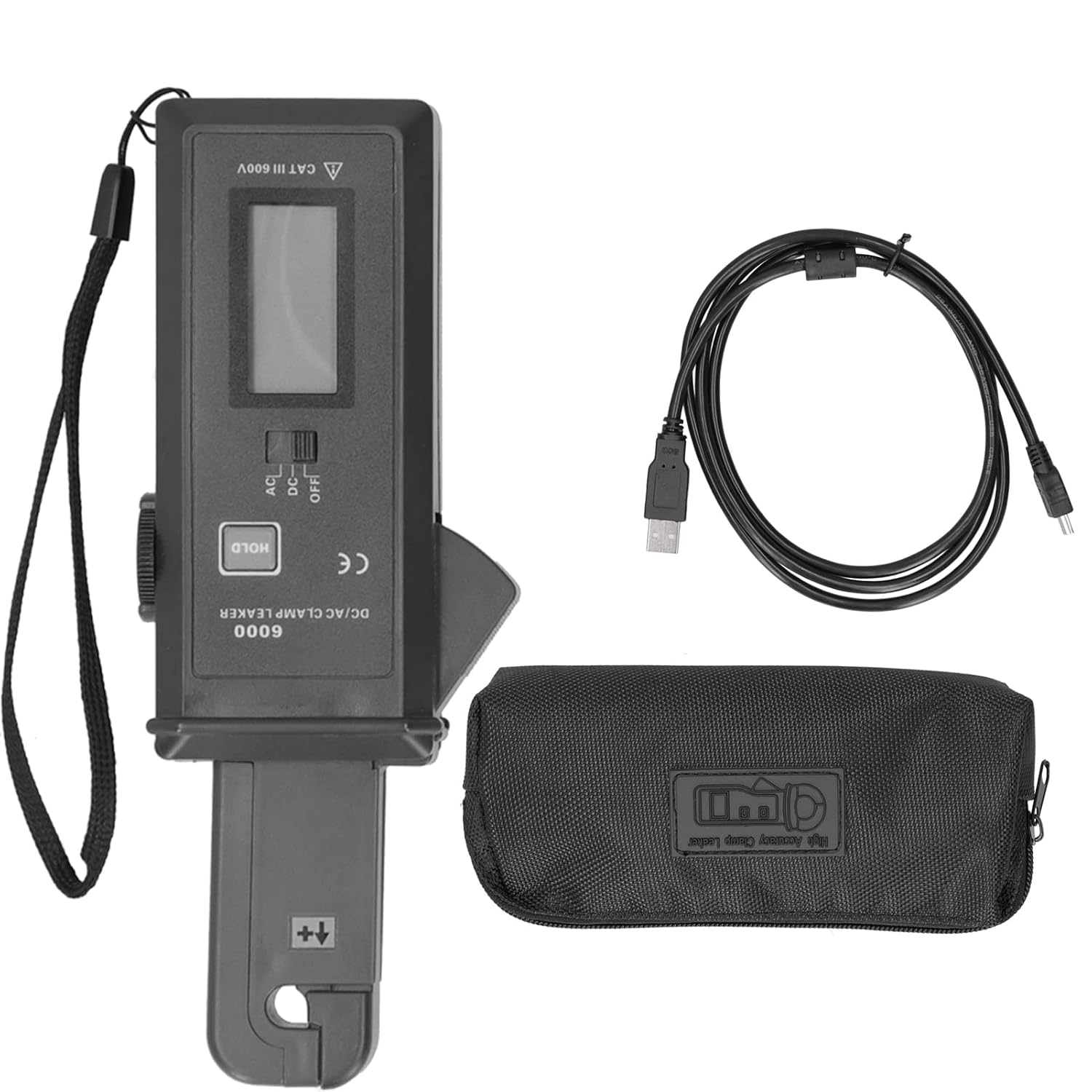

Package List:

1 x AC/DC Leakage Current Meter( Battery not Included)

1 x CD

1 x USB Data Cable

1 x Manual

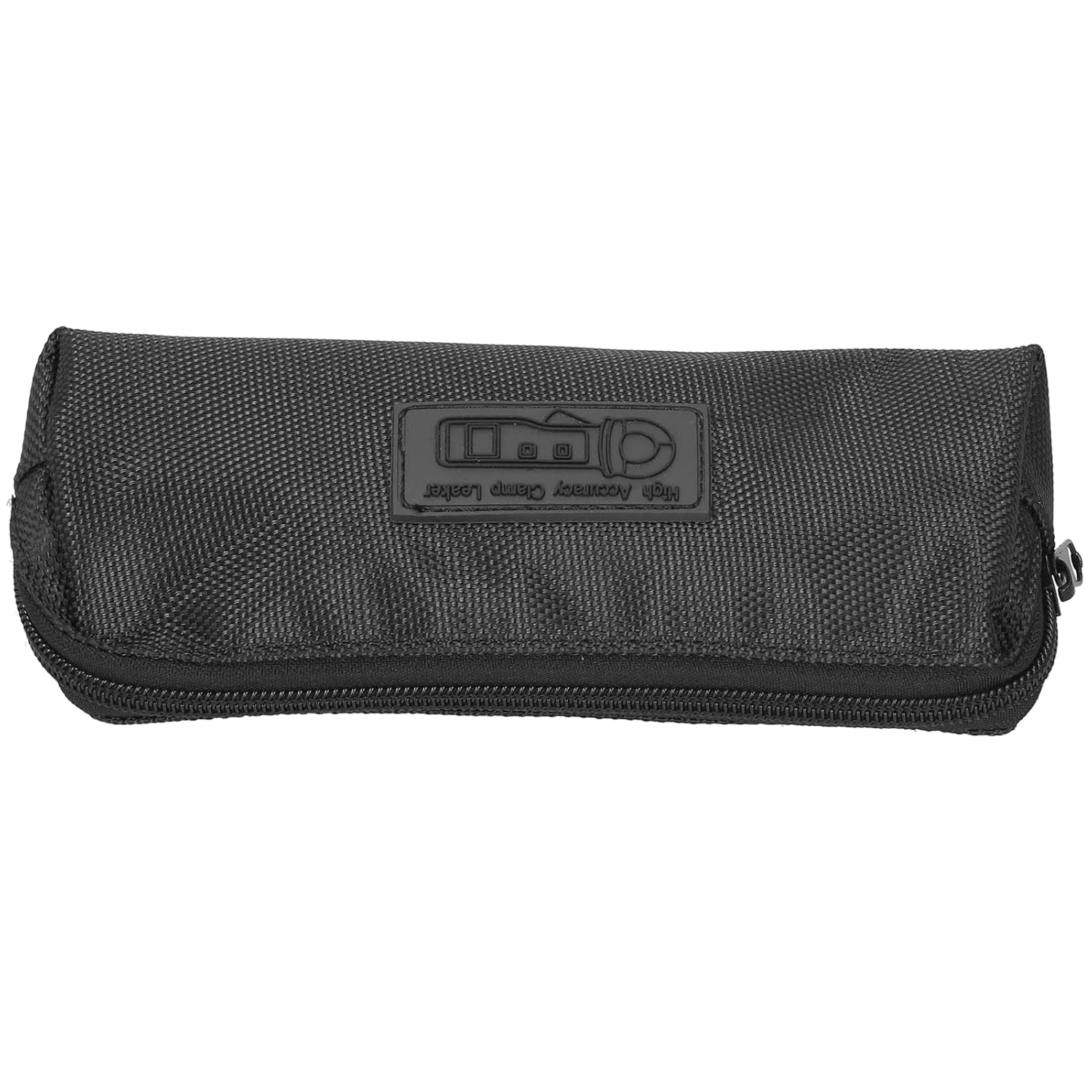

1 x Bag
