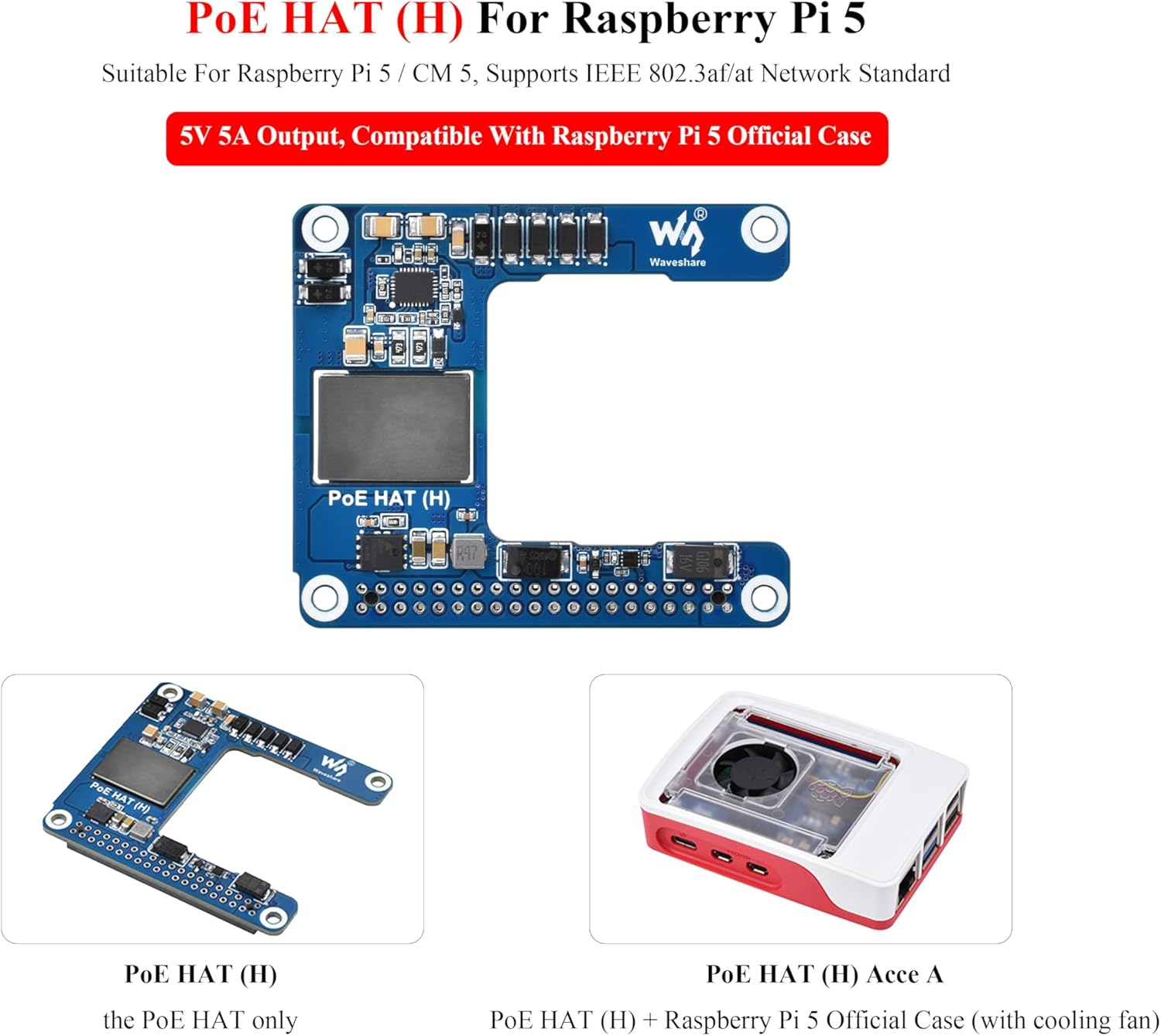

Poe HAT Compatible with Raspberry Pi 5/Compute Module 5, Power over Ethernet HAT 5V 5A Output, 802.3Af/At Network Standard, Isolated Switched-Mode Power Supply, Support Pi5 Case & Active Cooler
Poe HAT Compatible with Raspberry Pi 5/Compute Module 5, Power over Ethernet HAT 5V 5A Output, 802.3Af/At Network Standard, Isolated Switched-Mode Power Supply, Support Pi5 Case & Active Cooler
Brand: UeeKKoo
A$57.45

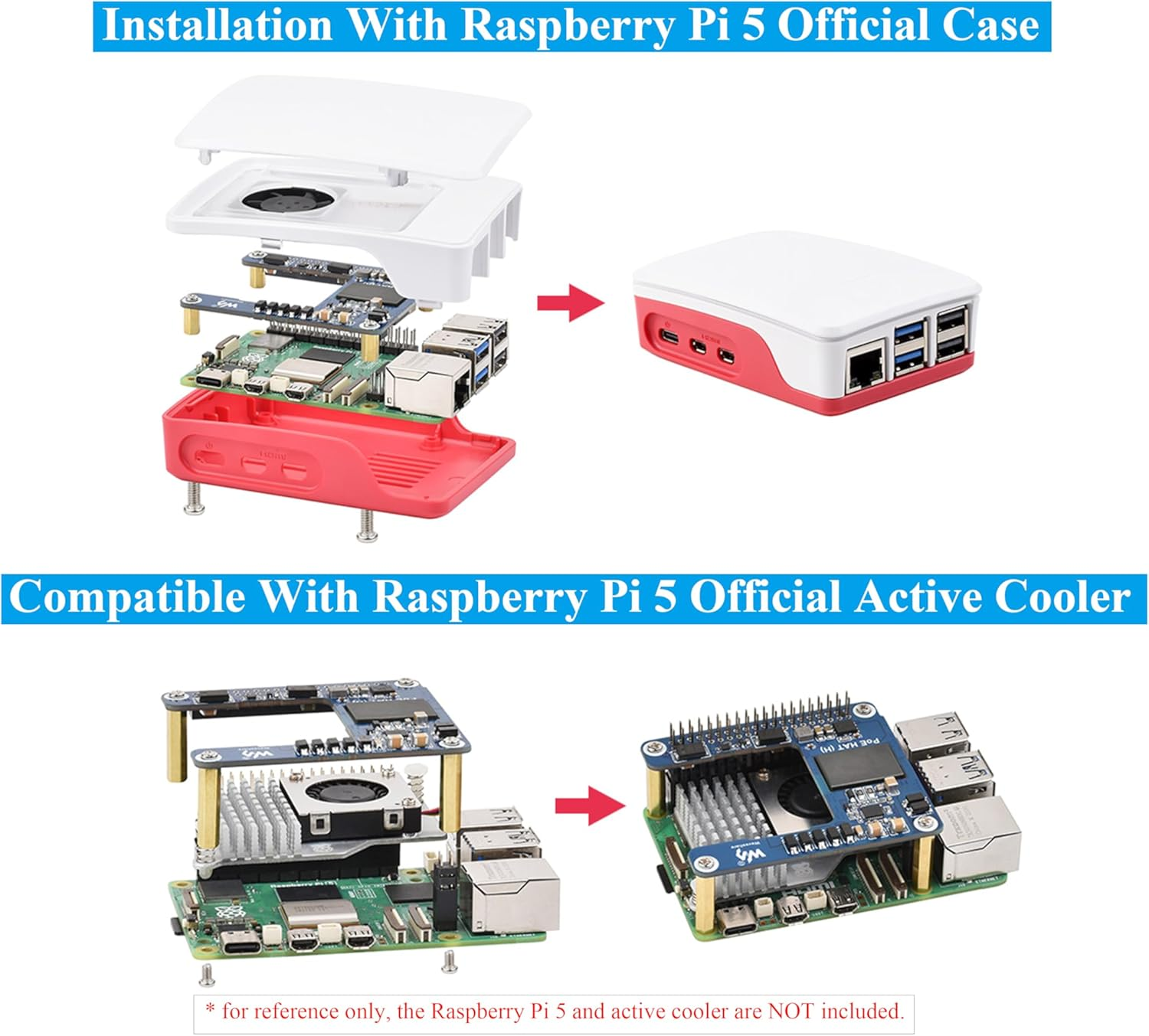

- Compatible Device: The PoE HAT( with standard RPi 40PIN GPIO header) is Compatible with Raspberry Pi 5 and Compute Module 5. Support Adding Official Pi5 Case & Official Pi5 Active Cooler.
- PoE Power Supply : By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, then it can provide both network connection and power supply for the RPi in only one Ethernet cable. 【Network Connection +Power Supply
- Isolated Switched-Mode Power Supply: It adopts isolated switched-mode power supply (SMPS), effectively isolate interference and ensure safe operation of equipment.
- High Stability: Onboard original IC solution for more stable PoE power performance. Compact and easy to assemble.

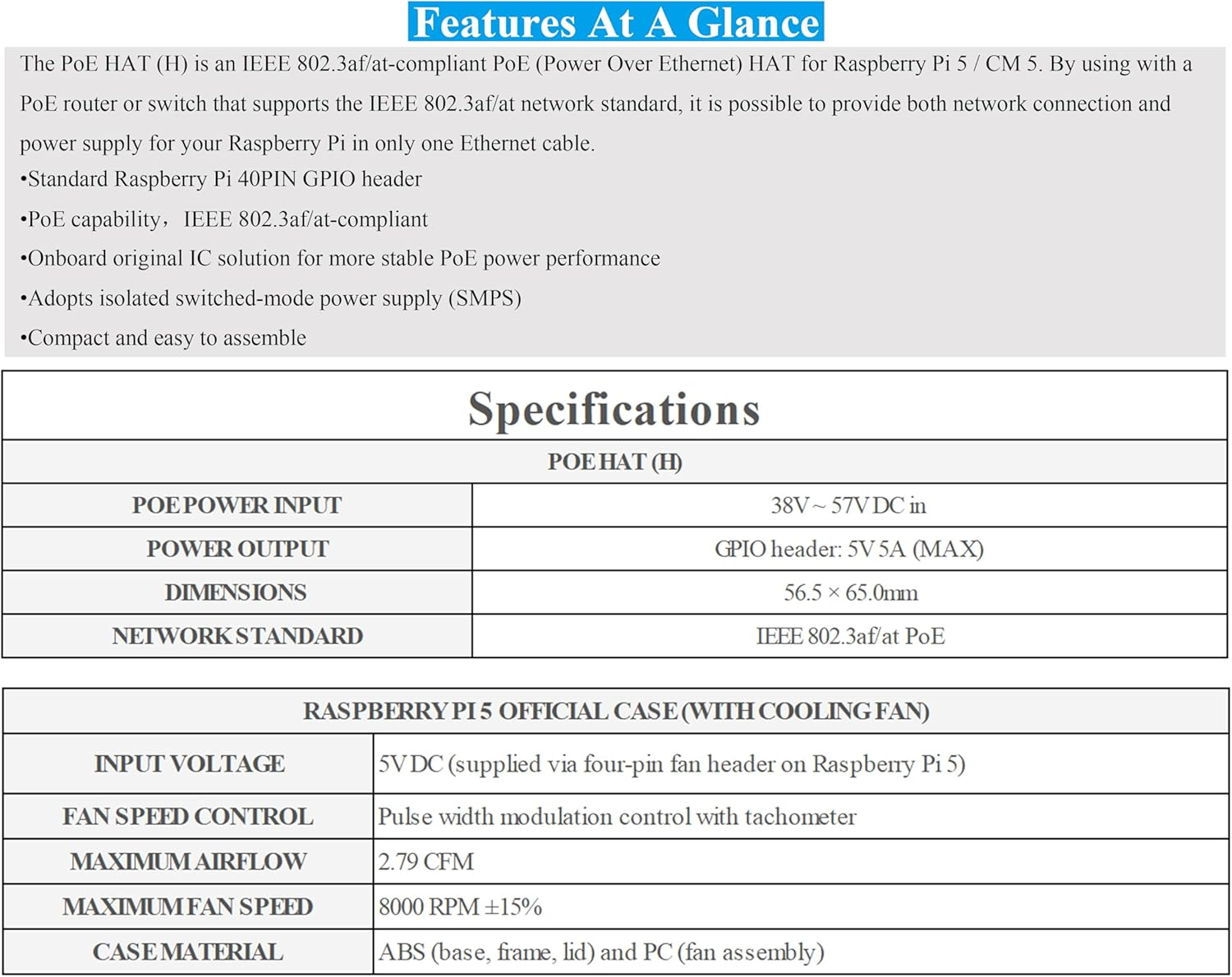

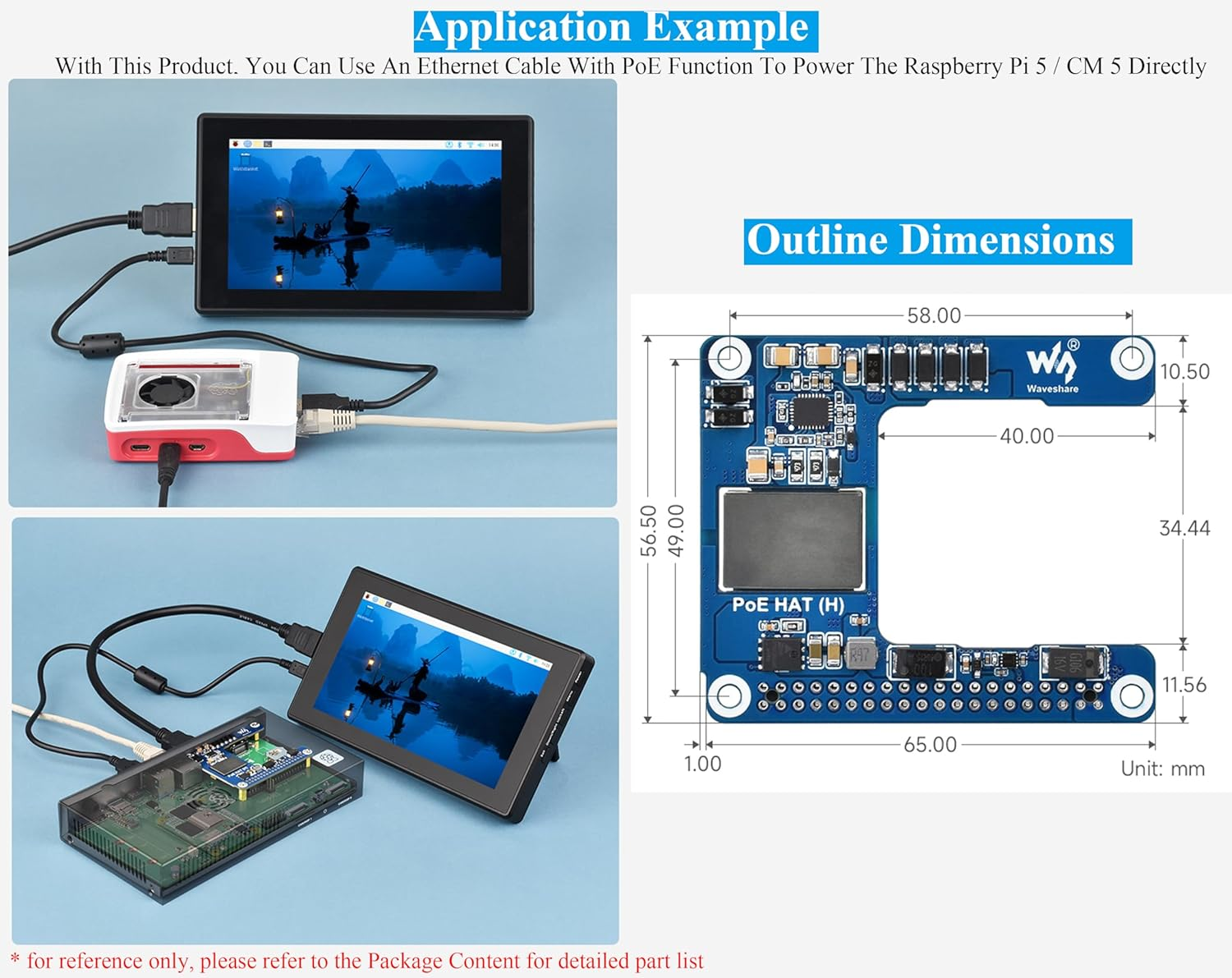

- Specifications Details: 38V ~ 57V DC in PoE power input; GPIO header: 5V 5A (MAX) Power output; IEEE 802.3af/at PoE Network standard; 56.5 x 65.0mm Dimensions
- Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3G3nj9I
- FAQ: The RPi board will detect the USB power supply current, if it does not reach the maximum current of 5A, the USB output will be limited, because the PoE HAT (H) is powered to the board through 40PIN, there will also be a current limit. You can add the following statement to the /boot/firmware/config.txt file to remove the current restriction: usb_max_current_enable=1
Product Description
- Item Model Number: PoE HAT (H)
- Part Number: PoE HAT (H)

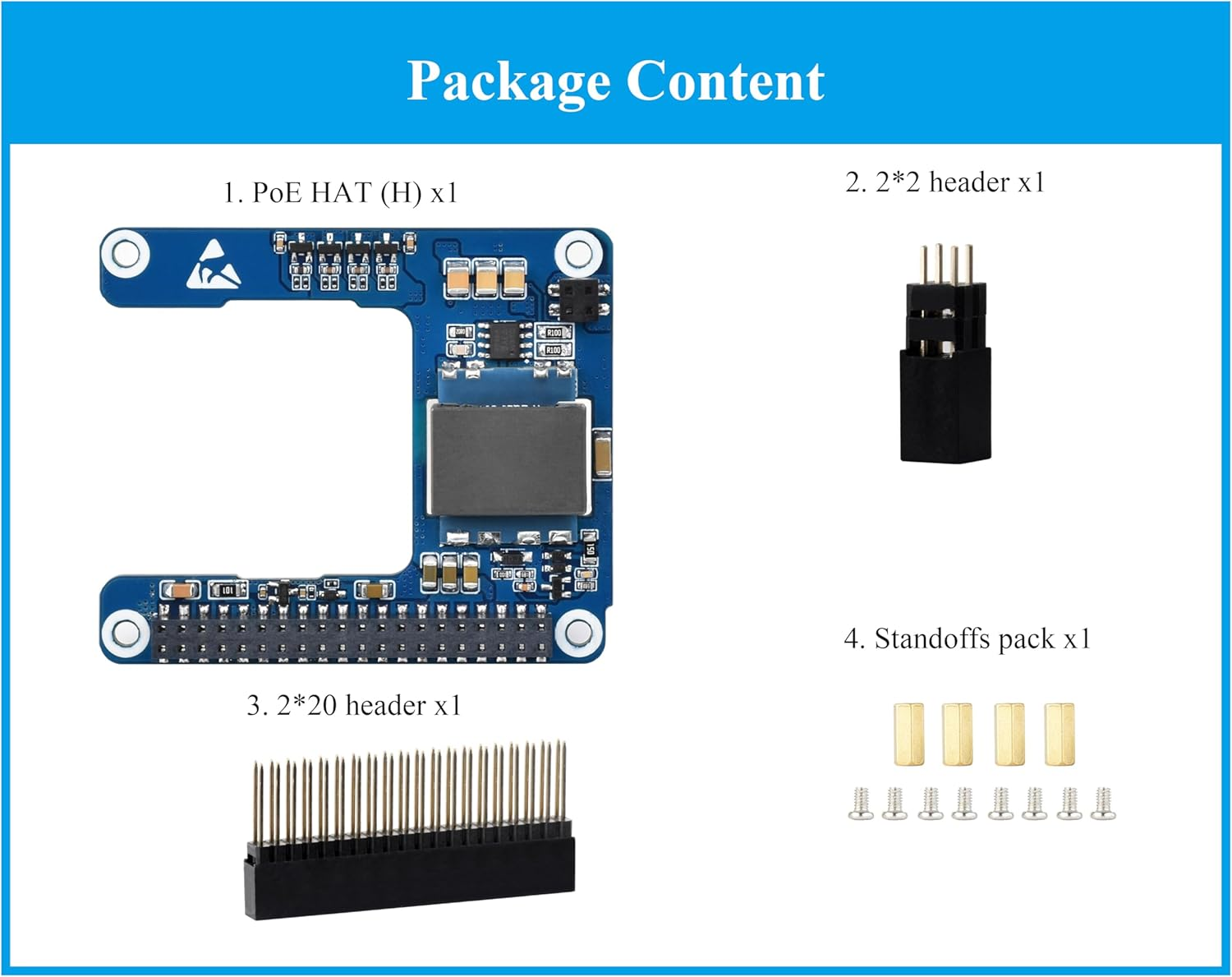

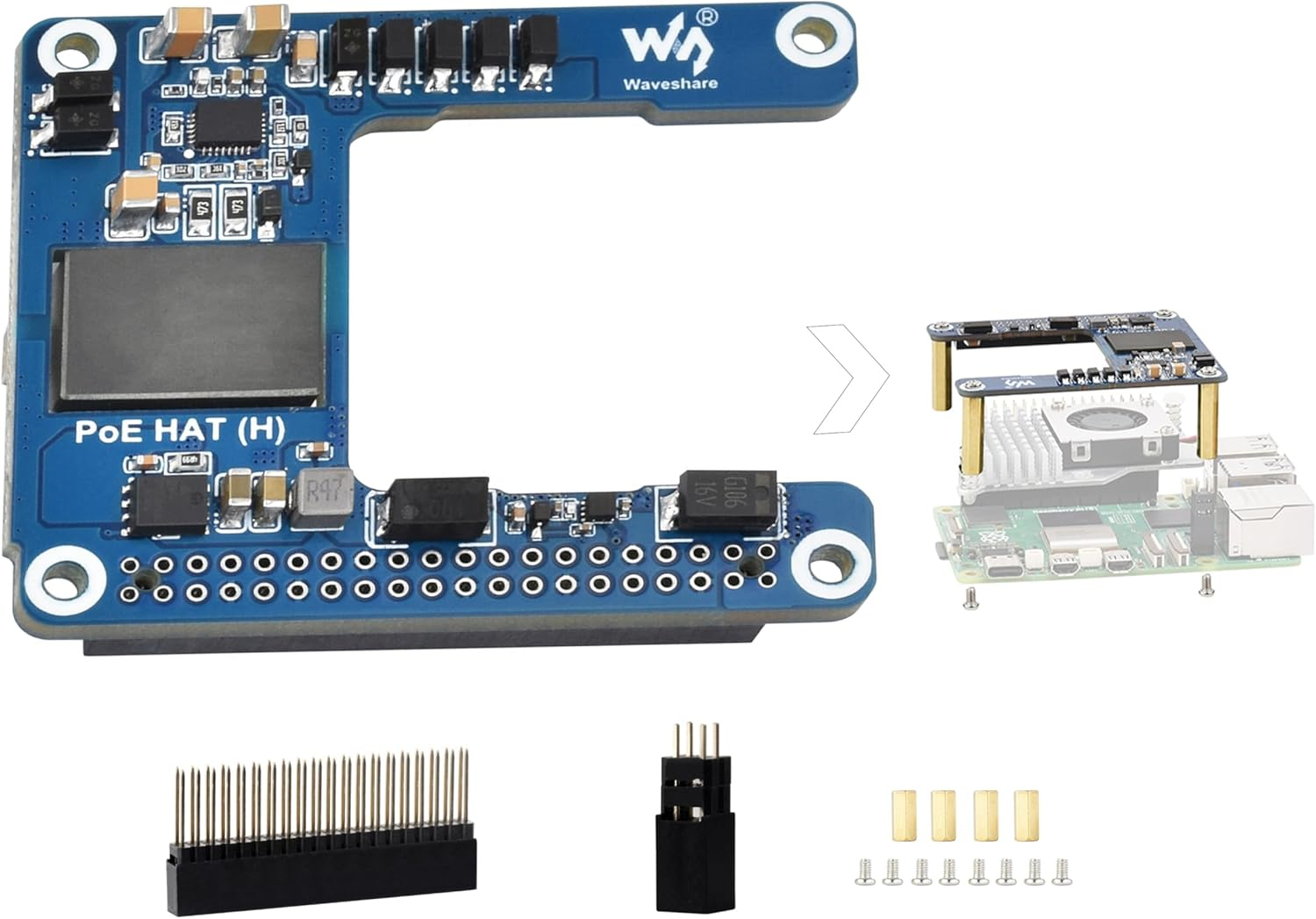

- Mounting Hardware: 2*2 header x1, 2*20 header x1, PoE HAT (H) x1, Standoffs pack x1
- Batteries Included: No
- Batteries Required: No
- Brand: UeeKKoo
- Model: PoE HAT (H)
- Compatible Devices: Raspberry Pi 5, Compute Module 5
- Item Weight: 9.07 g
- Graphics Card Interface: Integrated
- Compatible processor types: Raspberry Pi 5, Compute Module 5
- Model Name: PoE HAT (H)
- Processor Type: Raspberry Pi Zero 2 W
- Package Dimensions: 1.27 x 0.51 x 0.51 cm; 9.07 Grams
- Manufacturer: UeeKKoo
