[Stable ] Adopt the process of immersion gold for a stable, colorful, and smooth with strong welding properties.
[High Power] Capable of handling high input power efficiently for optimal amplification.
[Unconditionally Stable] Ensures stable and performance under all conditions for use.
[Ultra Bandwidth] Enjoy inductors and capacitors without resonant points for exceptional performance.
[ Performance] Immersion gold process enhances reliability, prevents corrosion, and ensures a beautiful appearance.
Spec:
Features:
Double sides adopt the process of immersion gold, make the printed circuit is stable with color, brightness and smooth coating, good welding property.
The process of immersion gold improves reliability, not easy to corrode and fall off, and have beautiful appearance.
Ultra bandwidth, inductors and capacitors without resonant points.
High input power capability.
Unconditionally stable.
Power supply voltage: typical +5V (typical current value 125mA).
Gain: typical value of 21dB@1.9G (Different frequency gains are slightly different ). Input output impedance: 50 Ω
Maximum Output power: P1dB +22dBm typical, +39.5 dBm Output IP3.
Specifications:
Bandwidth: 0.01-4GHZ
Noise coefficient: 1.3dB
Size: Approx. 32 x 23mm/1.26 x 0.91inch
Weight: 5g
File download:
http://pan.baidu.com/s/1hr5Gzy8(Pasword:6axr)
Package Included:

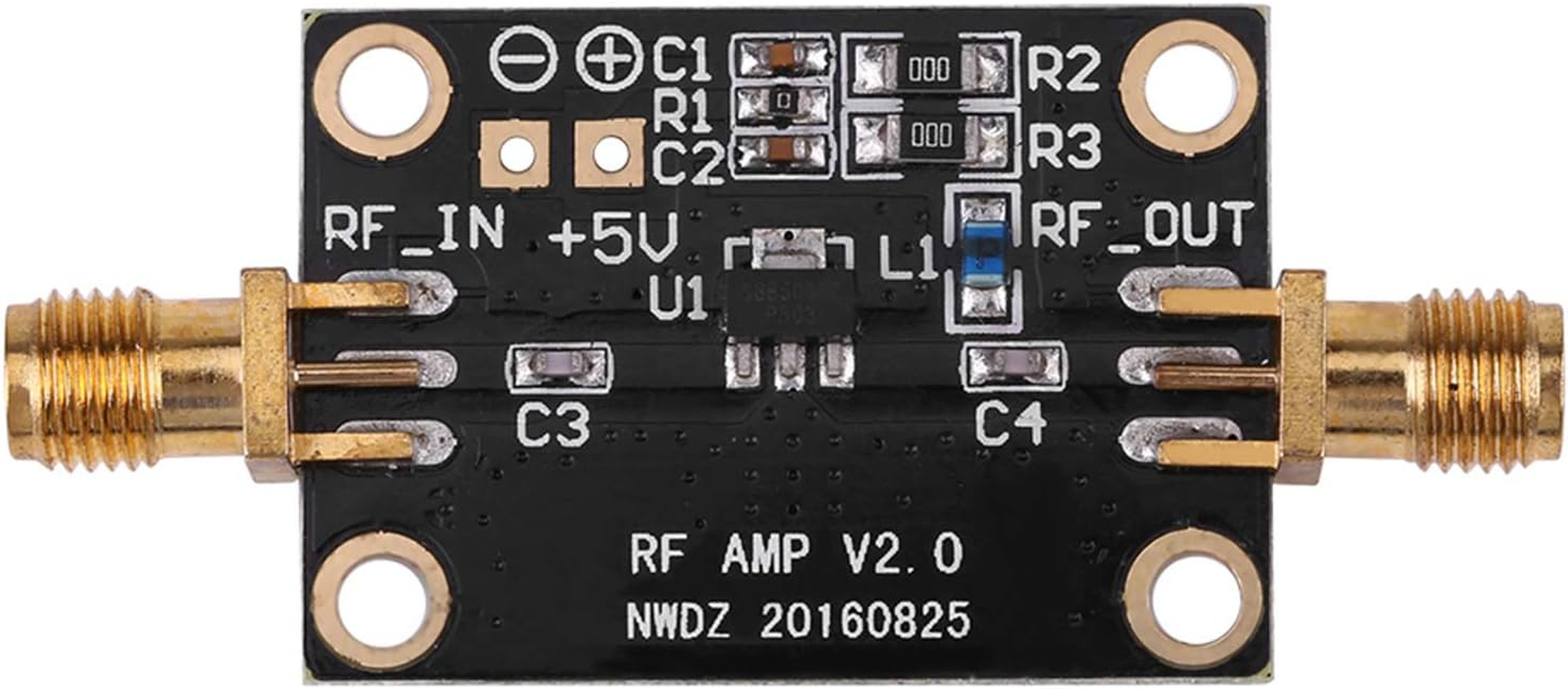

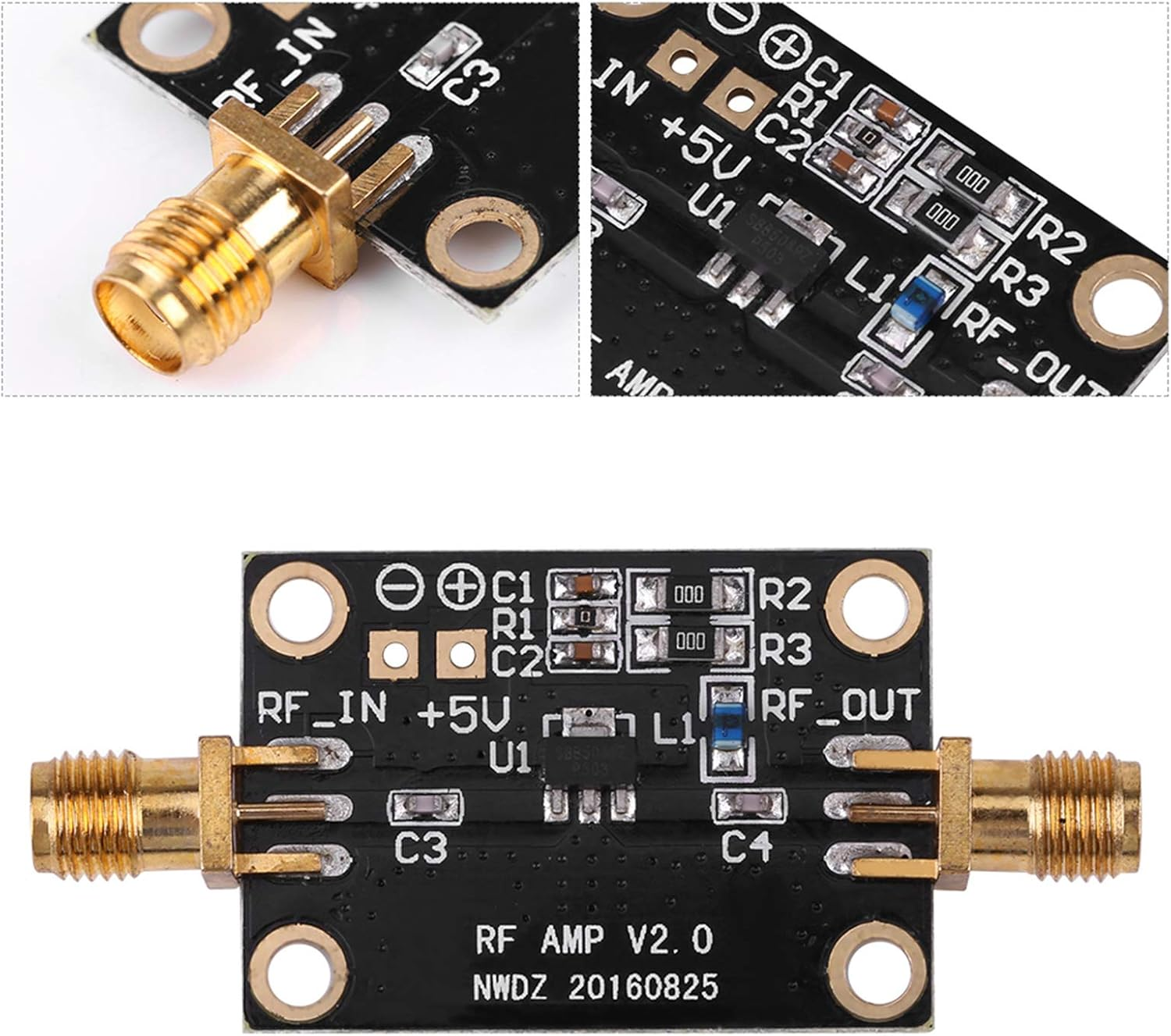

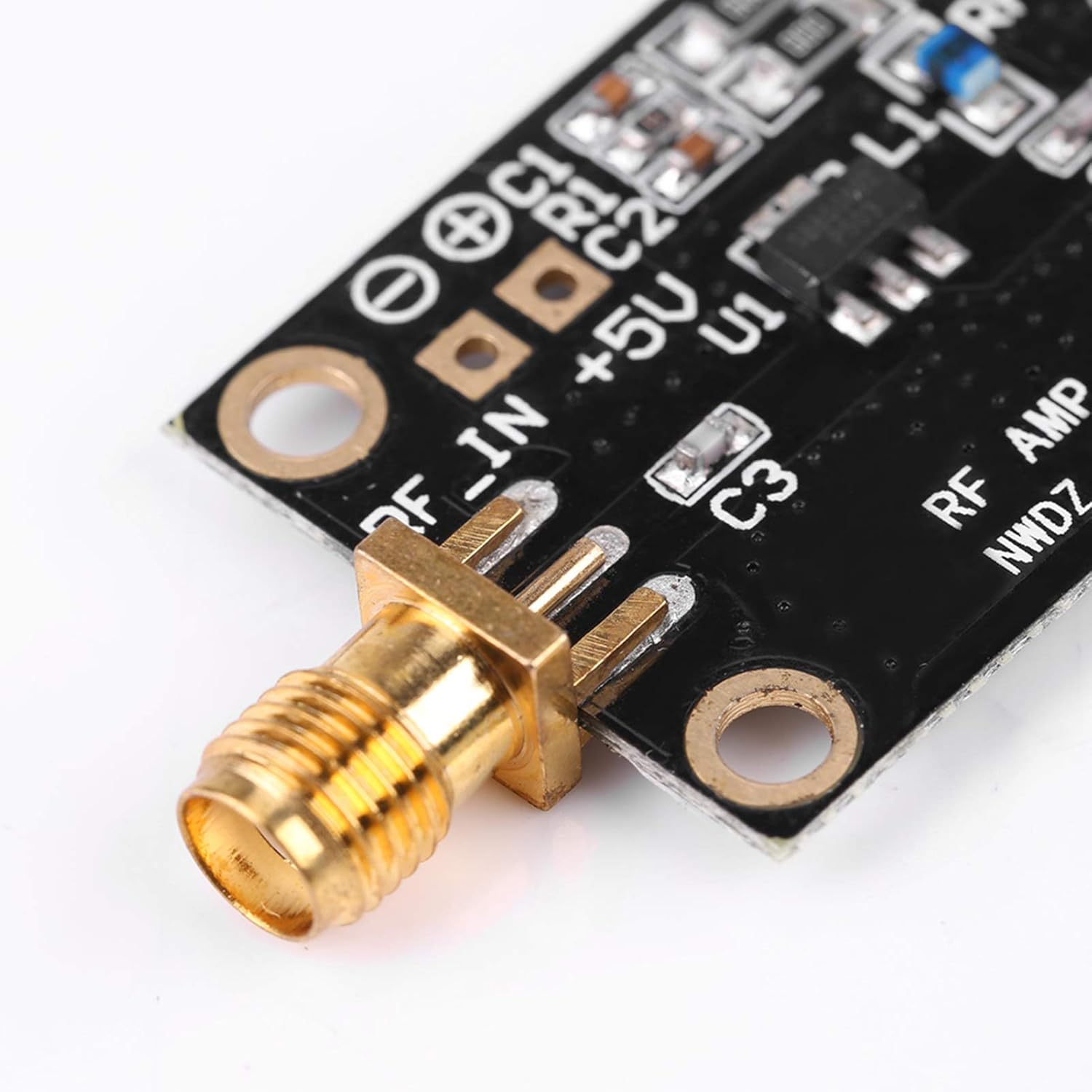

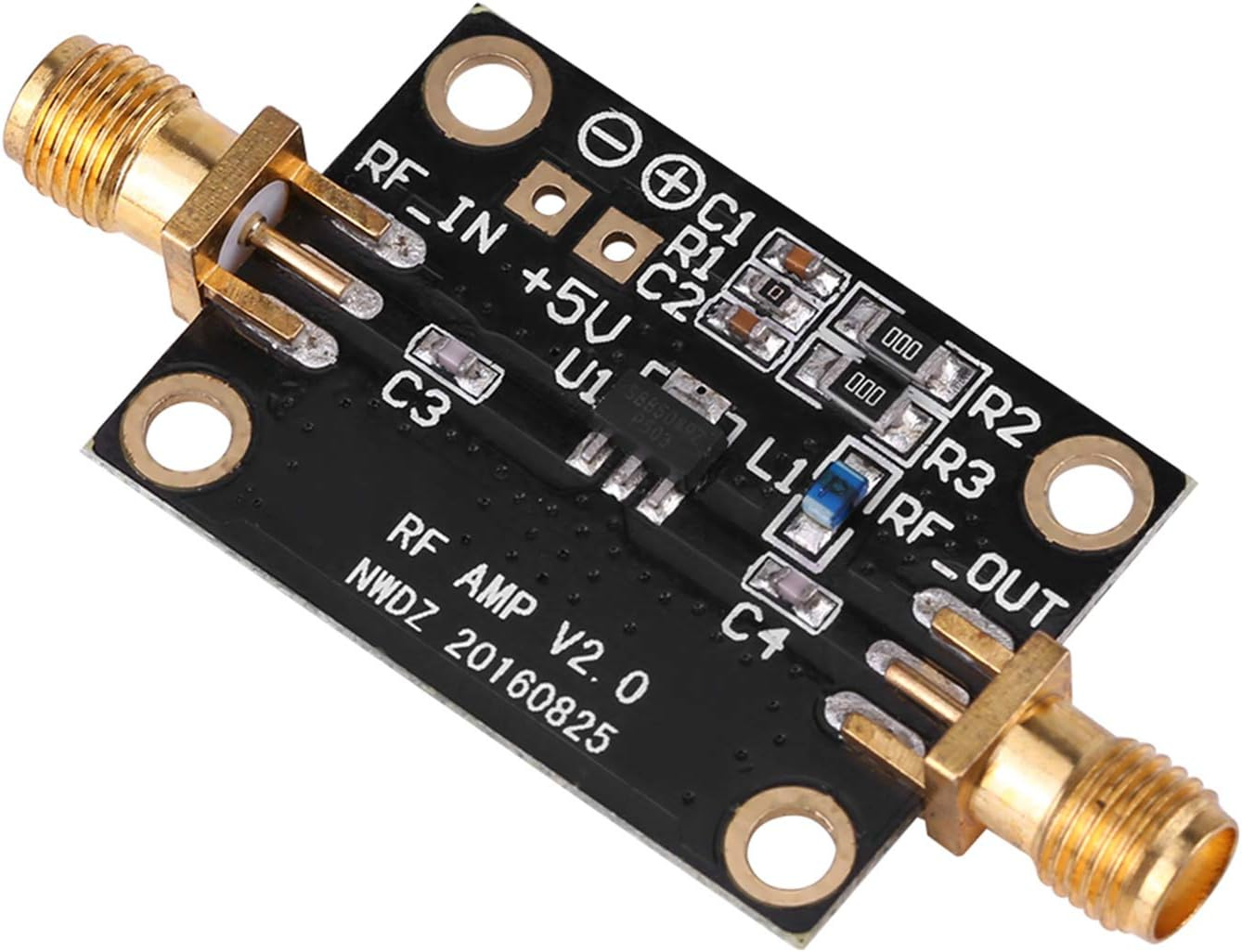

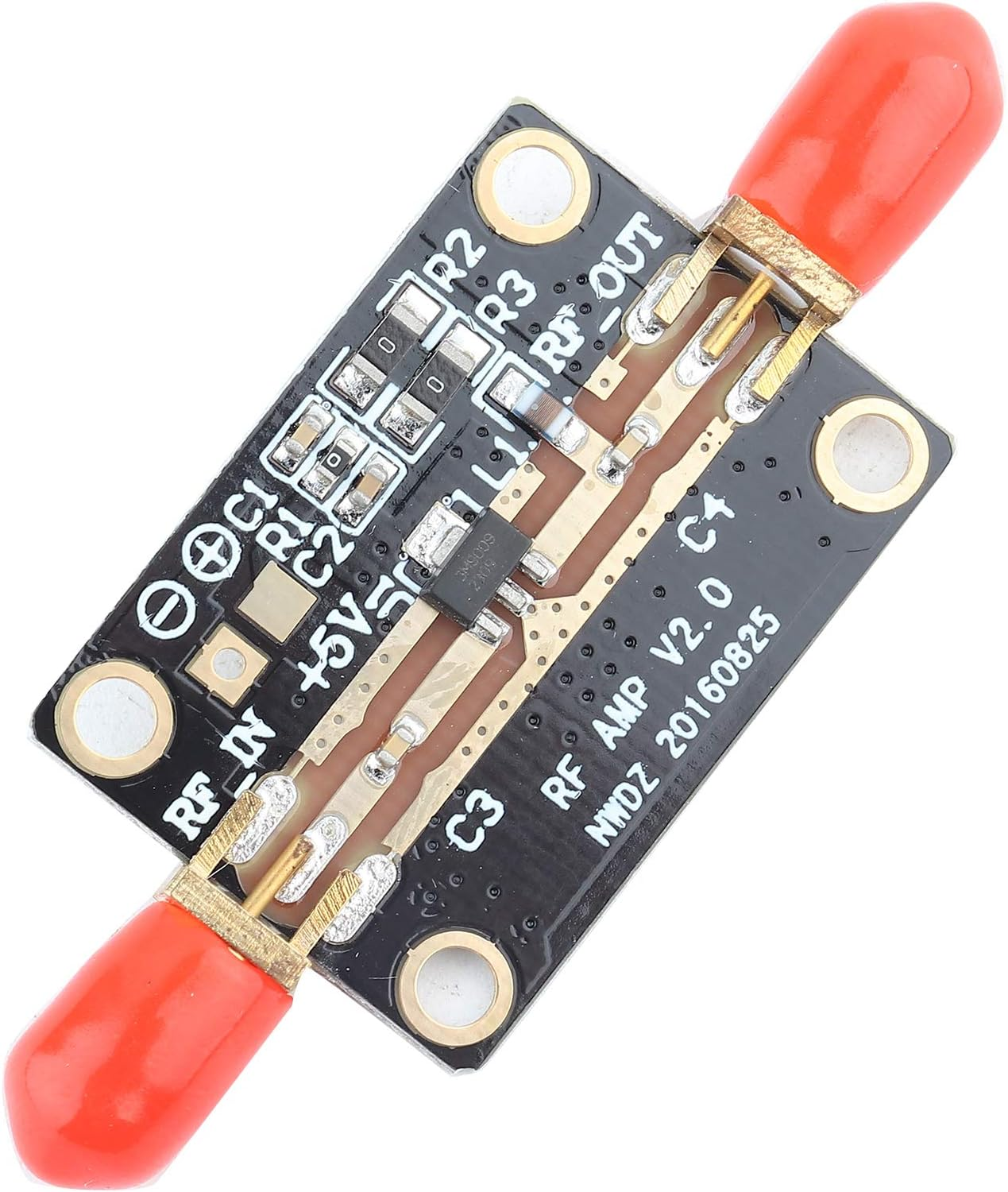

1 x RF Low Noise Amplifier
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
