Important Notes:

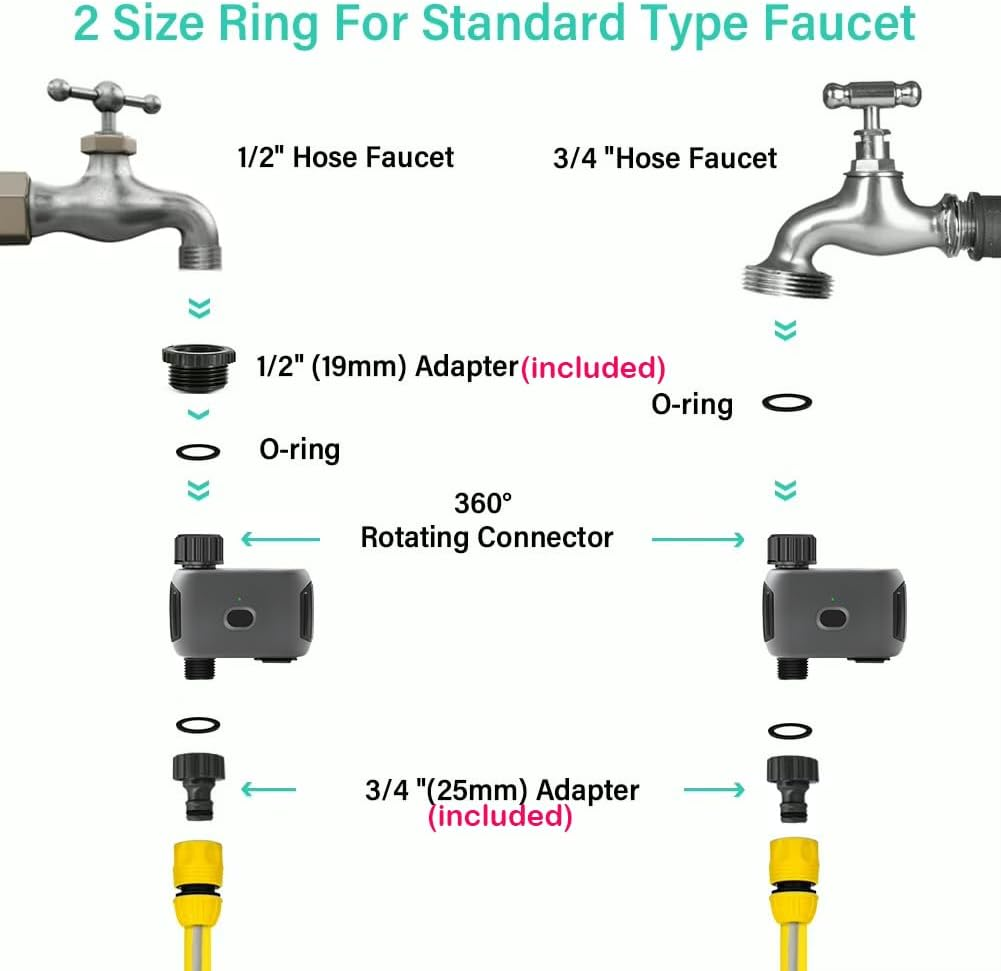

1; The smart water timer uses BSPP（British Standard Pipe Parallel,and the Connection Size is 3/4'', 1/2'' size adapter is included in the package;
2;Support 2.4ghz wifi only;
3;Do not place the timer in an underground valve box or anywhere your WIFI signal will be obstructed.
4;Batteries are not included and you will need four alkaline 4pcs AA batteries to power your timer.
5;Do not mix alkaline, standard (carbon-zinc), or recharge- able (nickel cadmium) batteries. Used up or dead batteries must be removed from the timer and disposed of properly.
6;Manual Watering,Press the ON/OFF button to activate manual watering. Press the ON/OFF button once to stop watering.You can stop the flow of water at any time whether it is during manual watering, or during a programmed time.
7.Keep the user manual, it will help you to solve 99% of your questions;
Specification:
Working Pressure: 0.5~8Bar (7.2~116PSI).
Frequency (How Often): Choose watering frequency from Monday to Sunday.
Water Time (How Long): From 1 minute to 24 hours.
WiFi Frequency: 2.4GHz only.
Protocol: IEEE 802.11b/g/n & Bluetooth(bluetooth is only for fast pairing to the App.
Connection Size: 3/4'',adapter is included
Material: ABS material.
Power by: 4 AA Alkaline batteries (NOT included);It could run up to around 6 months for saving water and energy in a real sense(depends on the battery quality and turn on/off times per day).
Package Contents:
1X WiFi Smart Water Timer
2X adapter（two are bundled together）
1X Sealing tape
1X English manual

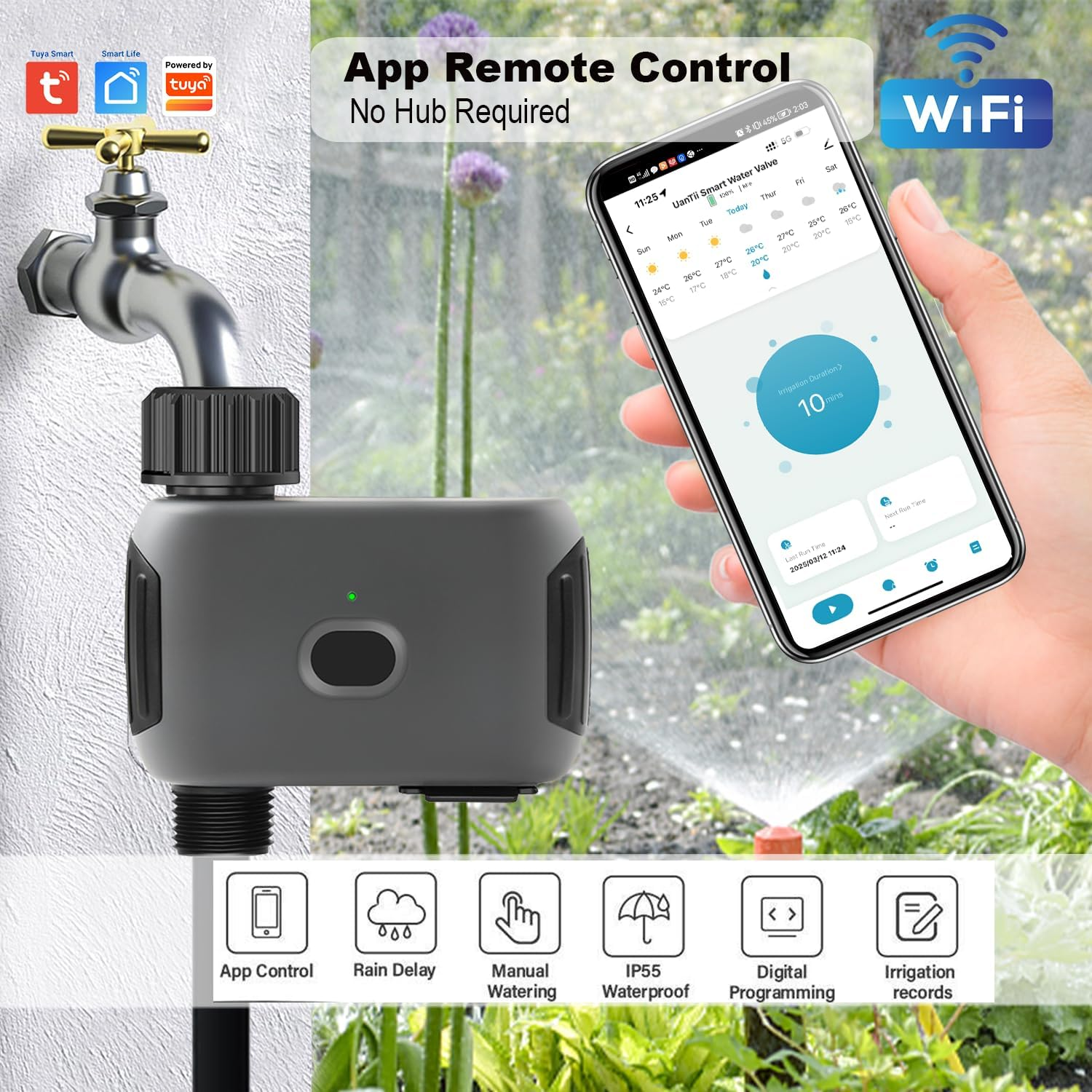

How to connect to the App:
Note:
Before connect to the app, make sure that your mobile phone is connected to the 2.4GHZ WIFI and opened the phone's bluetooth.
1;Download the APP “Smart Life" or " Tuya Smart”, register and login.
2;Power on the device, the light flashes(Long press the button 5 seconds if it doesn't flash);
3;Open the App and click"+" to add Device, it will detect the device and click to add it;If it doesn't detect the device, add it manually by clicking the Industry&agriculture, click wifi water valve
4.Input 2.4ghz wifi and waiting for connecting;
Troubleshooting
Q1: Why the water timer didn't turn on/off at preset time?
1.Programming is incorrect 2.Water pressure is too low 3.Particles of dirt or debris stuck in valve 4.More than one start time is programmed with overlapping schedules 5.Manual watering is on 6.Faulty valve 7.The faucet is off
Q2: The hose tap connection/outlet leaks.
Check if: 1. The O-ring is connected correctly to the hose tap. 2. The connection outlet or water pipe is broken. 3. The faucet and water pipe has a different thread. If necessary, please use an appropriate adapter or PTFE tape.
Q3: The timer doesn’t respond or is delayed when we operated on APP
1. Please check the network is working or not. 2. If the timer is far away from the router, the signal will be unstable. 3. If the delay is within 30 seconds, it is normal
