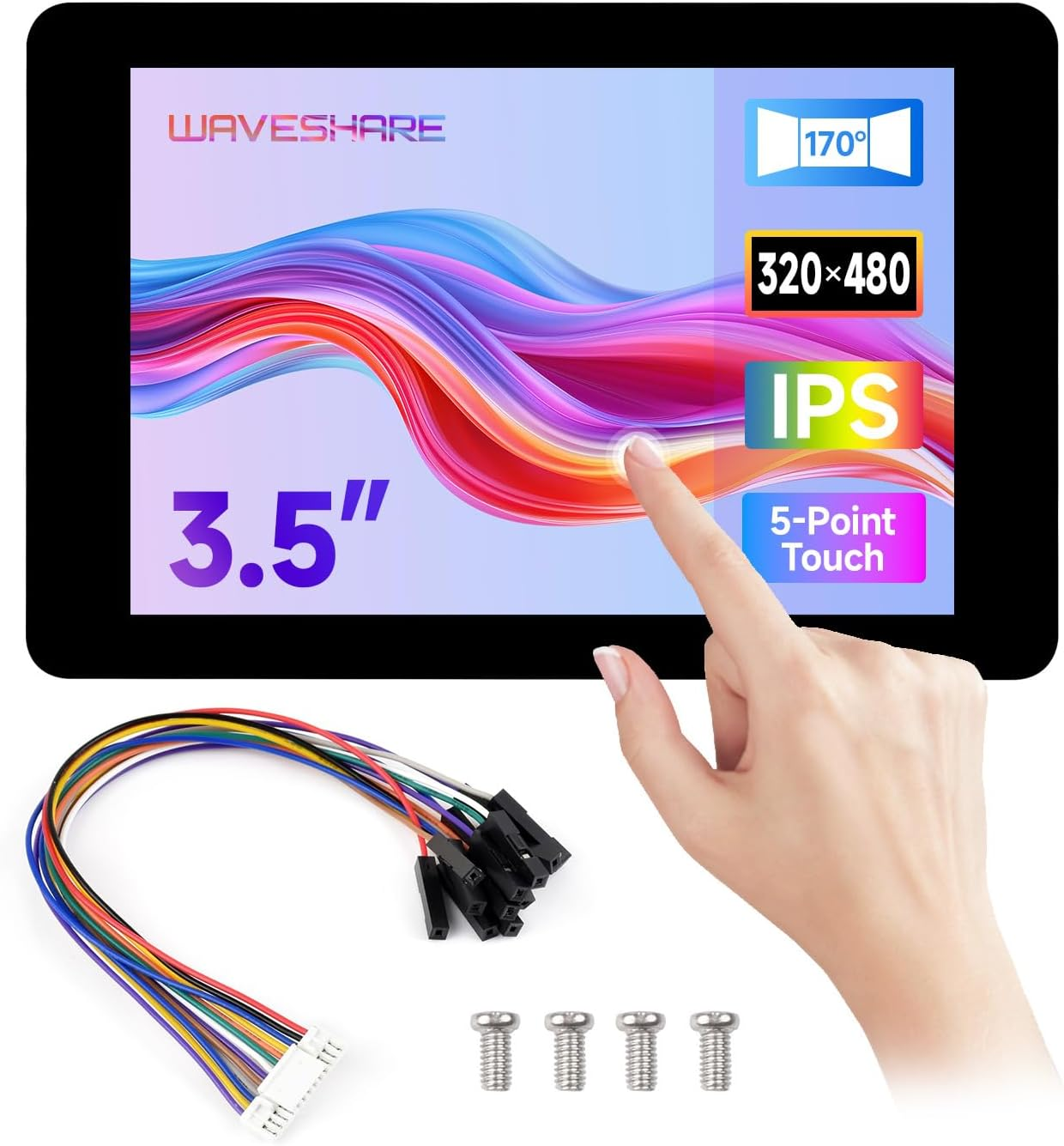

Waveshare 3.5Inch Capacitive Touch Display, Compatible with Raspberry Pi 5/4B/3B, Pi Pico, IPS Panel, 320×480, 5-Point Touch, Immersion Gold Process, Toughened Glass Panel
Waveshare 3.5Inch Capacitive Touch Display, Compatible with Raspberry Pi 5/4B/3B, Pi Pico, IPS Panel, 320×480, 5-Point Touch, Immersion Gold Process, Toughened Glass Panel
Brand: Waveshare
A$56.70
- Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources；Superior Visual Quality: The 262K color display offers a 320 × 480 resolution, delivering vibrant and sharp visuals for an exceptional viewing experience, perfect for high-quality graphics and detailed images.
- Enhanced Touch Performance: Featuring a high touch screen transmittance, the display provides fast response times, sensitive touch interactions, and an extended lifespan, ensuring smooth and reliable user input over time.

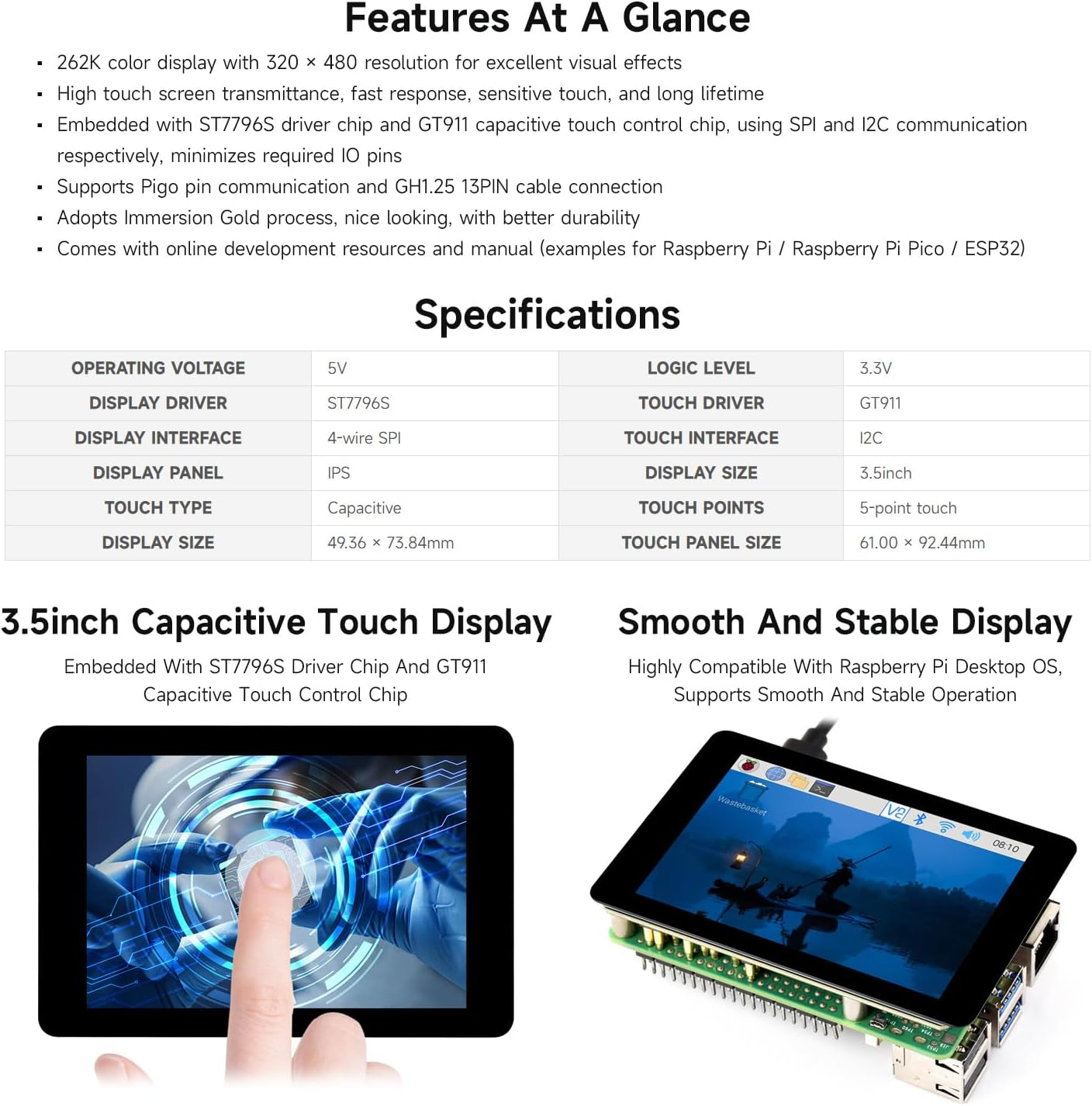

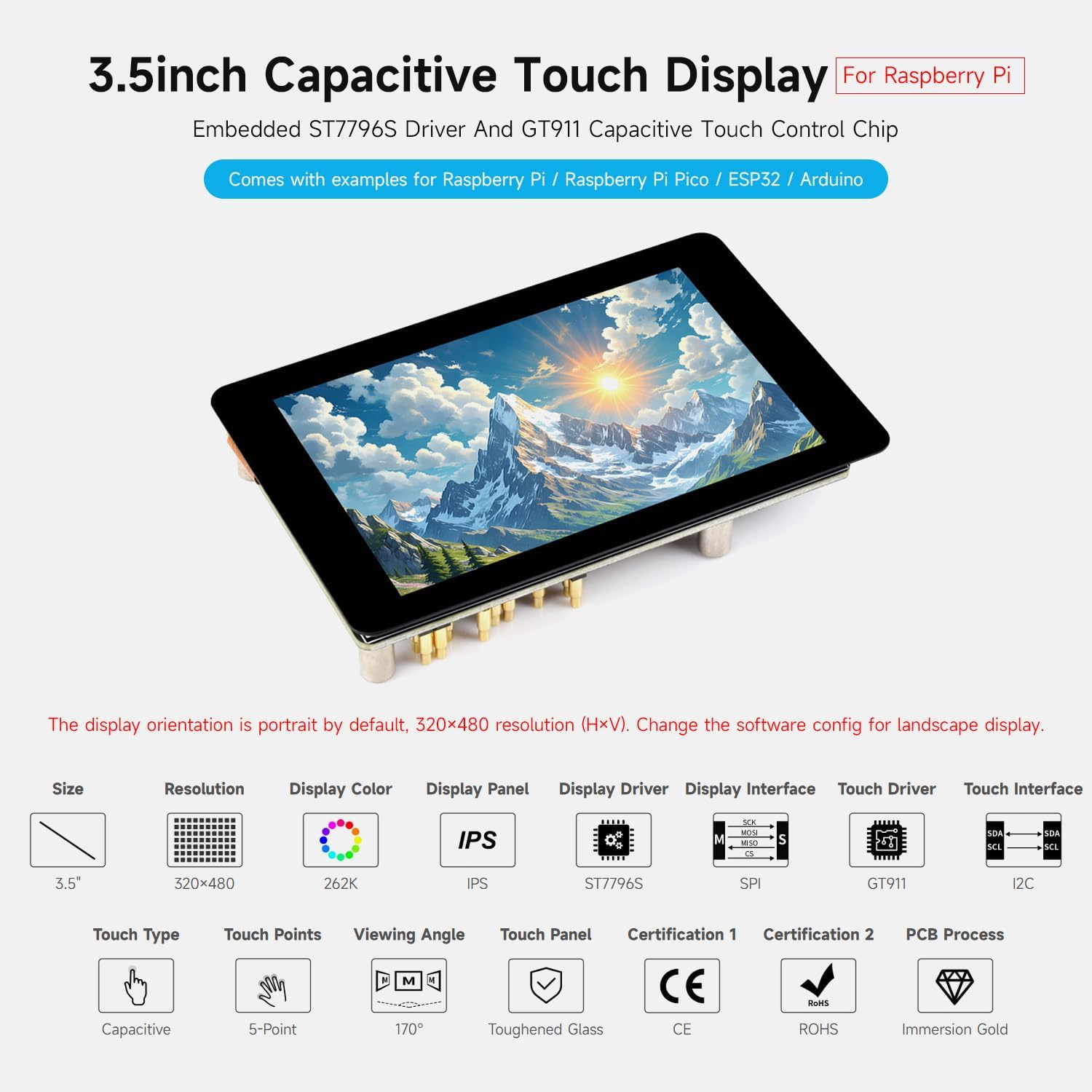

- Efficient Chipset Integration: The display is embedded with the ST7796S driver chip and GT911 capacitive touch control chip, which utilize SPI and I2C communication protocols respectively, minimizing the number of required IO pins for a simplified and efficient setup.

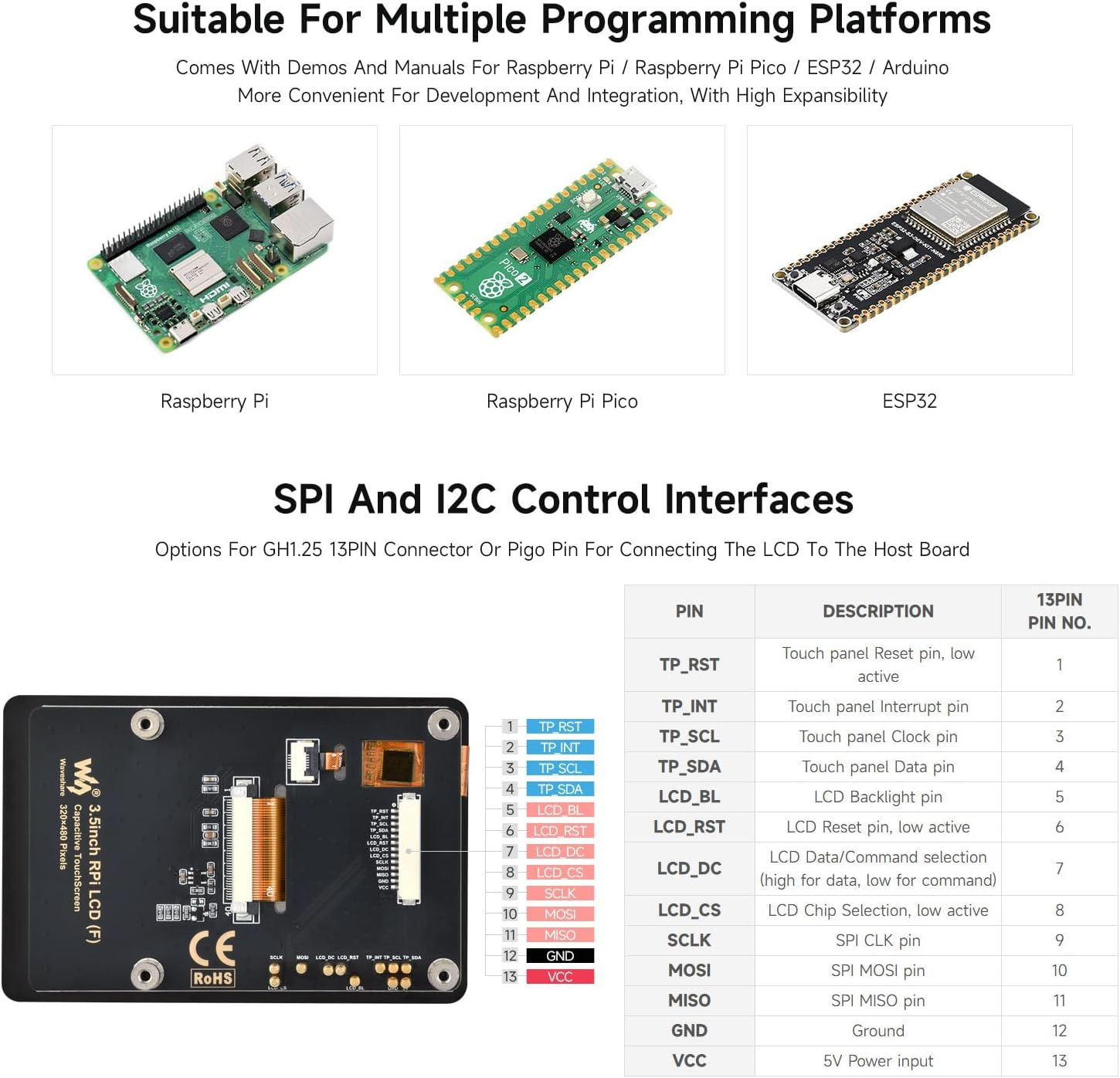

- Flexible Connectivity: It supports Pigo pin communication and GH1.25 13PIN cable connections, offering versatile options for connecting the display to various systems and devices.
- Durable and Aesthetically Pleasing Design: The Immersion Gold process not only enhances the display’s appearance, providing a sleek and attractive look but also ensures better durability, making it resistant to wear and tear for long-lasting performance.
Latest user manual available upon request.
- Item Model Number: 3.5inch RPi LCD (F)
- Part Number: 3.5inch RPi LCD (F)
- Graphics Card Interface: Integrated
- Model Name: 3.5inch RPi LCD (F)
- Batteries Included: No
- Batteries Required: No
- Brand: Waveshare
- Compatible Devices: Raspberry Pi 5, Raspberry Pi 4B, Raspberry Pi 3B, Pi Pico
- Maximum vertical resolution: 320
- Item Weight: 200 g
- Number of Ports: 2
- Compatible processor types: Raspberry Pi 5, Raspberry Pi 4B, Raspberry Pi 3B, Raspberry Pi Pico
- Ram Memory Technology: LPDDR2
- Chipset Type: Broadcom BCM2837B0
- Response Time: 2 Milliseconds
- Aspect Ratio: 1.50:1
- Standing screen display size: 3 Inches
- Model: 3.5inch RPi LCD (F)
- Total USB ports: 2

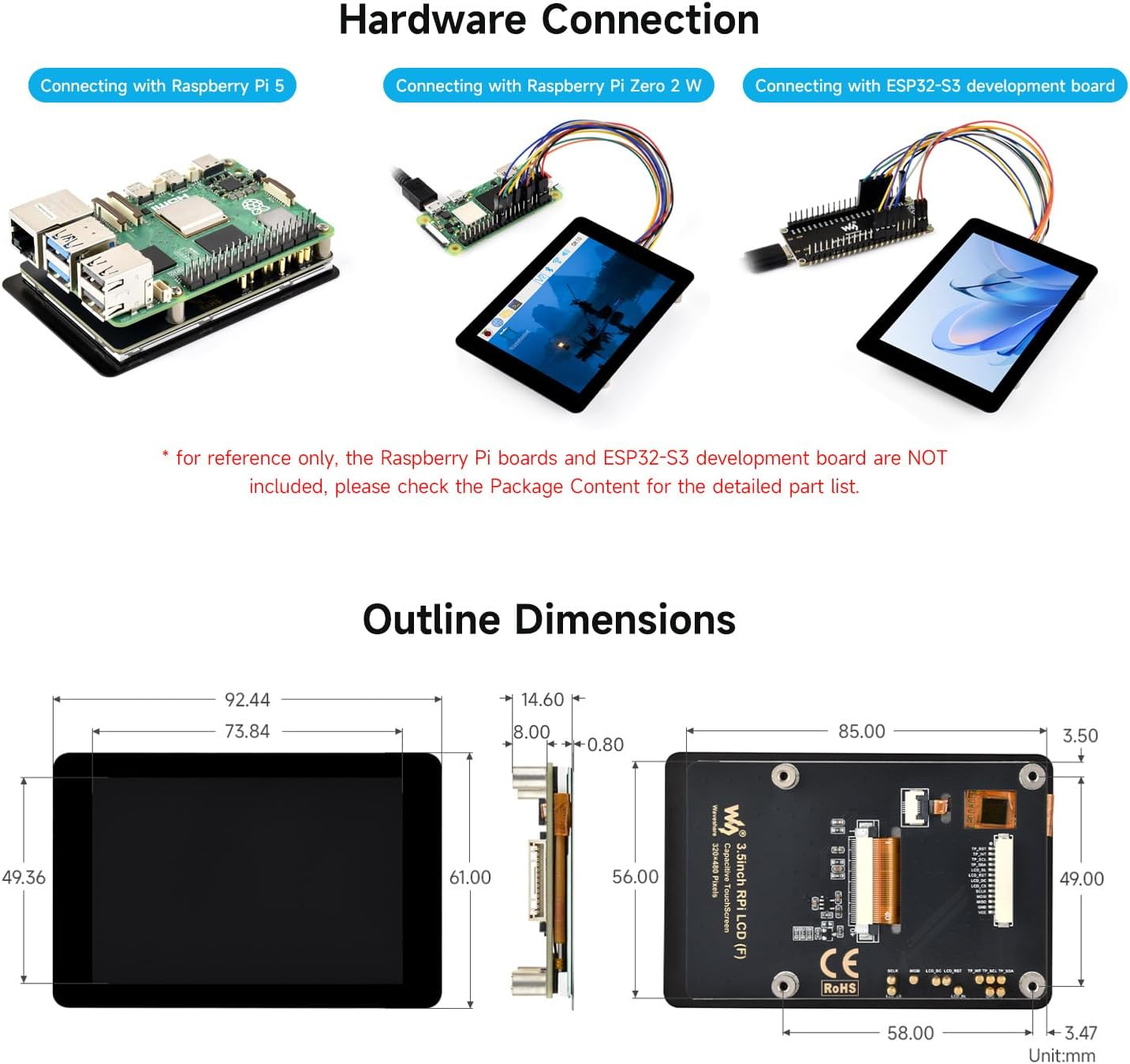

- Product dimensions: 1.5 x 9.25 x 6.1 cm; 200 Grams
- Manufacturer: Waveshare
