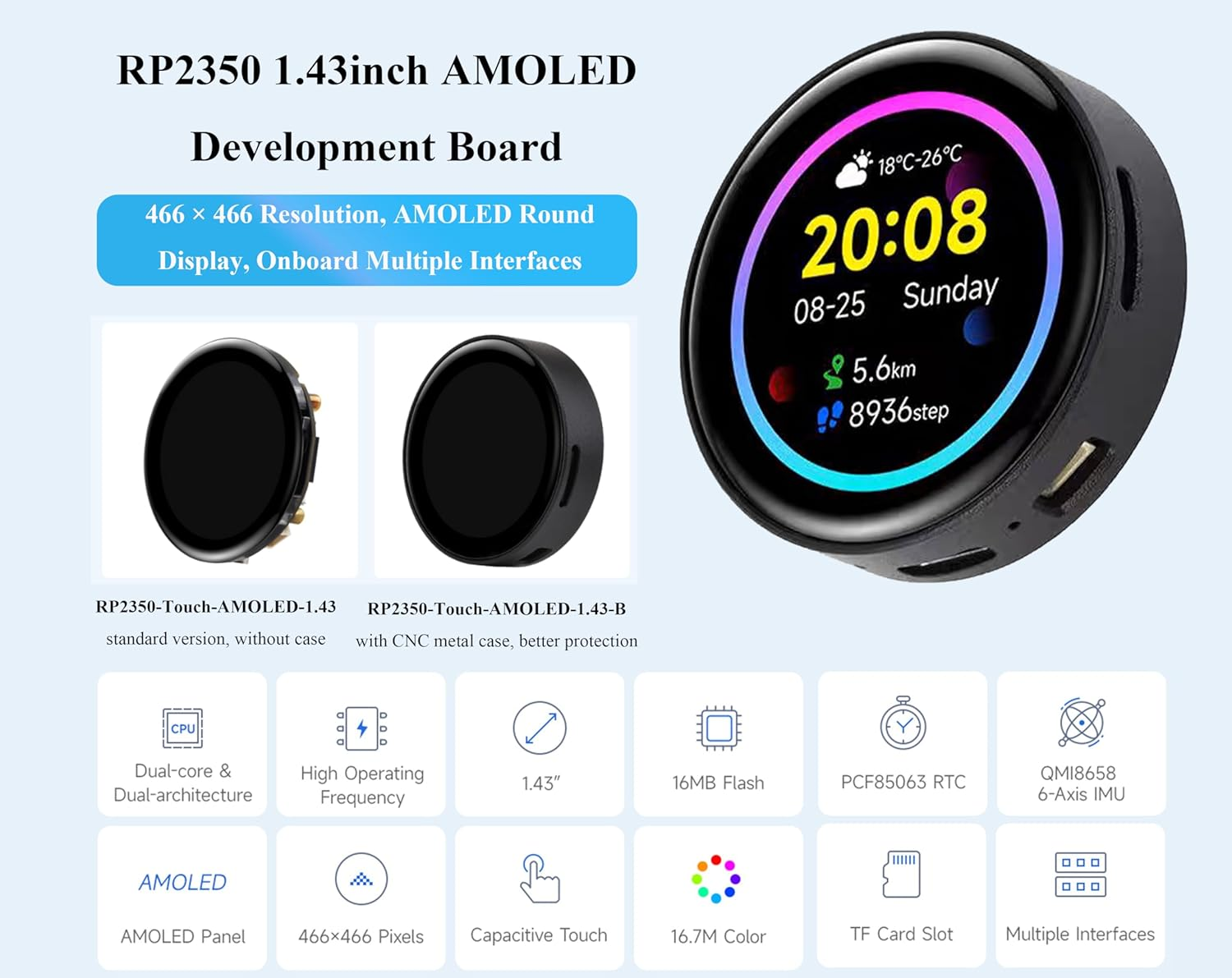

RP2350 1.43Inch AMOLED Touch Display Development Board, 466X466, SPI Interface, RP2350 Chip with AMOLED Screen Rich Interfaces, for Development of RP2350 HMI Applications, with CNC Metal Case

RP2350 1.43Inch AMOLED Touch Display Development Board, 466X466, SPI Interface, RP2350 Chip with AMOLED Screen Rich Interfaces, for Development of RP2350 HMI Applications, with CNC Metal Case

Brand: UeeKKoo
4.6
A$70.55
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

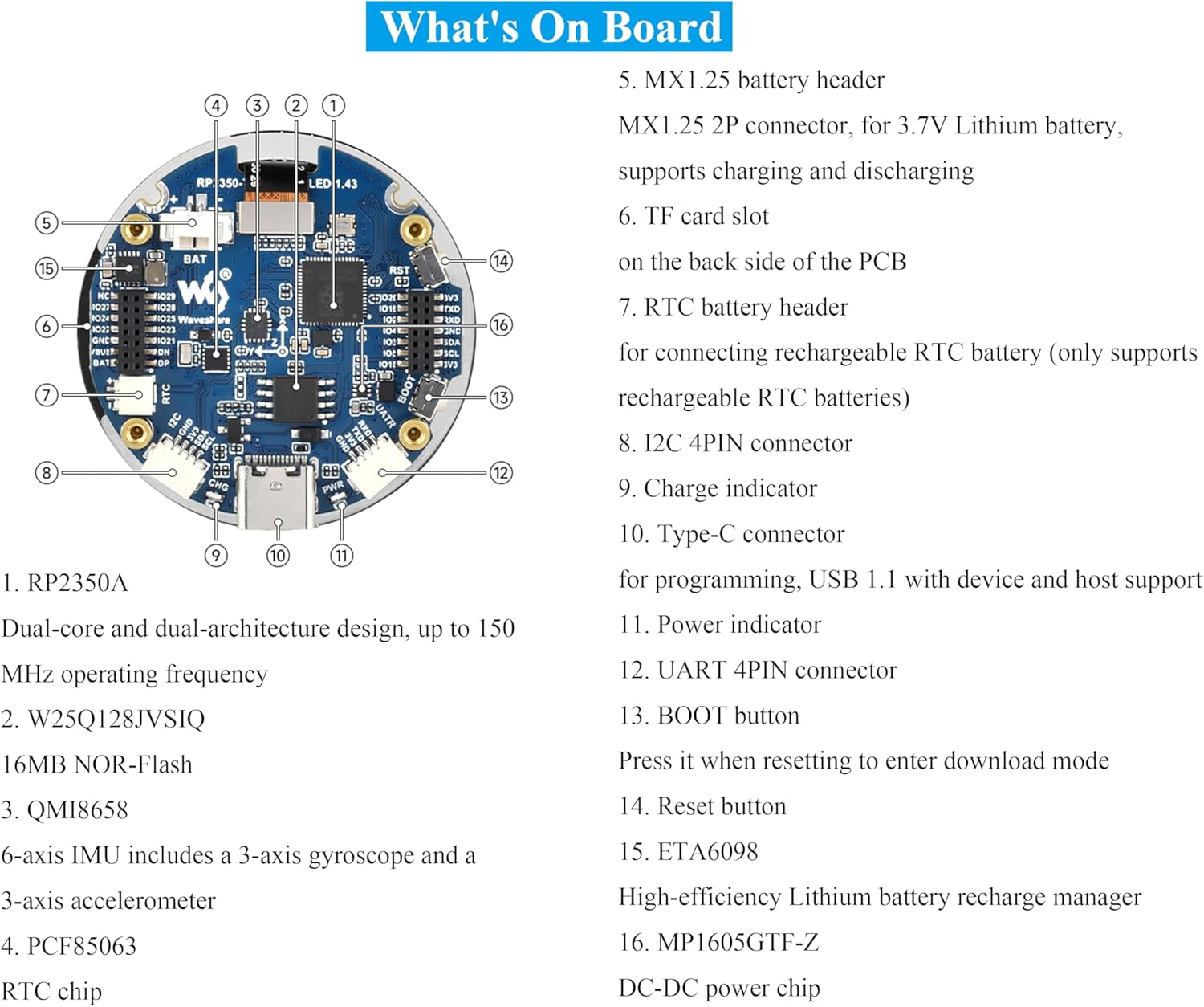

  • Powerful RP2350 Chip: Dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz. 520KB of SRAM, and 16MB onboard Flash memory

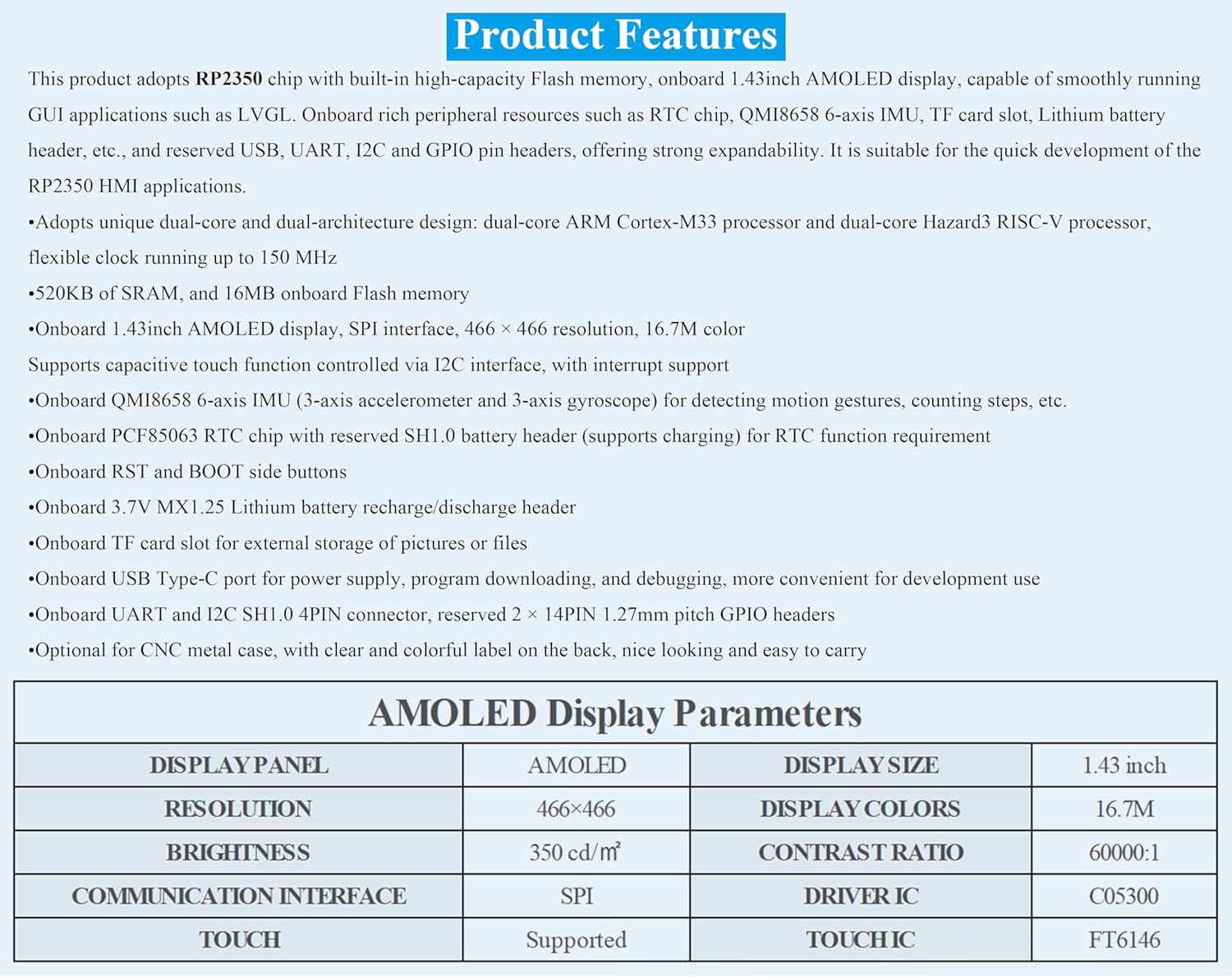

  • 1.43inch Capacitive Touch Display: Onboard 1.43inch AMOLED display, SPI interface, 466 × 466 resolution, 16.7M color, 178° wide viewing angle. Supports capacitive touch function controlled via I2C interface, with interrupt support
  • AMOLED Features: Compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid video image
  • Rich Peripheral Interfaces & Expandability: QMI8658 6-axis IMU ( for detecting motion gestures, counting steps, etc.); PCF85063 RTC chip with reserved SH1.0 ba-tte-ry header (supports charging) for R T C function requirement; RST and BOOT side buttons; 3.7V MX1.25 Lithium ba-tte-ry header

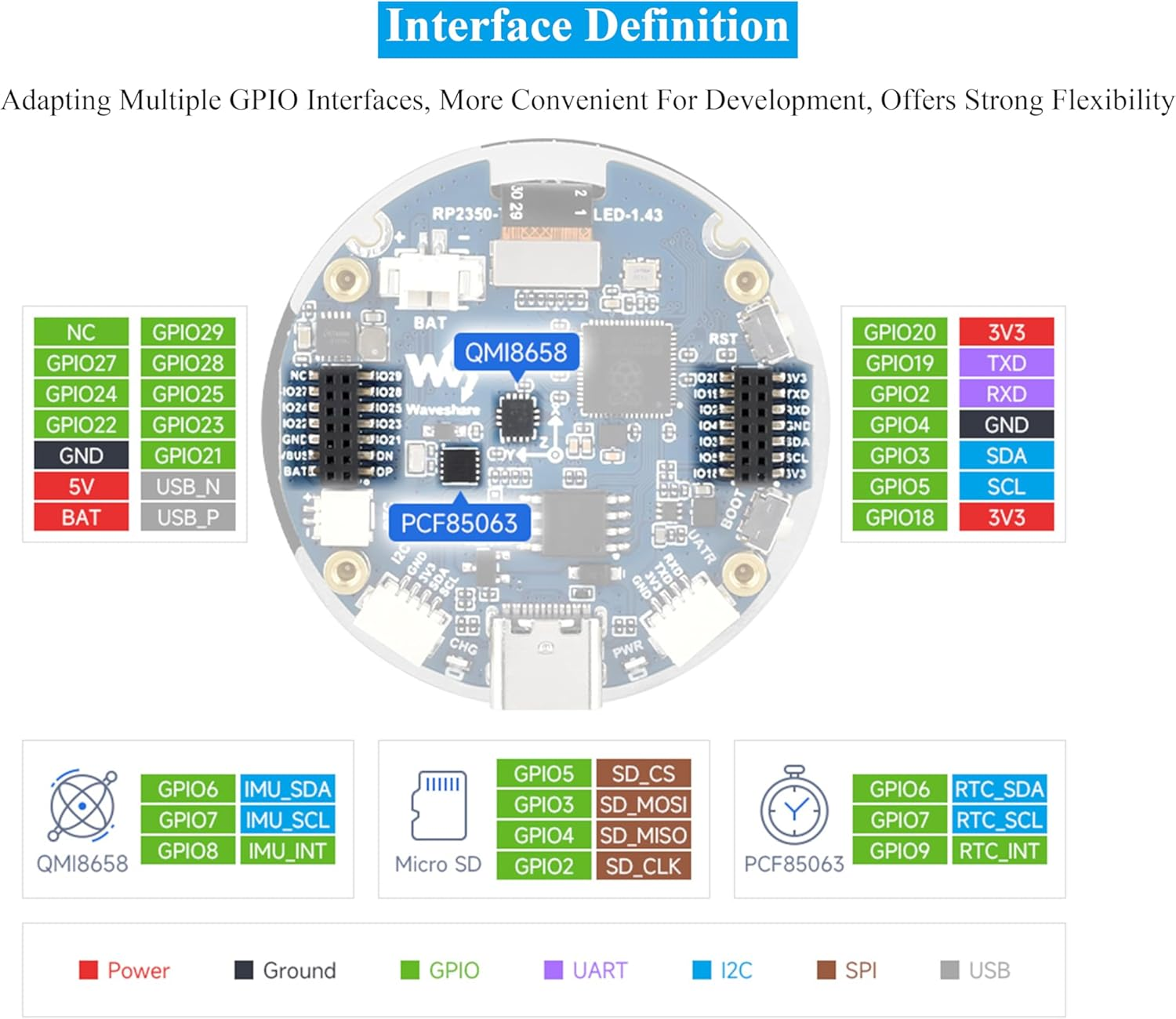

  • USB Type-C & UART and I2C: Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use. Onboard UART and I2C SH1.0 4PIN connector, reserved 2 × 14PIN 1.27mm pitch GPIO headers. It is suitable for the quick development of the RP2350 HMI applications
  • Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3DNMjBo

Product Description

  • Item Model Number: RP2350-Touch-AMOLED-1.43-B
  • Scanner Resolution: 466 x 466
  • Image Aspect Ratio: 16:10
  • Number of items: 1
  • Batteries Required: No
  • Brand: UeeKKoo
  • Maximum vertical resolution: 466
  • Refresh rate: 60 Hz
  • Item Weight: 30 g
  • Response Time: 5 Milliseconds
  • Standing screen display size: 1.8
  • Model: RP2350-Touch-AMOLED-1.43-B
  • Resolution: 466 x 466
  • Product dimensions: 0.2 x 3 x 3 cm; 30 Grams
  • Manufacturer: UeeKKoo
