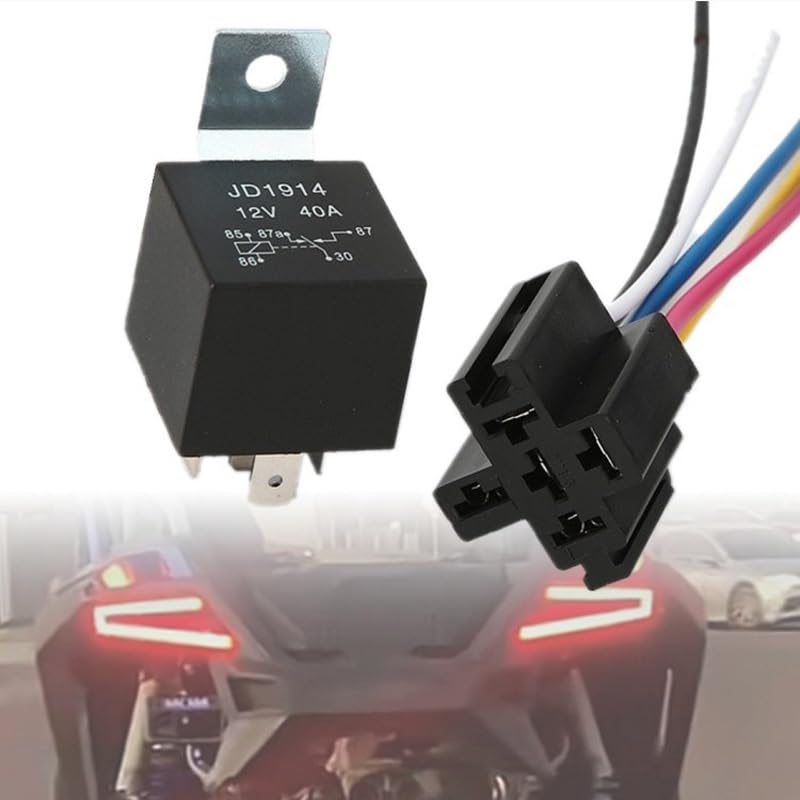

Features:
- The car relay adopts a 5-pin SPDT harness socket made of high-quality materials, ensuring excellent quality and long life, small size, and low power consumption.

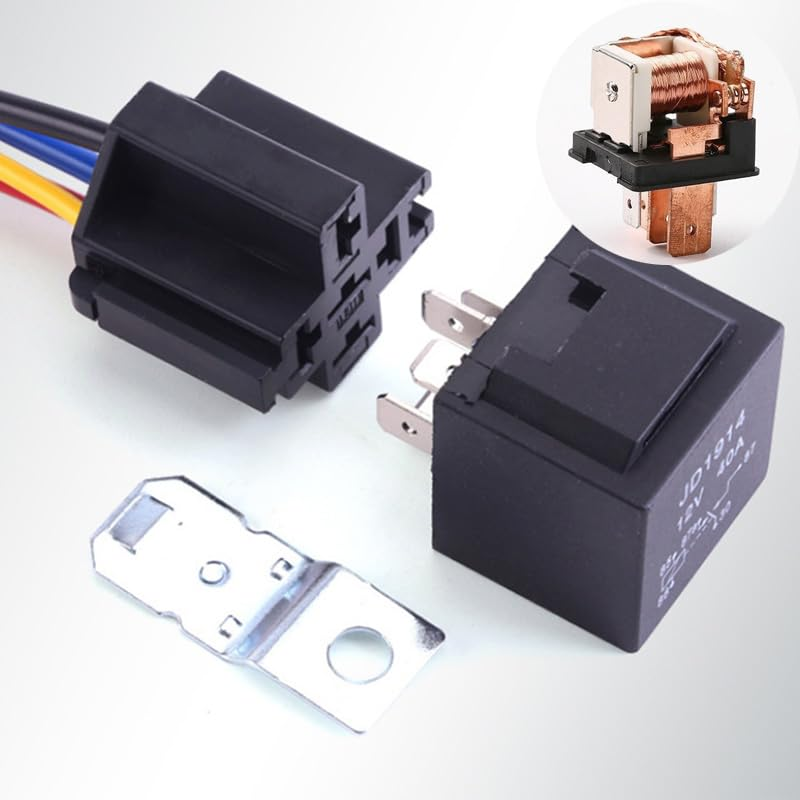

- The car relay socket has a fixed metal hole, which is easy to install and can be operated according to the wiring diagram.

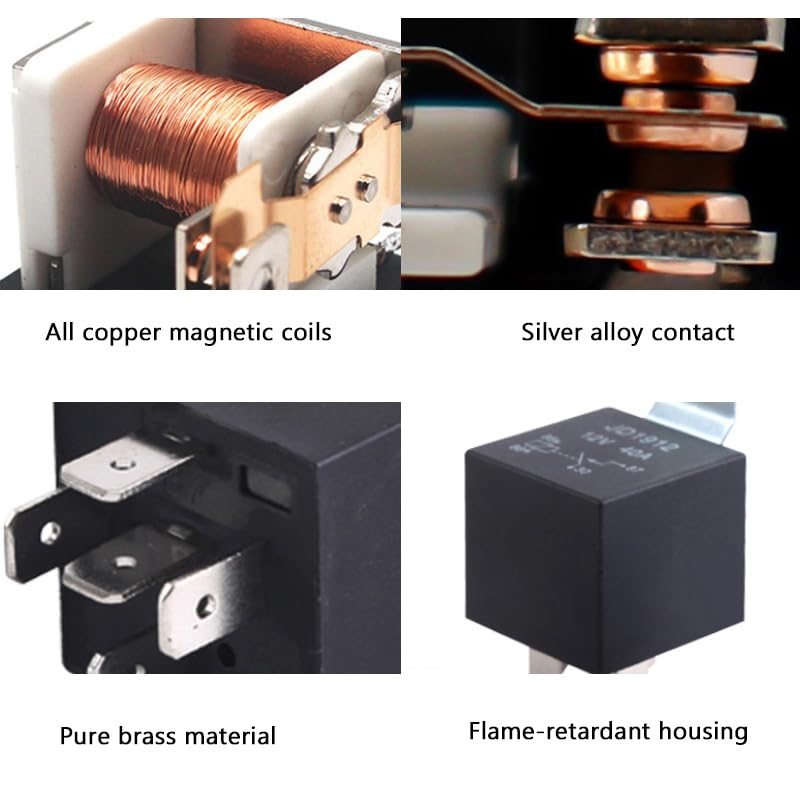

- Automotive relays use pure copper core cables, silver alloy contacts, strong conductivity, and good stability.
- The automatic relay adopts a unique male and female slot, which is plug and play, easy to connect the relay with the harness socket, and clean and tidy after installation.
- 5-pin 12V 30/40A waterproof relay, used for LED work lights, fog lights, starter, wiper, fan, speaker, central locking, alarm, power windows, etc.
Specification:
Material: Ag Alloy
Color: Black

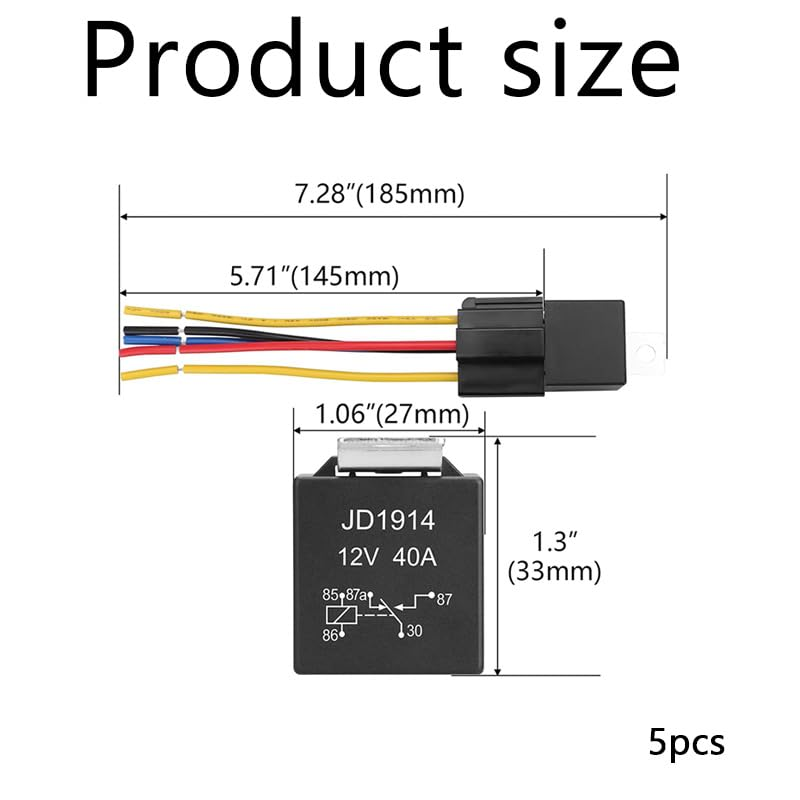

Size: Dimensions: Length * Width * Height: 195* 160* 30MM
Contact Ratings: NO 40A 14VDC Contact Resistance: 100mMAX (at6VDC 1A) Max Switching Current: 40A
Max Switching Power: 560W
Product Usage: Automotive Control Device
Contact form: 1a, 1c
Contact capacity: 1a/2a: 40A 14VDC
1b:30A 14VDC
1c:40A/30A 14VDC
Coil voltage: 12VDC
Coil power (W): 1.80
Contact resistance: ≤ 50mΩ
Insulation resistance: ≥ 1,00MΩ
Dielectric withstand voltage: 500VAC between open circuit contacts
500VAC between coil contacts
Environmental temperature: -40 ℃~+125 ℃

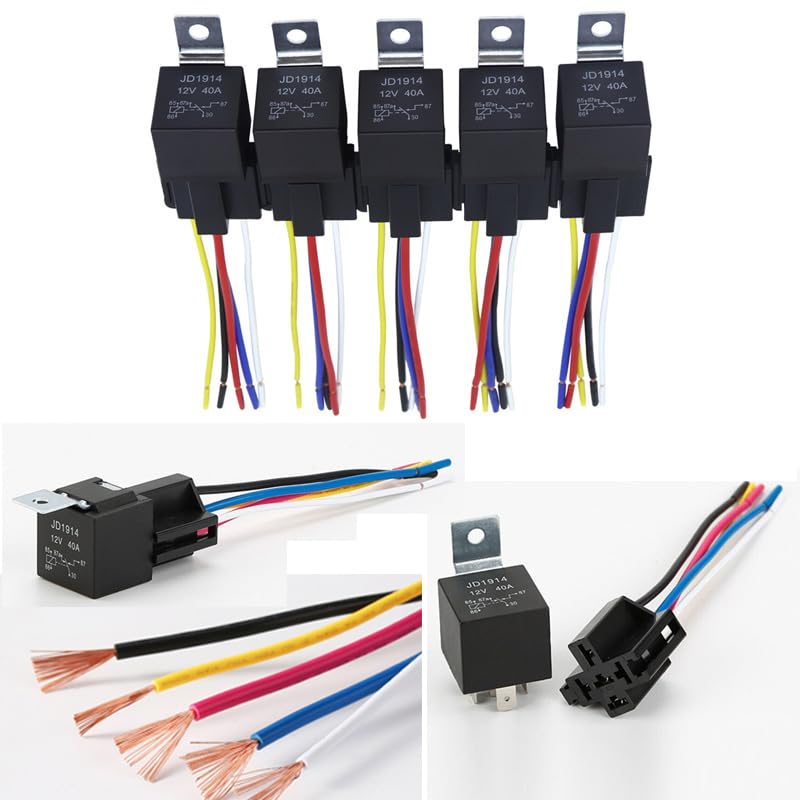

12AWG Copper Wire: Pin 87a Yellow
12AWG Copper Wire: Pin 87 Blue
12AWG Copper Wire: Pin 30 Red
16AWG Copper Wire: Pin 85 Black
Product List

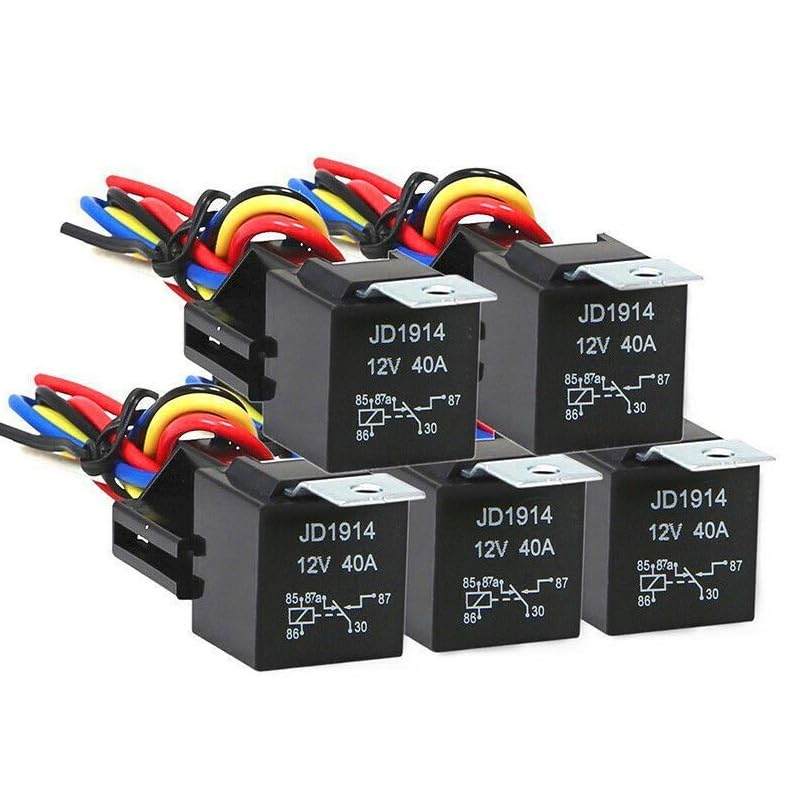

5 Pcs x 12v waterproof relay kit
Note:
Due to manual measurement, the size and weight may have a certain error.
Due to the difference between monitors, there may be a slight color difference existed.
