Description:

The Binghe 18650 4-Channel Battery Capacity and Endurance Tester is a professional tool designed to analyze the performance of lithium batteries.

It incorporates integrated charge/discharge cycles and real-time capacity measurement.

Technical Parameters:

Power supply: DC 5V external power supply (required).

Compatible batteries: discharge voltage 2.5-3.5V; 4.2V batteries.

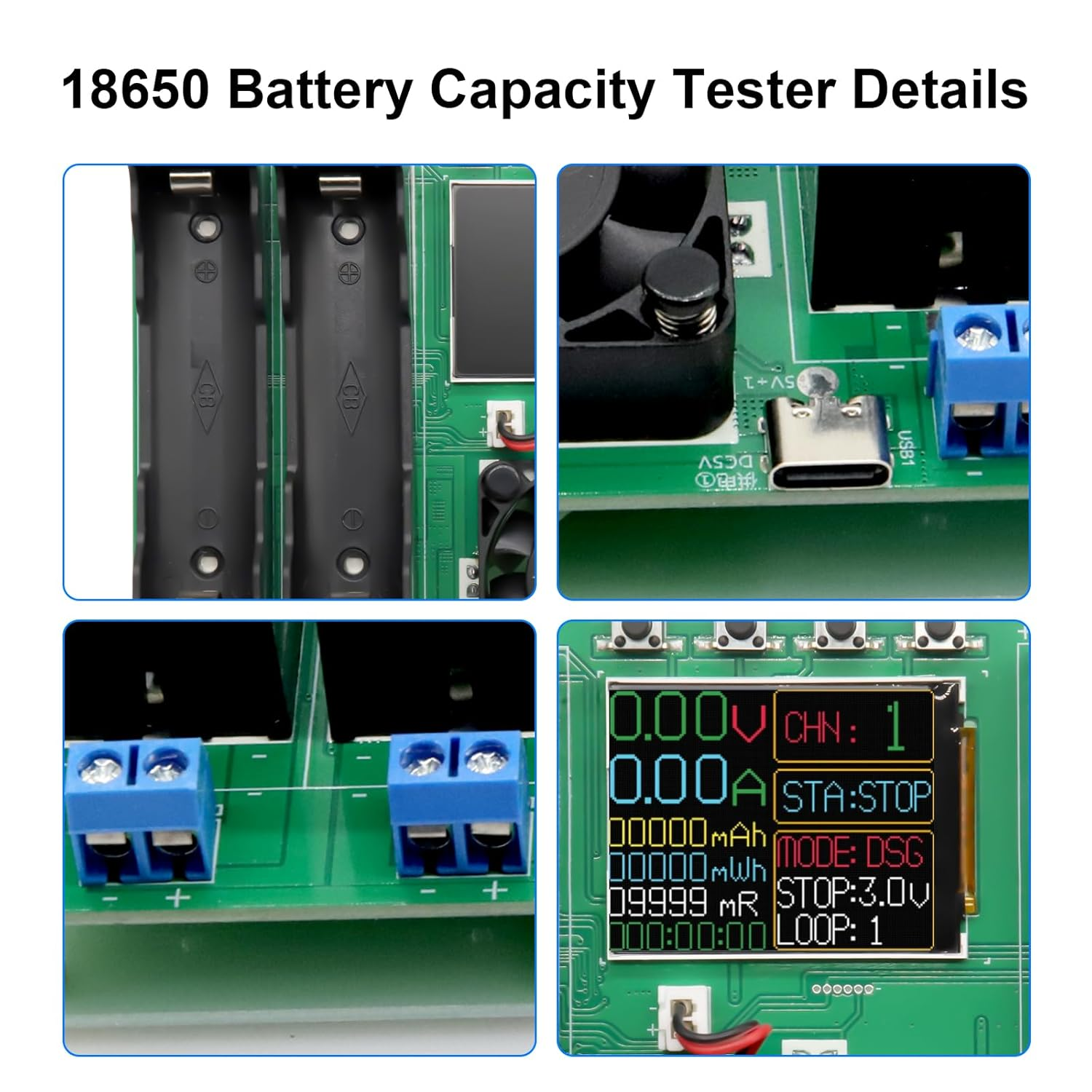

Power Interface: Dual Type-C interface (power cable required)

System Language: Chinese/English

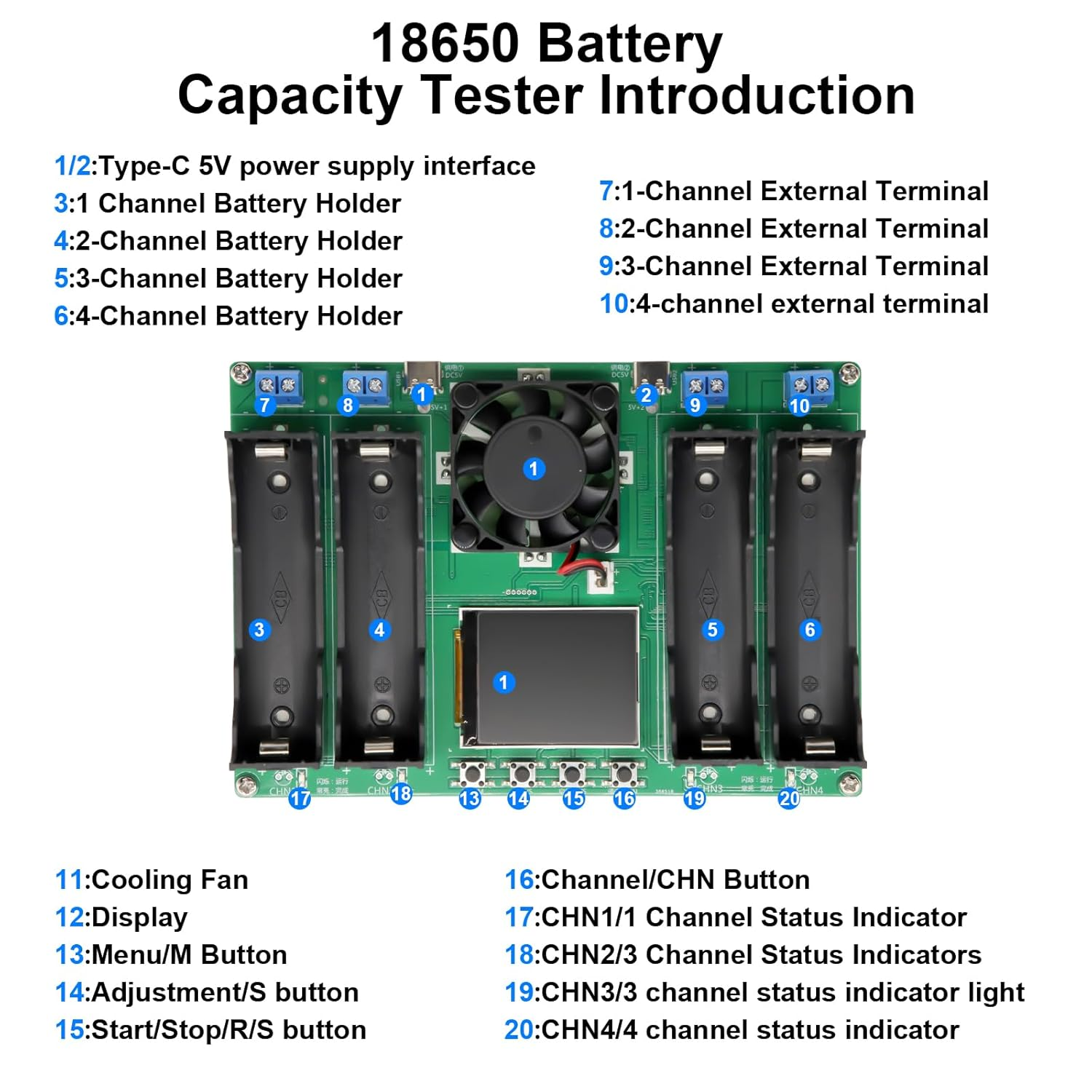

Number of tests: 4-channel charging and discharging measurement, independent channels, no interference.

Internal Resistance Measurement: Support DC two wire method to check internal resistance.

Charging function: Single channel maximum load about 1A, with full automatic stop. Not suitable for iron phosphate batteries.

Discharge function: Single channel maximum discharge about 1A, with automatic stop. Automatic charging and discharging: Support The battery is fully charged at the end of automatic mode. Not suitable for iron phosphate batteries.

Charge and discharge cycles: Compatible, adjustable from 1 to 9 cycles.

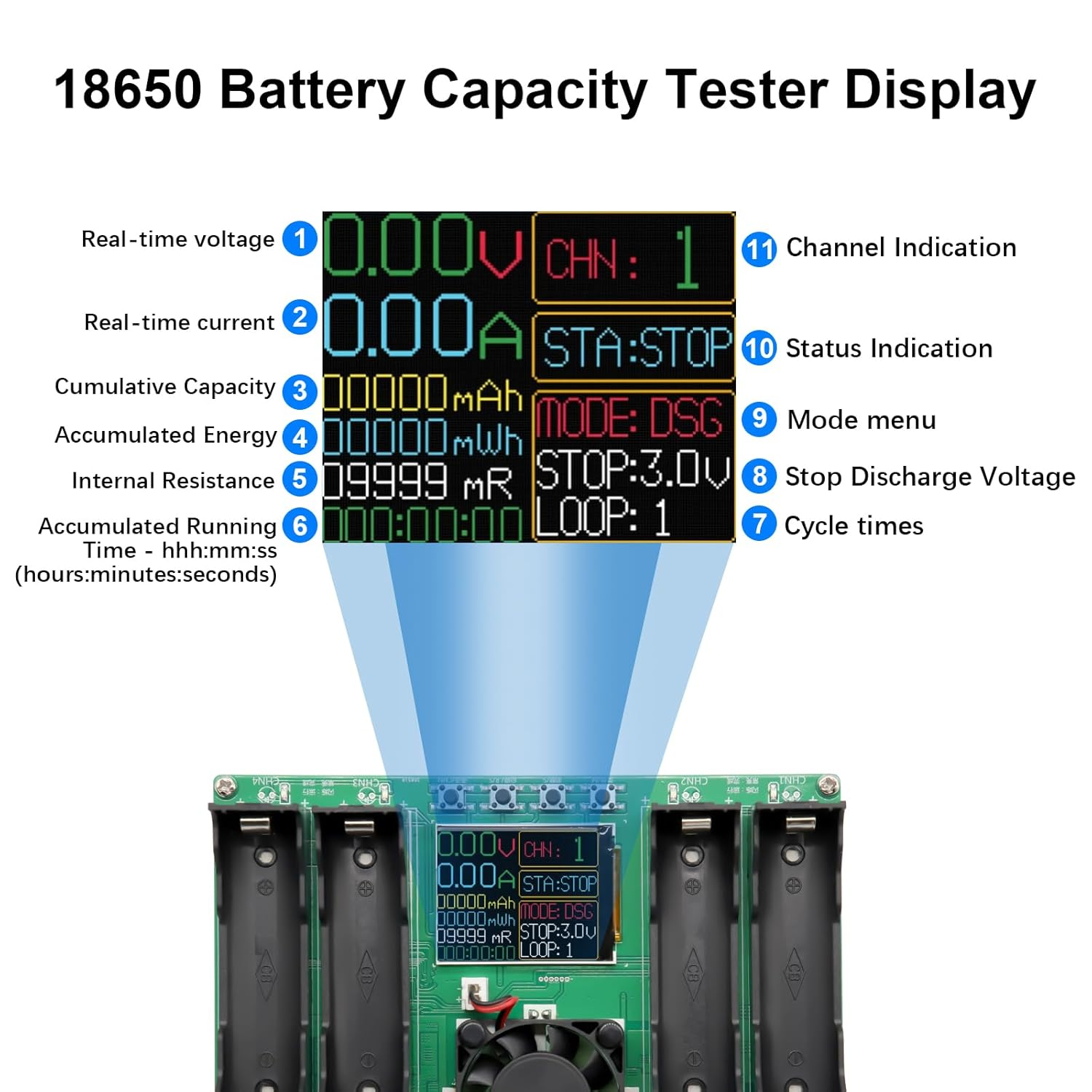

Status Alert: Support

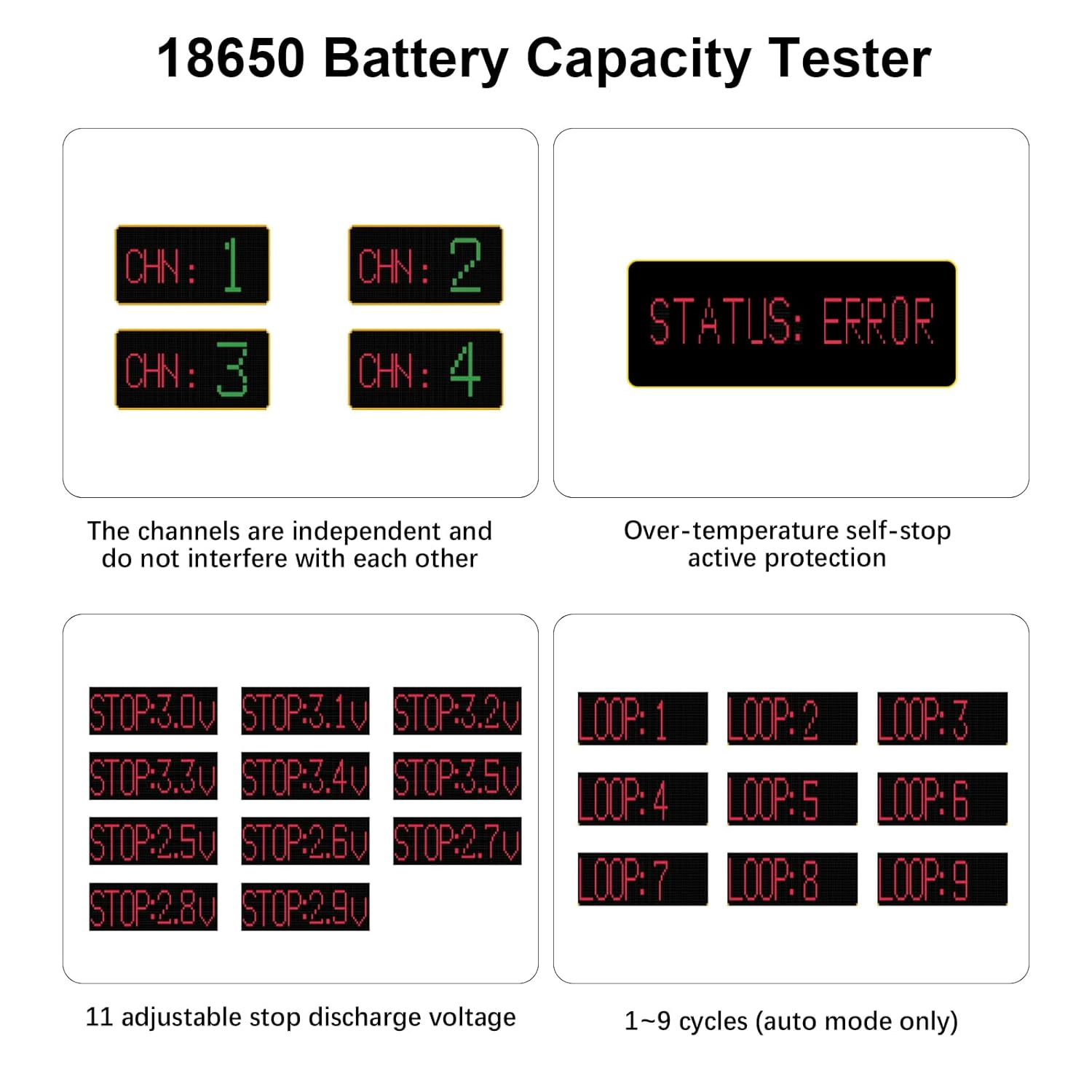

Discharge stop voltage: 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V (11 steps adjustable)

Discharge current: Maximum current about 1A (not adjustable, does not support independent transformation)

Charging voltage: special control by battery charging chip, maximum load about 1A, full voltage: 4.2V.

Saved in case of power failure: Only saves configuration parameters, not measurement data.

Products included:

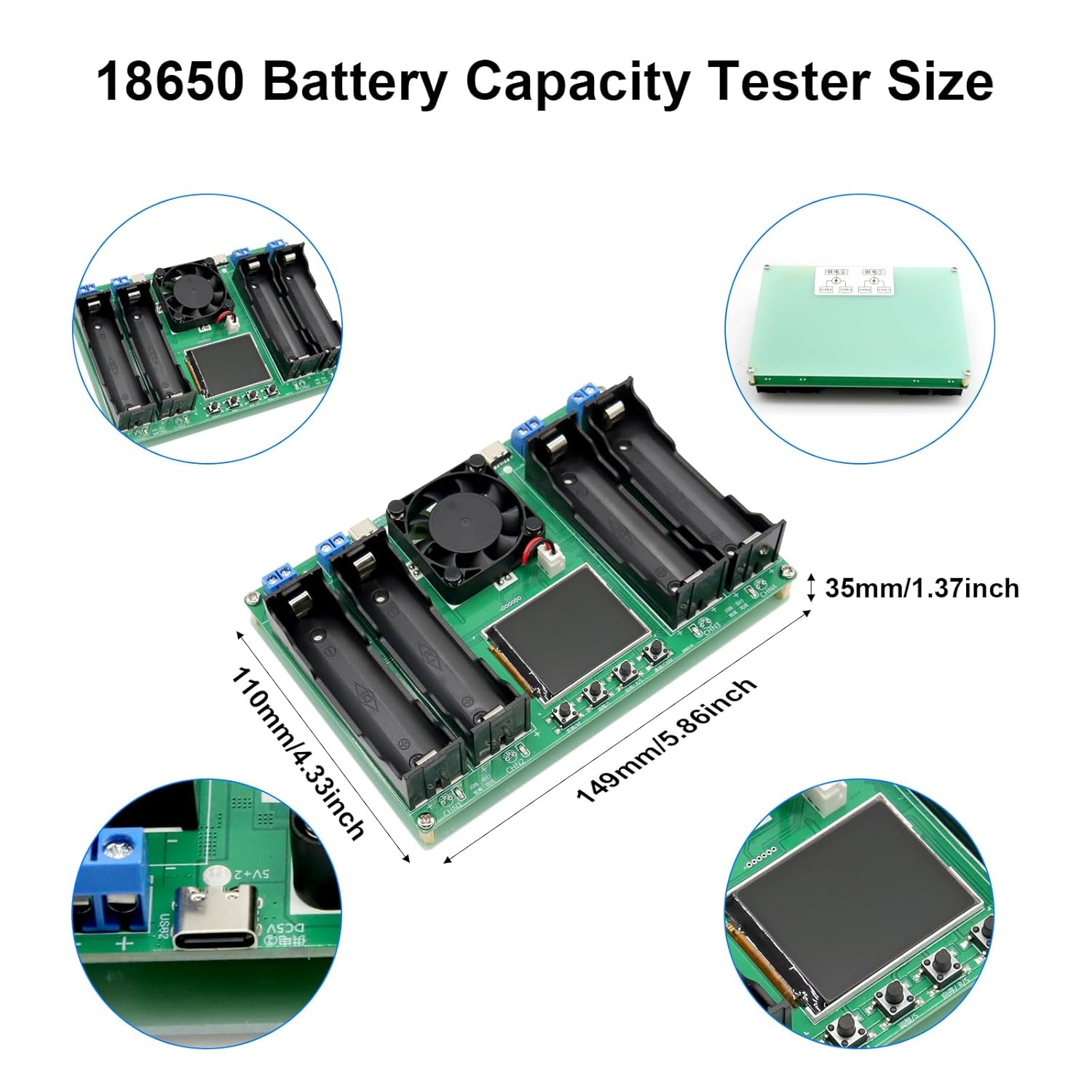

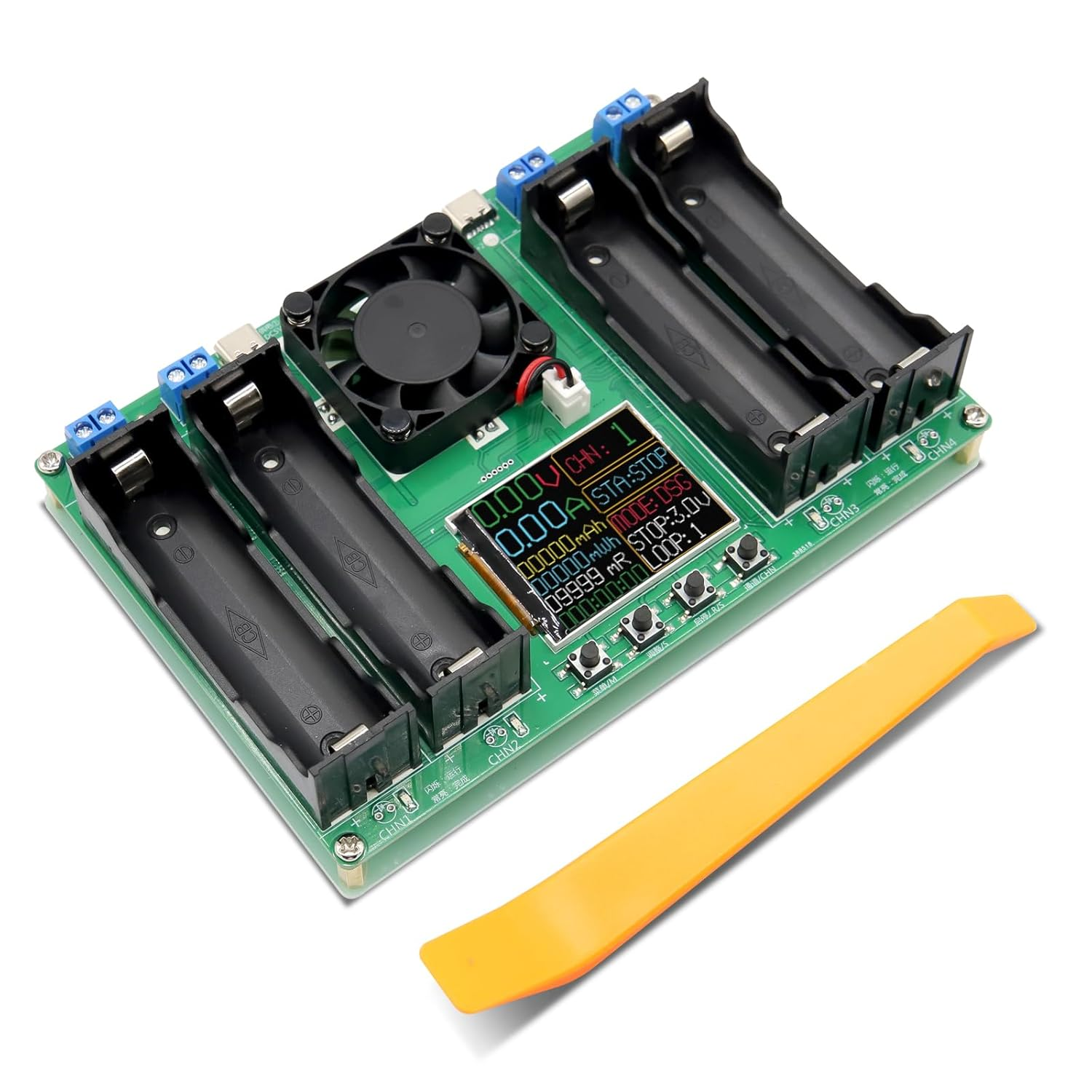

1 x 18650 4-Channel Capacity and Resistance Tester
