ESP32-S3 2.41Inch AMOLED Capacitive Touch Display Development Board, 600X450 Resolution 16.7M Colors, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi and Bluetooth 5, Rich Interfaces (With Case)

ESP32-S3 2.41Inch AMOLED Capacitive Touch Display Development Board, 600X450 Resolution 16.7M Colors, 32-Bit LX7 Dual-Core Processor, Support Wi-Fi and Bluetooth 5, Rich Interfaces (With Case)

Brand: UeeKKoo
5.0
A$124.00
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia

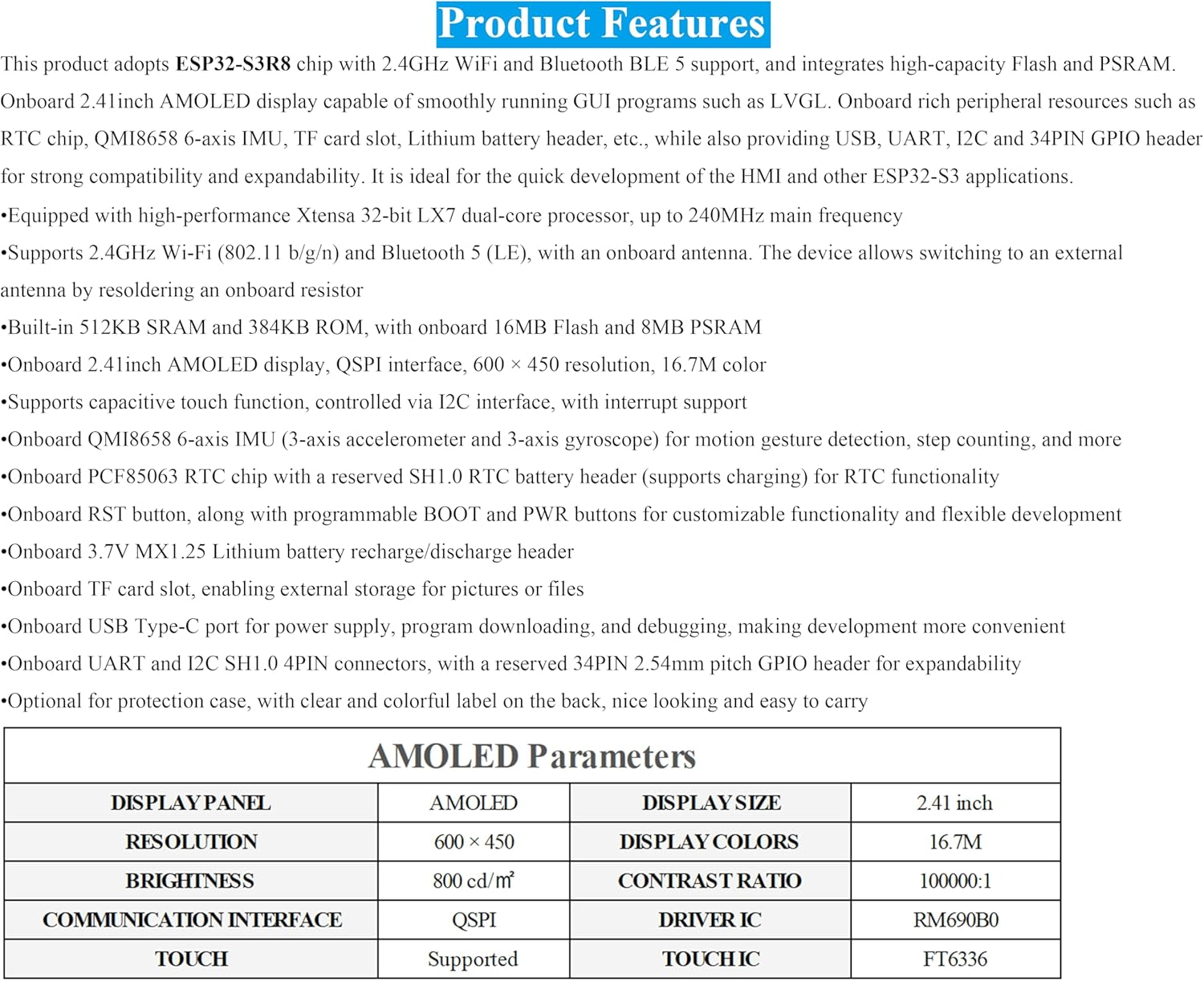

  • ESP32-S3 2.41inch AMOLED Touch Display Development Board (This is with Case version). Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to an external antenna by resoldering an onboard resistor.
  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard 2.41inch AMOLED display, QSPI interface, 600 x 450 resolution, 16.7M color. 178° wide viewing angle Supports capacitive touch function, controlled via I2C interface, with interrupt support.
  • Adopts AMOLED screen. The AMOLED is recognized as the next-generation display technology, offers superior light-control precision compared to traditional LCD screens. It delivers more vibrant colors, finer details, and more lifelike videos and images.
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more. Onboard PCF85063 R T C chip with a reserved SH1.0 R T C ba -tte-ry header (supports charging) for R T C functionality.
  • Onboard RST button, along with programmable BOOT and PWR buttons for customizable functionality and flexible development. Onboard 3.7V MX1.25 ba-tte-ry recharge/discharge header. Onboard TF card slot, enabling external storage for pictures or files.

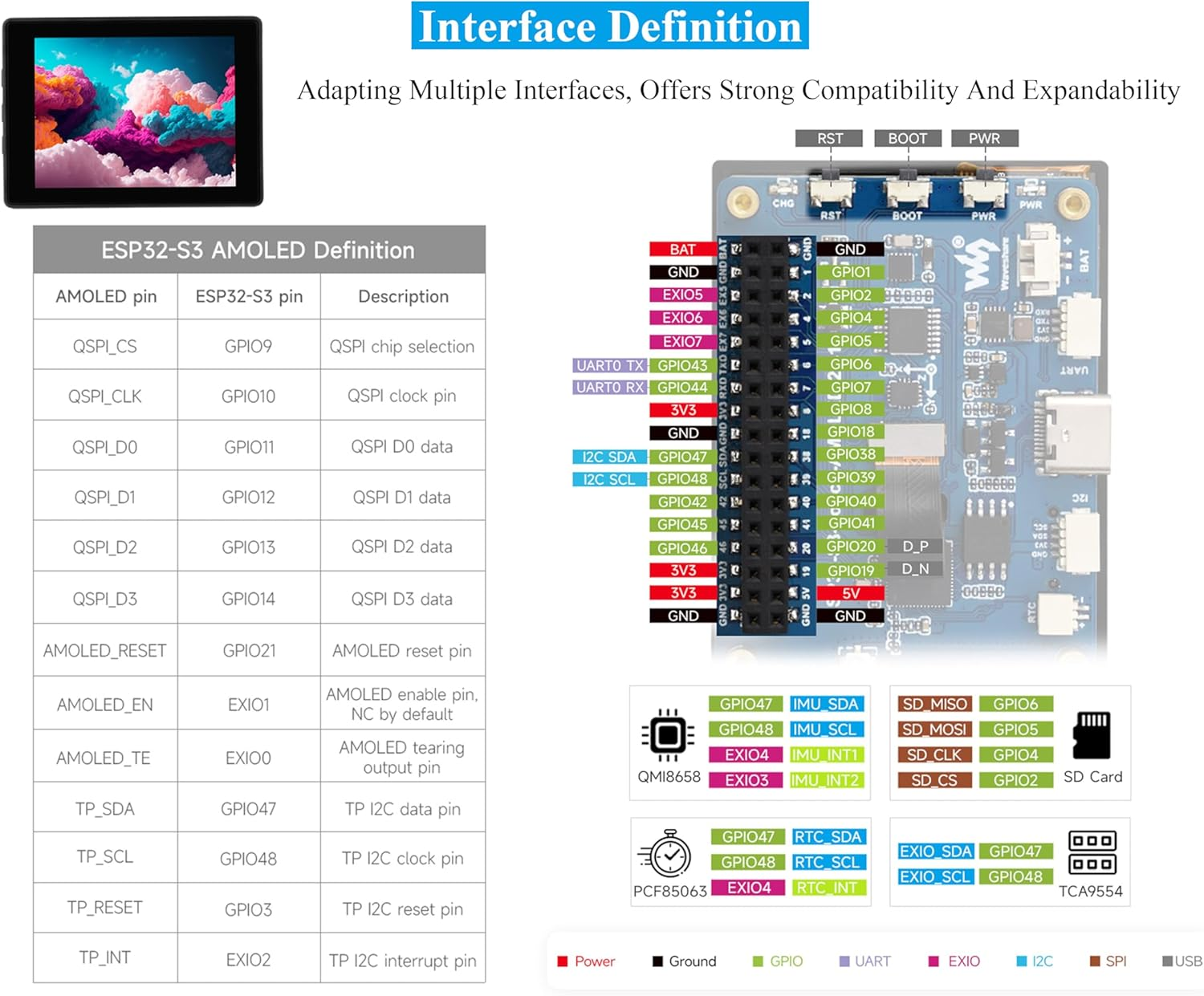

  • Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient. Onboard UART and I2C SH1.0 4PIN connectors, with a reserved 34PIN 2.54mm pitch GPIO header for expandability.
  • Comes with relevant resources and tutorials to help you get started quickly: bit.ly/4h2vUX3

Product Description

  • Screen Resolution: 600 x 450
  • Image contrast ratio: 100000:1
  • Product dimensions: 0.1 x 2 x 4 cm; 9.07 Grams
  • Viewing angle: 178 Degrees
  • Colour Screen: Yes
  • Aspect Ratio: 4:3
  • Brand: UeeKKoo
  • Model Name: ESP32-S3-Touch-AMOLED-2.41-B
  • Response Time: 5 Milliseconds
  • Hardware Interface: USB Type C
  • Manufacturer: UeeKKoo
  • Item Model Number: ESP32-S3-Touch-AMOLED-2.41-B
  • Batteries Included: No
  • Batteries Required: No
  • Connector Type: Bluetooth, Wi-Fi
  • Item Weight: 9.07 g
  • Standing screen display size: 2.41
  • Model: ESP32-S3-Touch-AMOLED-2.41-B
  • Resolution: 600 x 450
  • Display Type: OLED
  • Total USB ports: 1

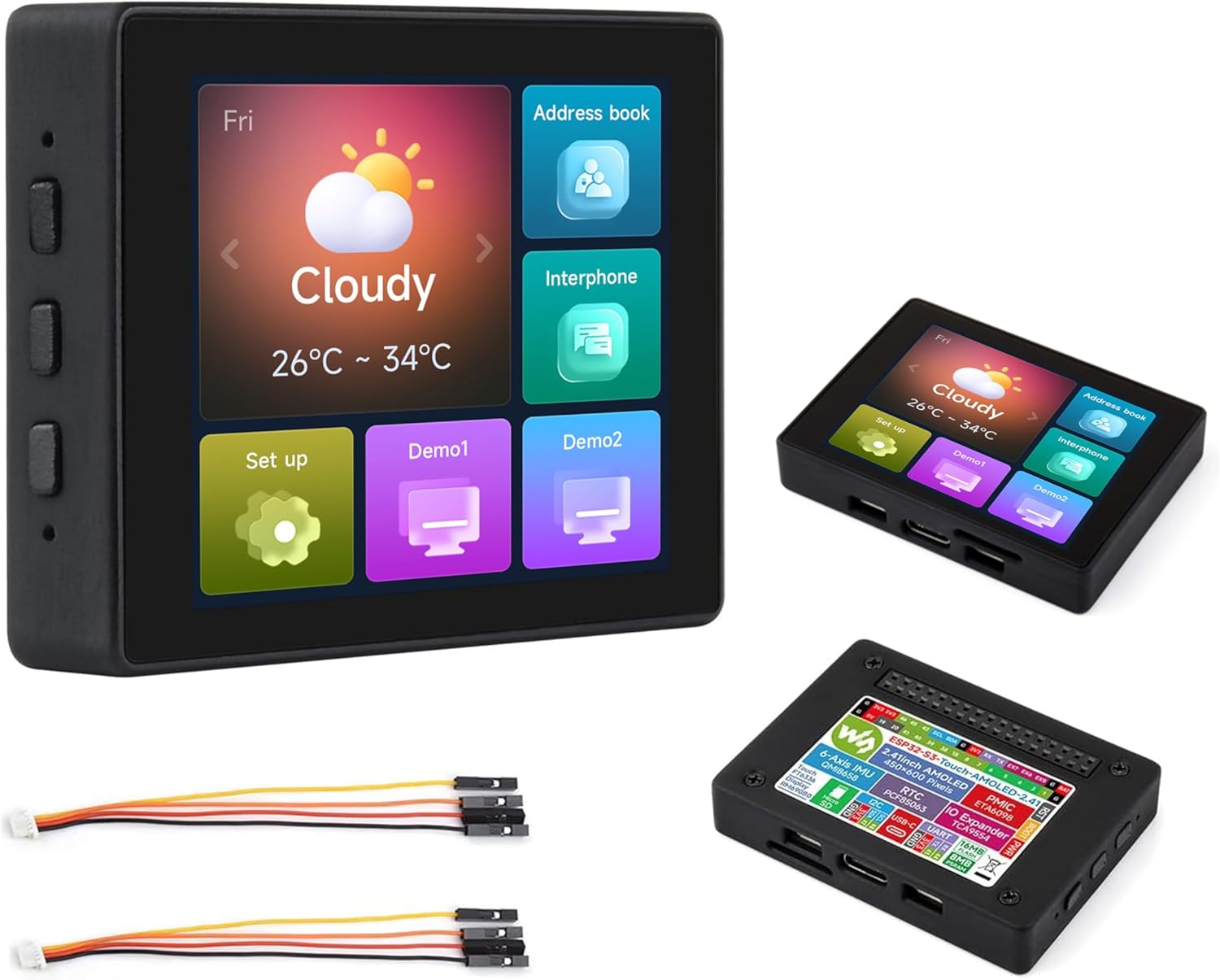

  • Mounting Hardware: ESP32-S3-Touch-AMOLED-2.41-B x1, SH1.0 4PIN cable ~100mm x2
  • Scanner Resolution: 600 x 450
  • Maximum vertical resolution: 450
  • Display Technology: OLED
