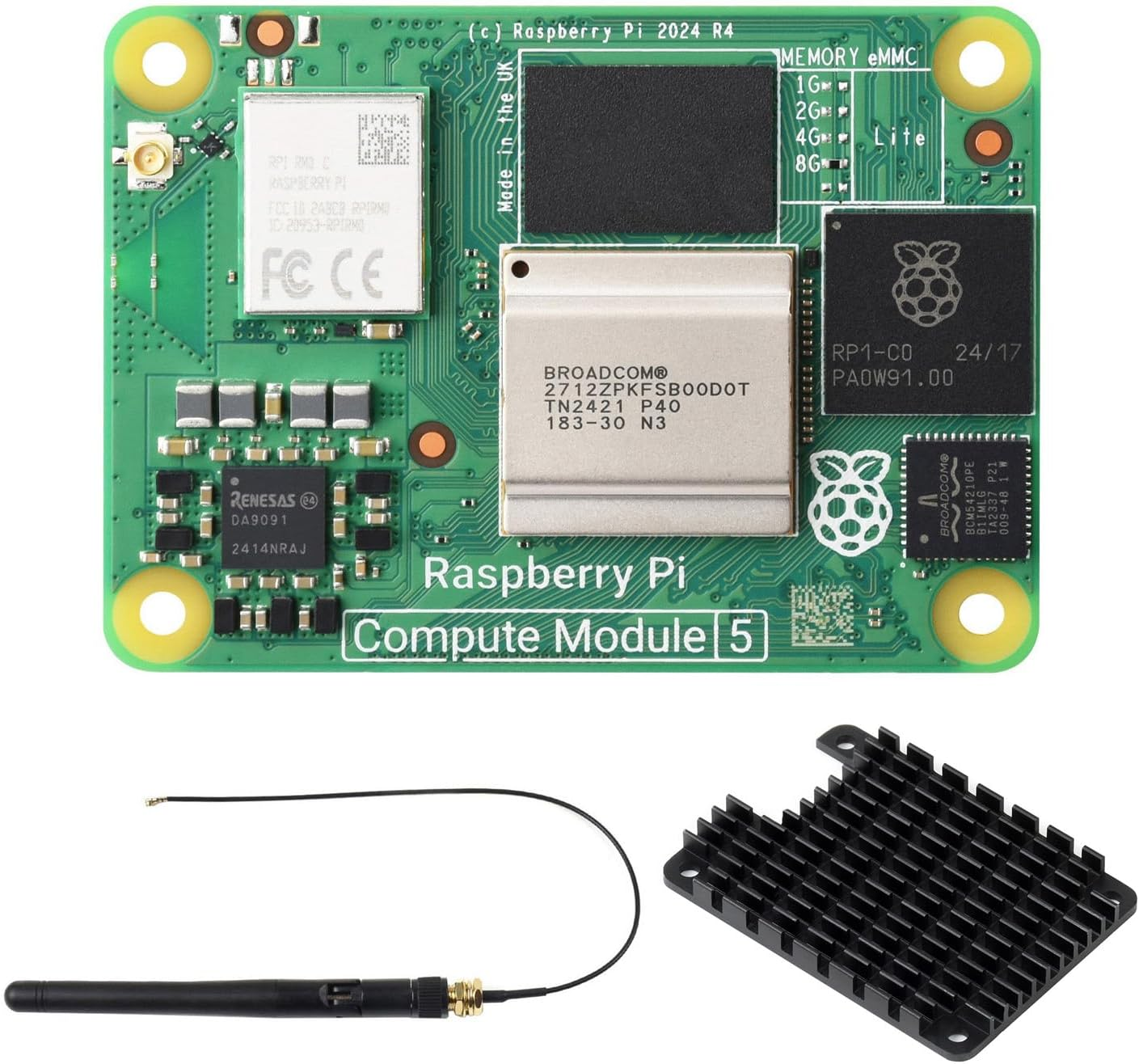

Waveshare CM5 Pi Compute Module 5, Comes with an Official Raspberry Pi CM5108000 (With Wire-Less, 8GB RAM, 0GB (Lite) Emmc Flash), an Antenna Kit and a HEATSINK (3 Items)

Waveshare CM5 Pi Compute Module 5, Comes with an Official Raspberry Pi CM5108000 (With Wire-Less, 8GB RAM, 0GB (Lite) Emmc Flash), an Antenna Kit and a HEATSINK (3 Items)

Brand: Waveshare
4.6
A$431.15
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 8GB RAM, 0GB (Lite) eMMC Flash, with WI-FI ；Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.

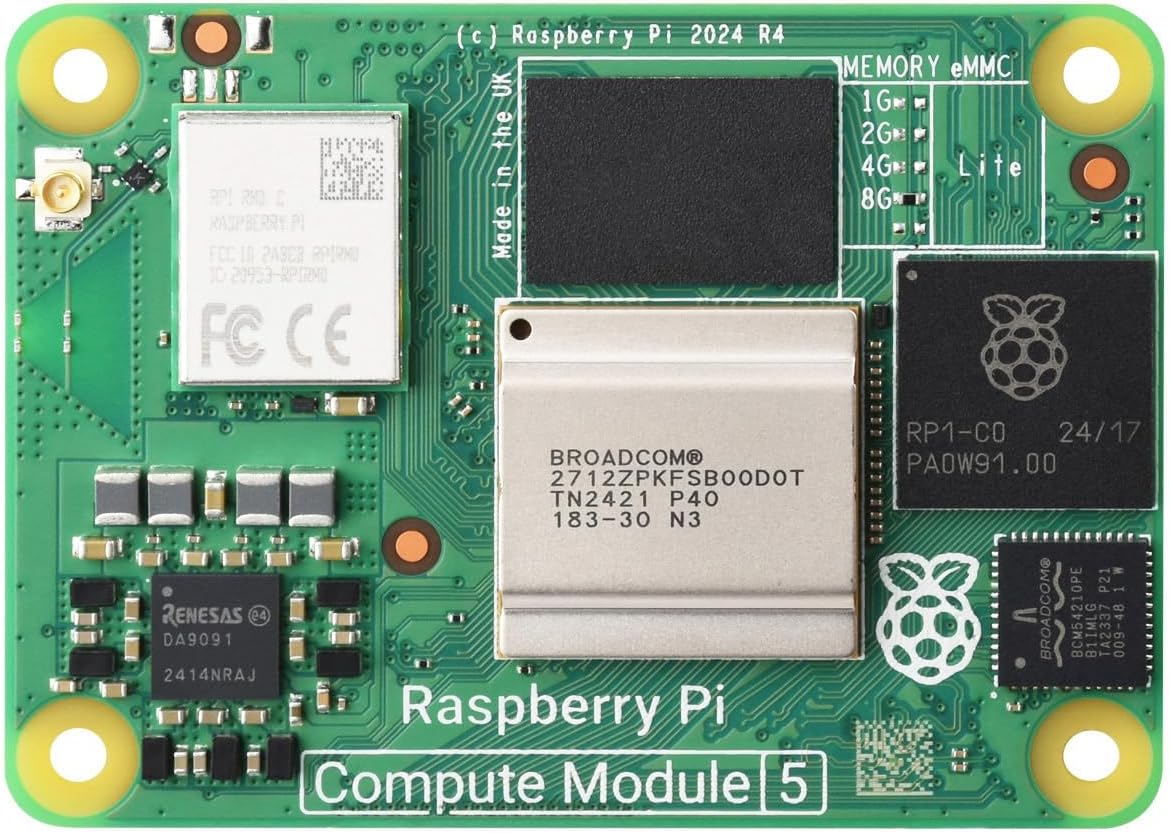

  • Raspberry Pi Compute Module 5 is a system on module (SoM) that delivers the Po-wer of Raspberry Pi 5 in a compact form factor, integrates a quad-core Arm Cortex-A76 processor, providing a variety of RAM and eMMC flash options, supports Po-wer circuitry and a rich set of interfaces.
  • Compute Module 5 enables you to leverage Raspberry Pi 5's Po-werful hardware and optimised software stack in your own custom systems and form factors.

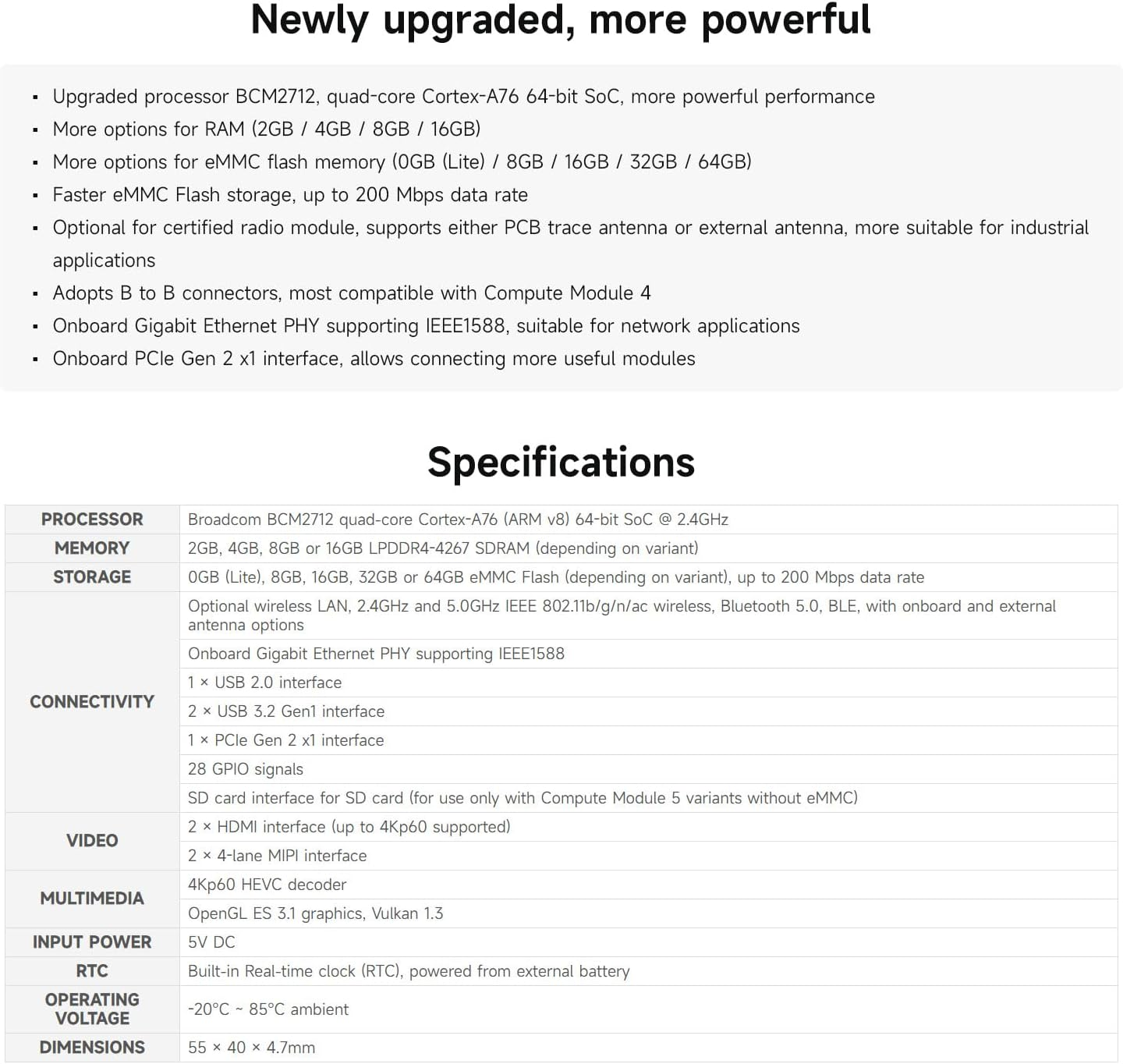

  • Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more Po-werful performance More options for RAM (2GB / 4GB / 8GB / 16GB) More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)；Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules .
  • Faster eMMC Flash storage, up to 200 Mbps data rate Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications Adopts B to B connectors, most compatible with Compute Module 4
  • Part Number: CM5108000 Package A
  • Total USB ports: 2
  • Operating System: Linux
  • Mounting Hardware: Official Raspberry Pi CM5108000, Antenna Kit, HEATSINK
  • Manufacturer reference: CM5108000 Package A
  • Batteries Included: No
  • Batteries Required: No
  • Brand: Waveshare
  • Ram Memory Installed Size: 8 GB
  • Compatible Devices: Keyboards, Mice, Displays, Storage Devices, Other devices compatible with Raspberry Pi OS
  • Connector Type: Ethernet, USB, Wi-Fi
  • Item Weight: 59 g
  • Ram Memory Technology: LPDDR4
  • Processor Count: 4
  • Wireless Type: 802.11ax
  • Model Name: CM5
  • Processor Brand: Broadcom
  • Package Dimensions: 11.1 x 8.1 x 2.9 cm; 59 Grams
  • Manufacturer: Waveshare
