Victool Voltage Arrester Device, House AC 420V Low-Voltage Arrester Device, 35Mm DIN Rail Mounting (2P40KA)
Victool Voltage Arrester Device, House AC 420V Low-Voltage Arrester Device, 35Mm DIN Rail Mounting (2P40KA)
Brand: Victool
A$17.25
- Use: The household lightning arrester is designed for Class C and Class D lightning protection. It has a potential compensation function, can respond to lightning quickly, and protect electrical systems and household appliances from damage.

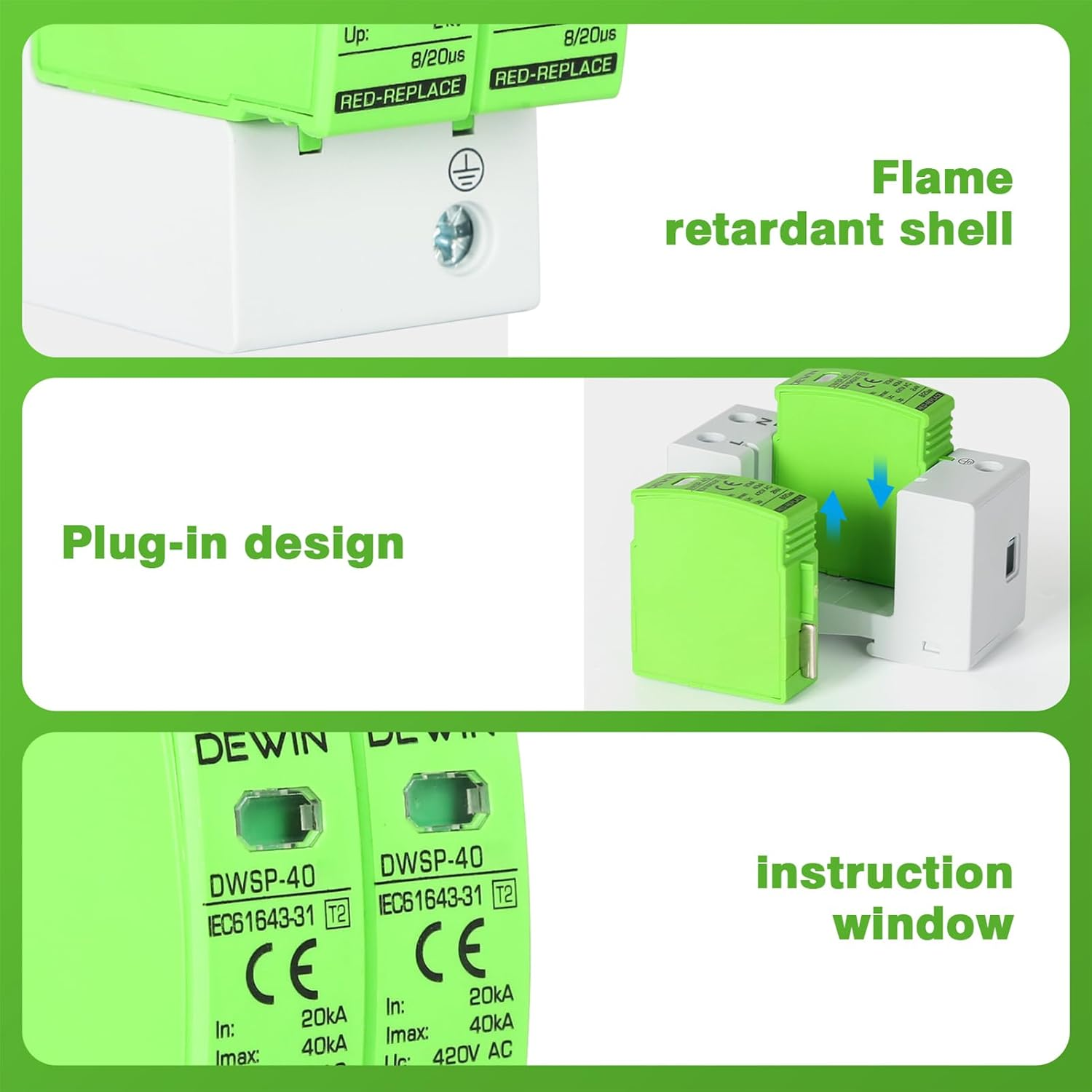

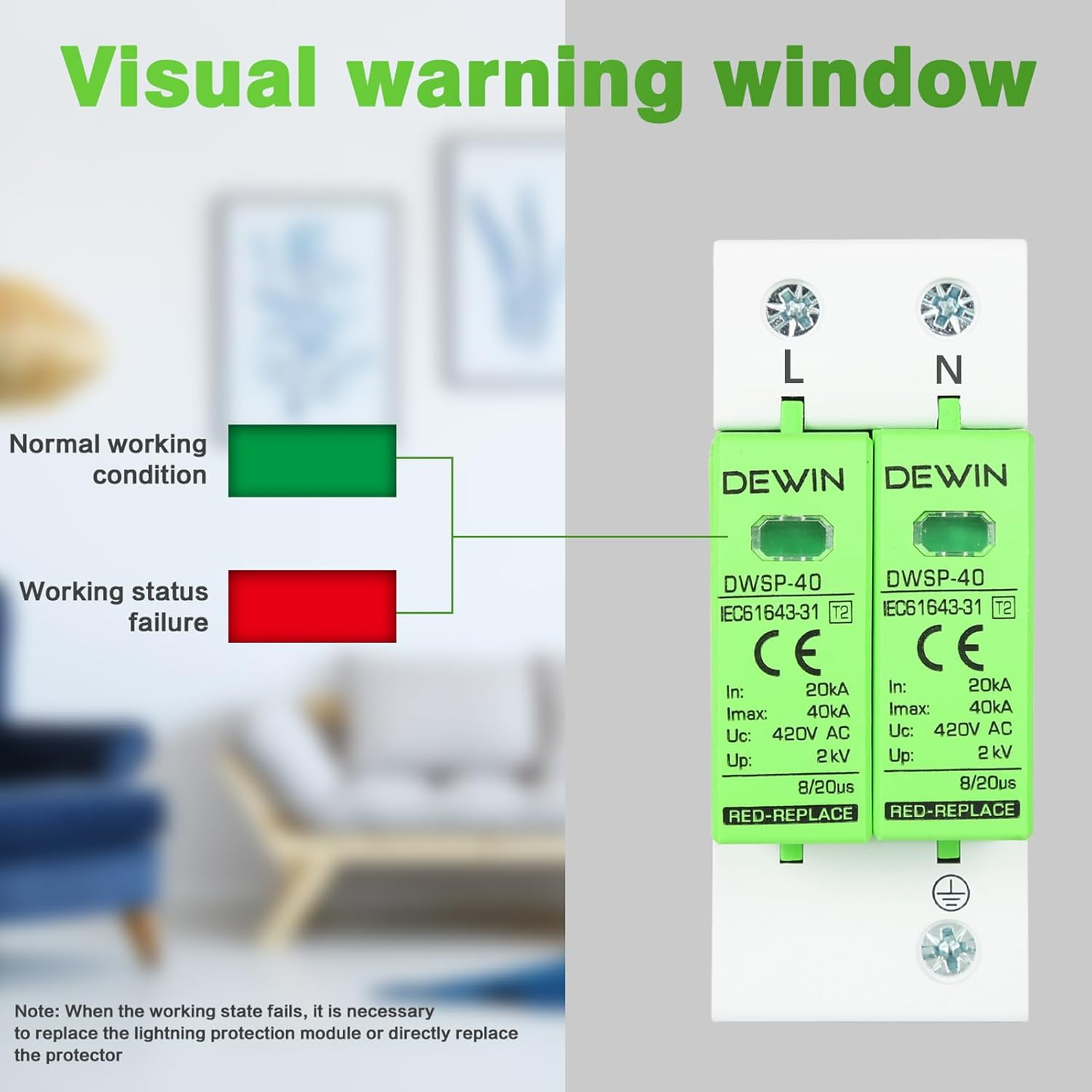

- New Design: It adopts an innovative arc design, which is both beautiful and solemn; through the visual window, the operating status of the product is clearly visible (green represents normal operation, and red indicates a fault).
- Good-quality Materials: The product terminals are equipped with copper accessories with excellent conductive properties, and the shell is made of flame-retardant PC material to ensure safe and reliable use.
- Easy Installation: The design has a 35mm standard rail mounting slot, which is suitable for a variety of distribution boxes; the lightning protection components of the lightning arrester are designed to be detachable, which is convenient for replacement after damage.

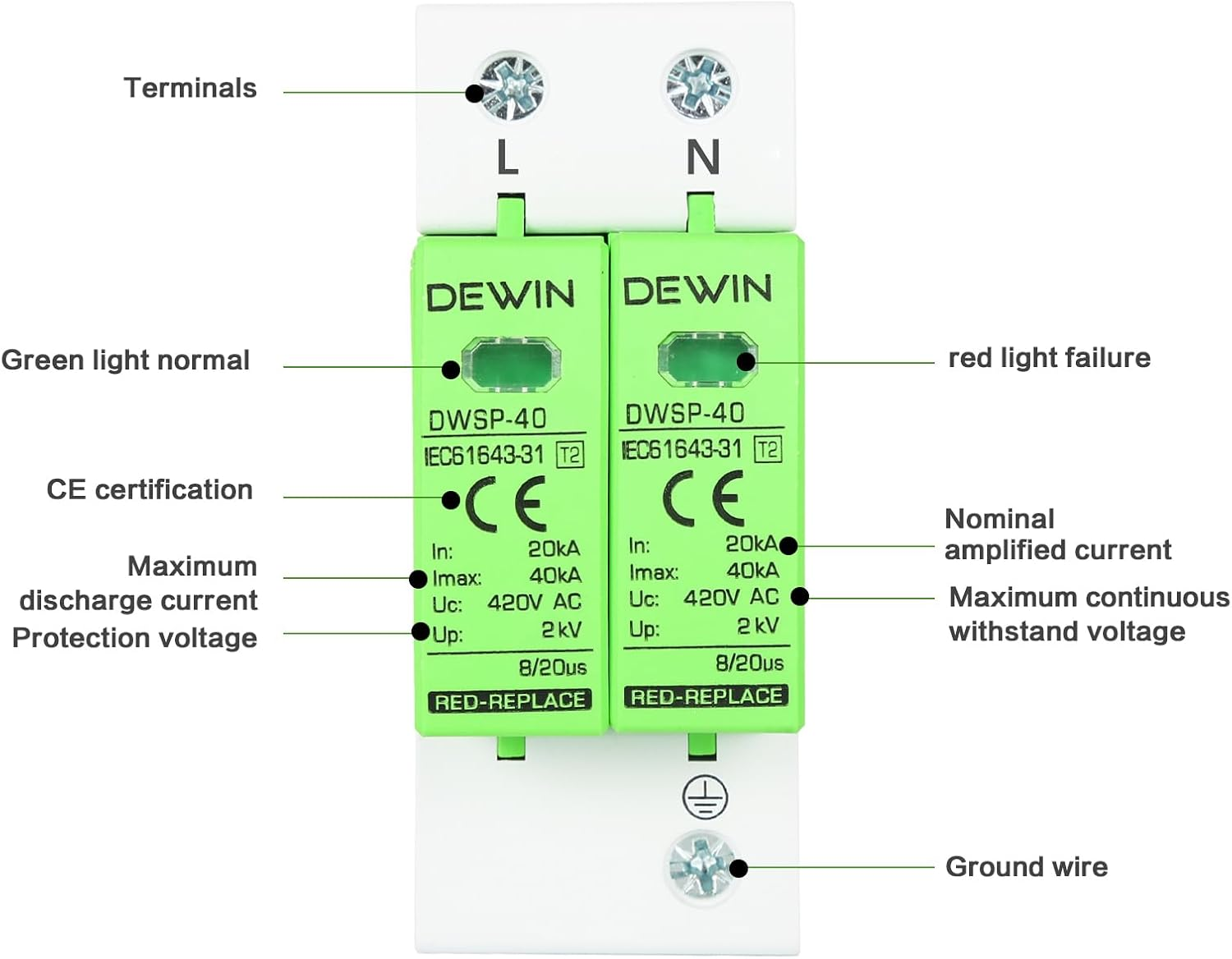

- Product Parameters: household protector; maximum continuous withstand voltage Uc: ~385V; nominal discharge current In: 20kA, maximum discharge current Imax: 40KA. This product complies with the IEC EN 61643-11 safety standard.
Product Description

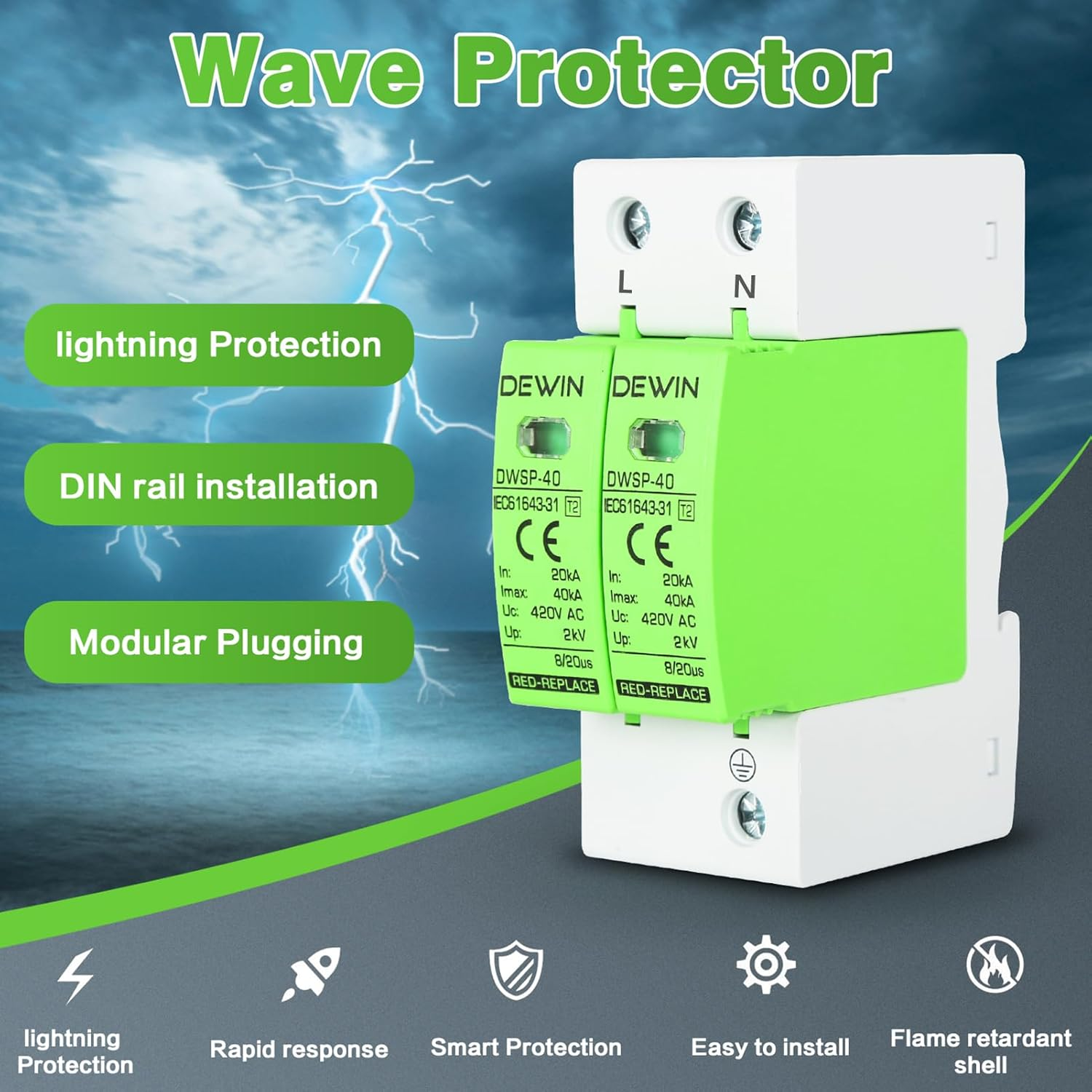

Wave Protector
- Lightning protection: By adopting advanced lightning protection technology, the wave protector can quickly guide lightning energy into the earth, thereby ensuring the safe operation of the equipment
- DIN rail installation: The installation process is easily completed, greatly saving time and energy.
- Modular plugging: The modular plugging design also facilitates the maintenance and replacement of equipment, reducing the user's operation and maintenance costs.
Specifications
- Number of poles: 2P
- Rated working voltage: 220V
- Nominal amplified current In: 20KA
- Maximum discharge current Imax: 40KA
- Response time: ≤25ns
Specifications
| Material | PC plastic + copper |
| Continuous withstand voltage | 420AC (Maximum) |
| Working temperature | -40℃-80℃ |
| Applicable wire | 4-10 square millimeters |
| Installation method | 35mm guide rail installation |
| Product function | lightning protection |
- Item Model Number: HKT-BHQ-AC420V40KA
- Part Number: HKT-BHQ-AC420V40KA
- Number of items: 1
- Batteries Required: No
- Brand: Victool
- Material Type: PC plastic + copper
- Item Weight: 233 g
- Model: HKT-BHQ-AC420V40KA
- Product dimensions: 9 x 3.5 x 0.1 cm; 233 Grams
- Manufacturer: Victool
A$17.25
