Victool Liquid Level Control Relay GRL8-01, 2 Level Control Mode, 10A AC/DC 24V-240V, Normally Open Silver Contact, DIN Rail Mount, Automatic Operation
Victool Liquid Level Control Relay GRL8-01, 2 Level Control Mode, 10A AC/DC 24V-240V, Normally Open Silver Contact, DIN Rail Mount, Automatic Operation
Brand: Victool
A$29.20
- The liquid level control relay are suitable for monitoring the liquid level of various containers such as pools, wells, water towers, reservoirs, storage tanks, etc.
- The liquid level controller relay can adjust the sensitivity through the knob, ranging from 5-100kΩ.
- The water level controller relay has stable and reliable performance and long service life.
- The status of the relay is indicated by the LED.
- The water level control relay is compact and uses a 35mm DIN rail mounting method.
Product Description

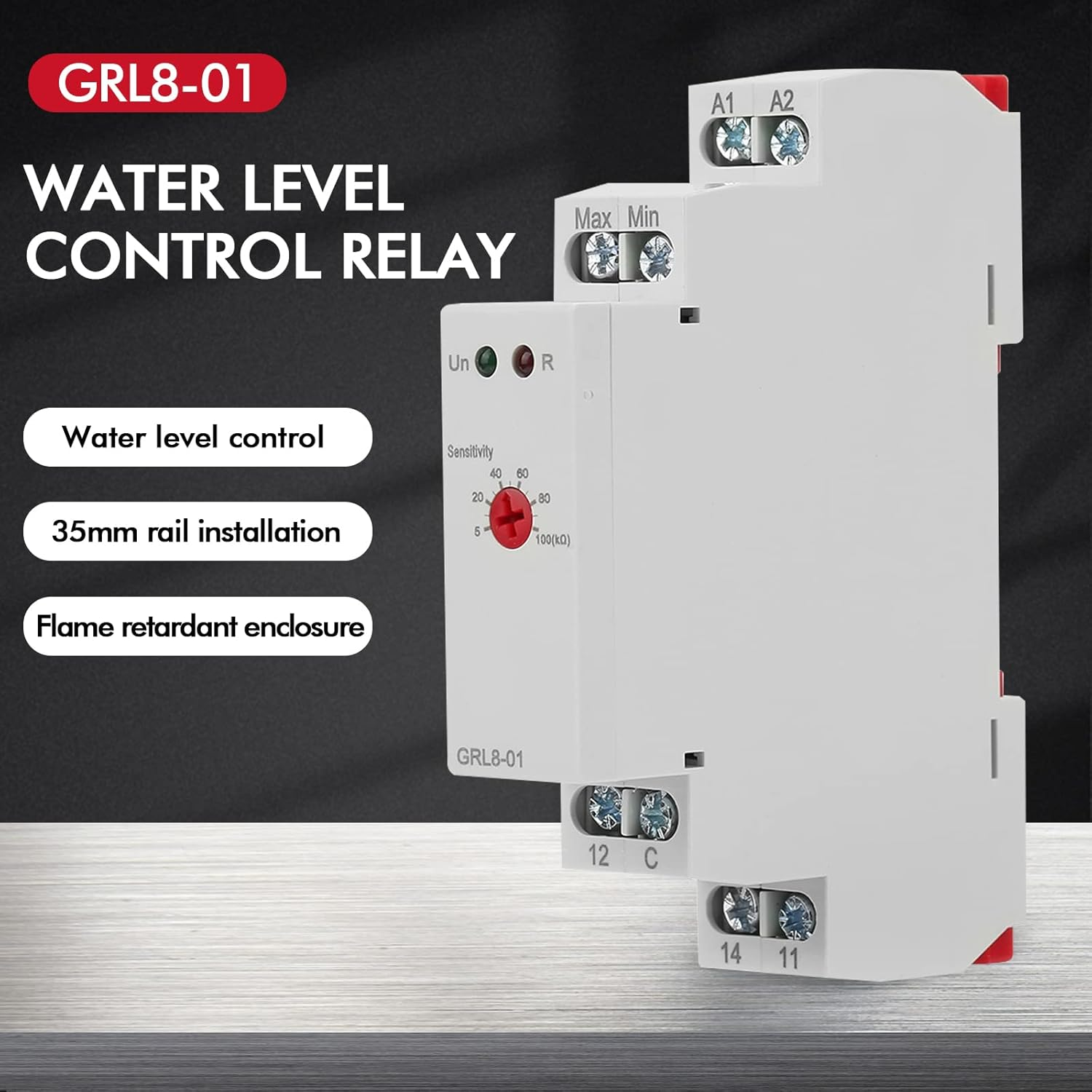

Water Level Control Relay
- Water level control: can monitor water level changes in real time to ensure that the water level is within a safe range
- 35mm rail installation: simple and fast installation, easy to install and maintain
- Flame retardant housing: effectively prevents accidental fire accidents and ensures safe operation of equipment.

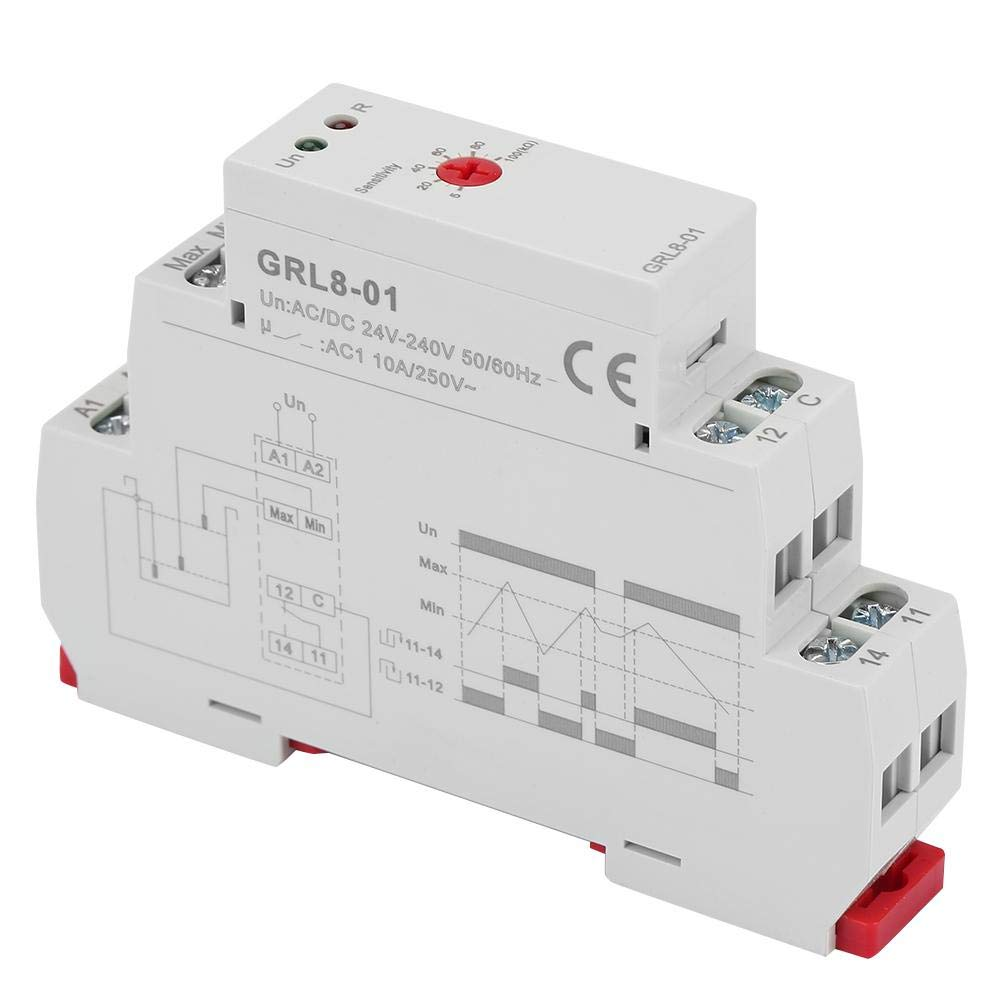

GRL8-01 Water Level Control Relay
- The relay is small and can be mounted on a 35mm DIN rail. Its compact design saves space.
- In addition, the relay has good heat dissipation performance, ensuring long-term stable operation without frequent maintenance.

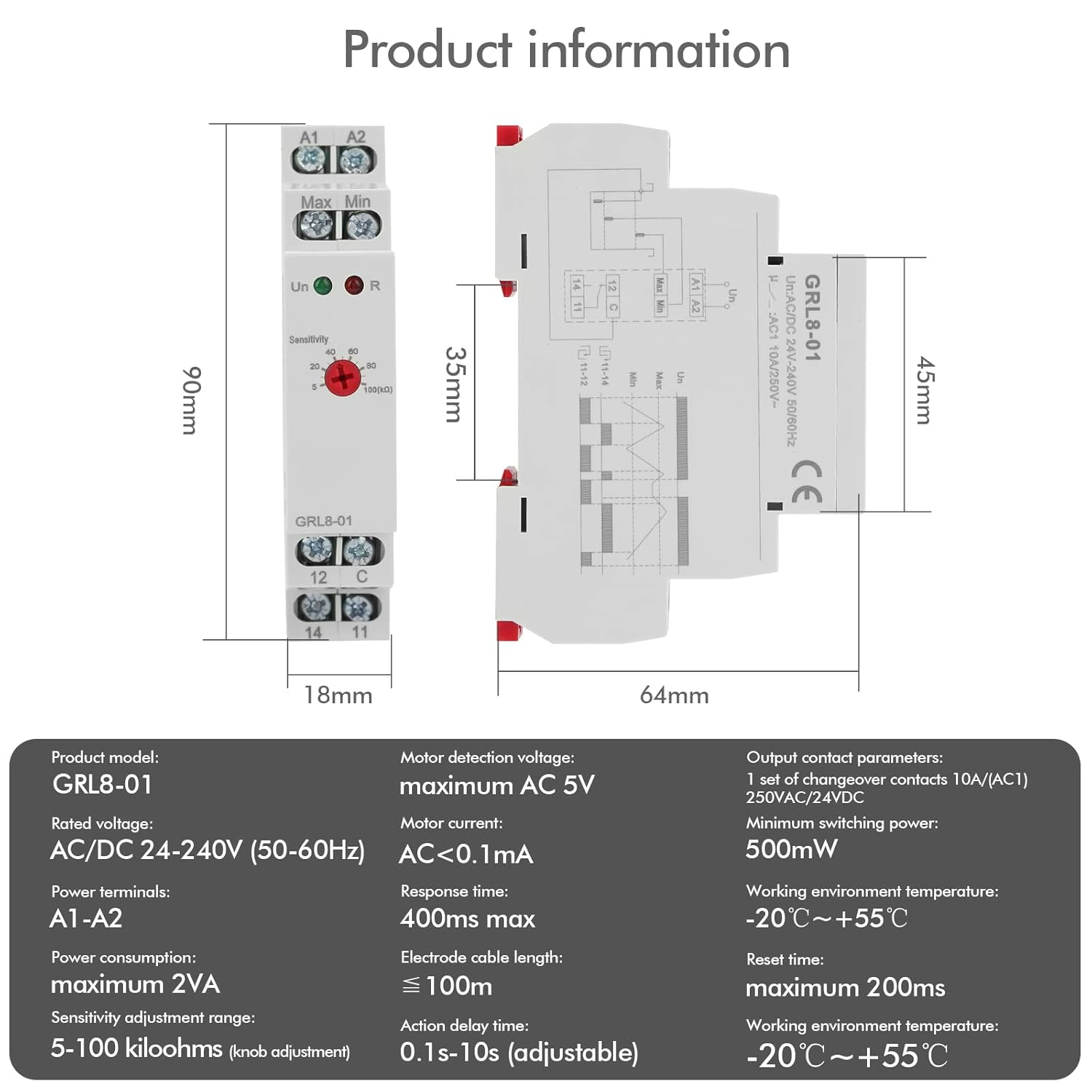

Panel Analysis
- Model: GRL8-01
- Power indicator: Green LED
- Output indication: Red LED
- Sensitivity adjustment range: 5-100kΩ
- Reset time: Max 200ms
Panel Analysis
- Power terminal: A1-A2
- Working temperature: -20℃~55℃
- Minimum switching power: 500mW
- Output contact parameters: 1 x SPDT, 10A/AC1, 250VAC/24VDC
- Electrode cable allows distributed capacitance (maximum): 800nF-100nF
Rail Installation is Quick and Easy
The width is only 18mm, which can be installed in the standard distribution box.

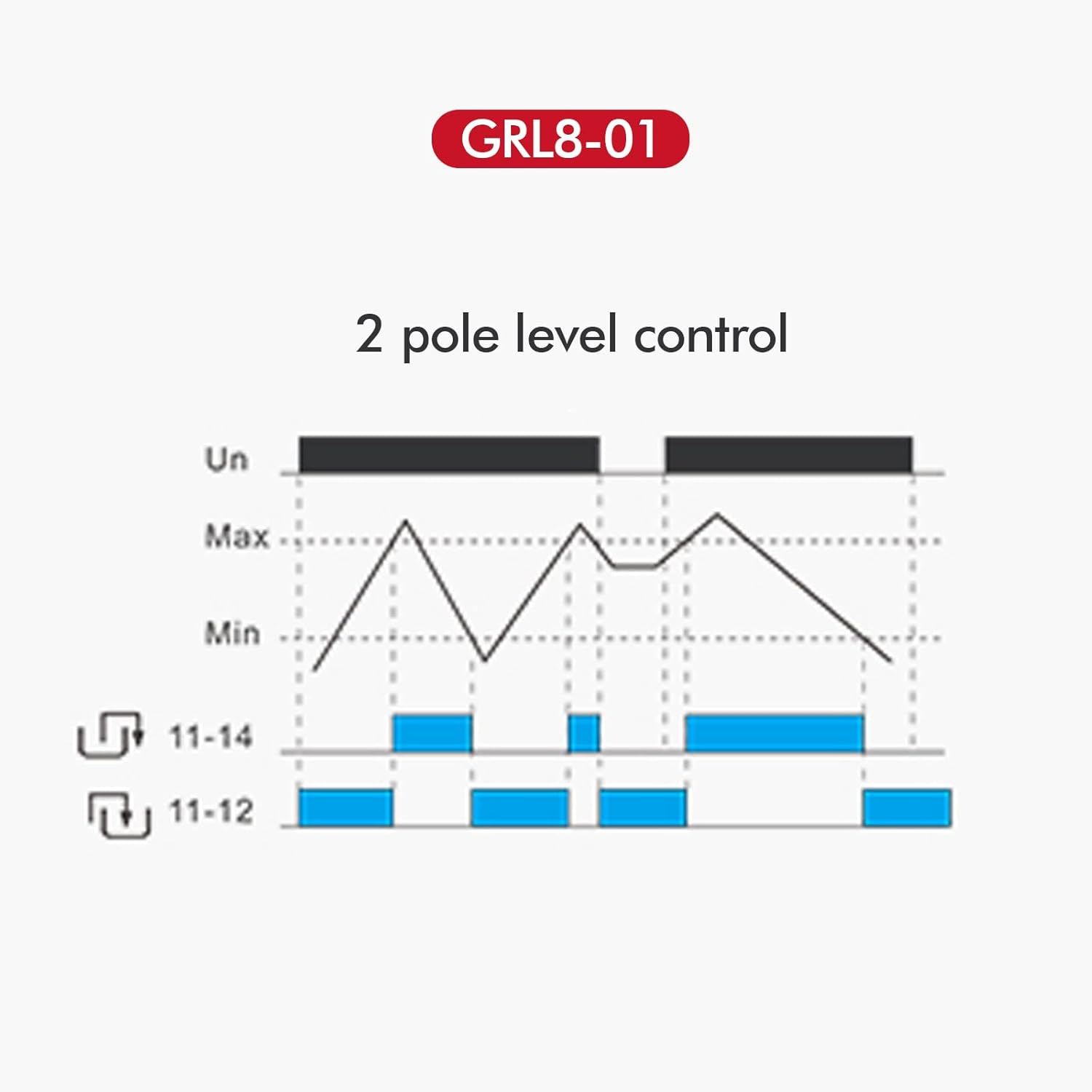

| Function | 2 level control mode |
| Rated power supply voltage | AC/DC 24-240V(50-60Hz) |
| Power consumption | Max. 2VA |
| Supply voltage tolerance | -15%; +10% |
| Voltage in electrodes | Max. AC 5V |
| Current in electrodes | Max. 0.1mA |
| Response time | Max. 400ms |
| Electrode cable length | ≤100m |
| Setting accuracy | 10% |
| Mechanical life | 1x107 |
| Electrical life | 1x106 (resistive load) |
| Mounting method | 35mm DIN rail |
| Mounting altitude | ≤2000m |
| Wiring capability | 1x2.5mm2 or 2x1.5mm2 |

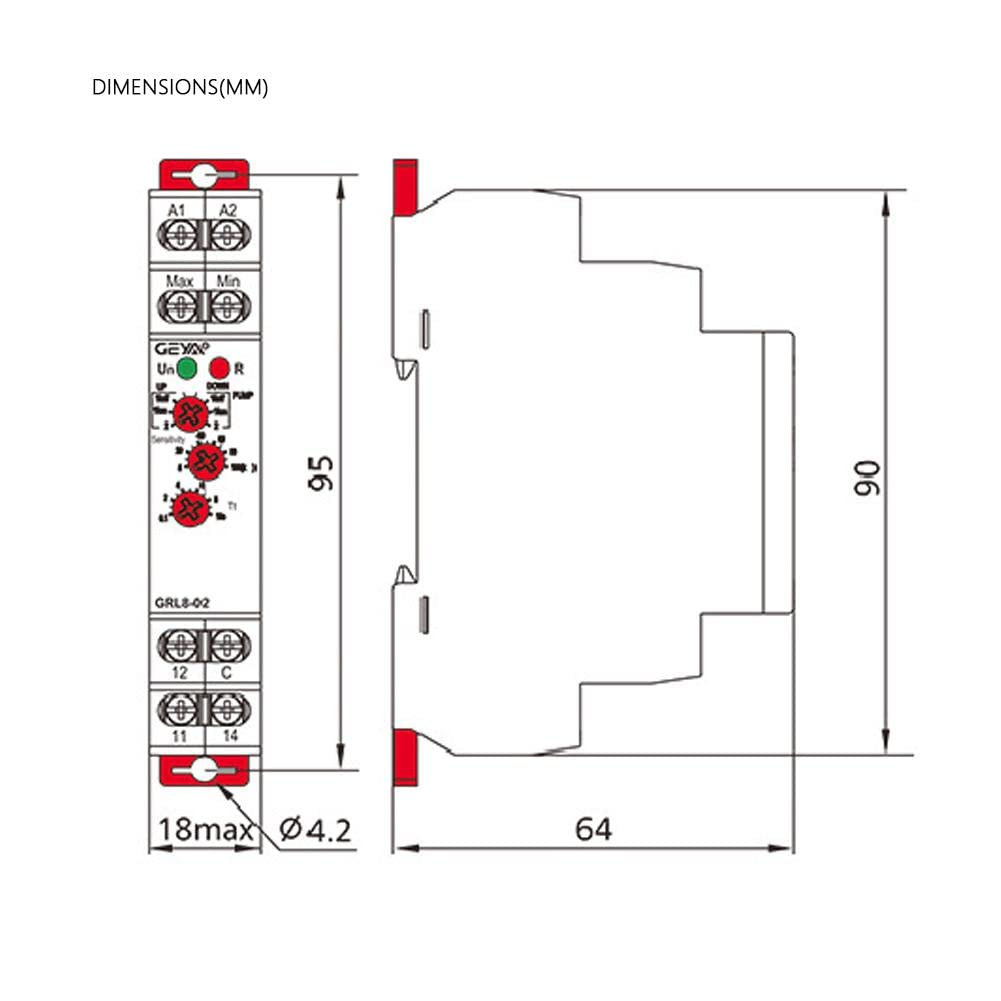

| Dimensions | 90*18*64mm / 3.54*0.71*2.52in |
| Weight | Approx. 82g/2.9oz |
Comparison
| Price | $15.99$15.99 | $15.99$15.99 | $15.99$15.99 | $15.99$15.99 | $15.99$15.99 | $12.99$12.99 | $15.99$15.99 |
| Function | 2 level control mode | 10 kinds of delay functions | Power-on/Power-off delay | Type B Delay OFF | GRT8-S1 Cycle Timer Relay | H3Y-2-SX Digital Time Relay | ALC18 Timer Switch |
| Rated power supply voltage | AC/DC 24-240V(50-60Hz) | AC 220V(50-60Hz) | AC 220V(50-60Hz) | AC/DC 12-240V(50-60Hz) | AC 220V(50-60Hz) | — | — |
| Power terminal | A1-A2 | A1-A2 | A1-A2 | A1-A2 | A1-A2 | — | — |
| Power consumption | Max. 2VA | AC max.6VA/1.3W | AC max.6VA/1.3W | AC 0.09-3VA/DC 0.05-1.7W | AC max.6VA/1.3W | — | — |
| Output contact | 1 x SPDT,10A/AC1,250VAC/24VDC | 1 x SPDT, 250VAC/24VDC | 1 x SPDT, 250VAC/24VDC | 1 x SPDT, 250VAC/24VDC | 1 x SPDT, 16A/AC1 | — | — |
| Minimum switching power | 500mW | 500mW | 500mW | 500mW | 500mW | — | — |
| Setting method | Knob | Knob | Knob | Knob | Knob | — | — |
| Power indicator | Green LED | Green LED | Green LED | Green LED | Green LED | — | — |
| Output relay indication | Red LED | Red LED | Red LED | Red LED | Red LED | — | — |
| Delay range | 0.1s-10s(Adjustable) | 0.1s-10 days | 0.1s-10 days | 0.1s-10 days | 0.1s-10 days | 0.1s-99h | — |
| Setting accuracy | 10% | 10% | 10% | 10% | 10% | — | — |
| Repeatability | — | 0.20% | 0.20% | — | 0.20% | — | — |
- Item Model Number: GRL8-01
- Product dimensions: 10 x 7.5 x 2.5 cm; 82 Grams
- Country of origin: China
- Manufacturer: Victool
