Spec:
Item Type: Fiber Optic Tool Kit
Material: ABS, Aluminum Alloy, Oxford Cloth

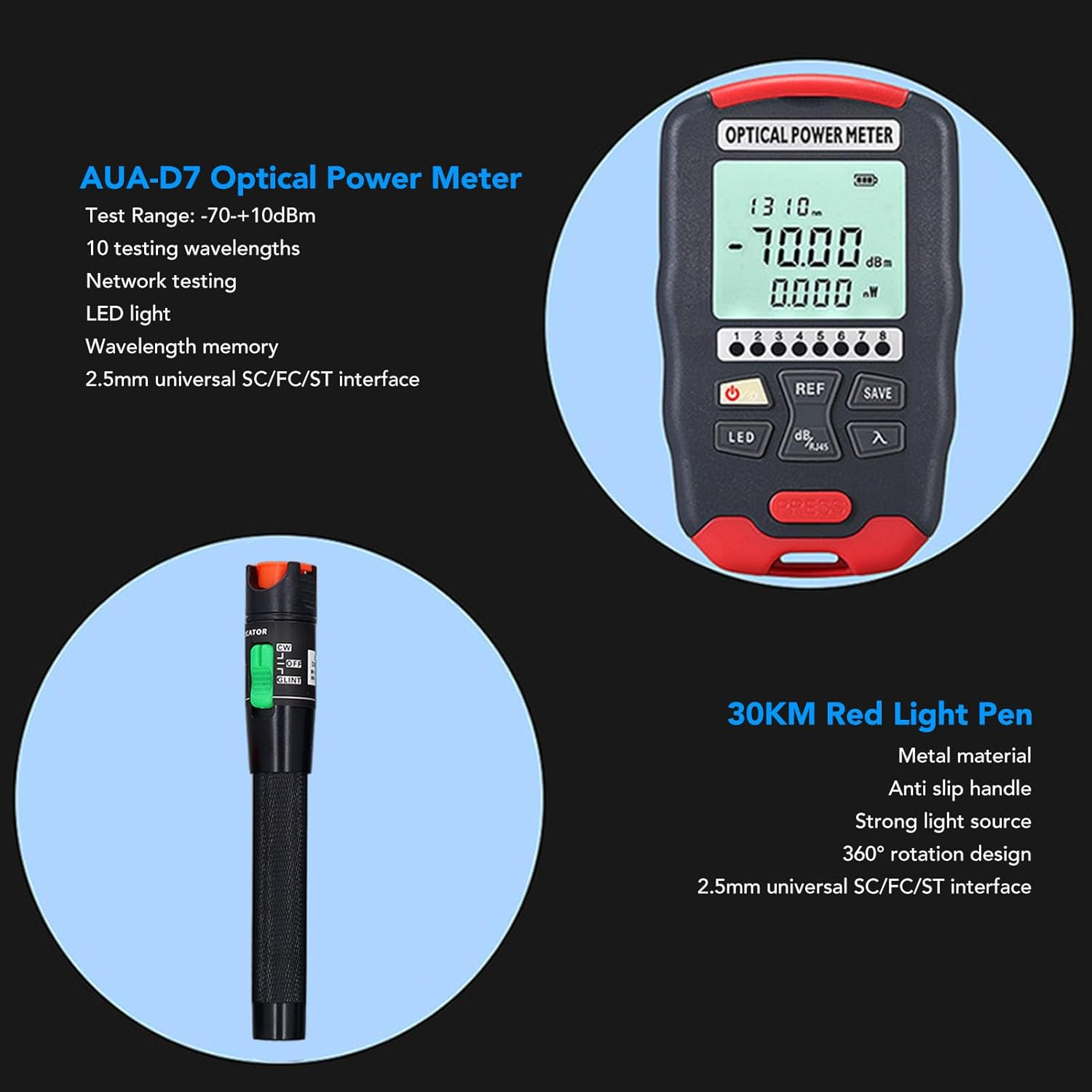

AUA D7 Optical Power Meter:
Probe Type: InGaAs
Test Range: -70~+10dBm
Wavelength Range: 850-1650nm
Standard Wavelengths (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
Display Resolution: Linear Display: 0.1% Logarithmic Display: 0.01dBm
Power Supply: AAA LithiumBattery x 2 (Without)
Output Wavelength: 650nm
Output Optical Power: >30MW
AUA 30 Fiber Optic Red Light Pen:
Output Optical Power: >30MW
Universal Interface: 2.5mm (FC SC ST)
Output Wavelength: 650nm±10nm
Fiber Optic Adapter: Universal Connector
Battery Type: AA A lkaline Battery x 2 (Without)

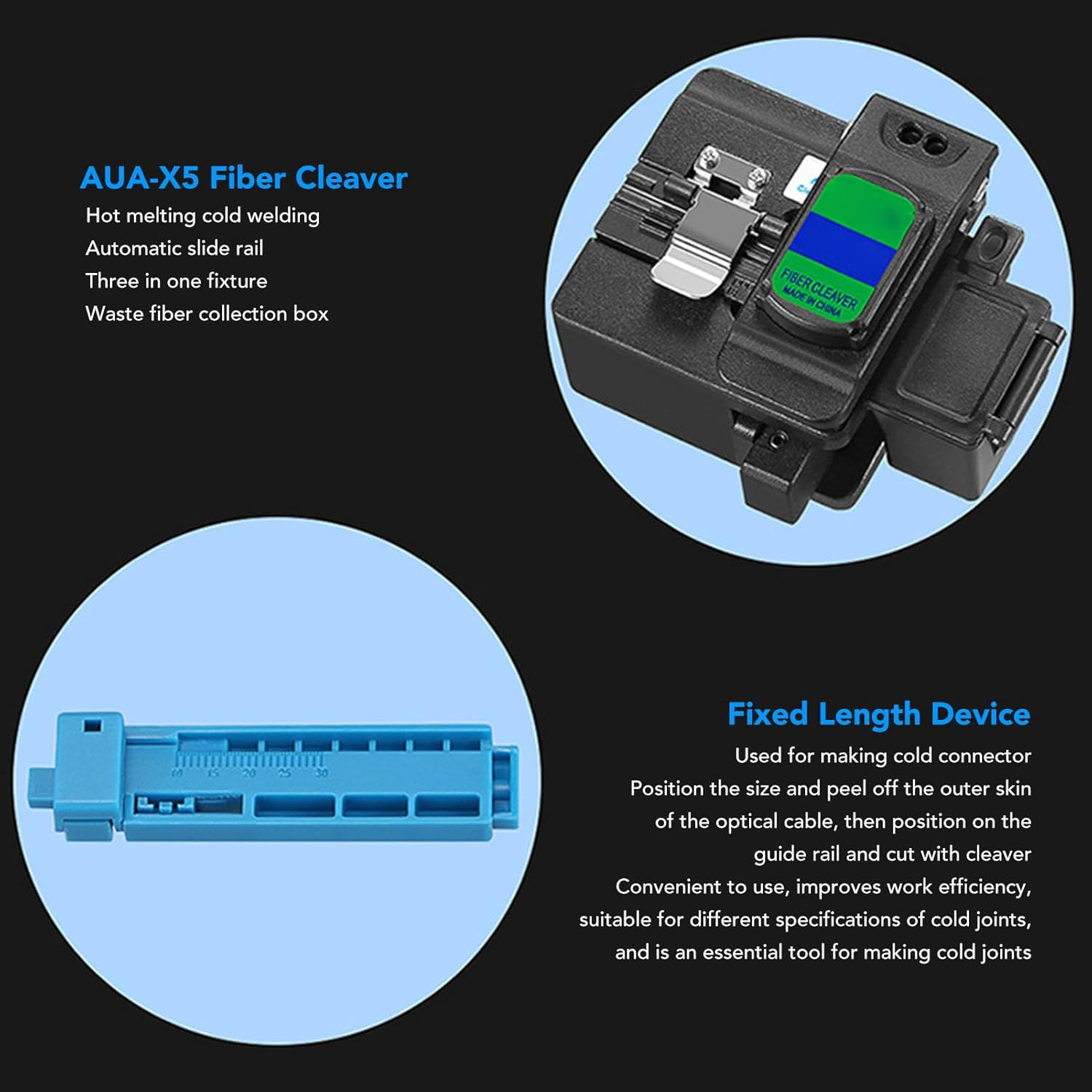

AUA X5 Fiber Cleaver:
Cutting Angle: ≤0.6°
Applicable Bare Fiber Diameter: 125μm
Fiber Optic Cutting Length: 9-16mm (Dia0.25mm), 10-16mm)(Dia0.25mm)
Application Fiber Type: 0.25 0.9mm
Cutting Frequency: 48000 Times

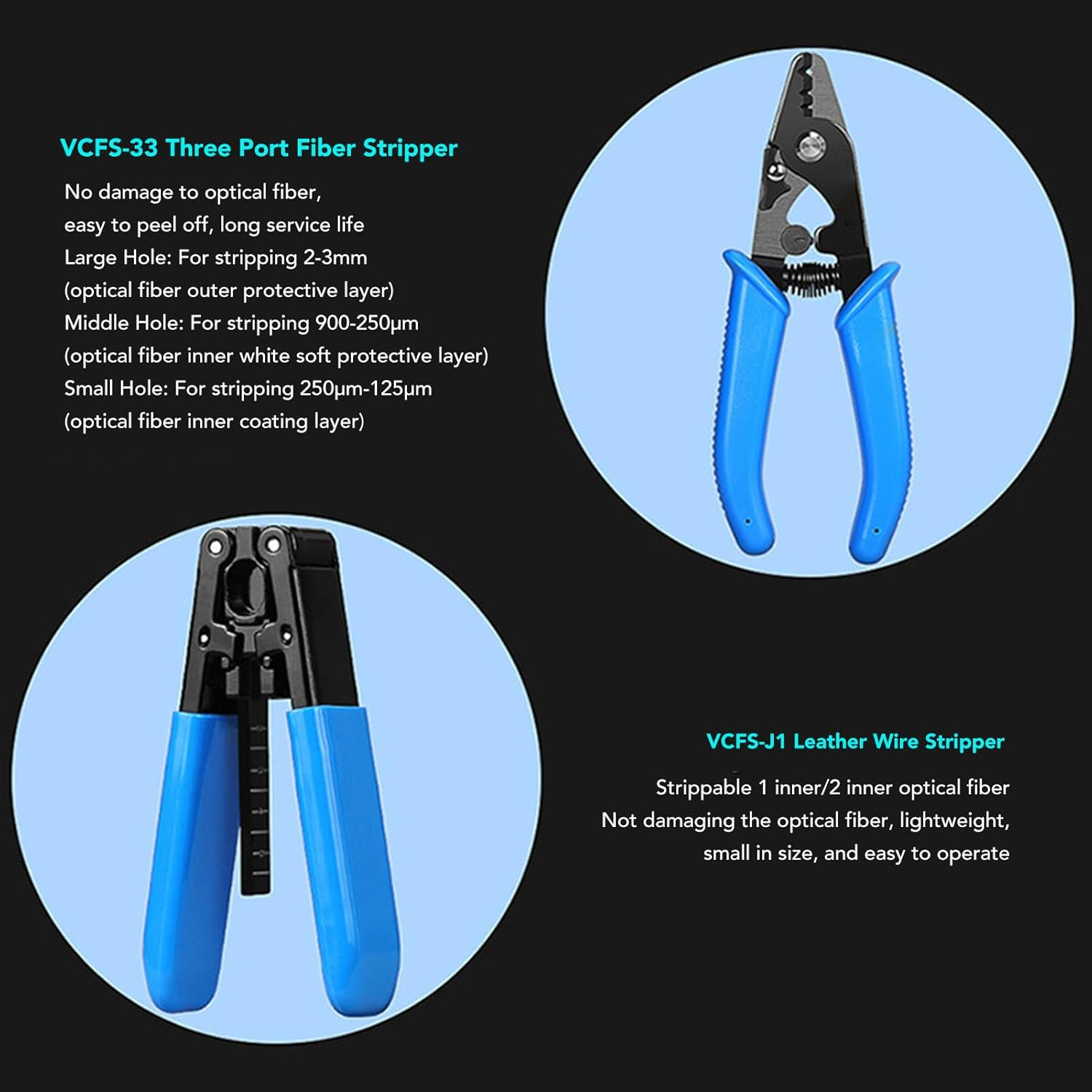

Three Hole Fiber Stripper:
Large Hole: For stripping 2-3mm (optical fiber outer protective layer)
Middle Hole: For stripping 900-250μm (optical fiber inner white soft protective layer)
Small Hole: For stripping 250μm-125μm (optical fiber inner coating layer)
Leather Wire Stripper:
Adaptive Fiber: 1, 2 Inner Fiber

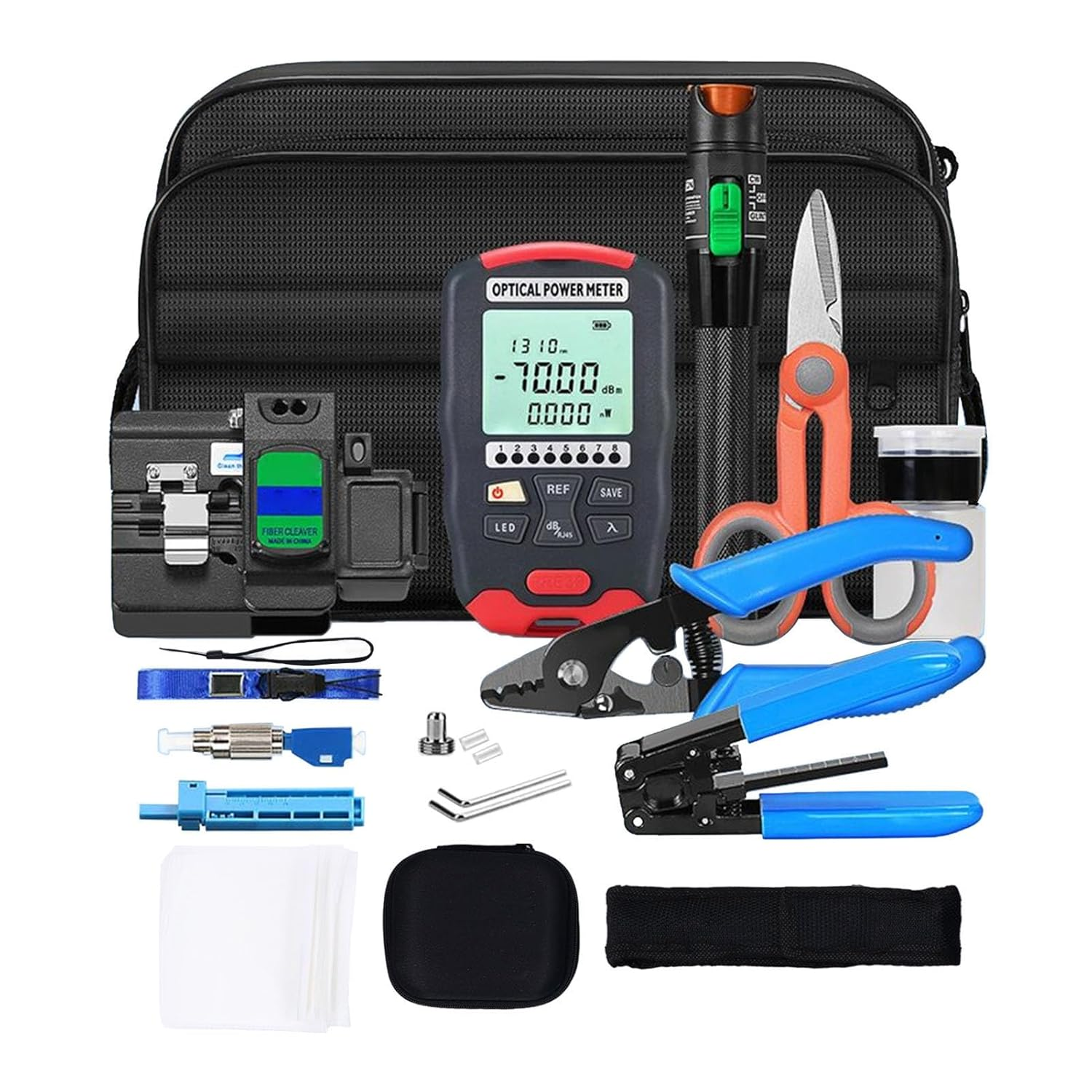

packing list:
1 x Optical Power Meter
1 x Hanging Rope
1 x OPM VFL Machine Instruction Manual
1 x Fiber Cleaver
1 x Cleaver Manual
1 x Cleaver Storage Bag
1 x Red Light Pen
1 x Pen Head
2 x Ceramic Tube
1 x Red Light Pen Manual
1 x Red Light Pen Hanging Rope
1 x Red Light Pen Storage Bag
1 x Wire Stripper
1 x Wire Stripper Instructions
1 x Three Hole Wire Stripper
1 x Fixed Length Device
1 x Alcohol Bottle
1 Pack x Dustless Paper
2 x Hex Wrench
