Features:
1.Built-in high chip for high sensitivity and accurate temperature control.
2.Support ℃/℉ temperature display.

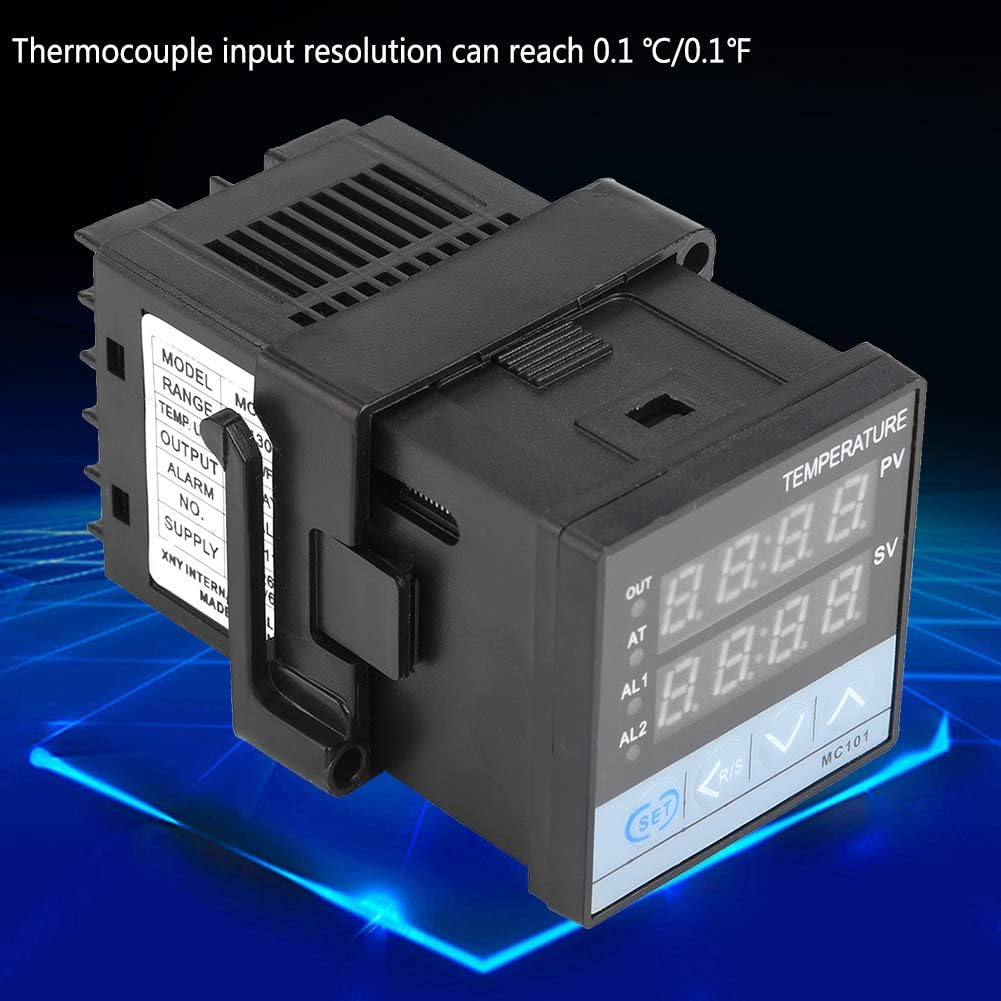

3.When the thermocouple signal is input, the resolution of digital display can 0.1 ℃/0.1℉.
4.Relay and SSR integration, users can freely use relay output or SSR output.
5.Short Cover design, only 85mm depth, easy to carry and mount.

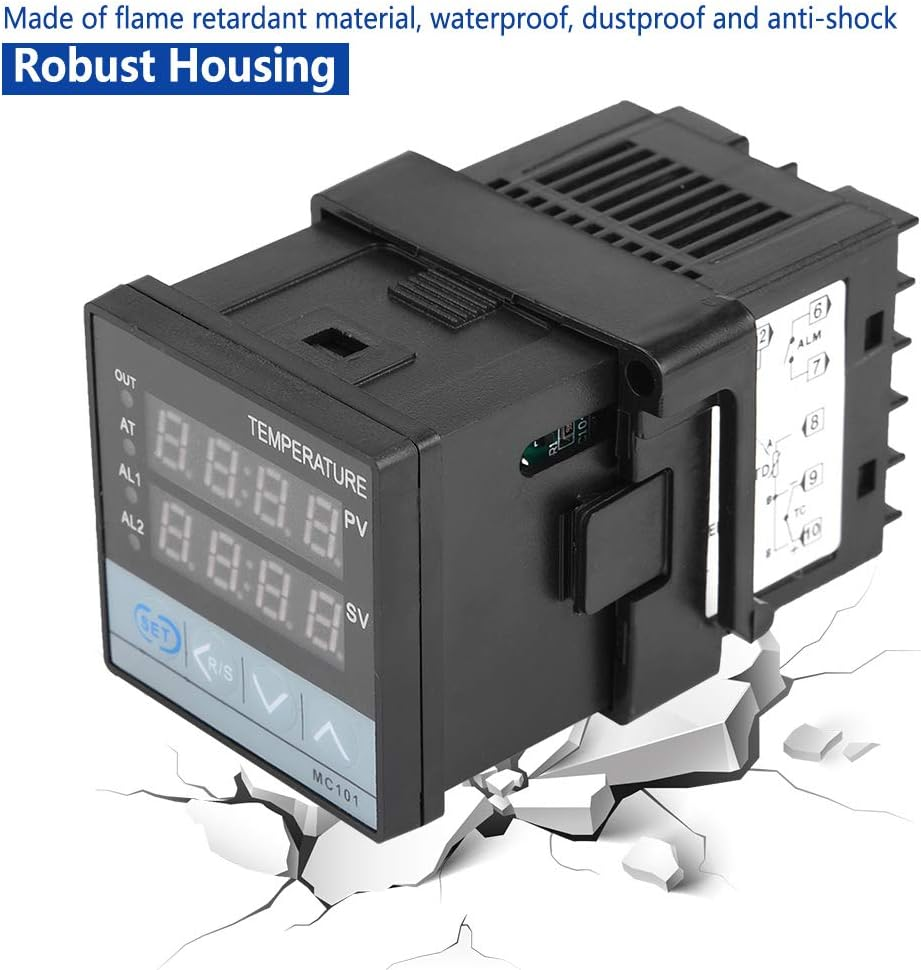

6.Robust Mystical/Fantasy-retardant housing, waterproof, dustproof and anti-shock.
Specification:
Model: MC101
Control type: temperature
Control mode: PID control and self-tuning control
Power consumption: Measurement object: temperature
Temperature range: -199~1300°C
Temperature measurement error: ±1°C
Measurement accuracy: ±0.5%FS
Working voltage: 85~265V
Output signal: Relay/SSR output
Display: °F or °C
Input: Universal input (K, E, J, N, S, T, R, B, Pt100, etc., can be changed by yourself)
Minimum resolution: 0.1°C / 0.1°F
Mounting type: embedded panel
Mounting size: 45*45mm / 1.8*1.8in
: 48*48*85mm / 1.9*1.9*3.3in
Weight: Approx. 142g/5.0oz
Package List:
1 * Digital PID Temperature Controller
Note:
1.Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2.Please allow slight error due to manual measurement. Thanks for your understanding.
