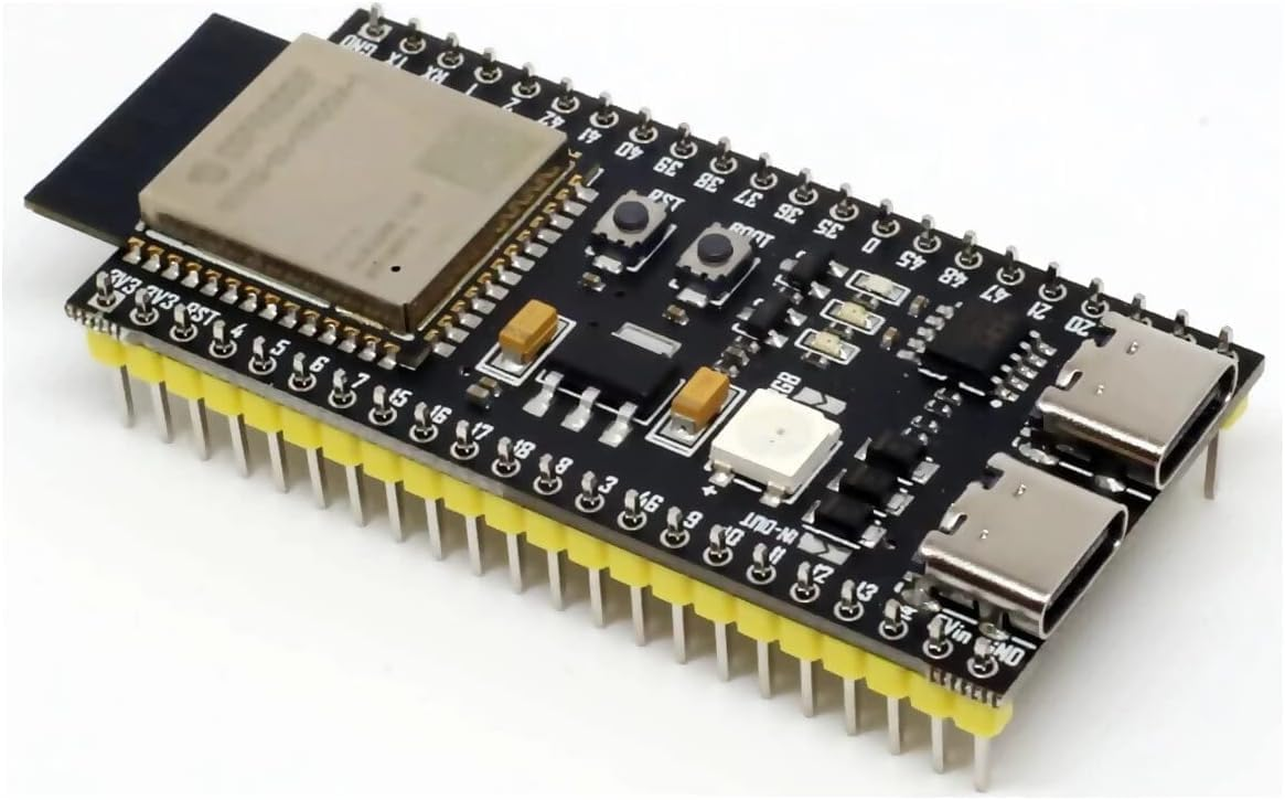

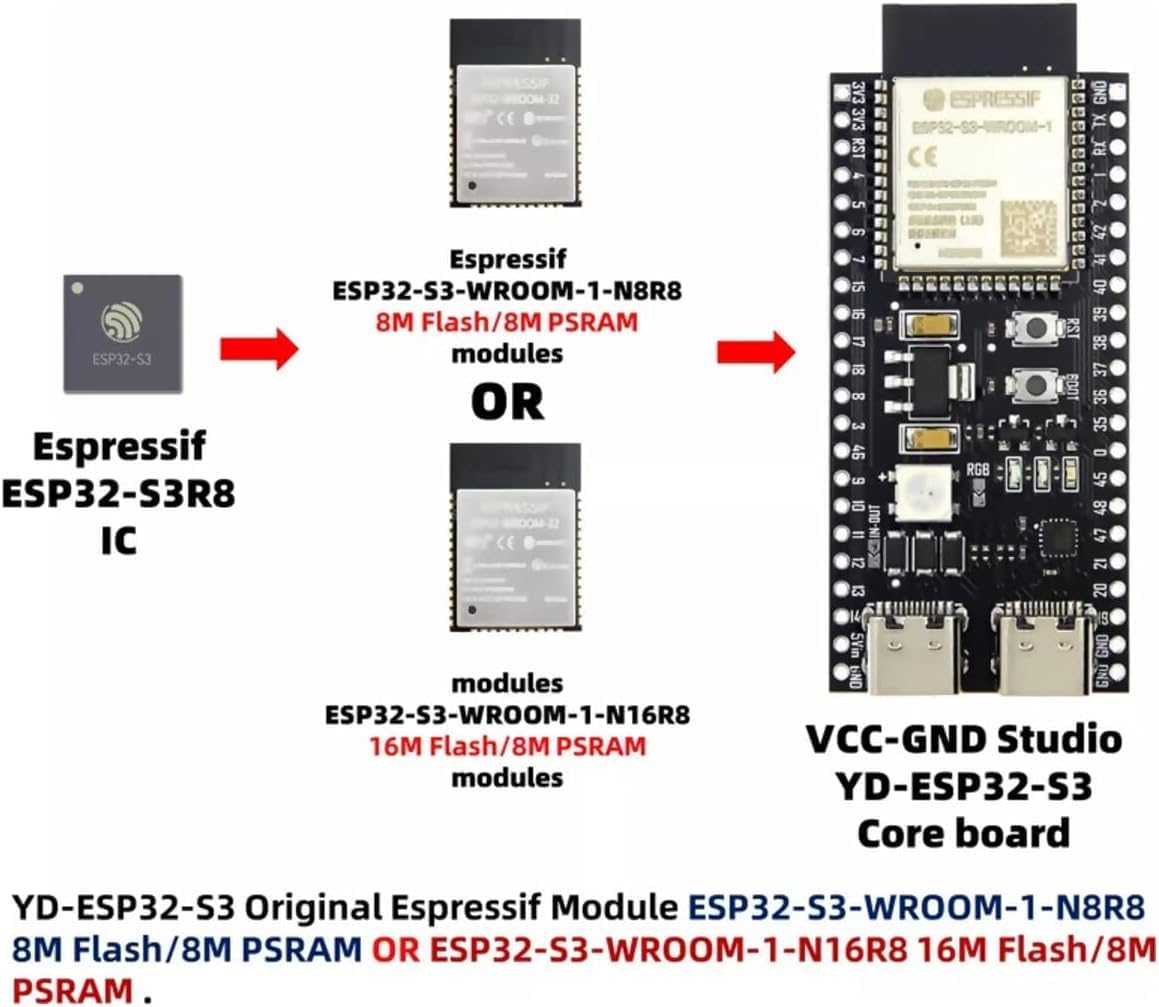

The ESP32-S3 development board is assembled with an original ESP32-S3-WROOM-1 module from Espressif, with 16MB Flash and 8MB PSRAM(ESP32-S3-WROOM-1-N16R8). It is a general-purpose Wi-Fi + Bluetooth® LE MCU module that integrates complete Wi-Fi and Bluetooth LE functions.

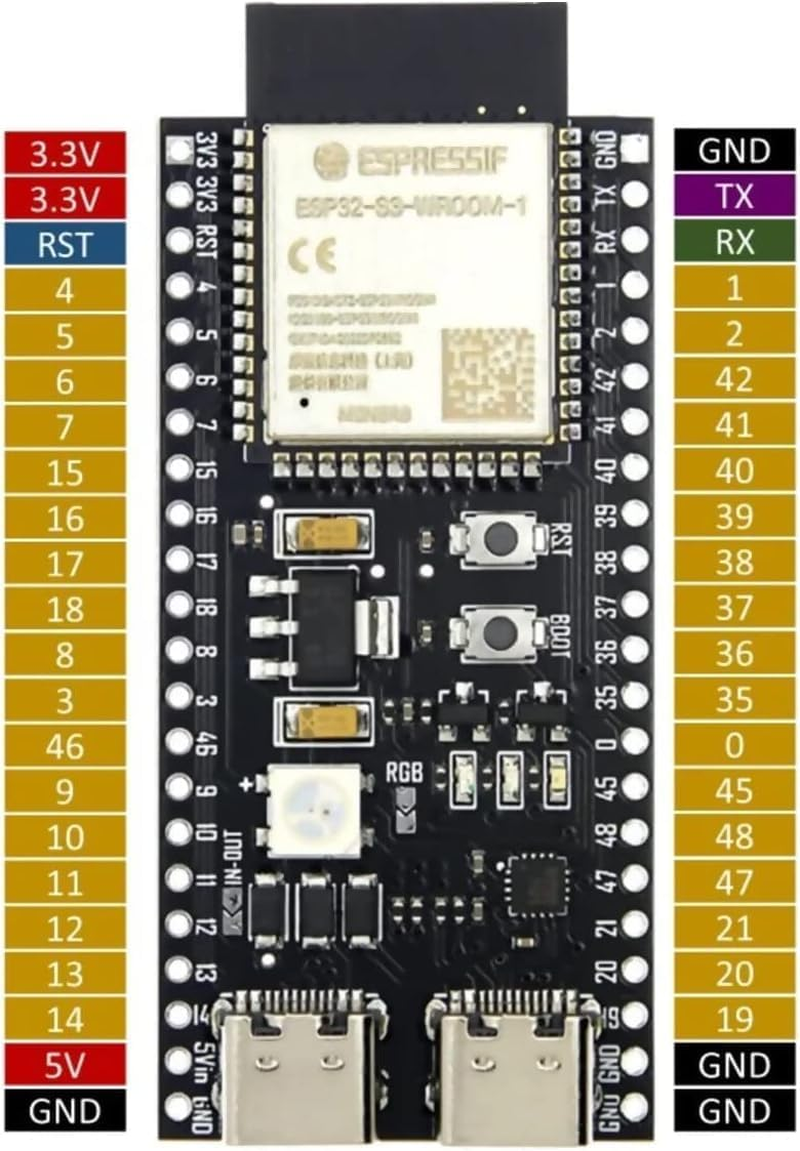

Most of the I/O pins on the module are broken out to the pin headers on both sides of this board for easy interfacing. Developers can either connect peripherals with jumper wires or mount the module on a breadboard.

The ESP32-S3 is a dual-core XTensa LX7 MCU, capable of running at 240 MHz. Apart from its 512 KB of internal SRAM, it also comes with integrated 2.4 GHz, 802.11 b/g/n Wi-Fi and Bluetooth 5 (LE) connectivity that provides long-range support. It has 45 programmable GPIOs and supports a rich set of peripherals. ESP32-S3 supports larger, high-speed octal SPI flash, and PSRAM with configurable data and instruction cache.

There is a RGB WS2812 LED connected to IO38. It has a Red, Green and Blue LED that are individually addressable. There are plenty of examples on the internet showing how to drive a WS2812 LED. For example, Google "WS2812 Arduino" or "WS2812 c code".

Download button: Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port.

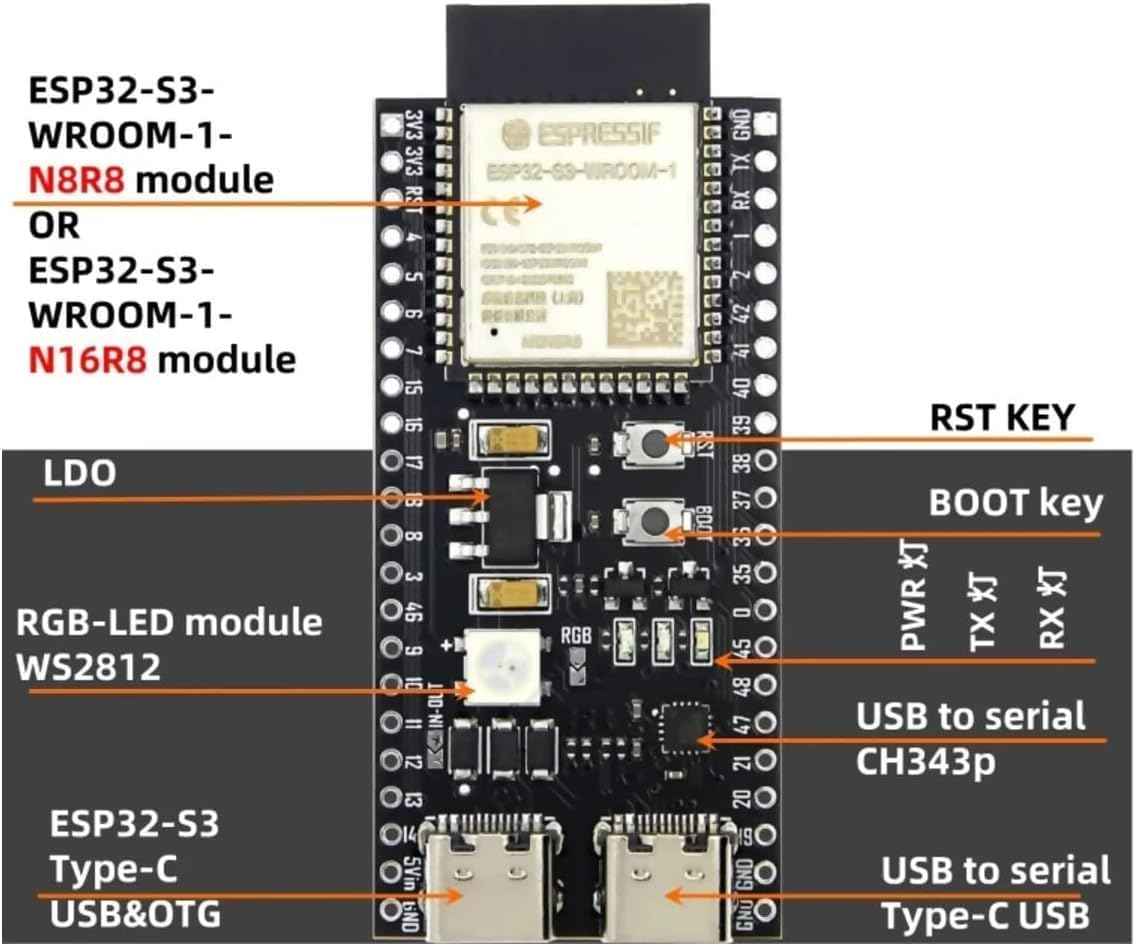

This module has 2 USB Type C connectors. The first one is used to power the board, for flashing applications to the chip, as well as for communication with the chip via the on-board USB-to-UART bridge. It is connected to a UART of the ESP32 chip via a CH340 chip. The second USB connector is connected to the ESP32-S3 full-speed USB OTG interface, compliant with the USB 1.1 specification. It can also be used to power the board, for flashing applications, for USB 1.1 communication protocols, as well as for JTAG debugging.

PDF Schematics: 99tech.com.au/m/esp32-s3-yd_schematics.pdf
