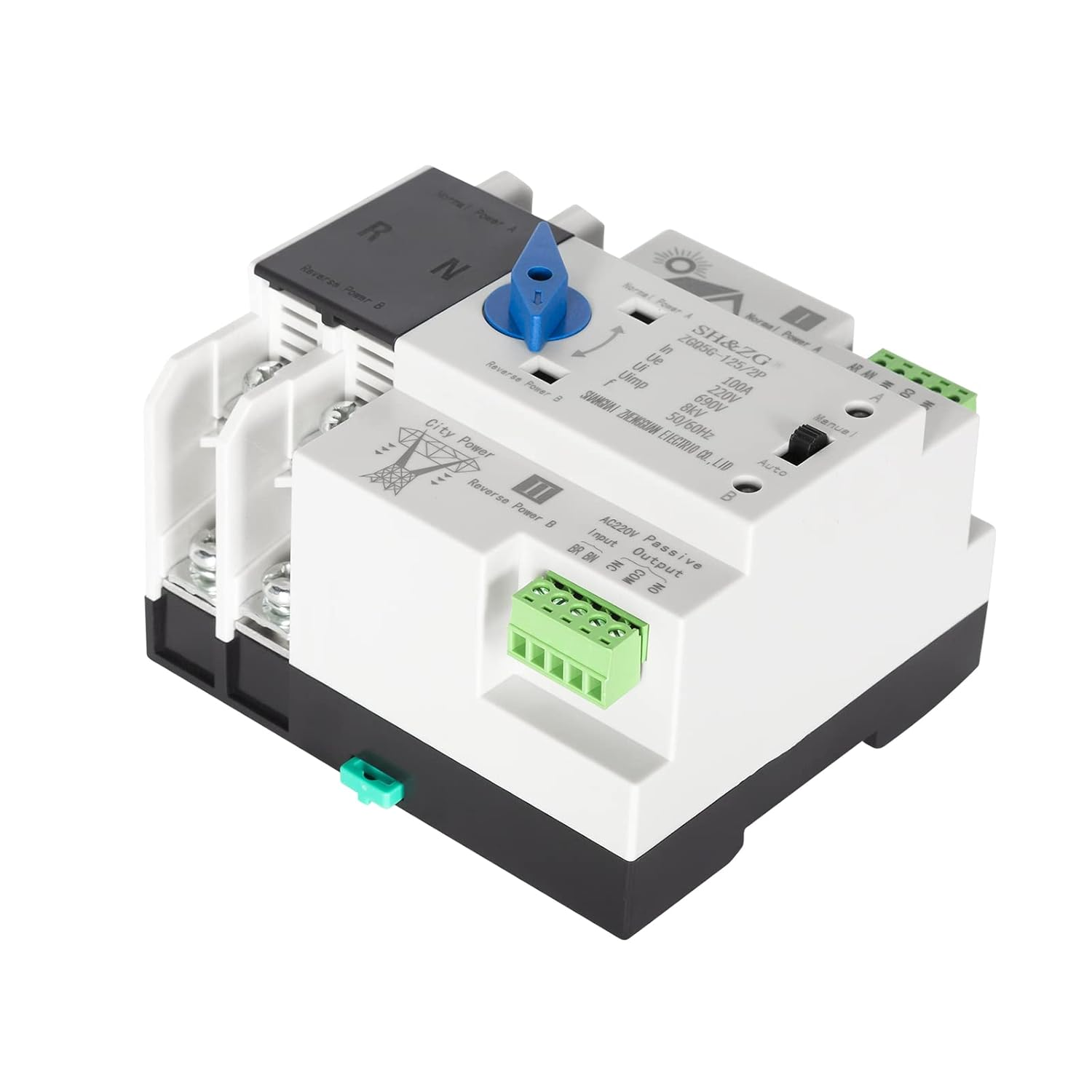

Inncen Dual Power Automatic Transfer Switch 220V Photovoltaic Uninterrupted Power Switch((Zgq5G-100A/2P)
Inncen Dual Power Automatic Transfer Switch 220V Photovoltaic Uninterrupted Power Switch((Zgq5G-100A/2P)
Brand: Inncen
A$61.75
- 【Installation Size】The dual power transfer switch is installed on a 35mm rail with built-in buckles. Height 76mm, please check the size of the distribution box before purchasing to avoid the distribution box being unable to close normally.
- 【Application Areas】This product is a photovoltaic dual power automatic transfer switch, which can be connected to UV, inverter, solar energy, photovoltaic as the main power supply, and mains or generator as a backup. It has passed CE certification and is safe and reliable.
- 【Technical Parameters】Cable cross-sectional area 6-16mm²; current 100A; voltage 220V AC; insulation voltage 690V AC; frequency 50/60Hz; impulse withstand voltage 8kV; life electrical 2000 times, mechanical 5000 times.
- 【Fast Switching】The switch response time is ≤0.05(S). When the common power supply is abnormal, the emergency power supply will work immediately to ensure the continuity, reliability and safety of power supply.
- 【Flame Retardant Material】flame retardant plastic is selected, with good insulation, high temperature aging resistance, safe and reliable; silver contacts improve conductivity and life.
- 【Widely Applicable】photovoltaic power supply areas, such as homes, pastoral areas, islands, factories, office buildings, etc.
Product Description
Integrated design
Small size and light weight
Quality Comparison
- OUR:
Switching speed in milliseconds, small size, can be installed in the guide rail or PZ30 box.
- OTHER:
Switching speed > 150 milliseconds, large size, troublesome installation and transportation, and high cost.

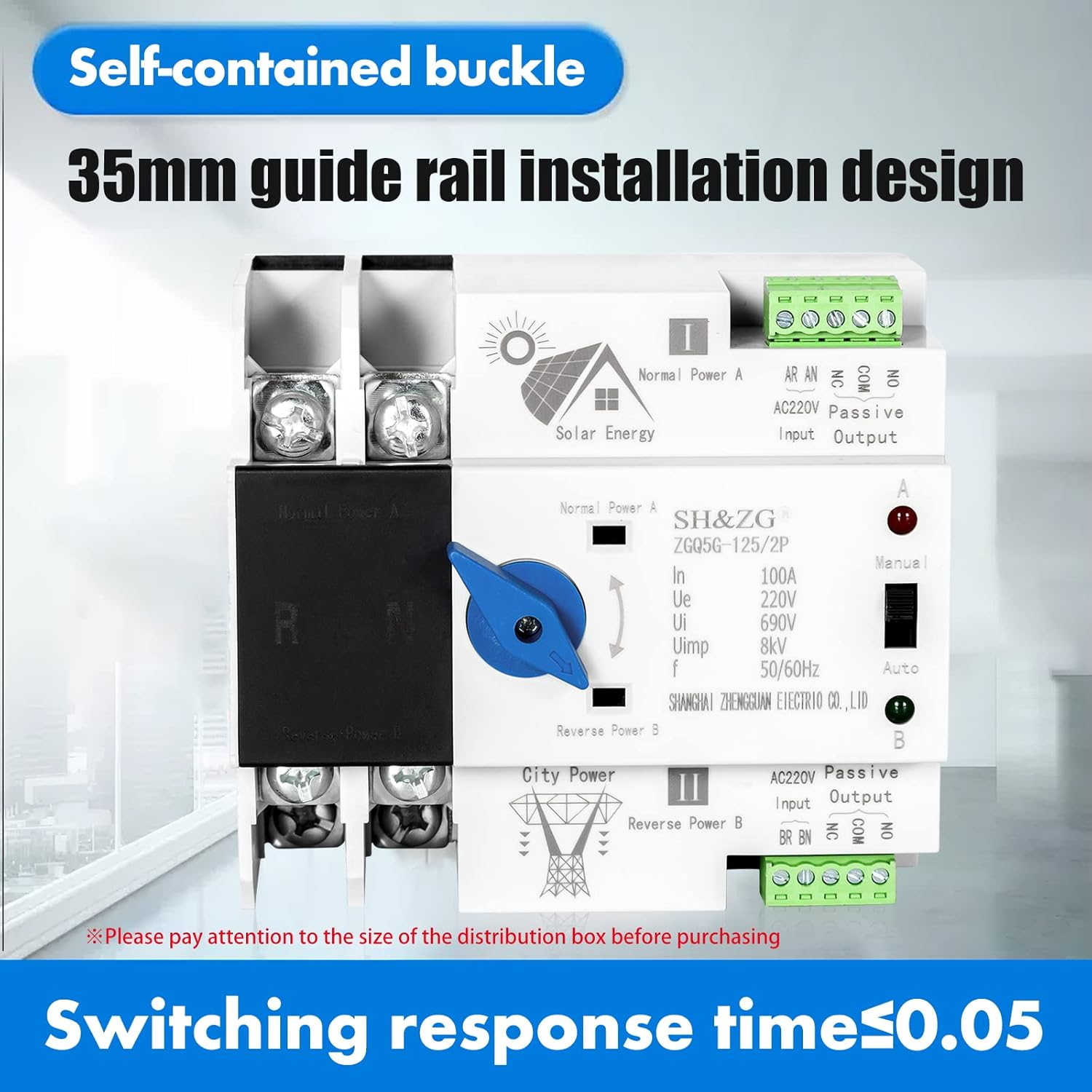

Self-contained Buckle
Switching response time≤0.05

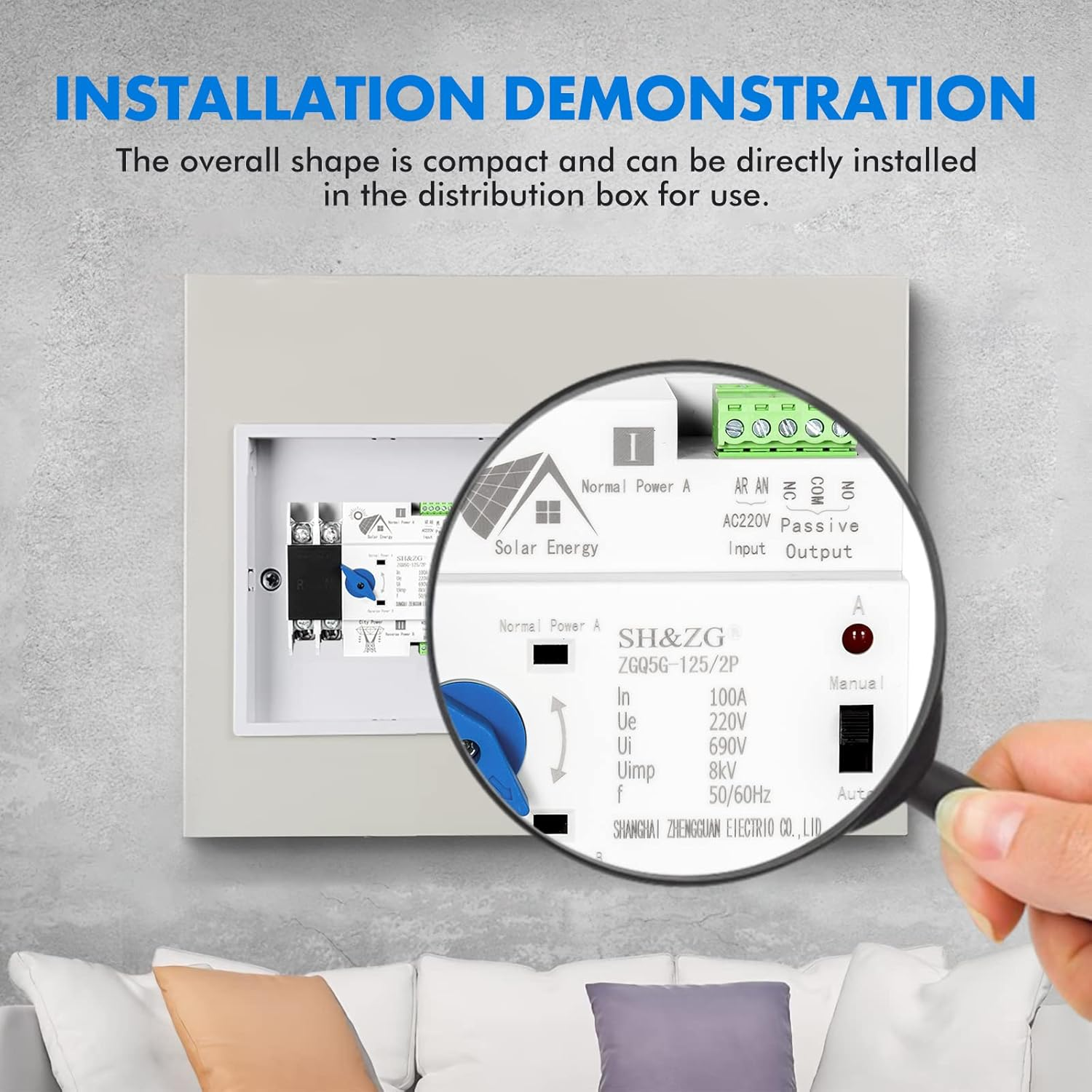

- Note:
Please pay attention to the size of the distribution box before purchasing

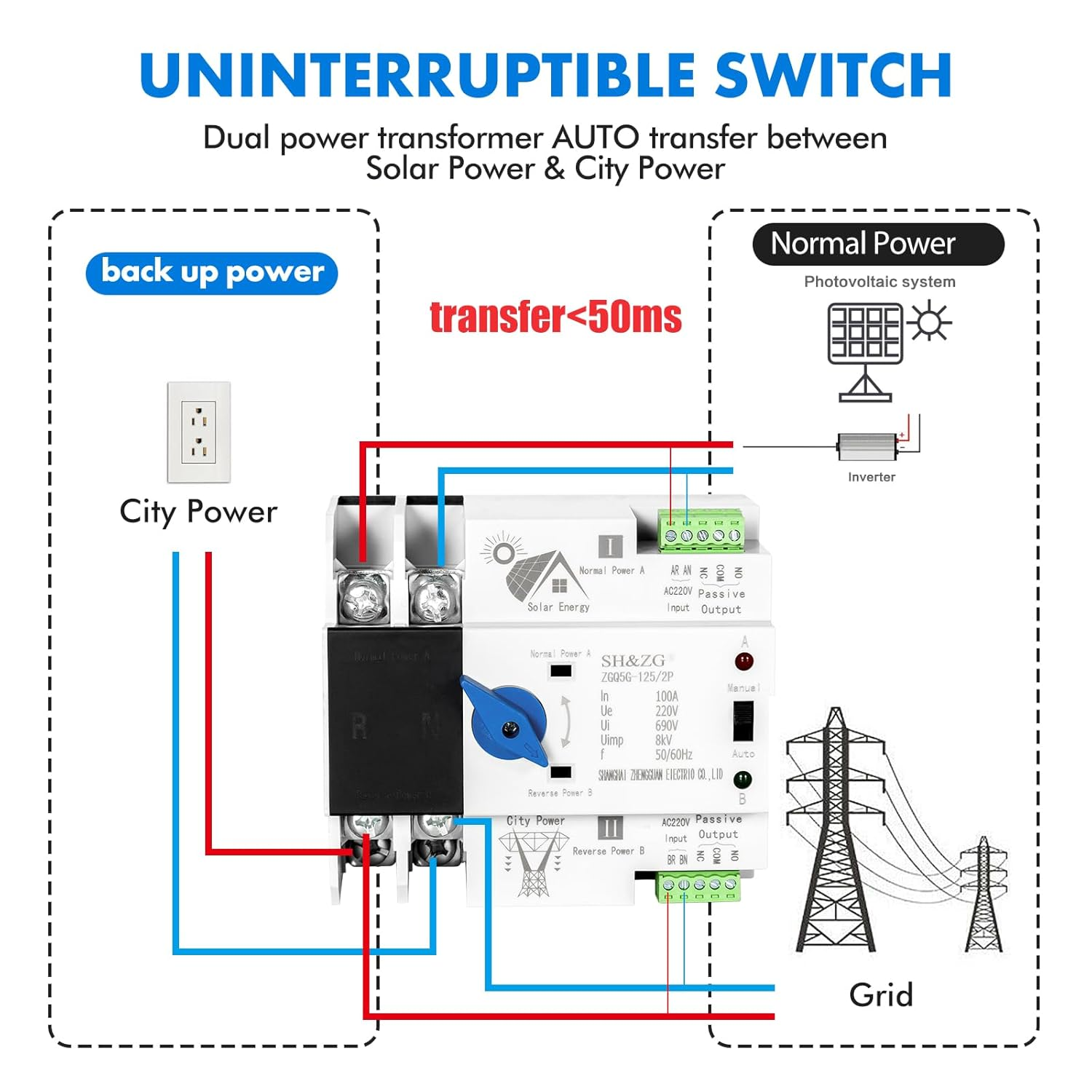

Wiring Diagram

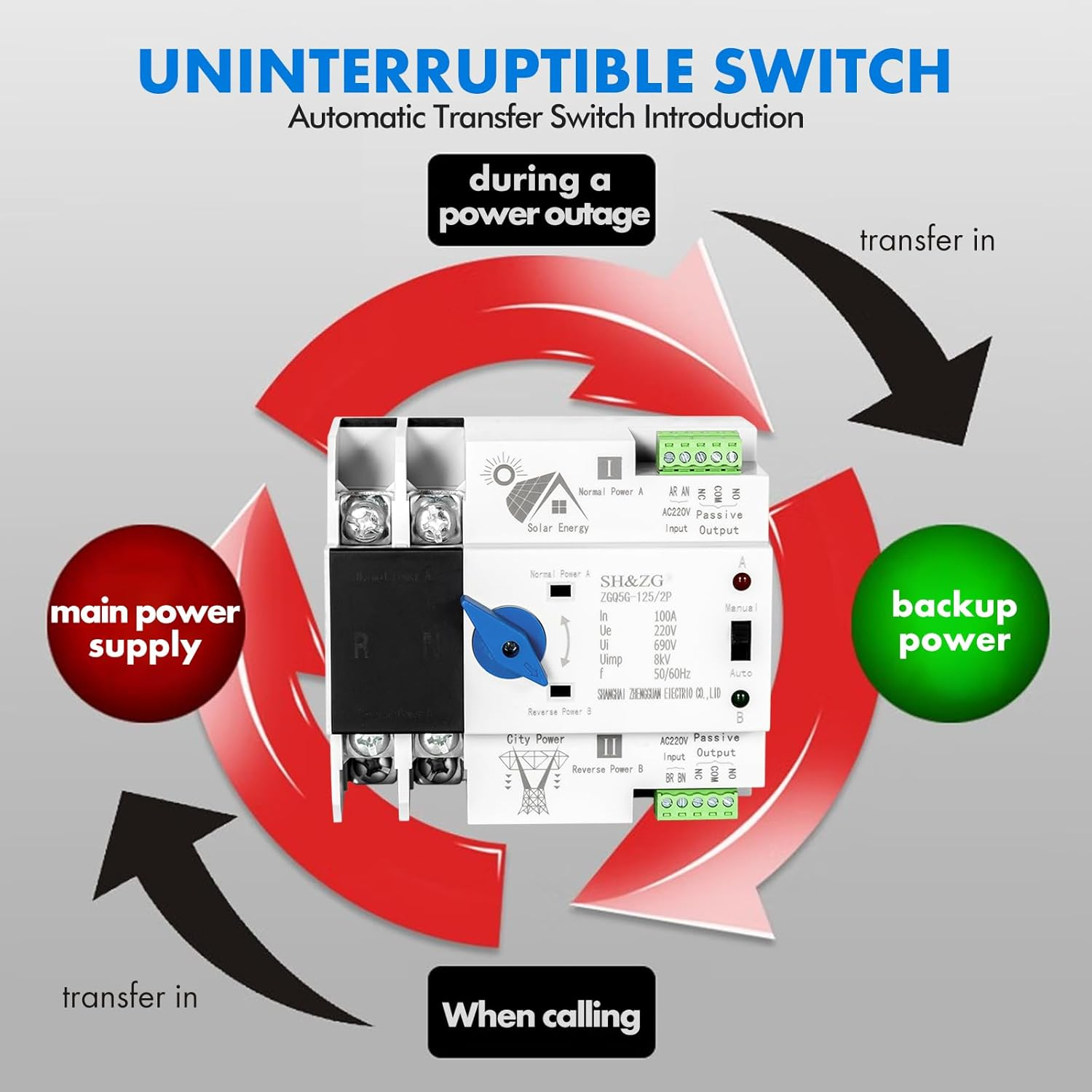

Uninterruptible switch

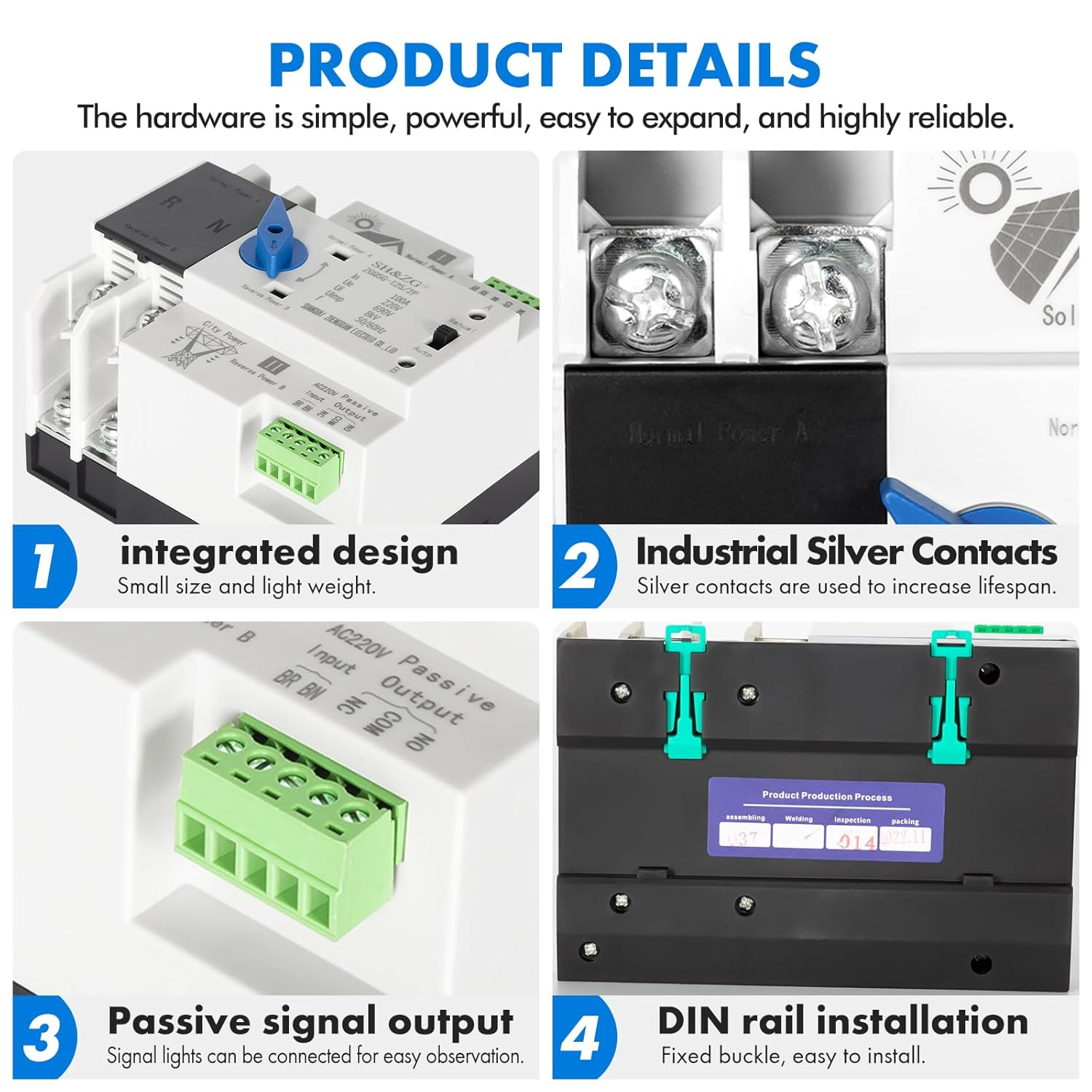

Features
- Integrated design: small size and light weight
- Industrial silver contacts: Using silver contacts can extend the service life.
- Passive signal output: signal lights can be connected for easy observation.
- DIN rail installation: fixed buckle for easy installation.
Widely Used
• Whether it is a remote rural area or a high-rise building in the city, as long as there is a photovoltaic power supply system, the system can play its role.
• It can meet daily electricity needs and provide a stable power supply for commercial places, industrial facilities, etc.
| Material | PC plastic + copper |
| Levels | 2P |
| Main power support | Photovoltaic power supply |
| Backup power support | Mains/generator/UPS |
| ATS level | PC level |
| Working voltage | AC220V |
| Rated current | 6A-100A |
| Working frequency | 50Hz/60Hz |
| Insulation voltage | AC690V |
| Conversion time | within 0.05s |
| Operation mode | Manual/automatic |
| Display function | Light indicator |
| Installation method | 35mm rail |
| Packing List | 1 * Dual power automatic transfer switch, 1 * Instruction manual |
- Item Model Number: MOR01-NBQ-HOME-FBA
- Product dimensions: 10.7 x 9.5 x 5.7 cm; 600 Grams
- Country of origin: China
- Manufacturer: Inncen
