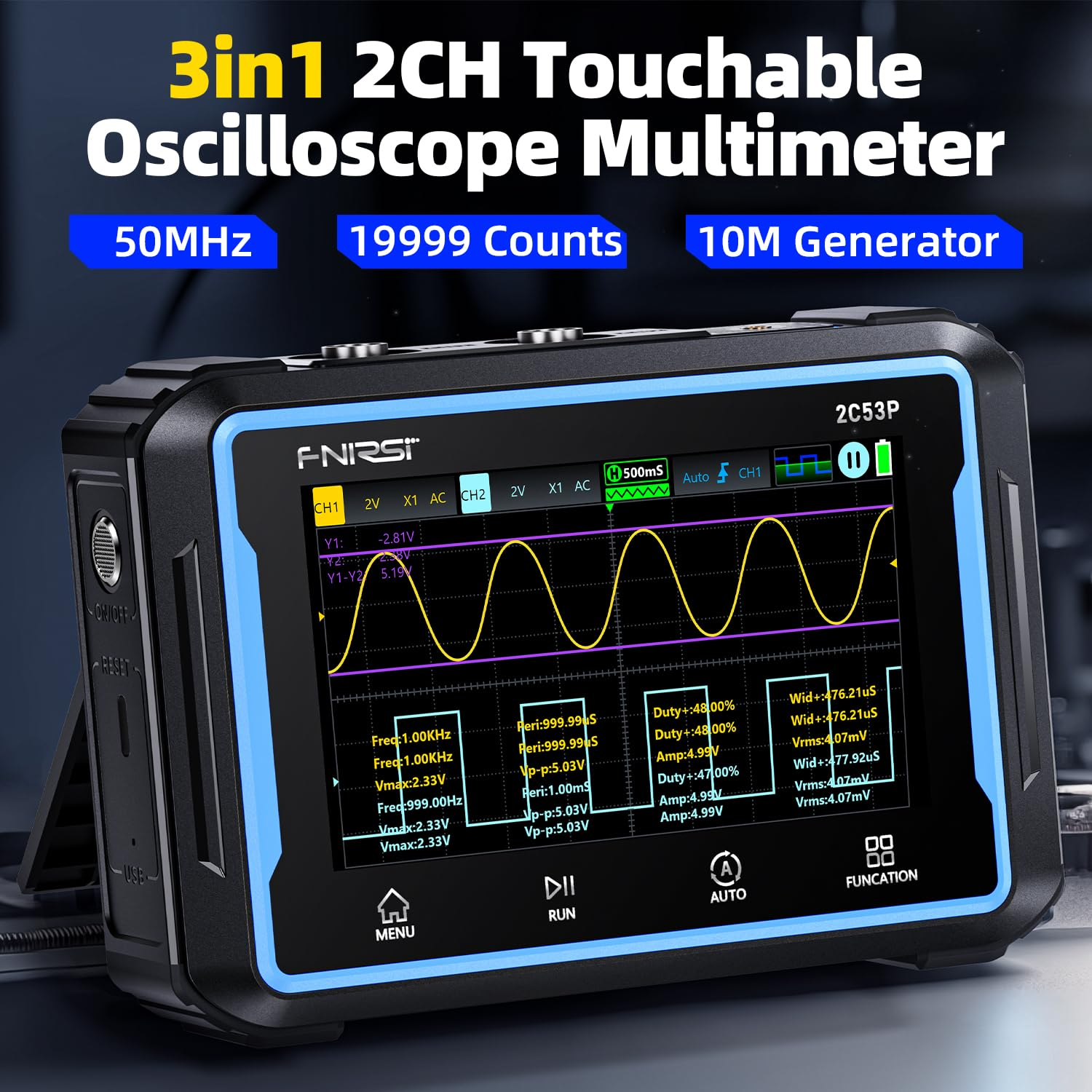

Main purpose:

A digital oscilloscope is an electronic measuring instrument used to observe and analyze the waveforms and characteristics of electrical signals.

Specifications:

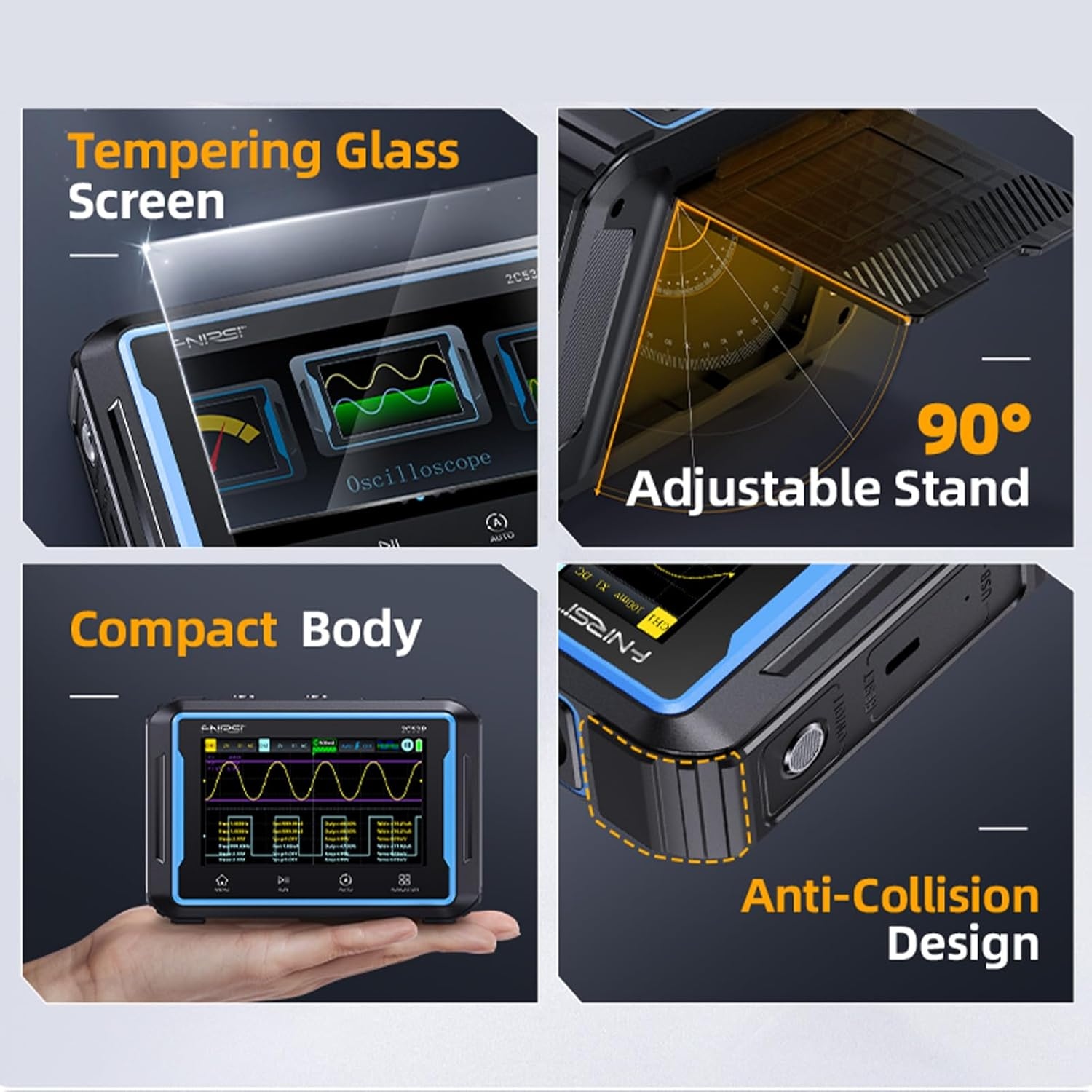

Material: ABS + tempered glass

Power supply: TYPE-C (5V/2A)

Battery: 4000mAh lithium battery

Language: Chinese, English, Spanish, Portuguese, German, Russian, Japanese, Korean

Product size: 145*98*35mm

Bare metal weight: about 360g

Oscilloscope parameters:

Channel: Dual channel

Bandwidth: 50MHz

Real-time sampling rate: 250 MSa/s

Storage depth: up to 64 kByte

Time base range: 10ns/div-10s/div

Vertical sensitivity: 10mv/div-10v/div

Waveform display mode: YT/XY/Scroll

Vertical resolution: 8 bits

Input impedance: 1MΩ

Bandwidth limit: support 20MHz limit

Probe attenuation coefficient: 1x/10x

Input coupling: AC/DC

Trigger type: rising edge/falling edge

Peak voltage: ±400V

Trigger level range: 8 grids (positive and negative)

Trigger mode: automatic/normal/single

Storage space: 13M

Measurement data: period, frequency, peak value, maximum value, minimum value, average value, effective value, amplitude, duty cycle, pulse width

Signal generator parameters:

Different waveform output frequency: sine wave: 10MHz, other waveforms 5MHz

Waveform frequency: 0-10MHz

Waveform amplitude: 0.1V-3.0V

Square wave duty cycle: 0-100%

Notes:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.

Please allow 1-3cm measuring deviation due to manual measurement. Thank you for your understanding!

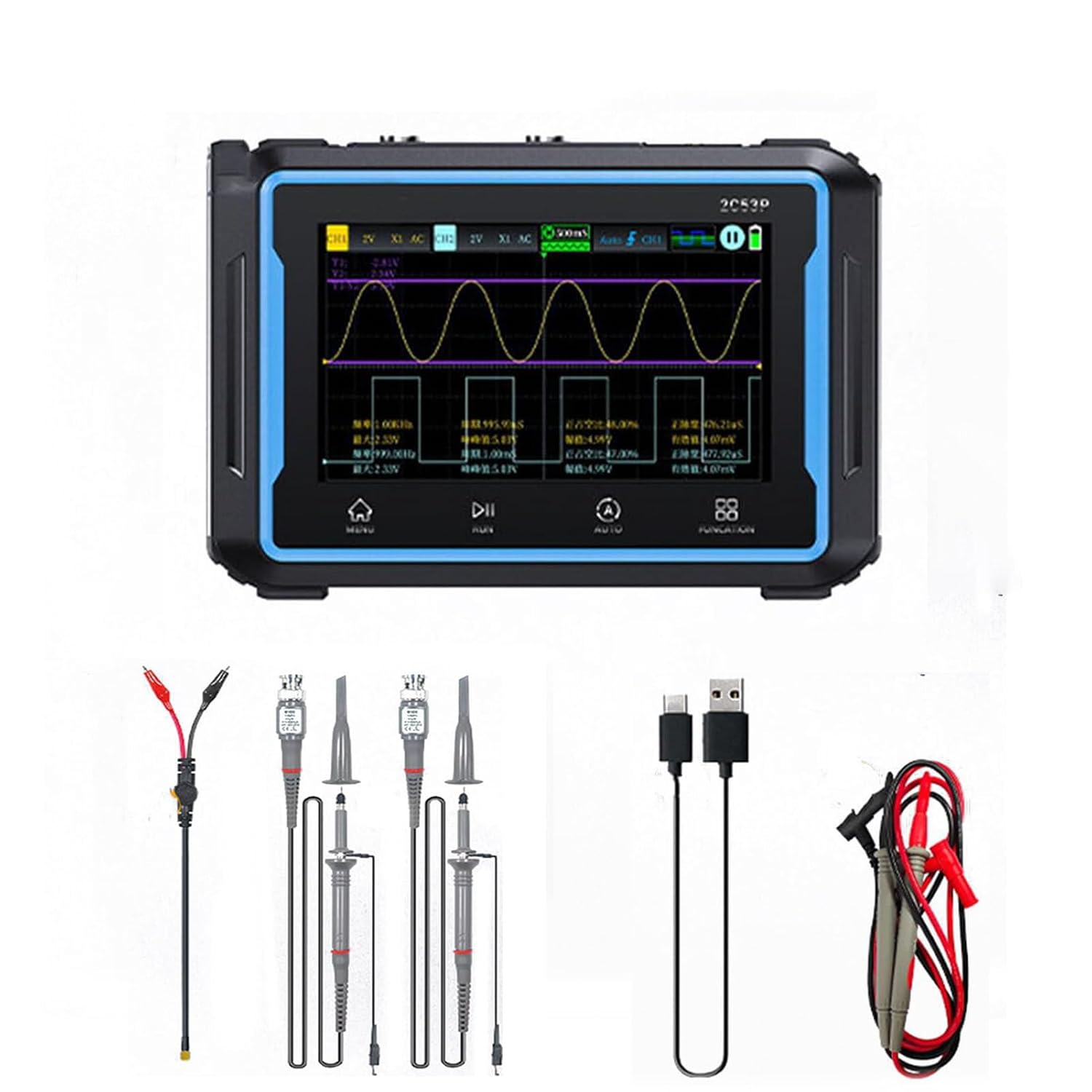

Packing List:

1*Digital oscilloscope

1*Crocodile clip probe

2*P6100

1*Data cable

1*Multimeter pen

1*Instruction manual (Chinese + English)
