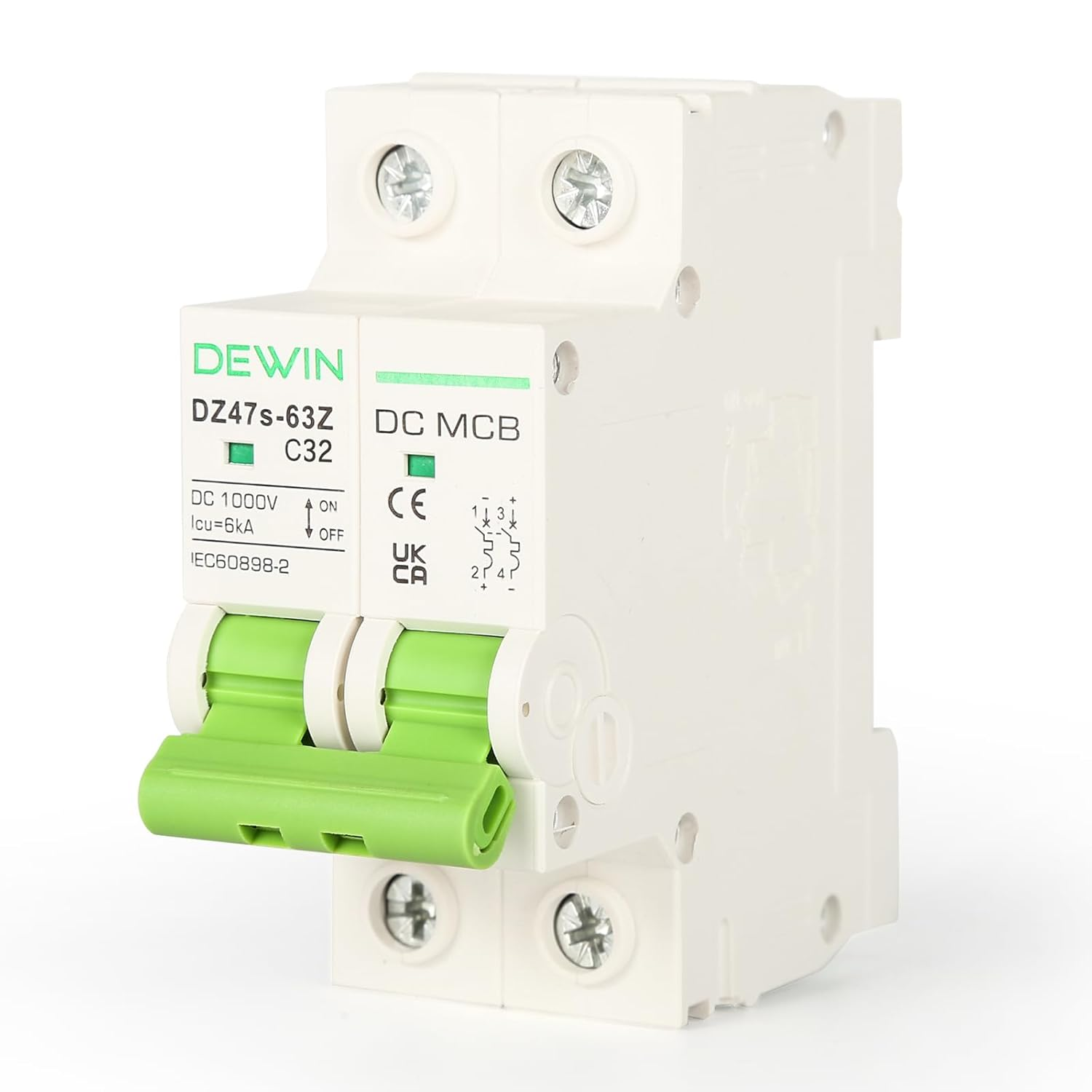

Victool DC Miniature Circuit Breaker, DC Circuit Isolator, Low Voltage Miniature Circuit Breaker DIN Rail Mount 2P 32A DC1000V

Victool DC Miniature Circuit Breaker, DC Circuit Isolator, Low Voltage Miniature Circuit Breaker DIN Rail Mount 2P 32A DC1000V

Brand: Victool
4.0
A$139.80
Availability:
  • This item is currently not available

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • DC Miniature Circuit Breaker: Used for overload protection and short circuit protection of DC circuits or equipment, and for lines that do not require frequent switching.

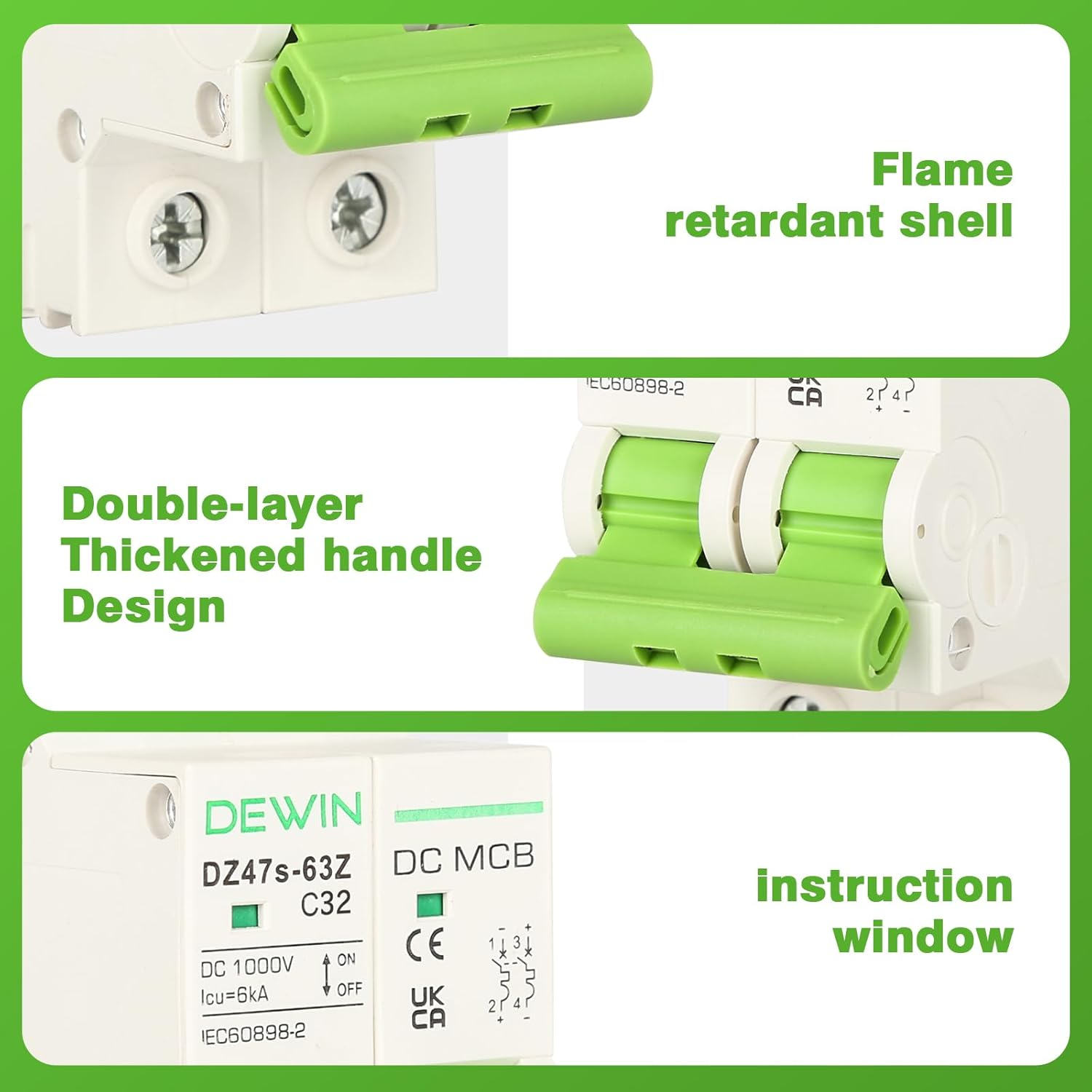

  • Easy to Operate: The double-layer thickened grip design not only improves the service life, but also increases the fullness and operating comfort.
  • Good-quality Materials: Made of PC high-performance flame-retardant and shock-resistant plastics to ensure safe use.
  • Visualization Window: Visual window design, the product status is clear at a glance (green off, red on);
  • Easy to Use: designed with 35mm standard guide rail installation slot, suitable for various distribution boxes; Small size, light weight, reliable performance, high breaking capacity and sensitive action.

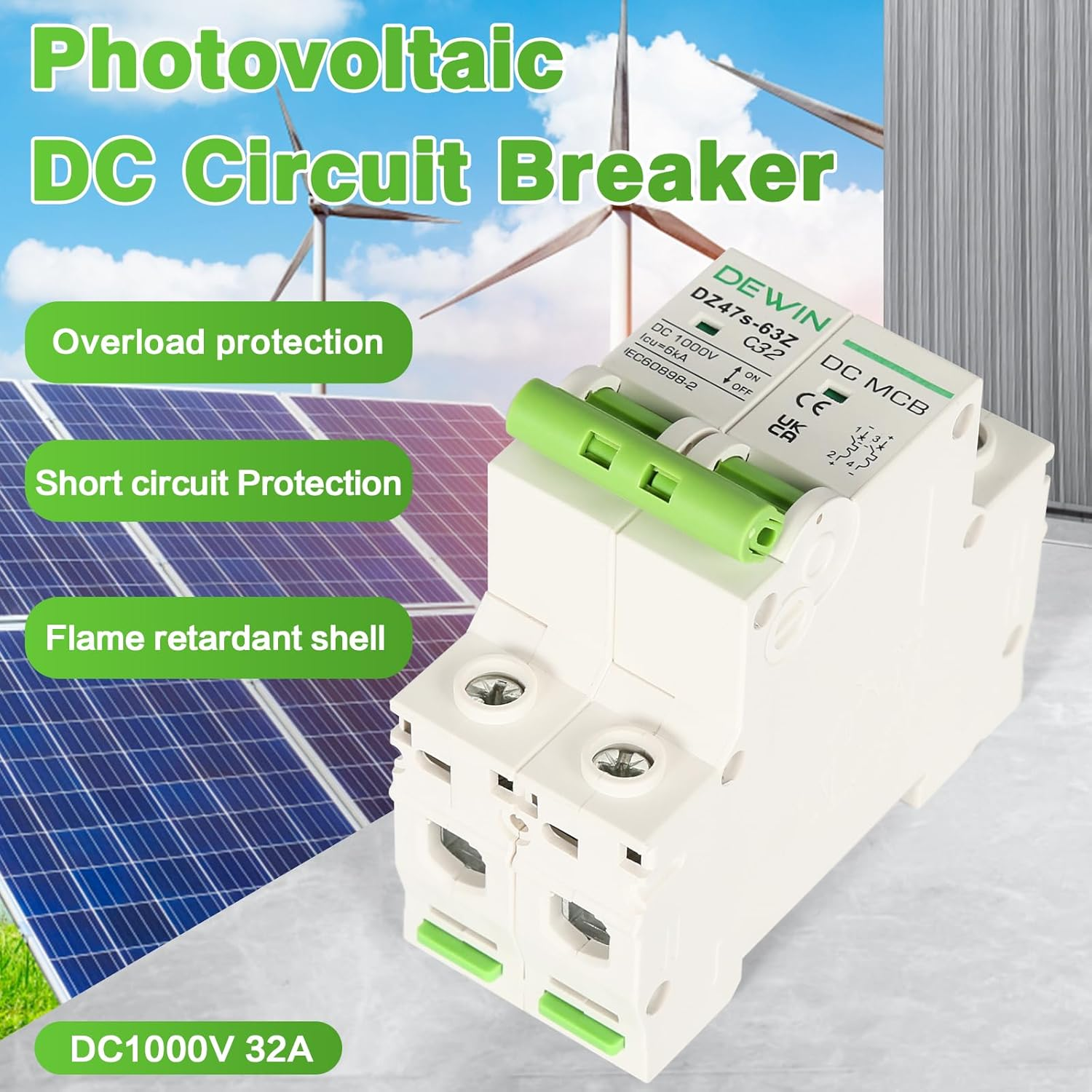

  • Widely Used: Suitable for DC systems such as solar energy, combiner boxes, photovoltaic systems, new energy vehicles, and small power generation systems.

Product Description

2P 32A DC1000V Isolator

  • Breaking capacity: 6 (KA)
  • Number of poles: 2P
  • Tripping type: C-type

Specifications

  • Rated voltage: DC 1000V
  • Rated current: 32A
  • Mechanical life: 20000 times
  • Wiring capacity: 1.5-10mm²
  • Working temperature: -35 degrees -70 degrees

Miniature Circuit Breaker DC Disconnect Switch

  • Its design usually takes into account the characteristics of DC current, such as the continuous and stable current direction and size, so it has higher reliability and durability.
  • When selecting a DC miniature circuit breaker, it is necessary to consider the maximum operating voltage, rated current and expected short-circuit current of the circuit to ensure that the circuit breaker can work correctly and cut off the circuit in time when necessary to protect the equipment.
  • Item Model Number: HKT-DLQ-2P32A
  • Product dimensions: 4 x 8 x 8 cm; 165 Grams
  • Manufacturer: Victool
