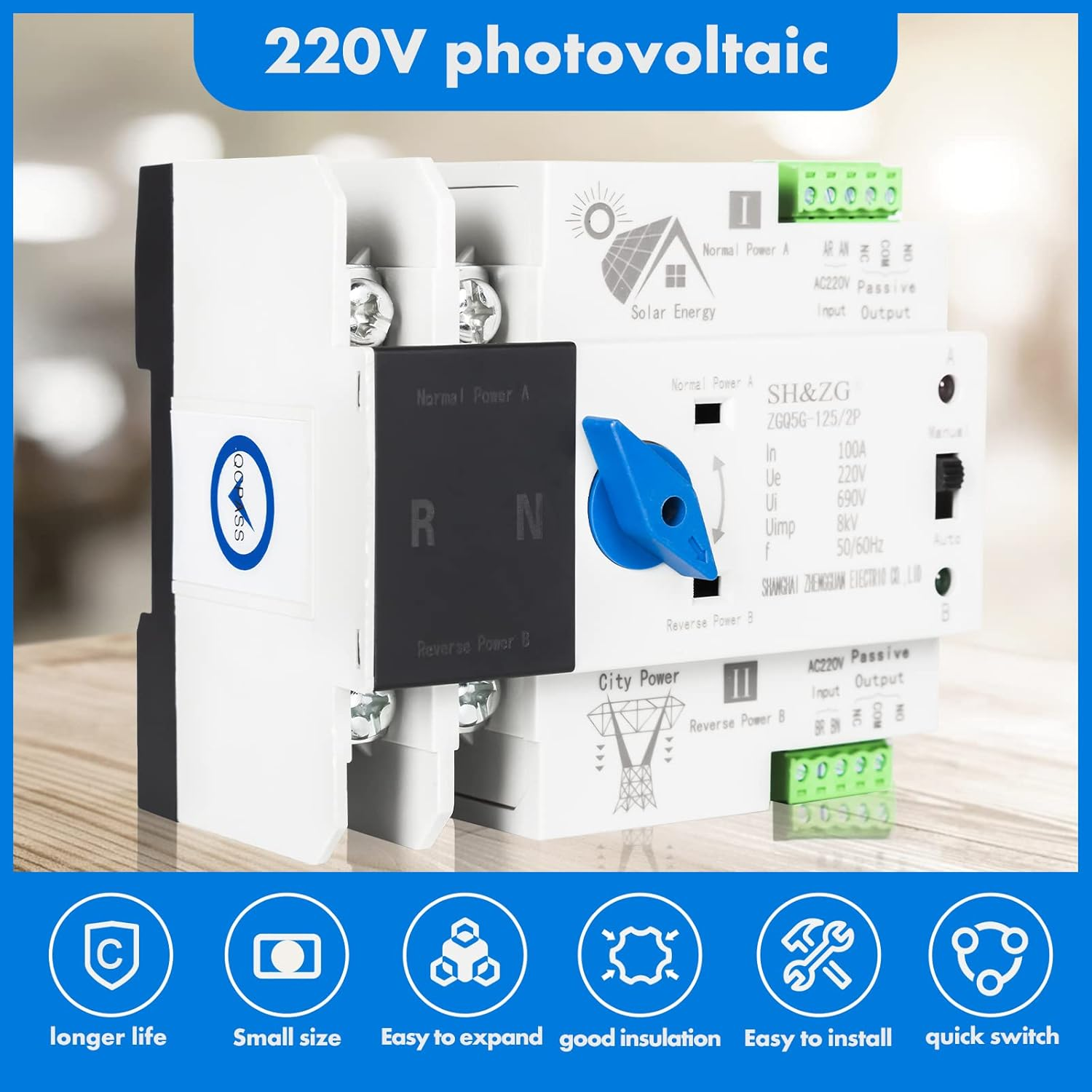

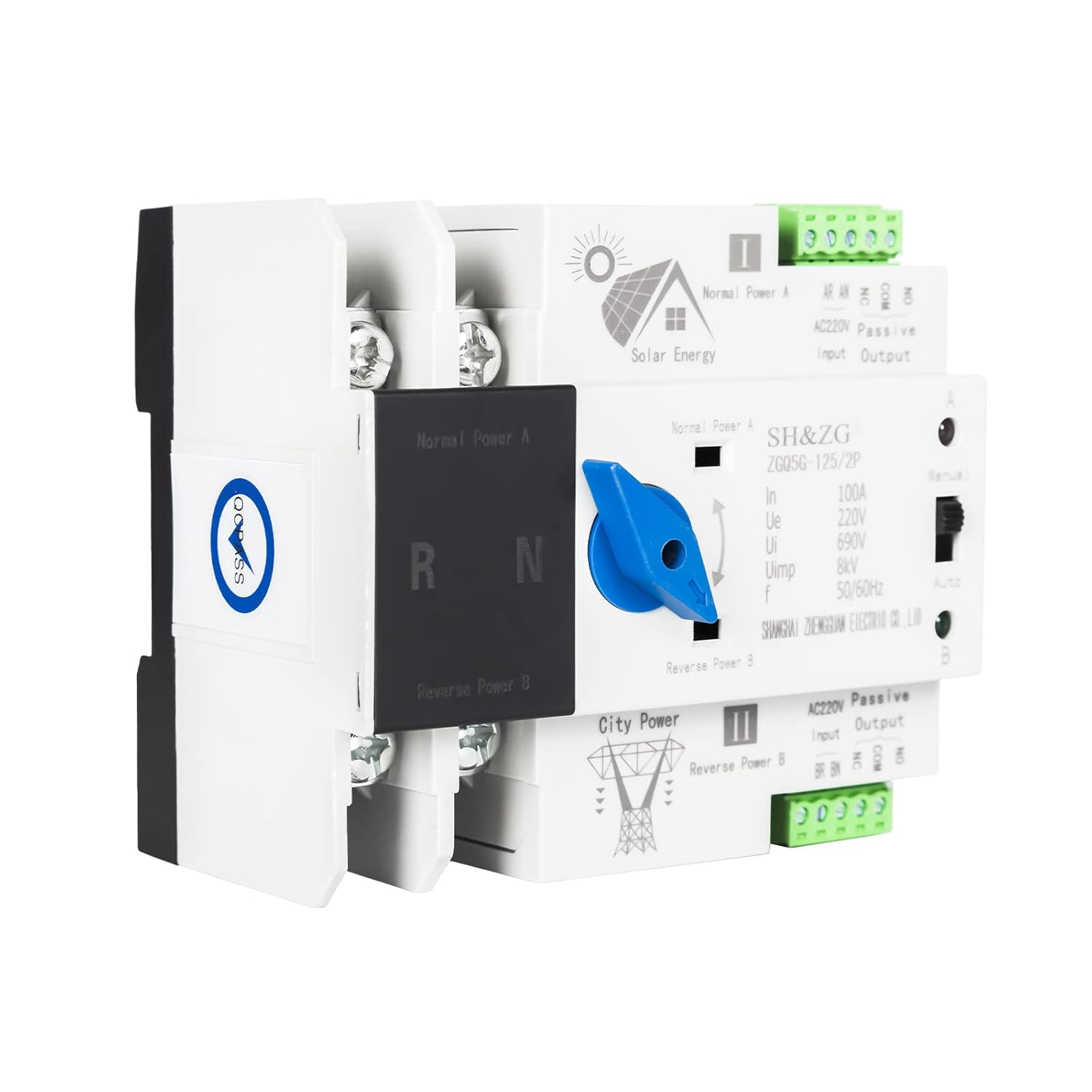

Victool Dual Power Automatic Transfer Switch 2P, AC 220V Photovoltaic Uninterrupted Power Switch, High Sensitive Response Electronic Circuit Breaker Changeover Switch
Victool Dual Power Automatic Transfer Switch 2P, AC 220V Photovoltaic Uninterrupted Power Switch, High Sensitive Response Electronic Circuit Breaker Changeover Switch
Brand: Victool
A$44.55
- Application Areas: This product is a photovoltaic dual power automatic transfer switch, which can be connected to UV, inverter, solar energy, photovoltaic as the main power supply, and mains or generator as a backup. It has passed CE certification and is safe and reliable.
- Installation Size: The dual power transfer switch is installed on a 35mm rail with built-in buckles. Height 76mm, please check the size of the distribution box before purchasing to avoid the distribution box being unable to close normally.
- Fast Switching: The switch response time is ≤0.05(S). When the common power supply is abnormal, the emergency power supply will work immediately to ensure the continuity, reliability and safety of power supply.
- Technical Parameters: Cable cross-sectional area 6-16mm²; current 100A; voltage 220V AC; insulation voltage 690V AC; frequency 50/60Hz; impulse withstand voltage 8kV; life electrical 2000 times, mechanical 5000 times.
- Flame Retardant Material: flame retardant plastic is selected, with good insulation, high temperature aging resistance, safe and reliable; silver contacts improve conductivity and life.
- Widely Applicable: photovoltaic power supply areas, such as homes, pastoral areas, islands, factories, office buildings, etc.
Product Description
Self-contained Buckle
Switching response time≤0.05
Note：
Please pay attention to the size of the distribution box before purchasing
Quality Comparison
- OUR:
Switching speed in milliseconds, small size, can be installed in the guide rail or PZ30 box.
- OTHER:
Switching speed > 150 milliseconds, large size, troublesome installation and transportation, and high cost.
Wiring Diagram
Uninterruptible switch
Installation Demonstration
The overall shape is compact and can be directly installed in the distribution box.
Widely Used
- Whether it is a remote rural area or a high-rise building in the city, as long as there is a photovoltaic power supply system, the system can play its role.
- It can meet daily electricity needs and provide a stable power supply for commercial places, industrial facilities, etc.
- In addition, in some special occasions, such as outdoor adventures, camping and other activities, the system can also become an important source of electricity.

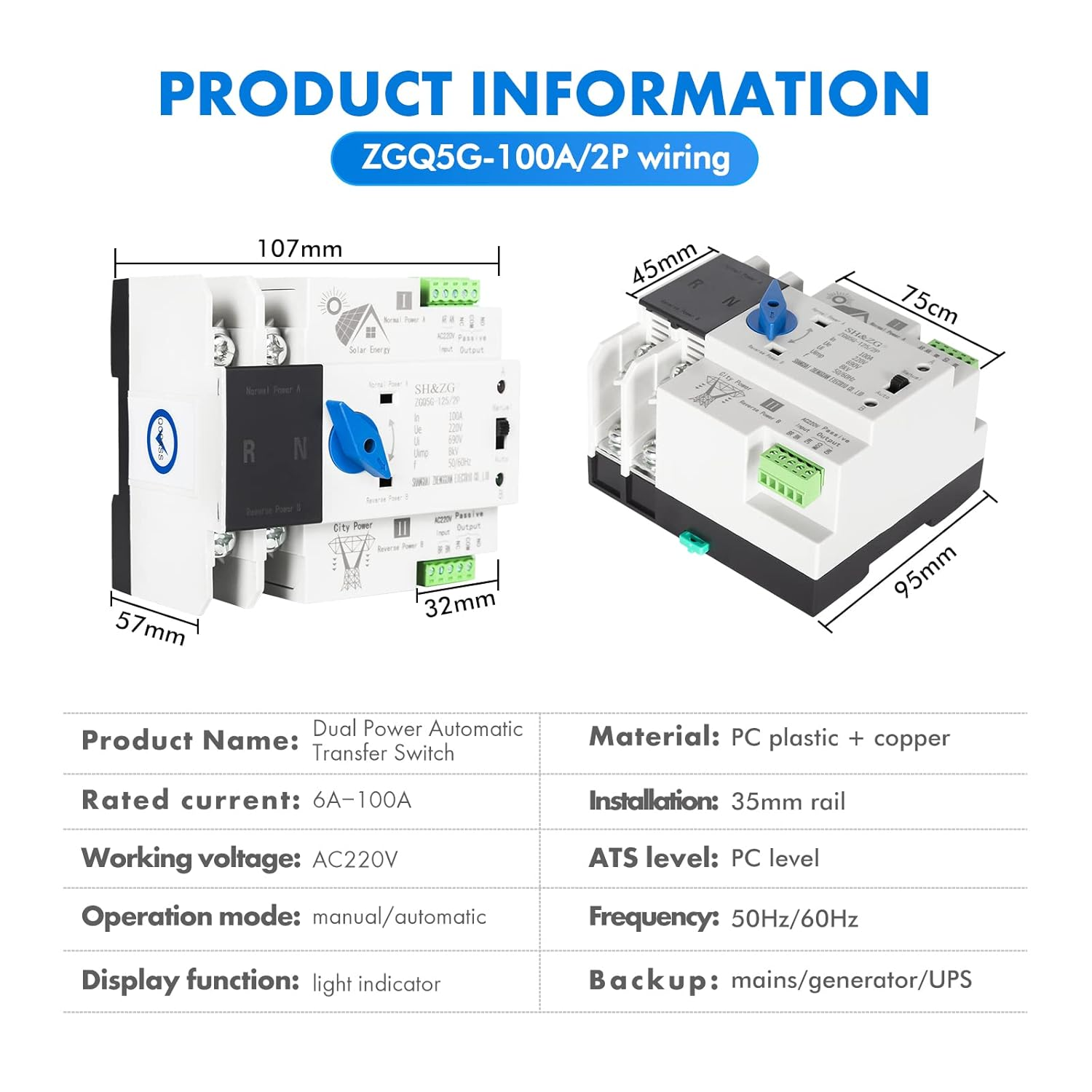

Specifications
| Product name | Dual Power Automatic Transfer Switch |
| Material | PC plastic + copper |
| Levels | 2P |
| Main power support | Photovoltaic power supply |
| Backup power support | Mains/generator/UPS |
| ATS level | PC level |
| Working voltage | AC220V |
| Rated current | 6A-100A |
| Working frequency | 50Hz/60Hz |
| Insulation voltage | AC690V |
| Conversion time | within 0.05s |
| Operation mode | Manual/automatic |
| Display function | Light indicator |
| Installation method | 35mm rail |
| Packing List | 1 * Dual power automatic transfer switch, 1 * Instruction manual |
- Item Model Number: HKT-NBQ-HOME
- Product dimensions: 11 x 9.5 x 6 cm; 600 Grams
- Manufacturer: Victool
