Features:

1. STRONG MAGNET: Bottom magnet design, can be directly connected to the machine, firmly attached to the body.

2. CARBIDE PROBE: The tool probe is made of cemented carbide, with fine processing, hard and wear resistant.

3. GOOD SEALING: With dustproof and waterproof structure, has strong durability in the existence of coolant and iron filings.

4. HIGH EFFICIENCY: Repeated positioning accuracy of 0.001mm, with high accuracy and sensitivity, efficient.

5. FOR CNC DEVICES: The tool setter is normally closed design, with cable, and can be used with most CNC equipments.

Spec:

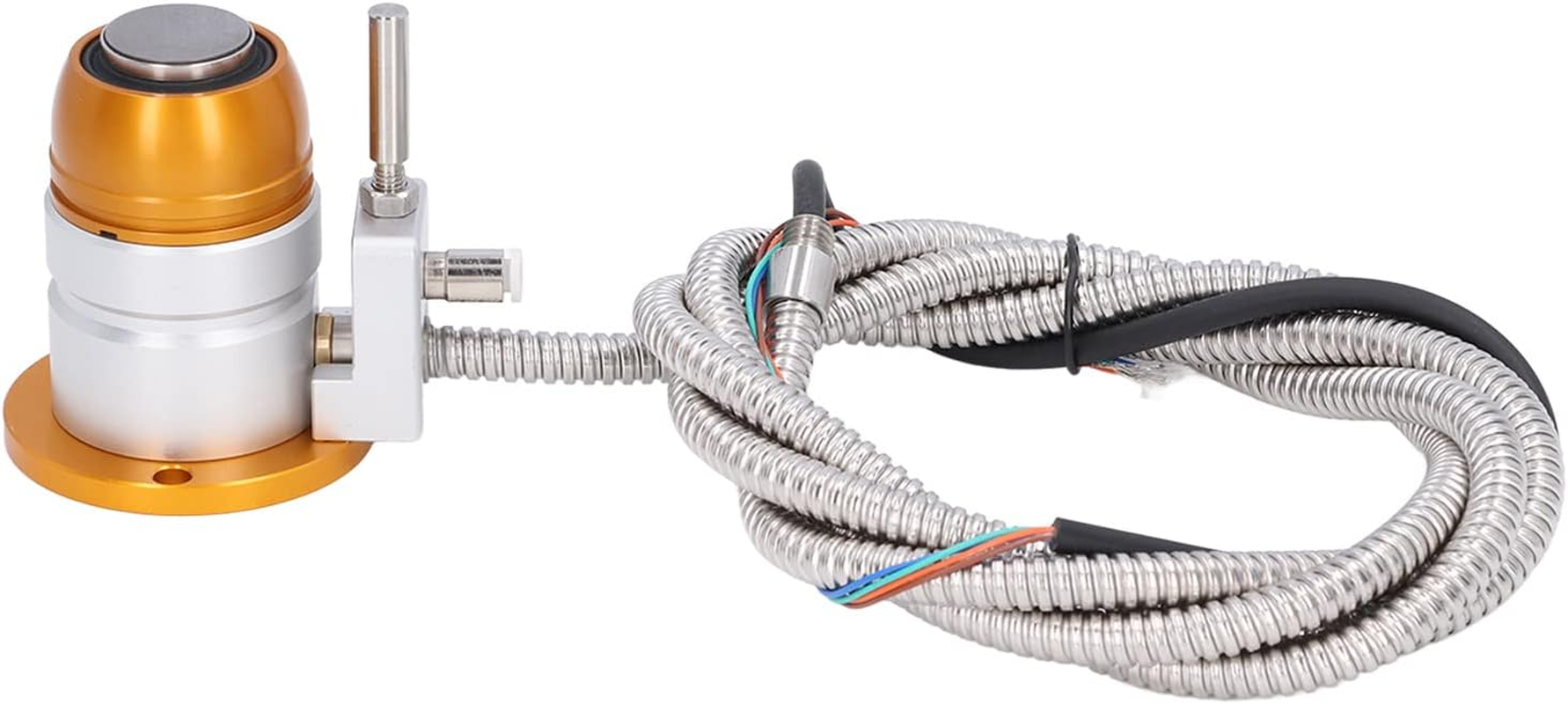

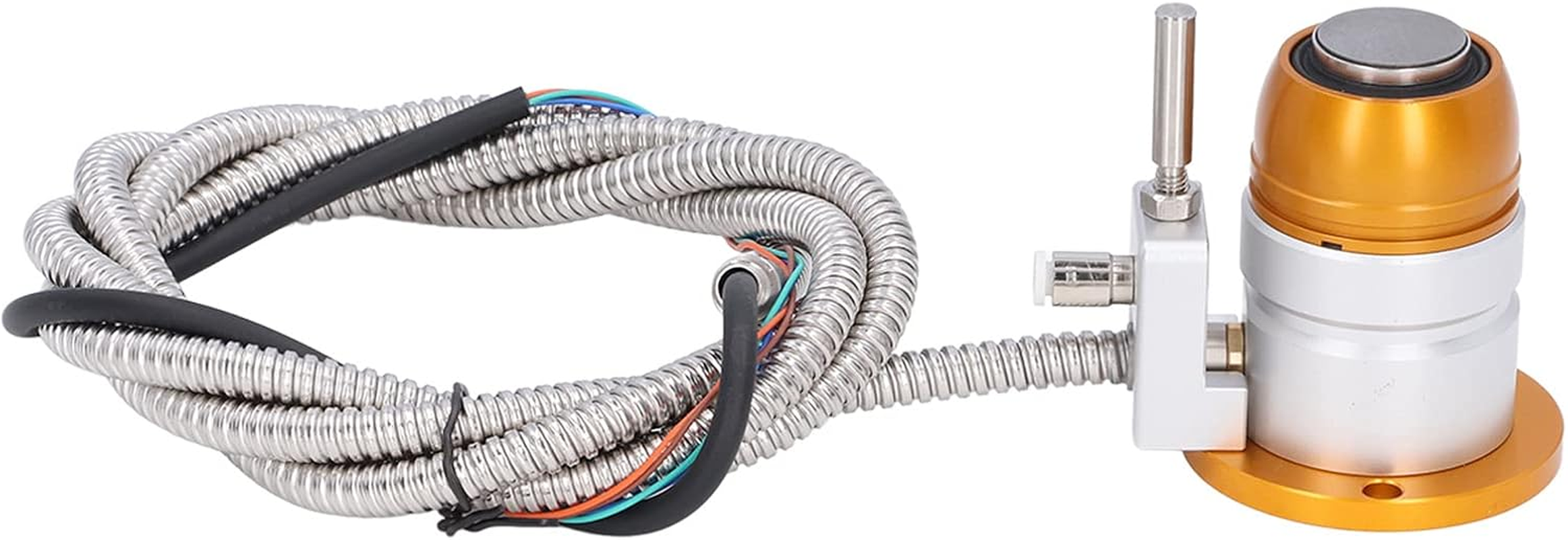

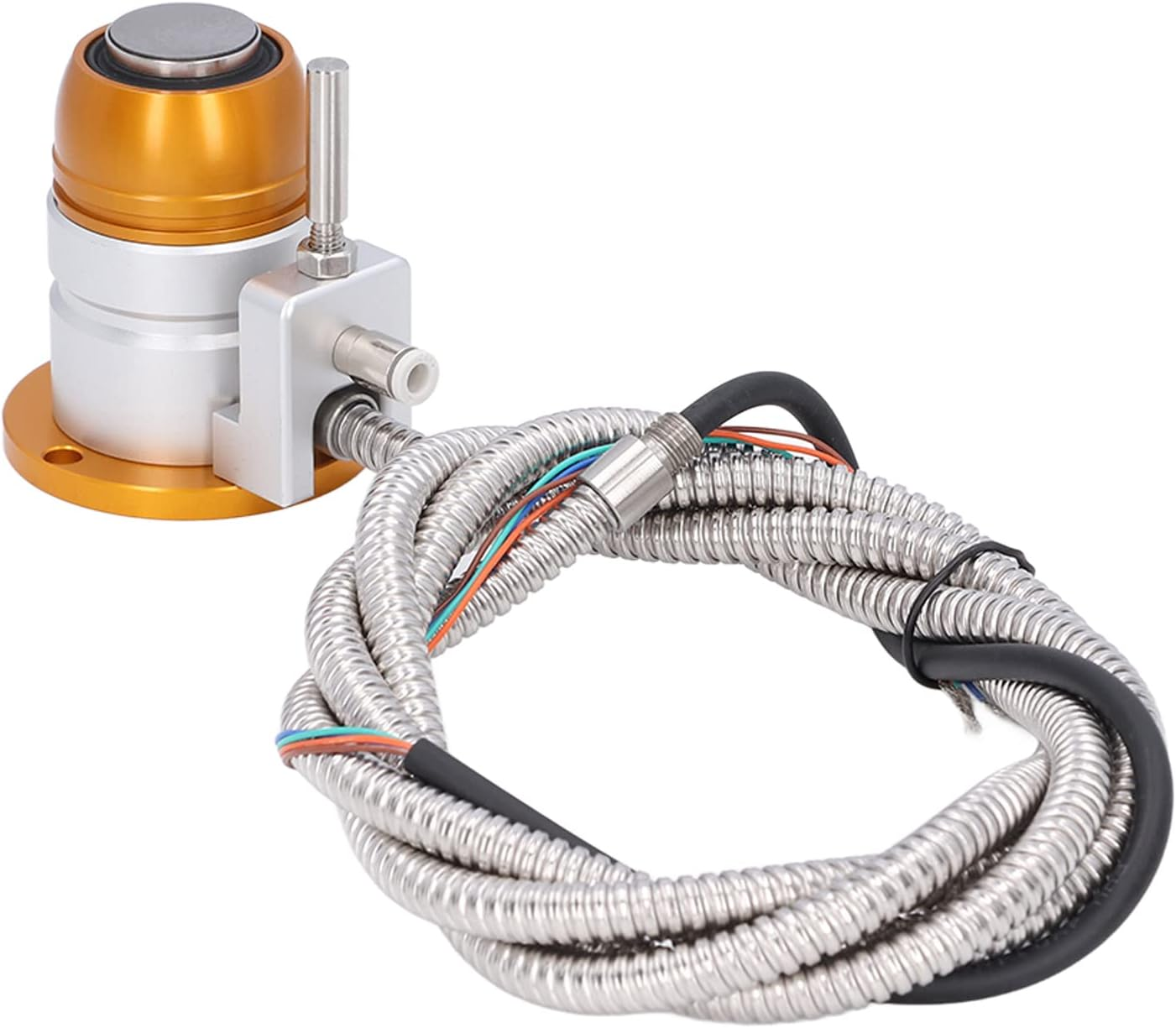

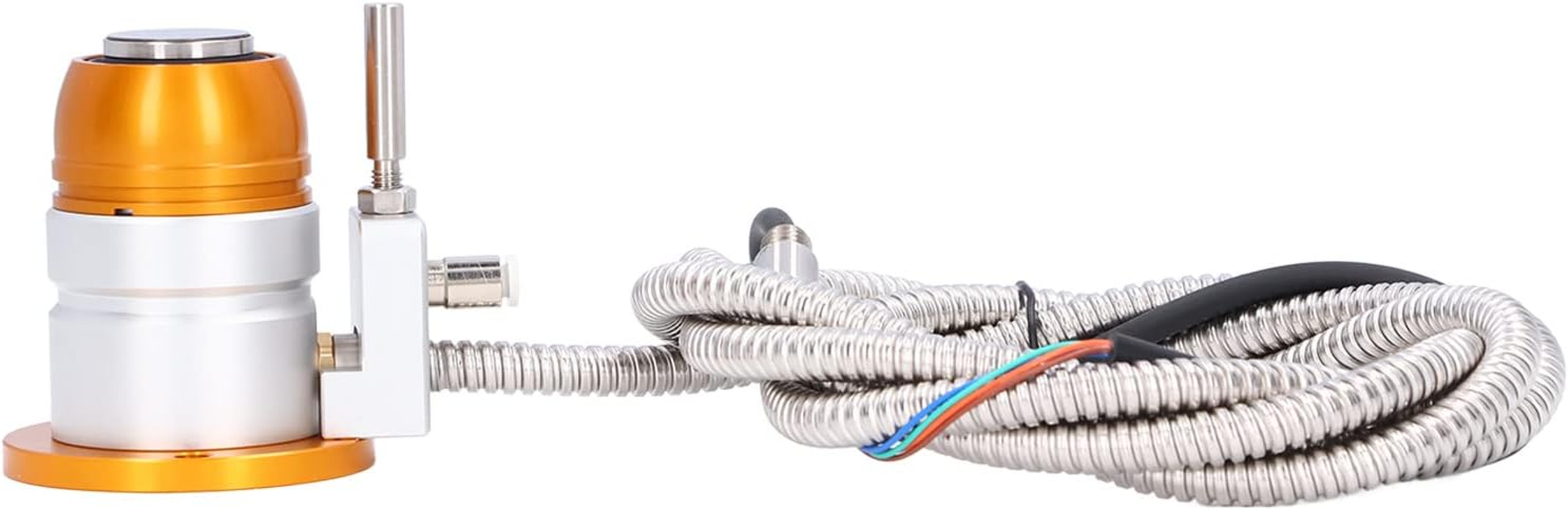

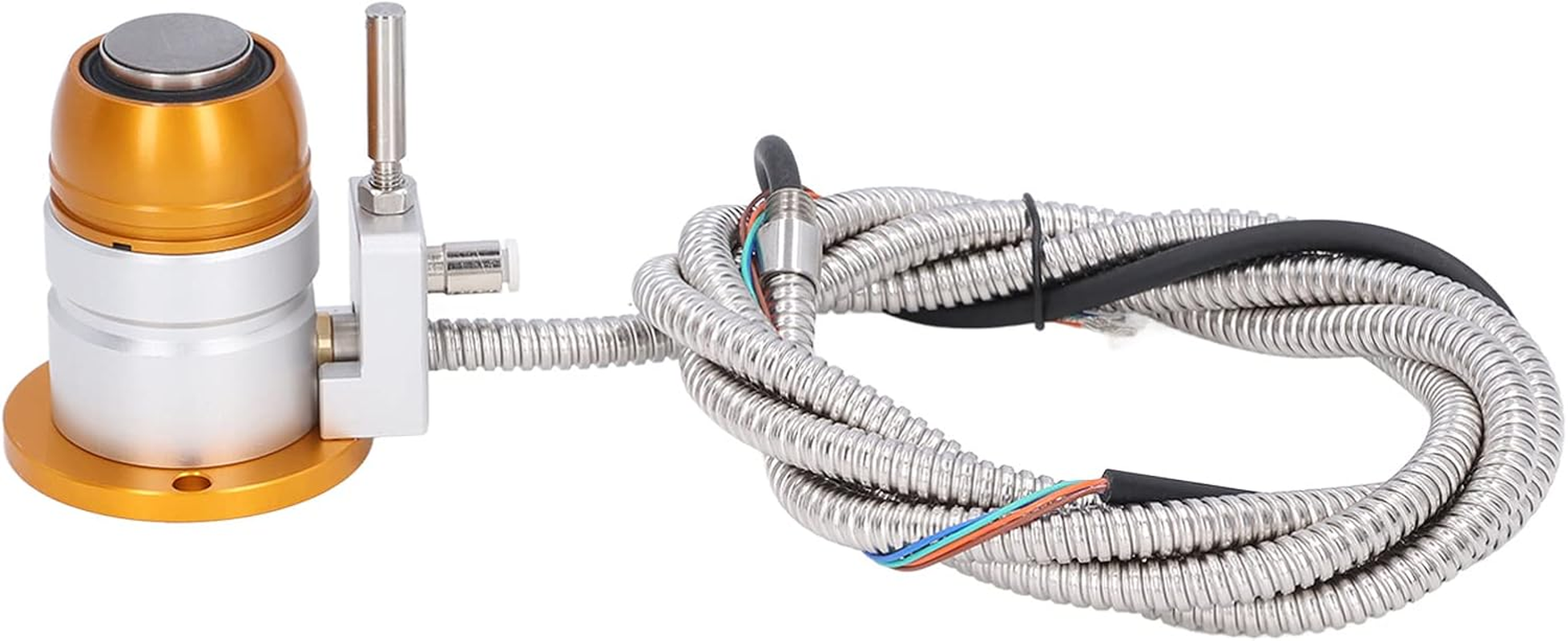

Item Type: Touch Tool Setter

Product Material: Aluminum Alloy

Tool Head Material: Carbide Alloy

Product Model: MY20-20-2

Voltage: DC 24V

Current: 20MA (Maximum)

Output Mode: NC (Normally Closed)

Stroke: Approx. 5mm / 0.2in

Repeat Positioning Accuracy: 0.001mm

Life: 3 million times

Tool Head Diameter: Approx. 20mm / 0.8in

Packing list:

1 * Tool Setter

Note:

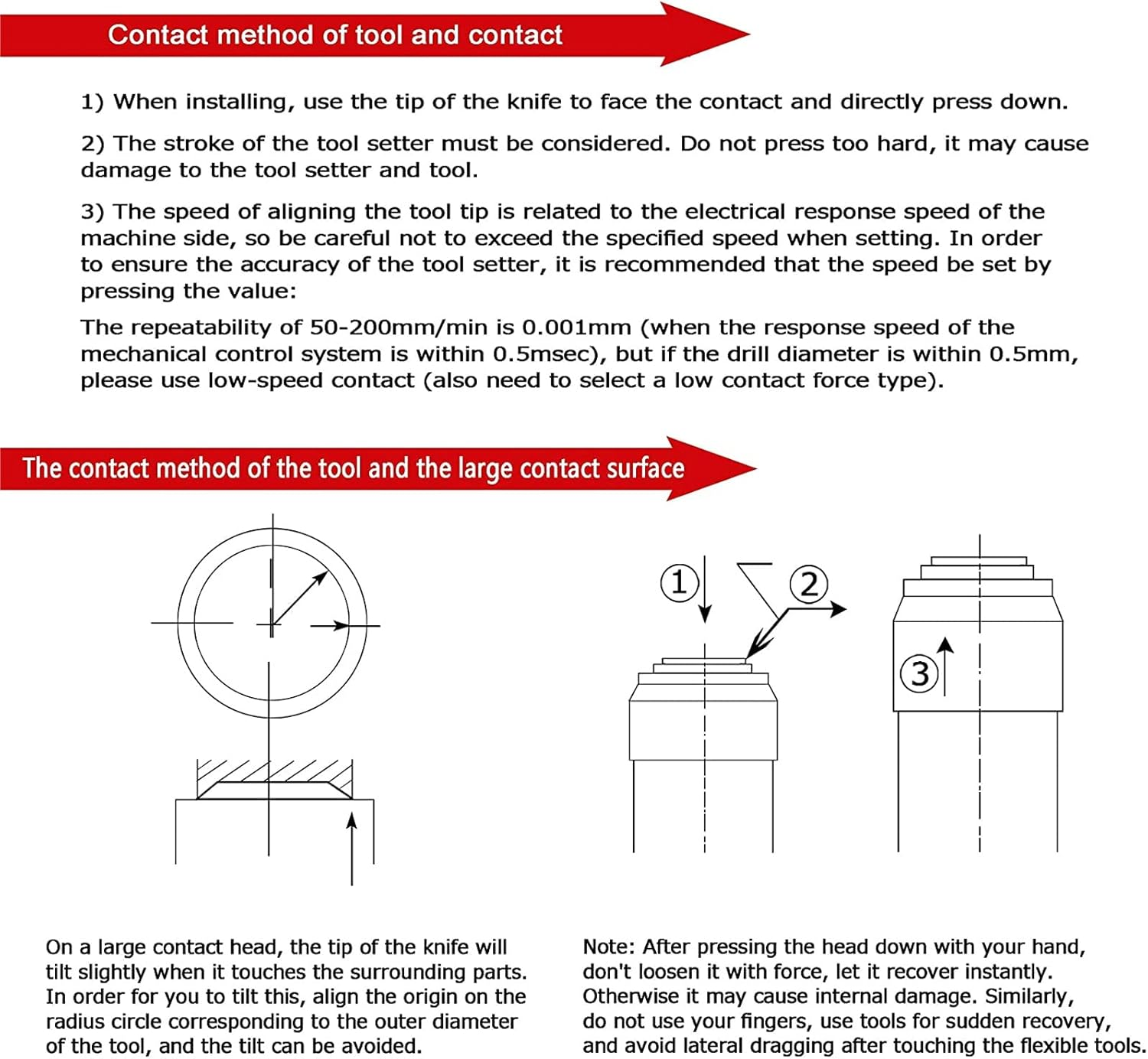

1. Please control the tool setting speed at 50‑200mm/min.

2. Ambient temperature range is 0‑80℃.

3. Please control the voltage at DC24V and the current below 20MA.
