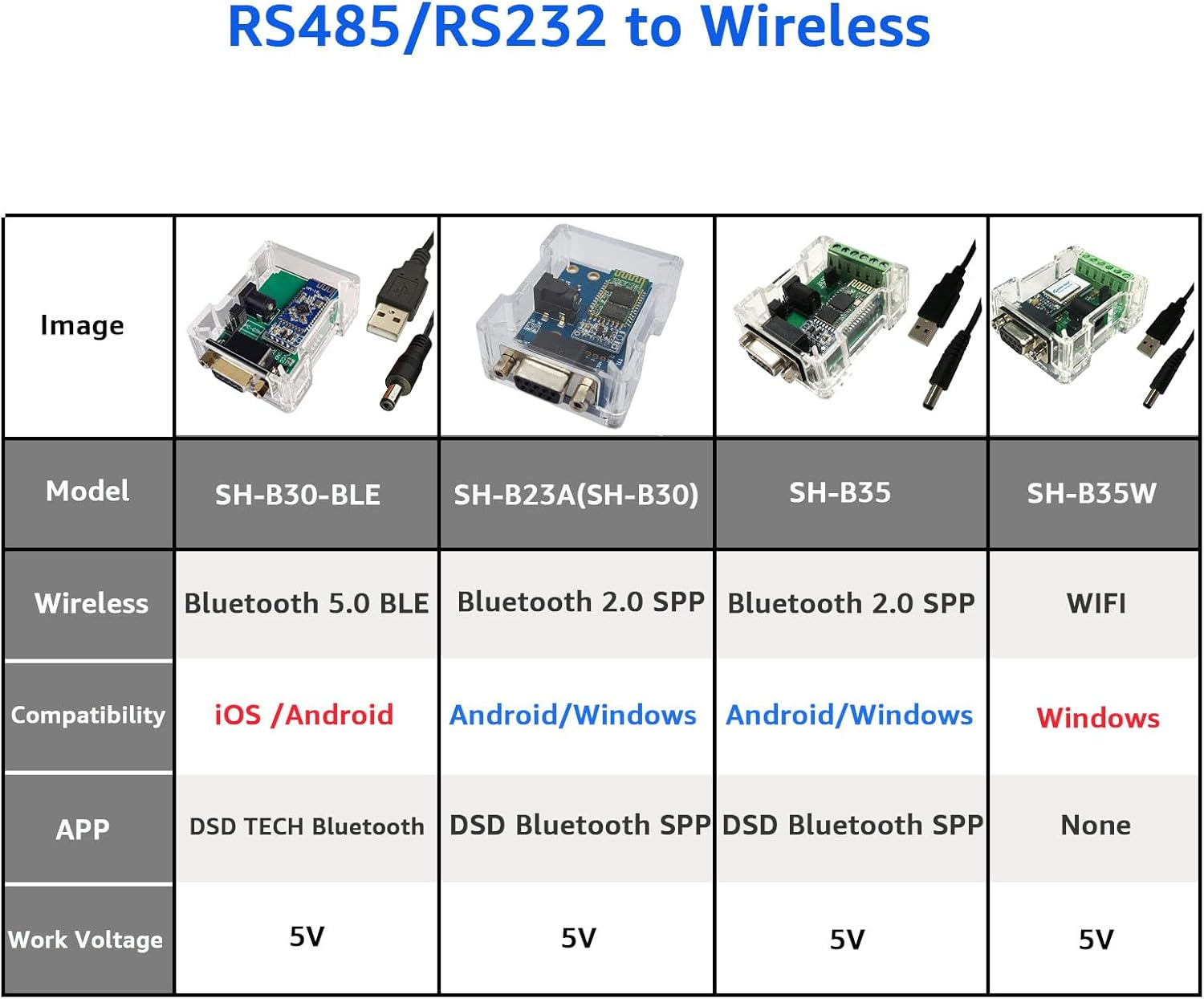

SH-B30-BLE is an RS232 to Bluetooth 5.0 BLE converter. Unlike the SH-B30, the SH-B30-BLE can communicate with iOS devices, but is not compatible with computers or MACs. The SH-B30 has a built-in Bluetooth 2.0 SPP module, which cannot communicate with iOS devices, but has good compatibility with Android devices and computers.
Please note:
This adapter has a built-in Bluetooth 5.0 BLE module, which does not support communication via Bluetooth from a computer. You can download the app "DSD TECH Bluetooth" on your phone to quickly check the feasibility.
Specifications:
Model: SH-B30-BLE
Bluetooth: Bluetooth 5.2 BLE
Default construction setting: 9600, N, 8, 1.
Power consumption: max. 90mA
Bluetooth PIN: NULL
App: DSD TECH Bluetooth.
Distance: more than 10 metres.

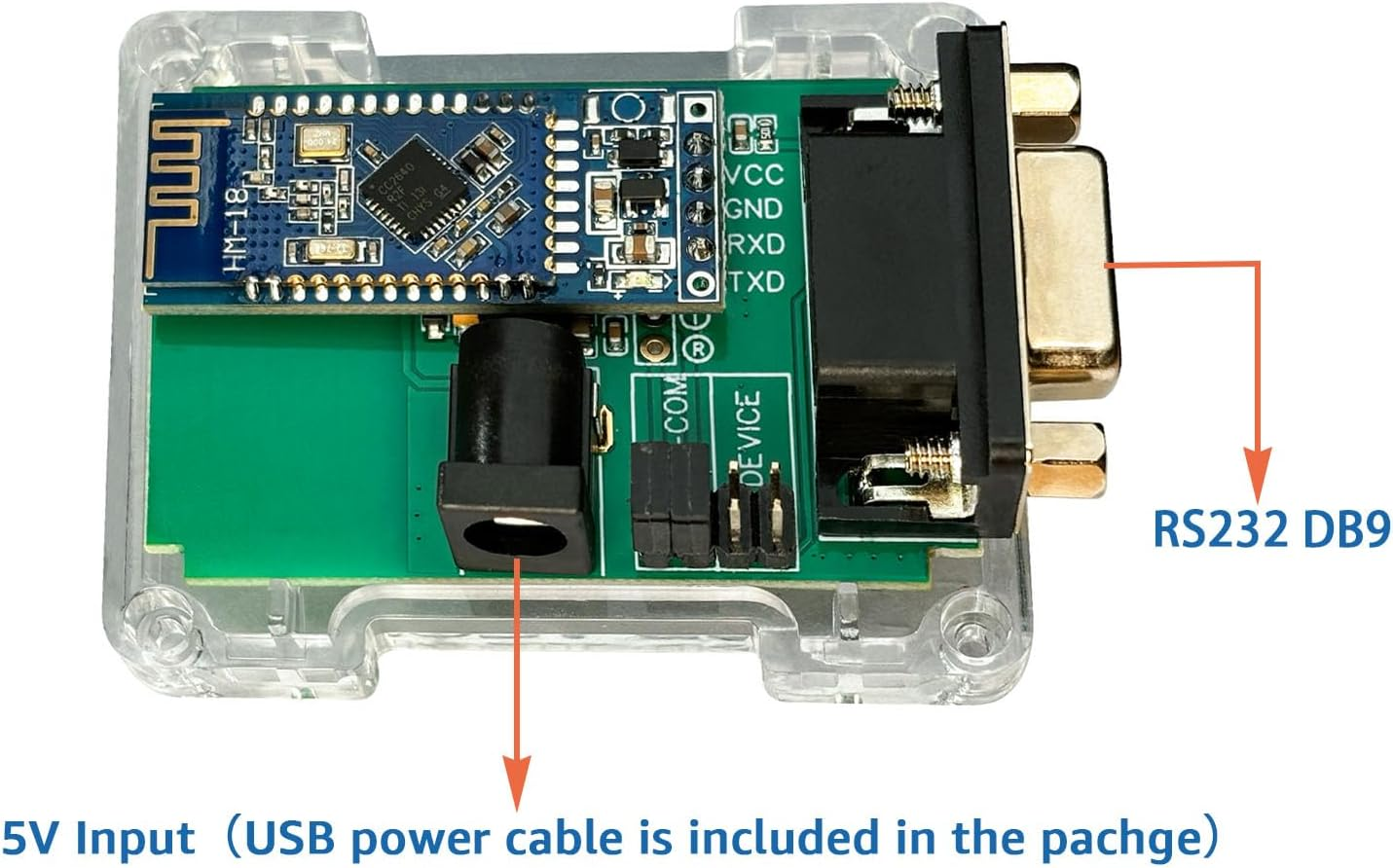

RS232 signals: DB9(RxD, TxD, GND)
Power supply: DC 5V
Operating temperature: -20°C to 85°C.
Support IOS (iPhone/iPad)
Serial port configuration.
Package Content:

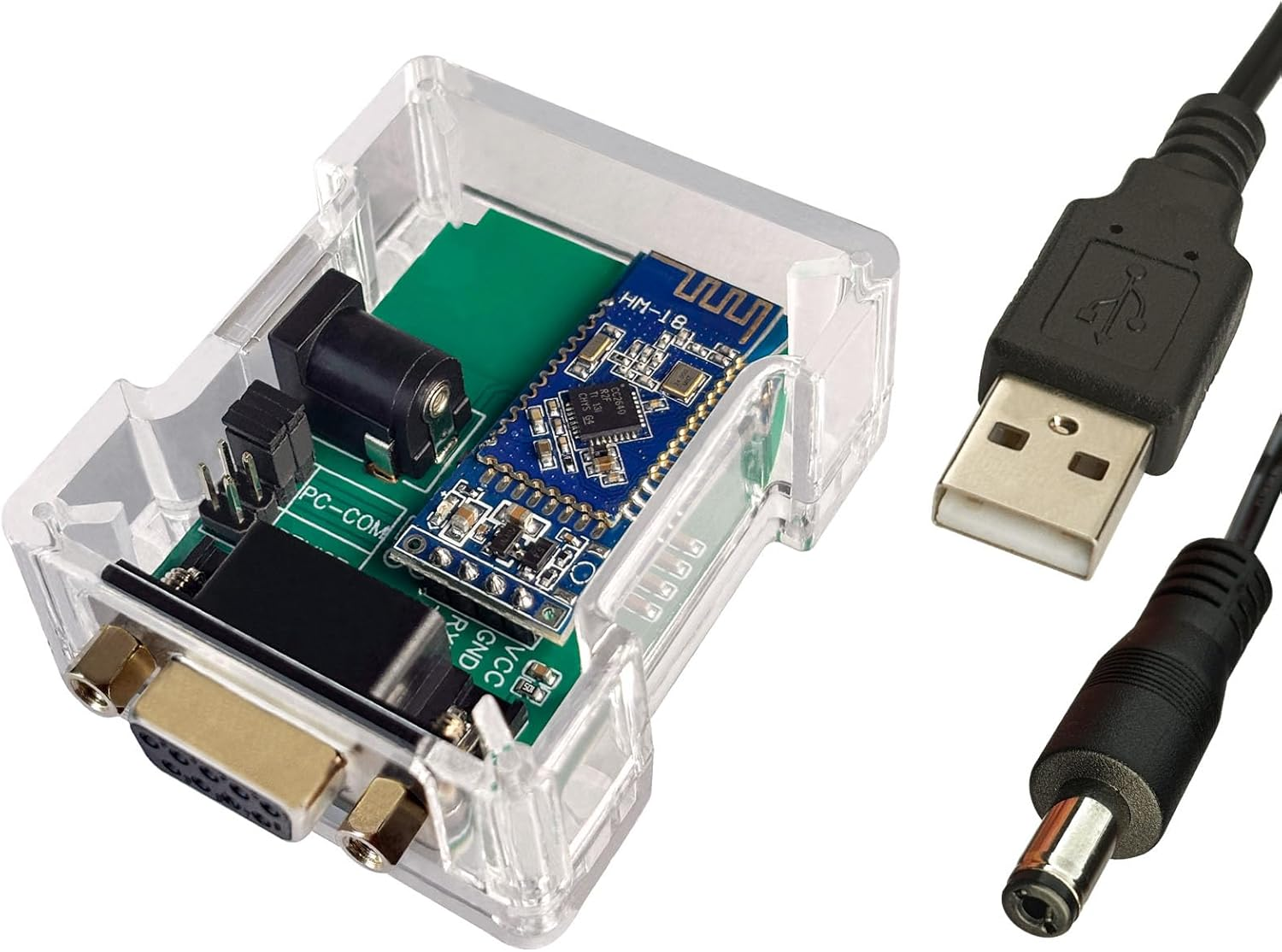

1 x SH-B30-BLE RS232 to Bluetooth 5.0 Converter
1 x USB Power Cable
1 x user manual (may not English language not guaranteed).
Customer support:
DSD TECH provides permanent technical support and 1 year product replacement service for this Bluetooth 5.0 BLE to RS232 adapter. All questions will be answered within 1 business day.
